Toyota Lexus LS460/460L

2006-08 → 2012-09 · chassis USF4# · catalogue 431240 · Europe

Supported model Data version 2012-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

5 part groups · 4 illustrations

Illustrations

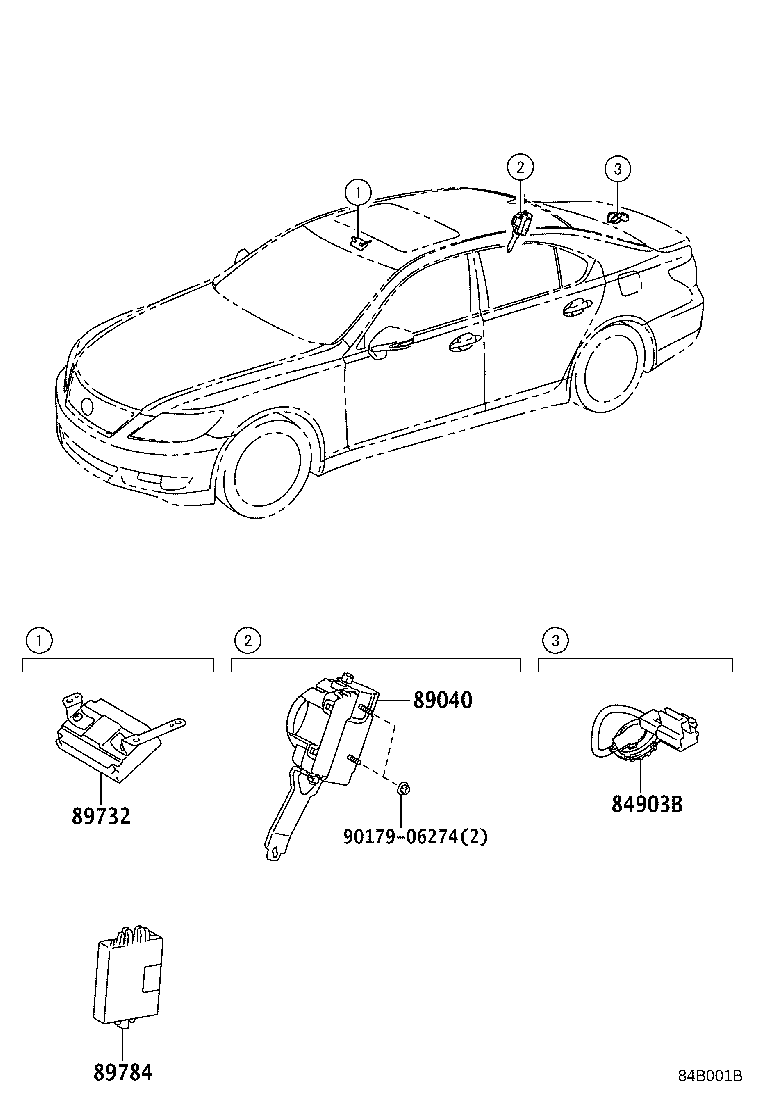

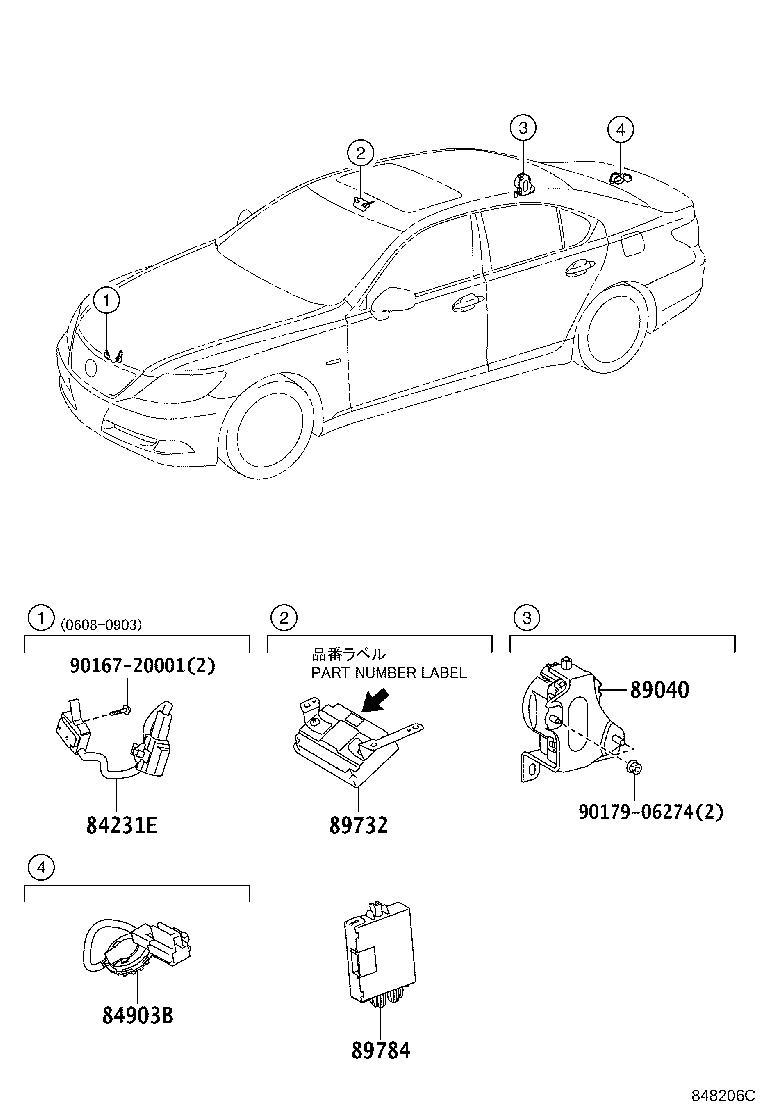

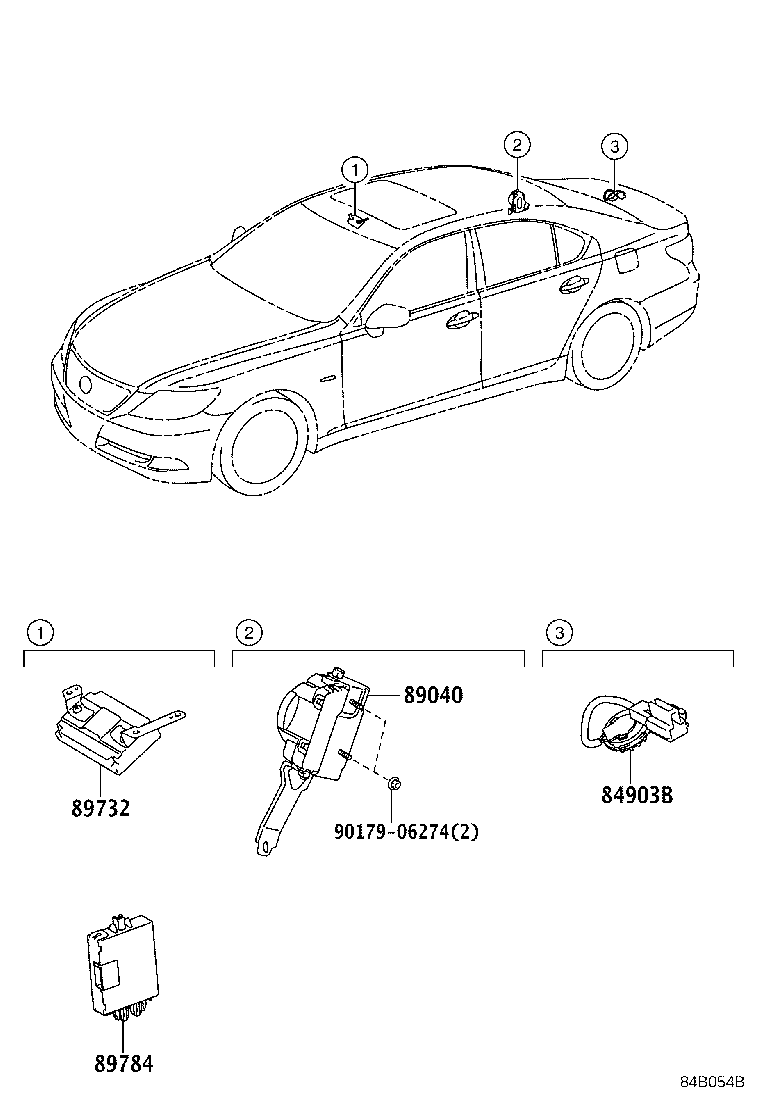

Figure 848197C 848197C 2006-08 → 2009-09 Figure 848206C 848206C 2006-08 → 2009-09 Figure 84B001B 84B001B 2009-09 → — Figure 84B054B 84B054B 2009-09 → —

Part groups

PNCDescription
84231E Switch, Courtesy(FOR SECURITY)
84903B Switch Sub-assy, Door Unlock
89040 Siren Assy, Theft Warning
89732 Sensor, Theft Warning Radar
89784 Computer, Immobilizer Code
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
