Toyota Lexus LS460/460L
2006-08 → 2012-09 · chassis USF4# · catalogue 431240 · Europe
Supported model
Data version 2012-10
Speaker

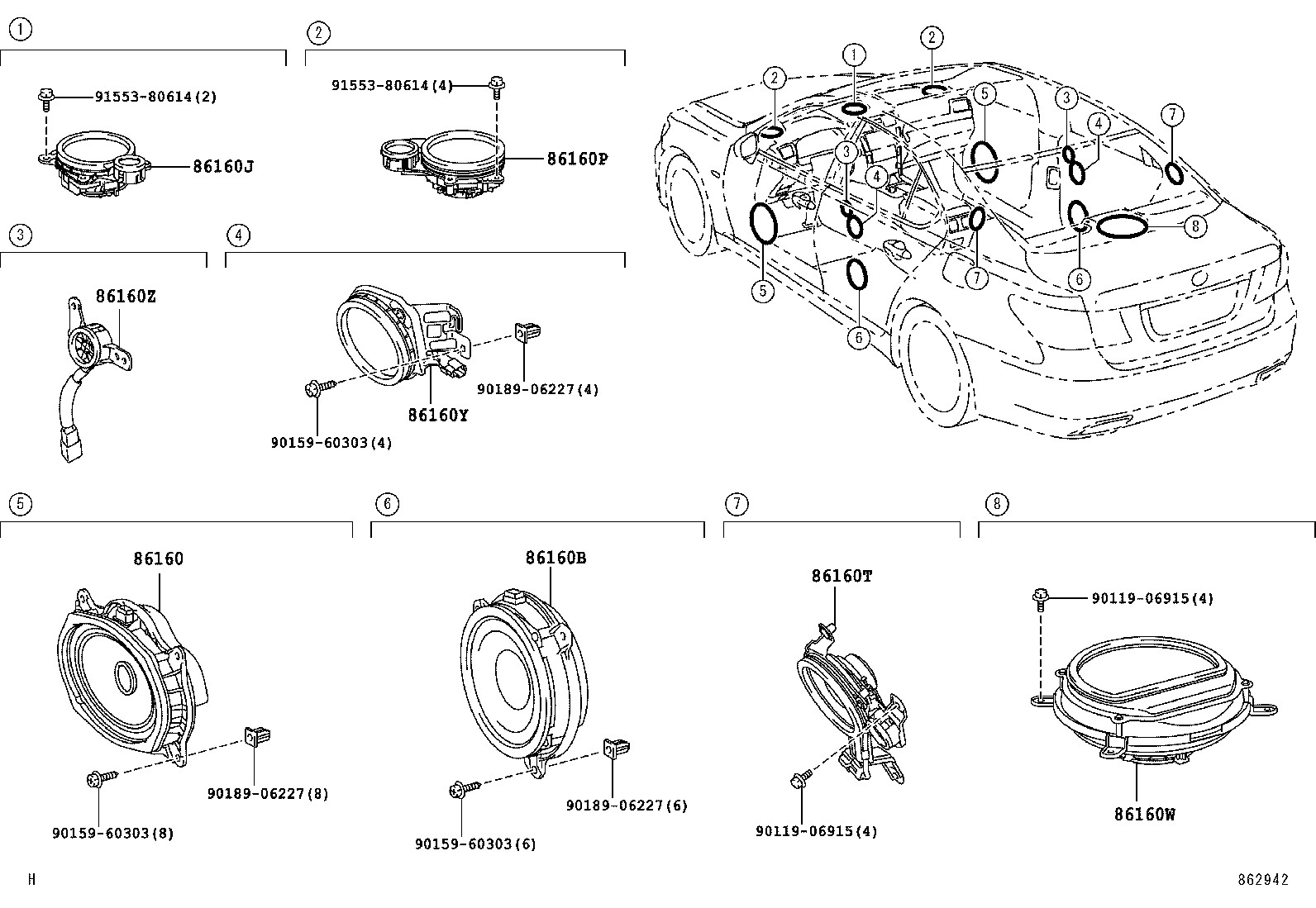

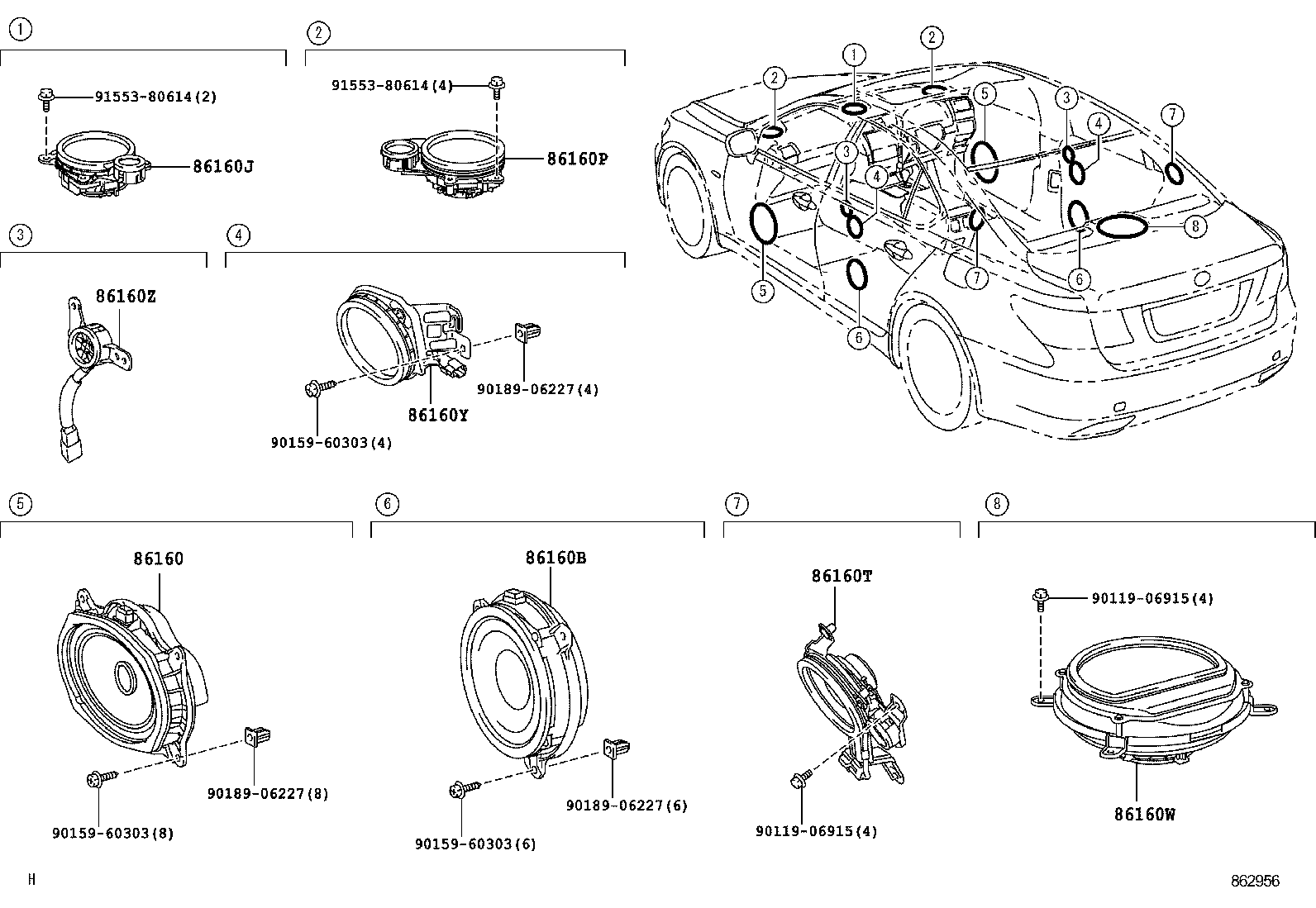

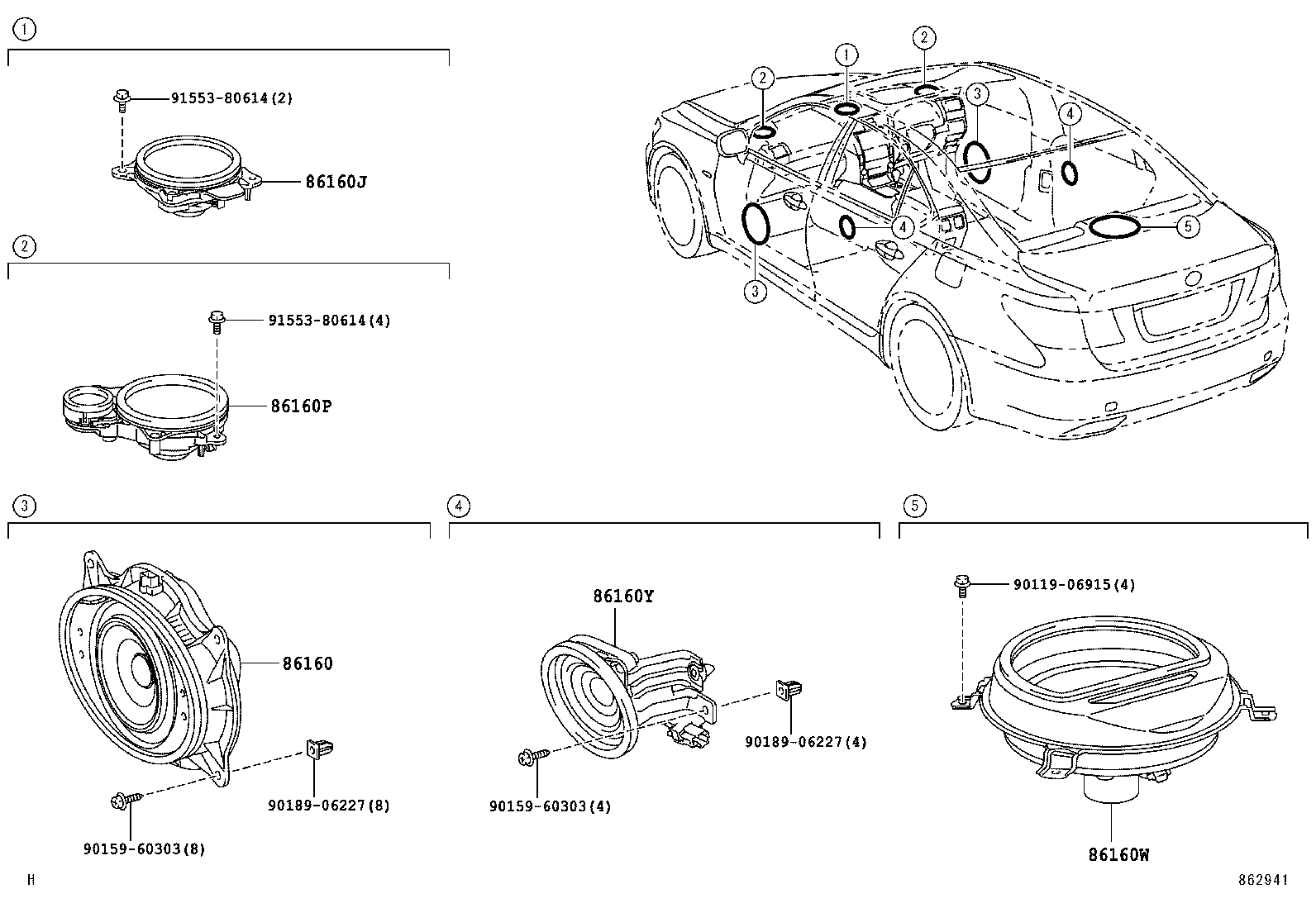

8 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 86160 | Speaker Assy, Front NO.1 |
| 86160B | Speaker Assy, Rear |
| 86160J | Speaker Assy, Front NO.3 |
| 86160P | Speaker Assy, Front NO.2 |
| 86160T | Speaker Assy, Rear Header |
| 86160W | Speaker Assy, Stereo Component, Floor |
| 86160Y | Speaker Assy, Rear NO.2 |
| 86160Z | Speaker Assy, Rear NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
