Toyota Lexus LS460/460L

2006-08 → 2012-09 · chassis USF4# · catalogue 431240 · Europe

Supported model Data version 2012-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

8 part groups · 3 illustrations

Illustrations

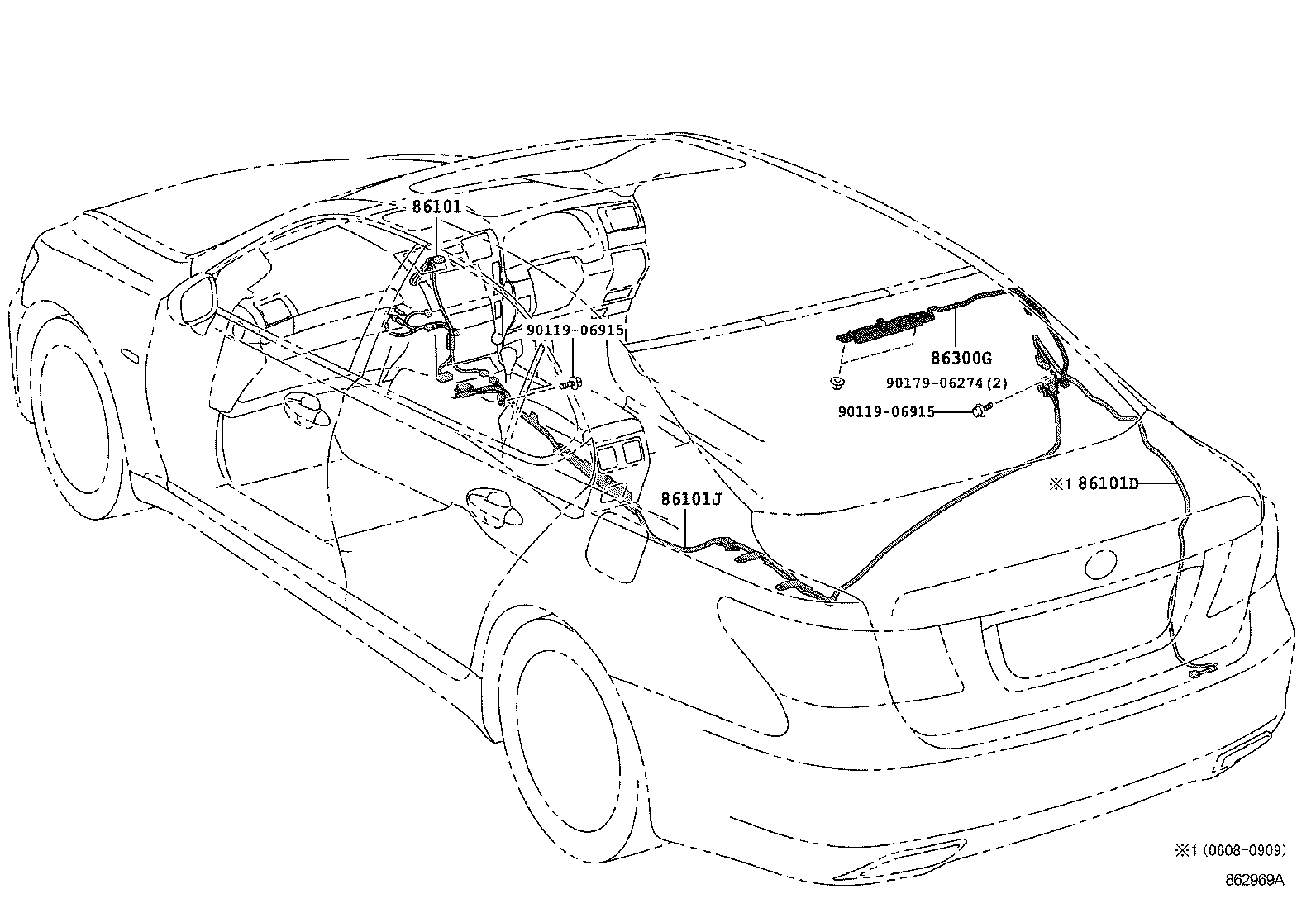

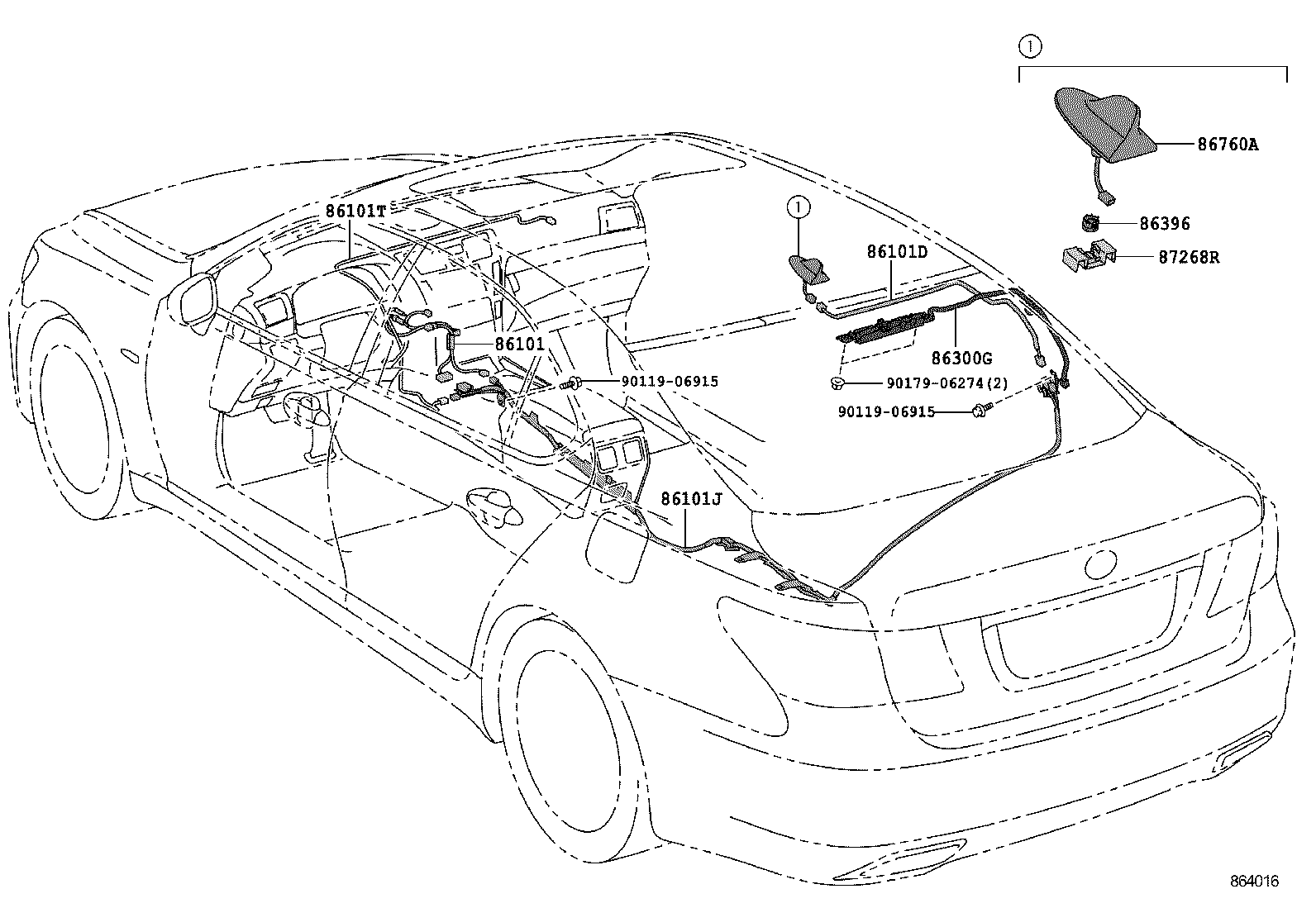

Figure 862968 862968 2006-08 → 2009-09 Figure 862969A 862969A 2006-08 → — Figure 864016 864016 2009-09 → —

Part groups

PNCDescription
86101 Cord Sub-assy, Antenna
86101D Cord Sub-assy, Antenna, NO.3
86101J Cord Sub-assy, Antenna, NO.2
86101T Cord Sub-assy, Antenna
86300G Antenna Assy, Television Amplifier
86396 Nut, Antenna
86760A Antenna Assy, Telephone
87268R Protector, Telephone Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
