Toyota Lexus LS460/460L

2006-08 → 2012-09 · chassis USF4# · catalogue 431240 · Europe

Supported model Data version 2012-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camera & Rear Monitor Display

20 part groups · 8 illustrations

Illustrations

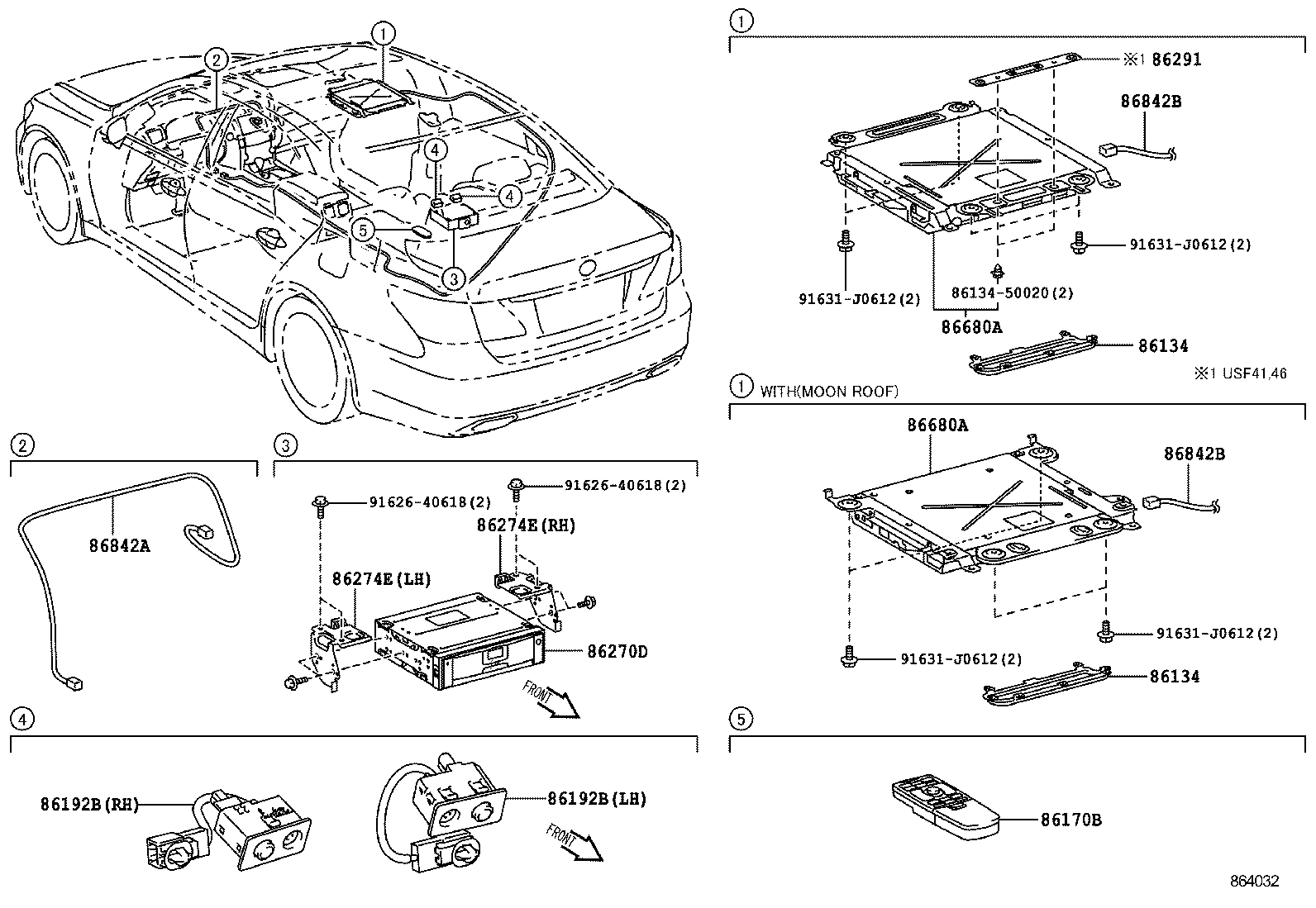

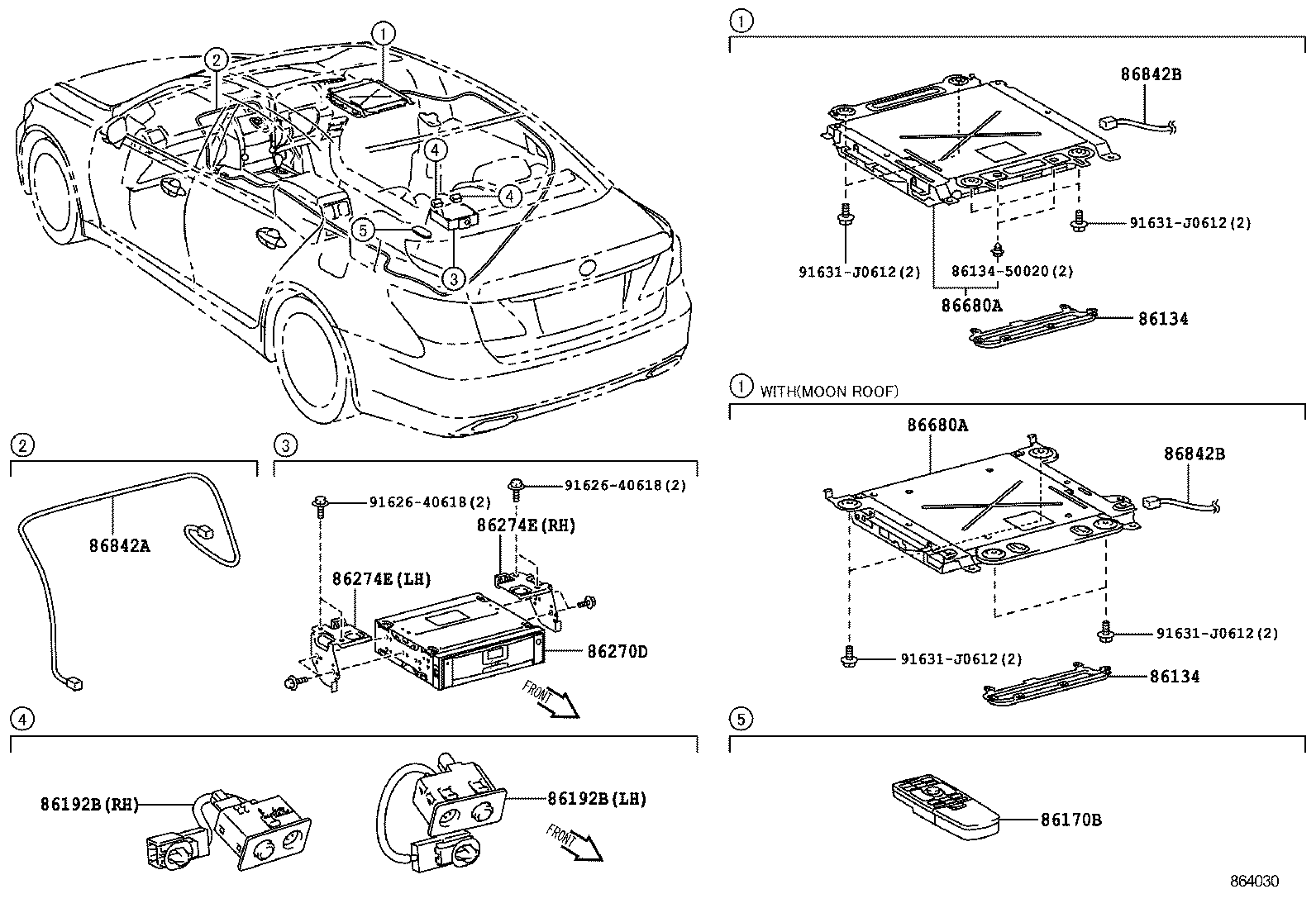

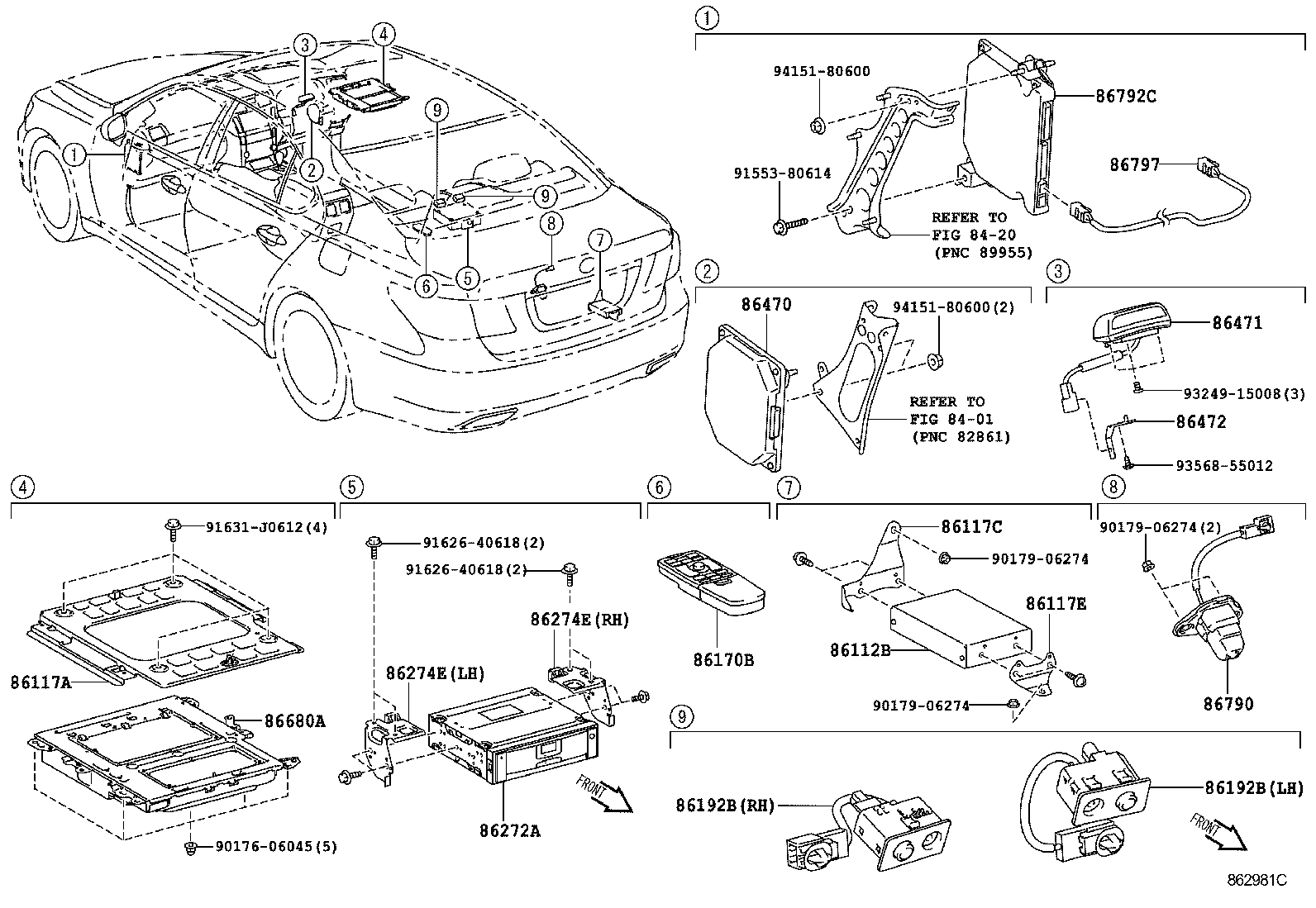

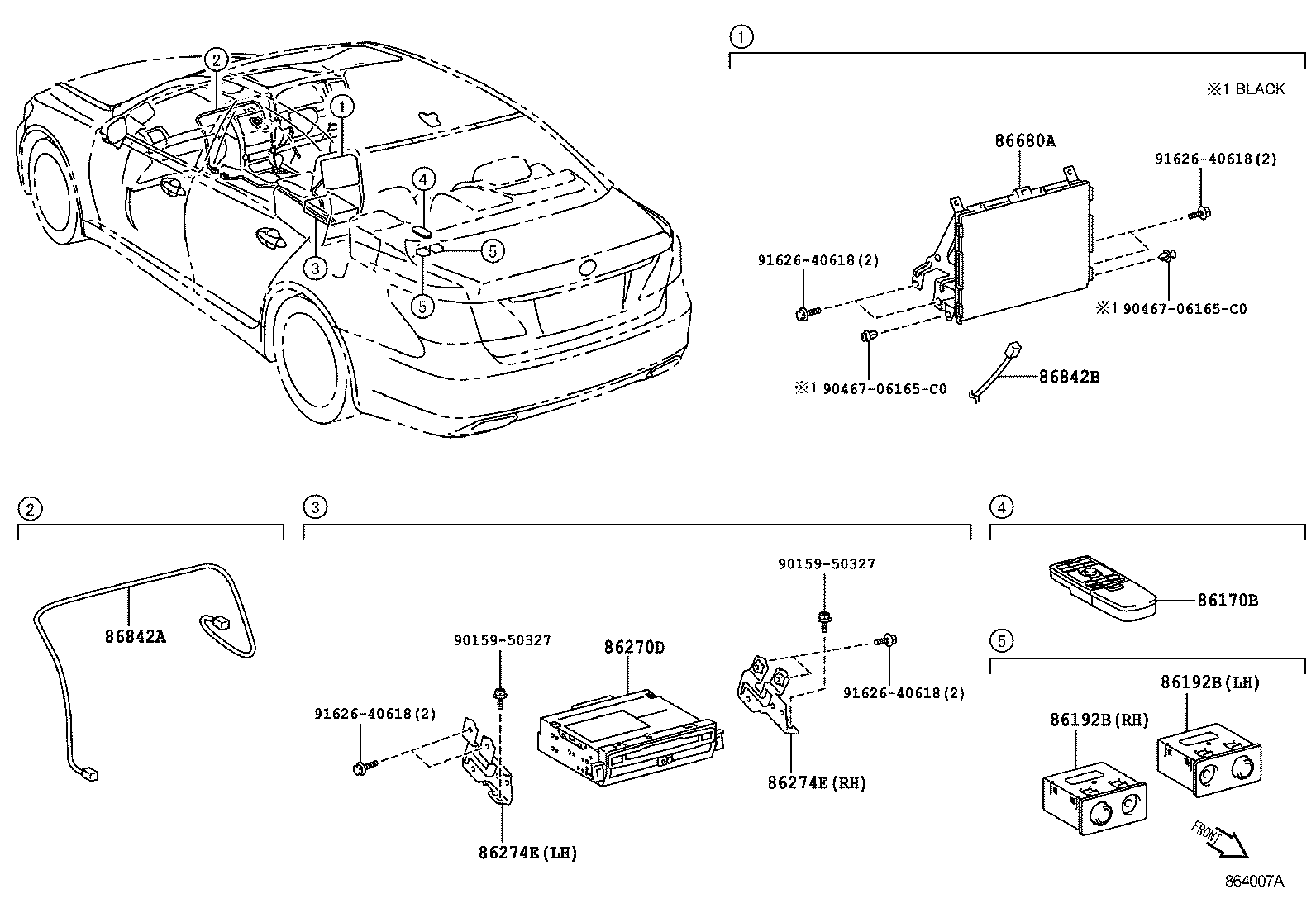

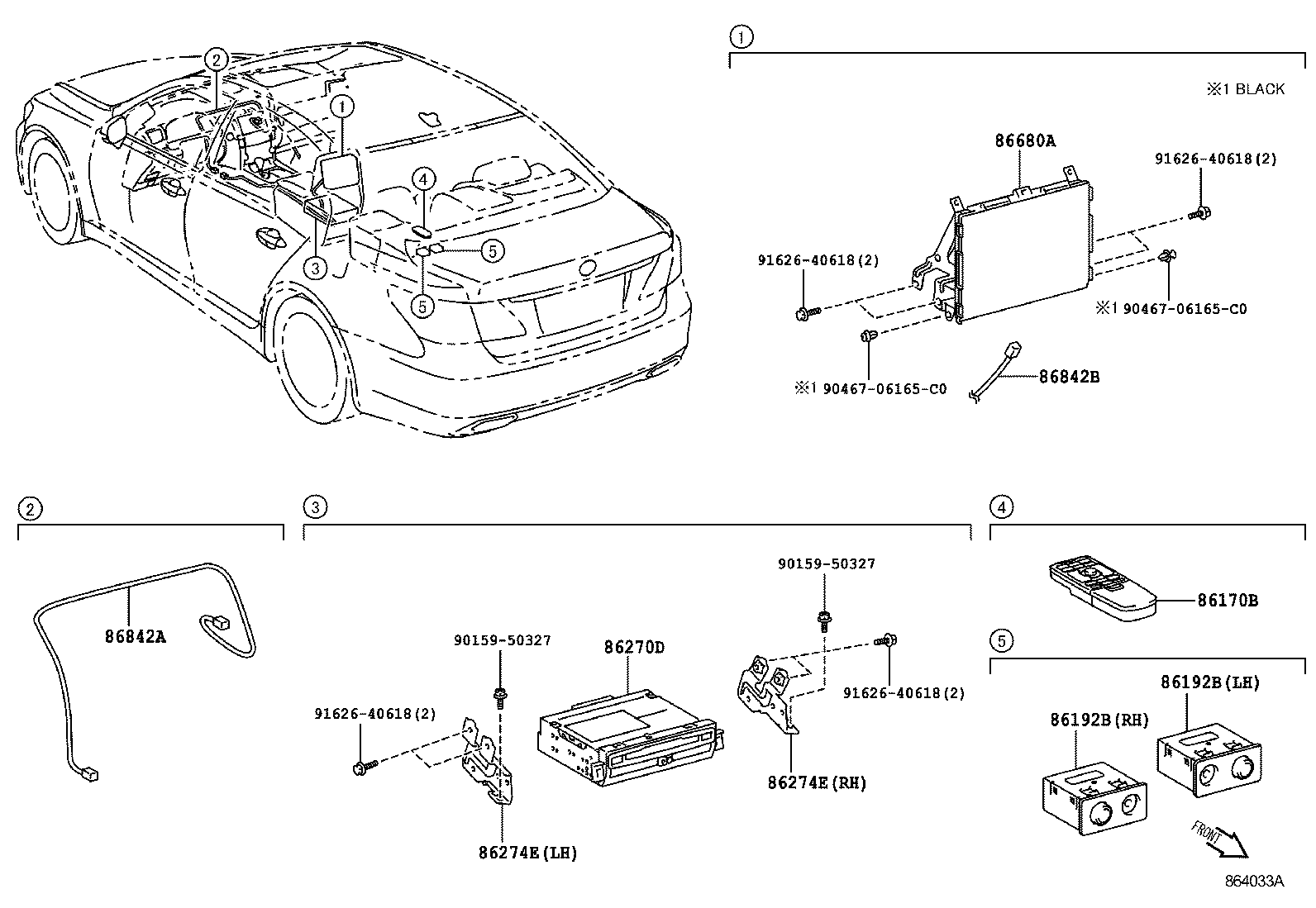

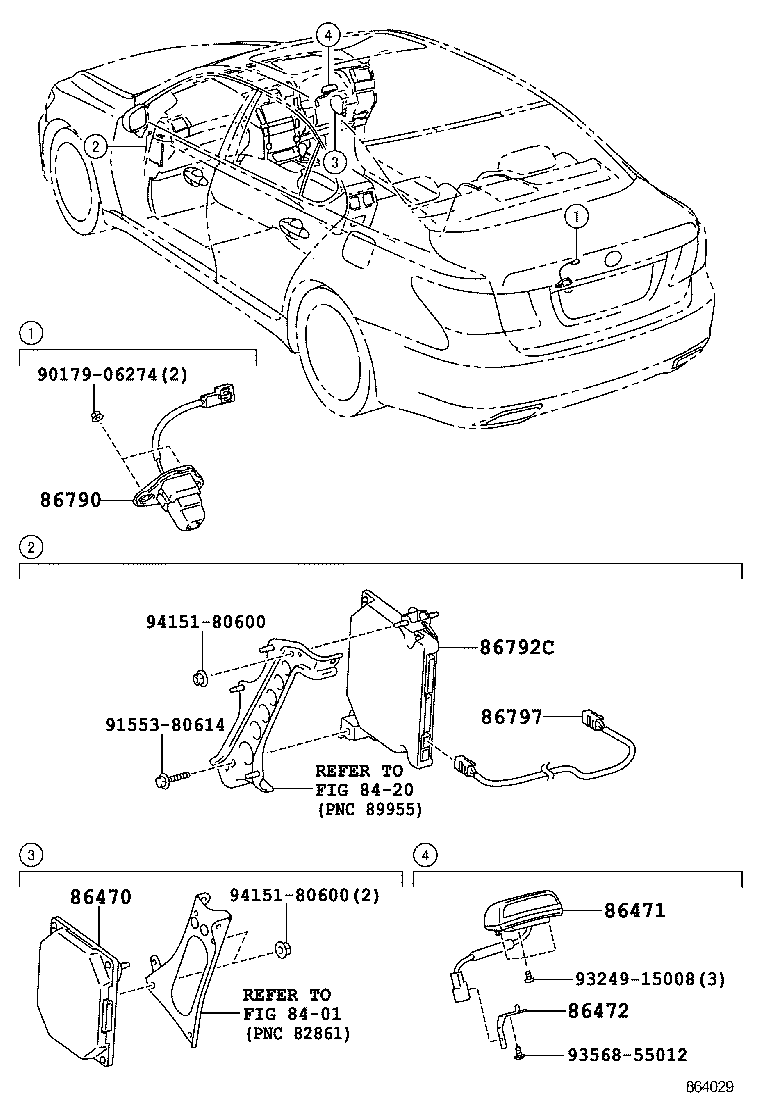

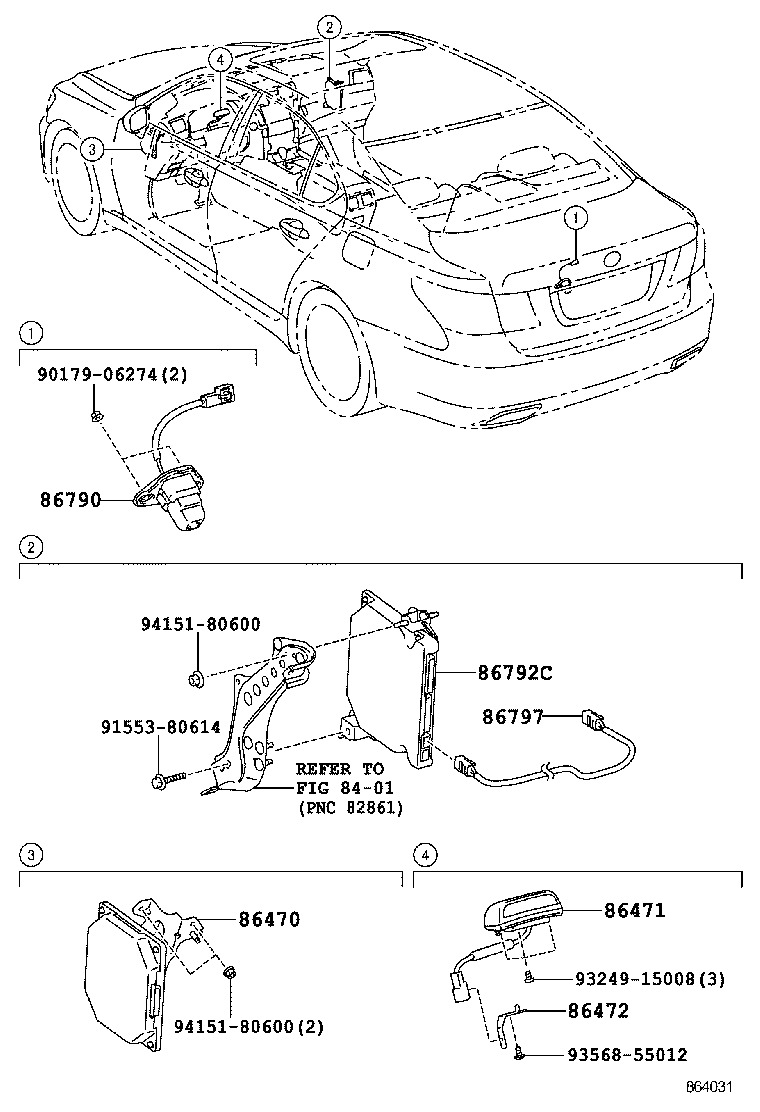

Figure 862951C 862951C 2006-08 → 2009-09 Figure 862981C 862981C 2006-08 → 2009-09 Figure 864031 864031 2009-09 → — Figure 864032 864032 2009-09 → — Figure 864033A 864033A 2009-09 → — Figure 864029 864029 2009-09 → — Figure 864030 864030 2009-09 → — Figure 864007A 864007A 2009-09 → —

Part groups

PNCDescription
86112B Selector, Multi-display
86117A Bracket, Television Display, A
86117C Bracket, Multi-display Controller, NO.2
86117E Bracket, Multi-display Controller, NO.3
86134 Parts, Multi-display
86170B Switch & Volume Assy, Television
86192B Terminal, Headphone
86270D Disc Player Assy
86272A Controller, Disc Player
86274E Bracket, Disc Player
86291 Bracket, Television
86470 Computer Assy, Driver Monitor
86471 Camera, Driver Monitor
86472 Bracket, Driver Monitor
86680A Display Assy, Television
86790 Camera Assy, Television
86792C Computer, Parking Assist
86797 Wire, Television Camera, NO.2
86842A Wire, Navigation, NO.1
86842B Wire, Navigation, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
