Toyota Lexus LS460/460L
2006-08 → 2012-09 · chassis USF4# · catalogue 431240 · Europe
Supported model
Data version 2012-10

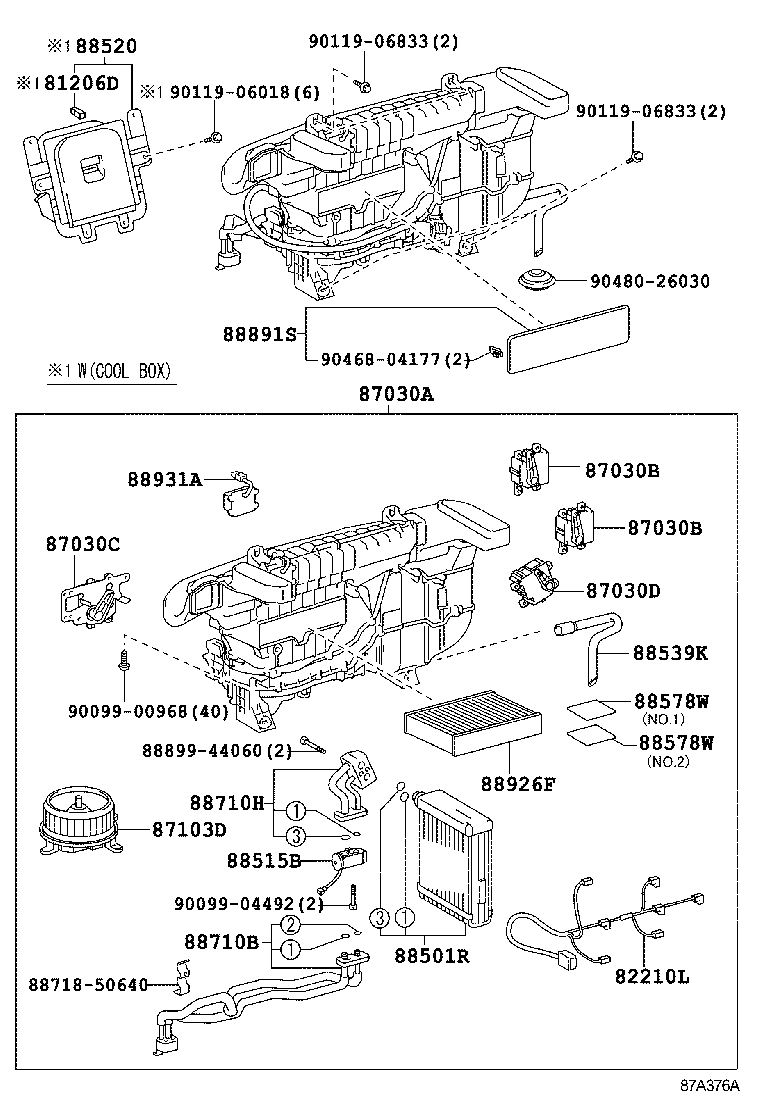

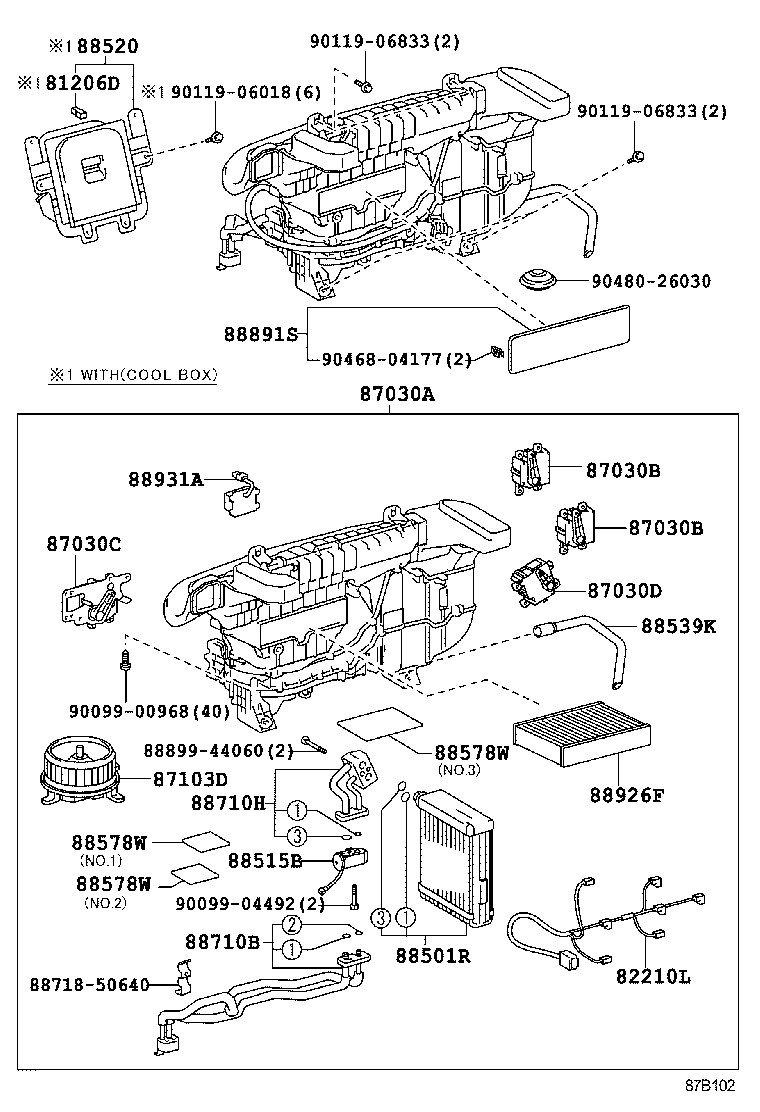

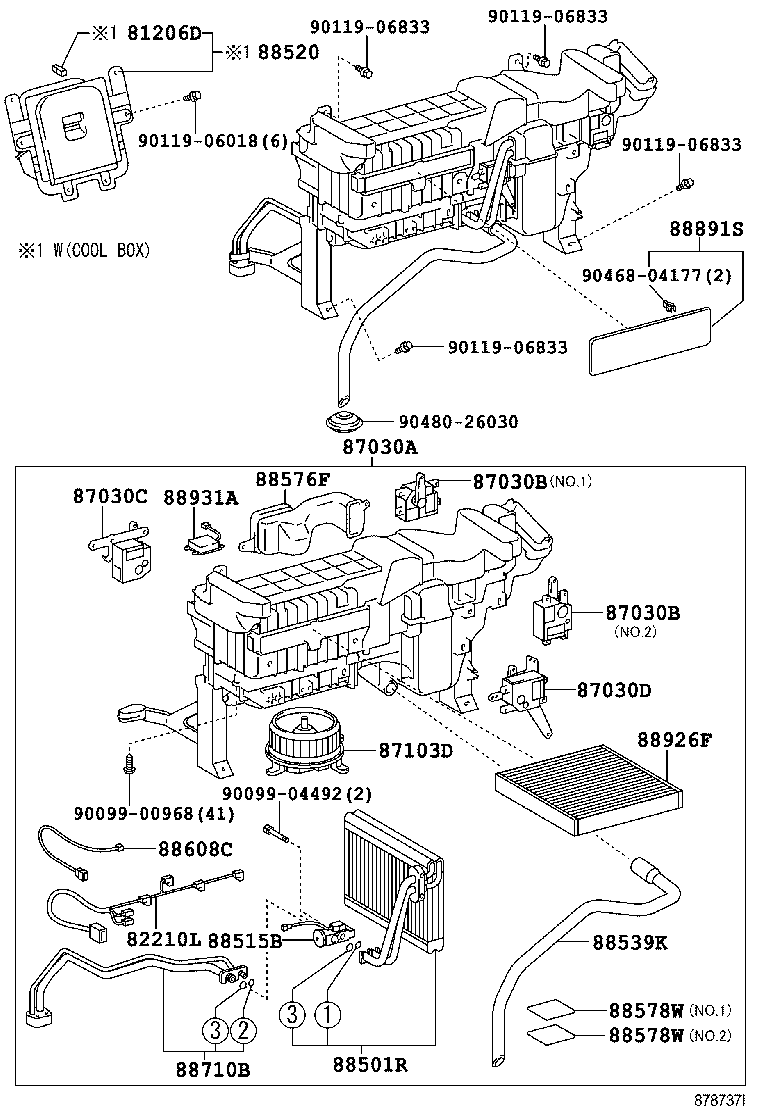

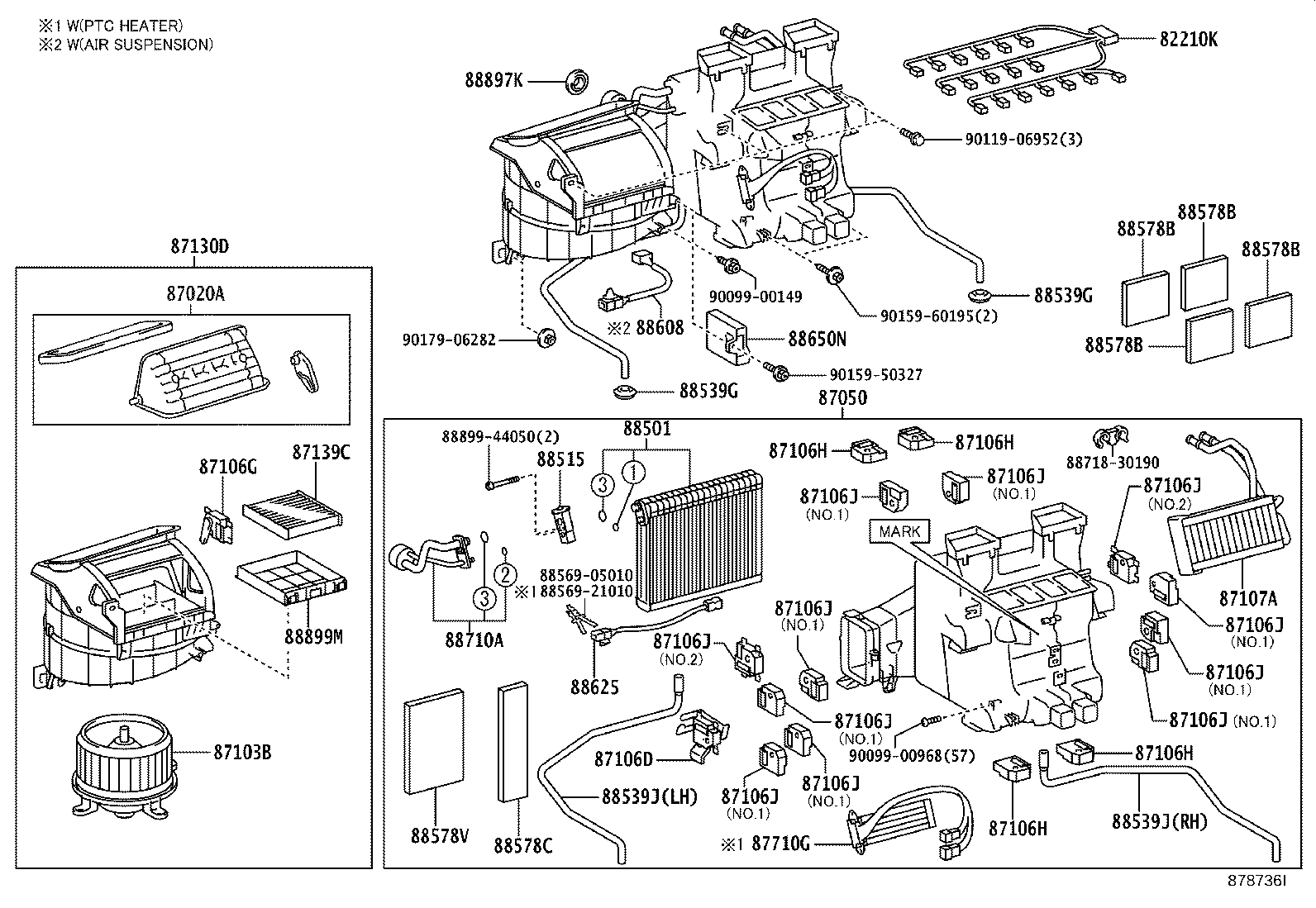

Heating & Air Conditioning - Cooler Unit
44 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 81206D | Lamp Sub-assy, Cooling Box |
| 82210K | Harness Assy, Air Conditioner |
| 82210L | Harness Assy, Air Conditioner, NO.2 |
| 87020A | Damper Assy, Heater Air |
| 87030A | Unit Assy, Cooling, Rear |
| 87030B | Servo Sub-assy, Damper (FOR ROOF BLOWER) |
| 87030C | Servo Sub-assy, Damper (FOR DIFFUSE MODE) |
| 87030D | Servo Sub-assy, Damper (FOR EXHAUST MODE) |
| 87050 | Radiator Assy, Air Conditioner |
| 87103B | Motor Sub-assy, Blower W/Fan |
| 87103D | Motor Sub-assy, Blower W/Fan(FOR REAR) |
| 87106D | Servo Sub-assy, Damper, NO.1 |
| 87106G | Servo Sub-assy, Damper(FOR BLOWER) |
| 87106H | Servo Sub-assy, Damper(FOR AIRMIX) |
| 87106J | Servo Sub-assy, Damper(FOR MODE) |
| 87107A | Unit Sub-assy, Heater Radiator |
| 87130D | Blower Assy |
| 87139C | Filter, Clean Air |
| 87710G | Quick Heater Assy |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88501R | Evaporator Sub-assy (REAR) |
| 88515 | Valve, Cooler Expansion |
| 88515B | Valve, Rear Cooling Unit Expansion |
| 88520 | Box Assy, Cooling |
| 88539G | Grommet (FOR COOLER UNIT DRAIN HOSE) |
| 88539J | Hose, Drain Cooler |
| 88539K | Hose, Drain Cooler |
| 88576F | Duct, Cooler Air, NO.2 |
| 88578B | Packing, Cooling Unit, NO.1 |
| 88578C | Packing, Cooling Unit, NO.2 |
| 88578V | Packing, Cooling Unit, NO.3 |
| 88578W | Packing, Cooling Unit, NO.4 |
| 88608 | Harness Sub-assy, Wiring Air Conditioner |
| 88608C | Harness Sub-assy, Wiring Air Indicator, NO.2 |
| 88625 | Thermistor, Cooler, NO.1 |
| 88650N | Amplifier Assy, Air Conditioner |
| 88710A | Tube Assy, Air Conditioner |
| 88710B | Tube Assy, Air Conditioner |
| 88710H | Tube & Accessory Assy, Air Conditioner |
| 88891S | Cover, Cooler, NO.1 |
| 88897K | Grommet, (FOR COOLER PIPE) |
| 88899M | Plate, Cover(FOR AIR FILTER) |
| 88926F | Filter, Rear Cooler |
| 88931A | Sensor, Smoke |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
