Toyota Lexus LS460/460L

2012-09 → 2017-08 · chassis USF4# · catalogue 431250 · Europe

Supported model Data version 2018-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

15 part groups · 2 illustrations

Illustrations

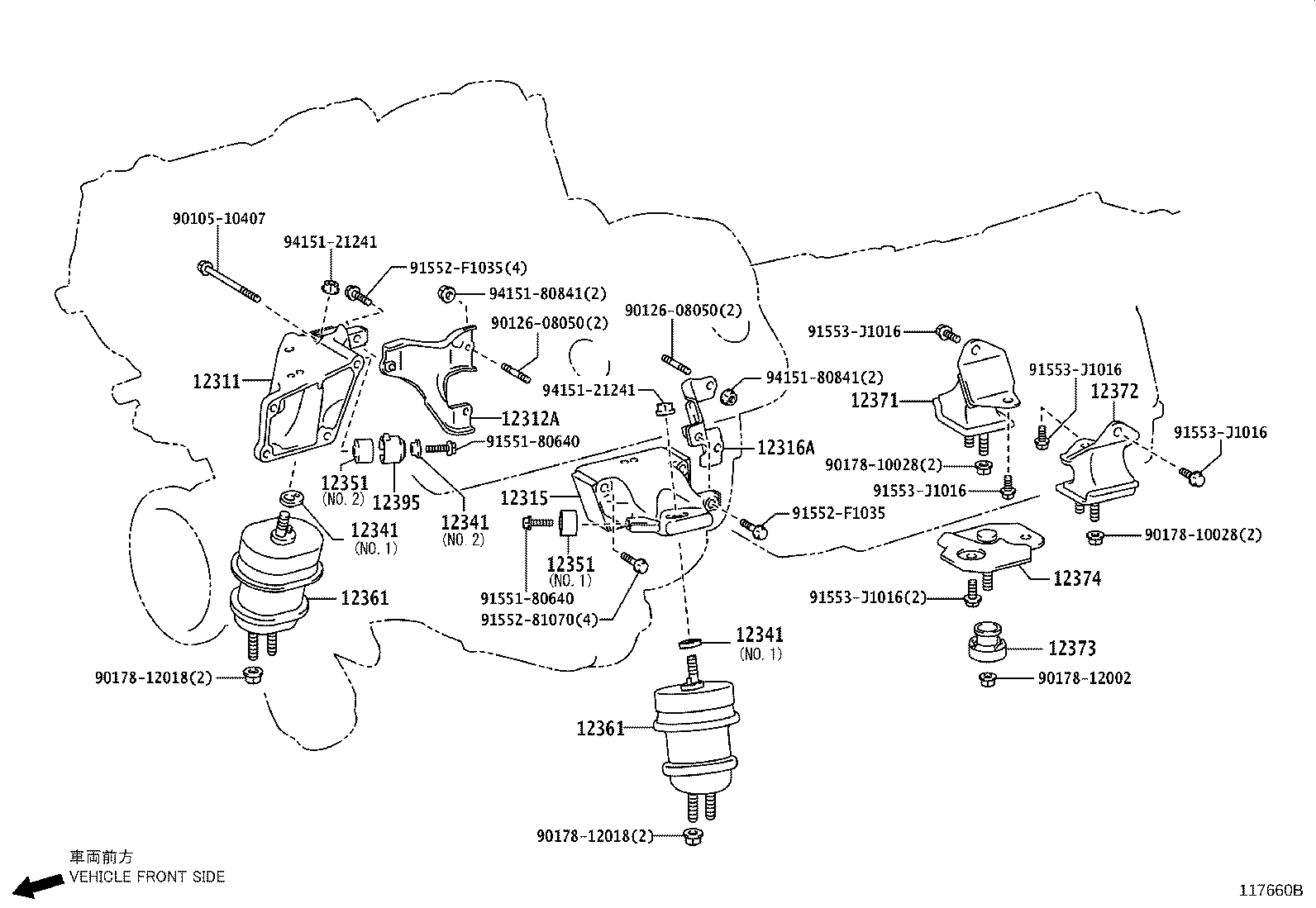

Figure 117659B 117659B 2012-09 → — Figure 117660B 117660B 2012-09 → —

Part groups

PNCDescription
12301 Bracket Sub-assy, Engine Mounting, Front RH
12302 Bracket Sub-assy, Engine Mounting, Front LH
12311 Bracket, Engine Mounting, Front NO.1 RH
12312A Bracket, Engine Mounting, Front NO.2 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12316A Bracket, Engine Mounting, FR NO.2 LH
12341 Spacer, Engine Mounting
12351 Damper, Engine Mounting
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12372 Insulator, Engine Mounting, Rear NO.2
12373 Insulator, Engine Mounting, Rear NO.3
12374 Insulator, Engine Mounting, Rear NO.4
12380 Insulator Assy, Engine Mounting, Rear
12395 Insulator, Engine Mounting Bracket Heat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
