Toyota Lexus LS460/460L

2012-09 → 2017-08 · chassis USF4# · catalogue 431250 · Europe

Supported model Data version 2018-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

17 part groups · 2 illustrations

Illustrations

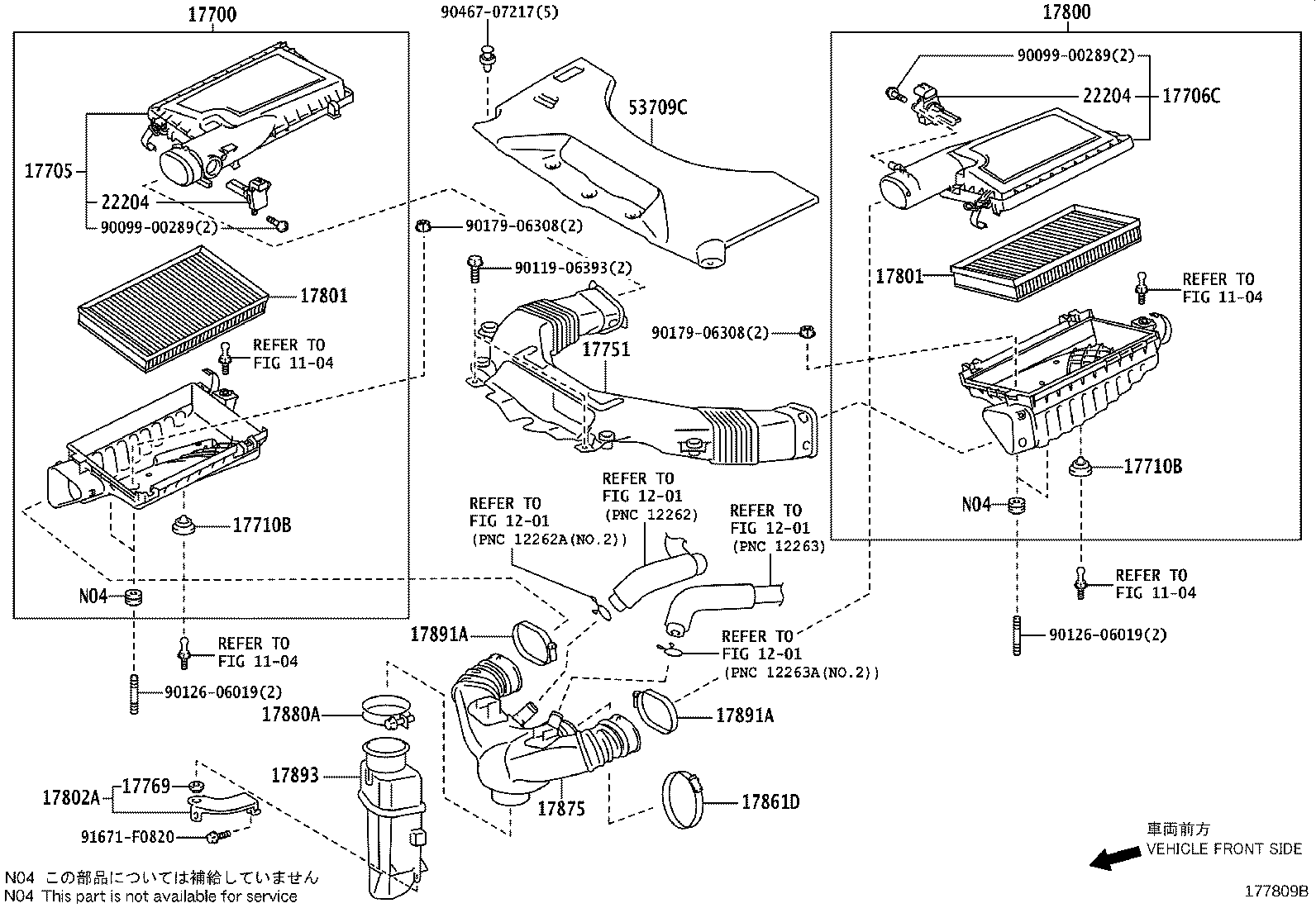

Figure 177810B 177810B 2012-09 → — Figure 177809B 177809B 2012-09 → —

Part groups

PNCDescription
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17706C Cap Sub-assy, Air Cleaner, LH
17710B Grommet
17751 Inlet, Air Cleaner, NO.1
17769 Support, Air Cleaner
17800 Cleaner Assy, Air W/Element, LH
17801 Element Sub-assy, Air Cleaner Filter
17802A Bracket Sub-assy, Resonator
17861D Clamp(FOR INTAKE AIR CONNECTOR)
17875 Pipe, Intake Air Connector
17880A Clamp, Hose
17891A Clamp, Air Cleaner Hose
17893 Resonator, Intake Air
17898 Creator, Intake Air Sound
22204 Meter Sub-assy, Intake Air Flow
53709C Cover Sub-assy, Air Cleaner Inlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
