Toyota Lexus LS460/460L

2012-09 → 2017-08 · chassis USF4# · catalogue 431250 · Europe

Supported model Data version 2018-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

15 part groups · 2 illustrations

Illustrations

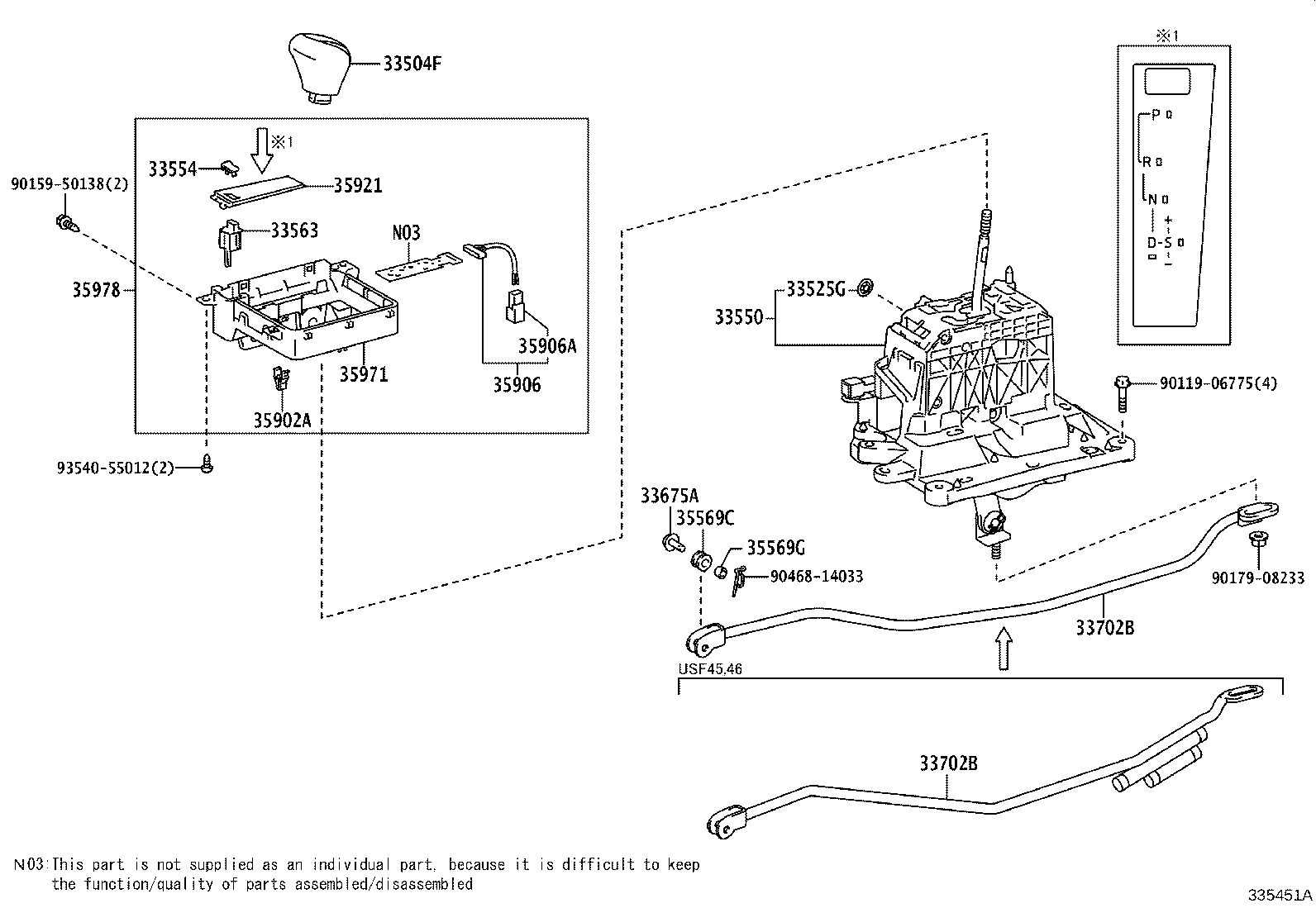

Figure 334623B 334623B 2012-09 → — Figure 335451A 335451A 2012-09 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33525G Ring, Shift Lever
33550 Floor Shift Assy, Transmission
33554 Cap, Shift Lever
33563 Button, Shift Lock Release
33675A Pin, W/Hole (FOR TRANSMISSION CONTROL ROD)
33702B Rod Sub-assy, Gear Shifting, NO.1 (FOR FLOOR SHIFT)
35569C Grommet (FOR TRANSMISSION CONTROL ROD)
35569G Bush (FOR TRANSMISSION CONTROL ROD)
35902A Clip, Cover Sub-assy, Position Indicator Housing
35906 Wire Sub-assy, Indicator Lamp
35906A Housing, Connector Male (FOR INDICATOR LAMP WIRE)
35921 Plate, Control Position Indicator
35971 Support, Position Indicator
35978 Indicator, Shift Position
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
