Toyota Lexus LS460/460L

2012-09 → 2017-08 · chassis USF4# · catalogue 431250 · Europe

Supported model Data version 2018-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

10 part groups · 2 illustrations

Illustrations

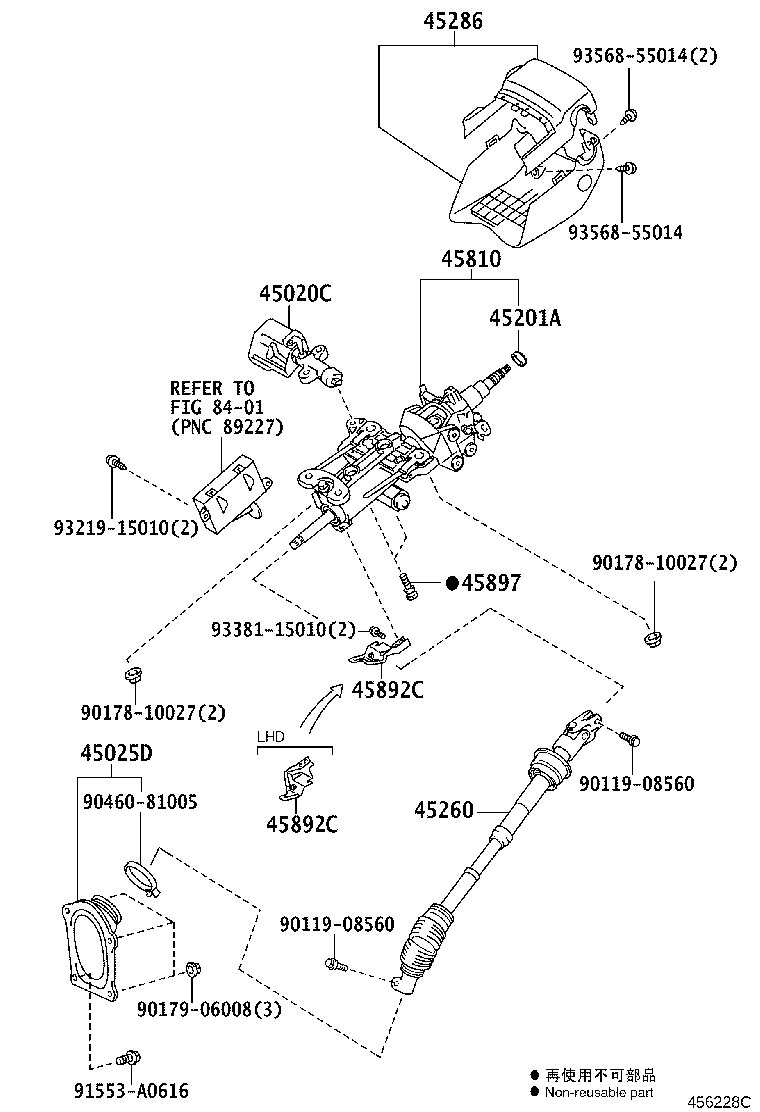

Figure 455677E 455677E 2012-09 → — Figure 456228C 456228C 2012-09 → —

Part groups

PNCDescription
45020C Actuator Assy, Steering Lock(W/ECU)
45025D Cover Sub-assy, Steering Column Hole, NO.1
45201A Bearing(FOR STEERING MAIN SHAFT)
45206 Yoke Sub-assy, Steering Sliding W/Shaft
45221 Shaft, Steering Intermediate
45260 Shaft Assy, Steering Intermediate, NO.2
45286 Cover, Steering Column
45810 Gear Assy, Tilt Steering, W/Motor
45892C Bracket, Return Spring
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
