Toyota Lexus LS460/460L
2012-09 → 2017-08 · chassis USF4# · catalogue 431250 · Europe
Supported model
Data version 2018-03
Floor Side Member
27 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

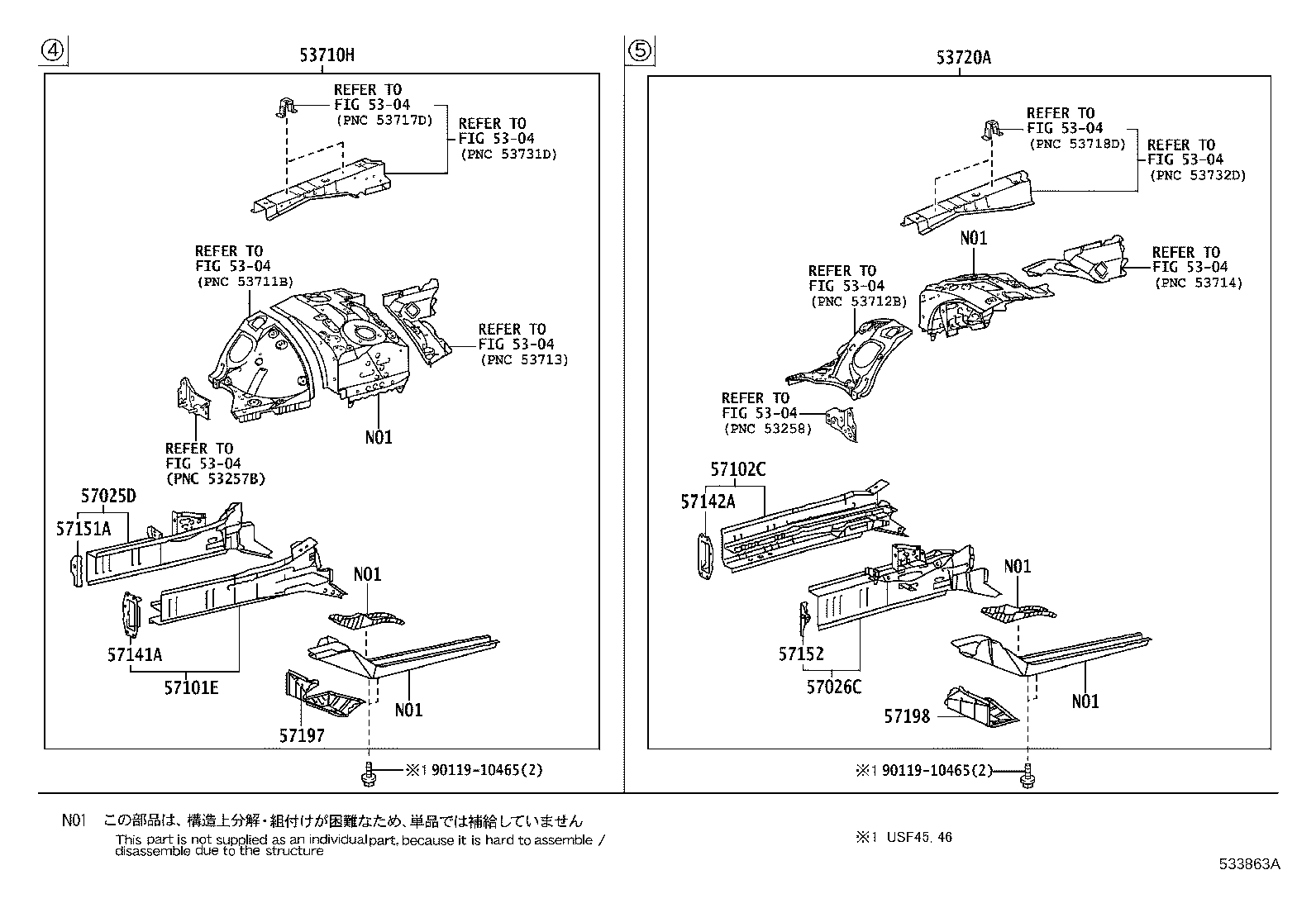

| 53710H | Apron Assy, Front Fender, RH |
| 53720A | Apron Assy, Front Fender, LH |

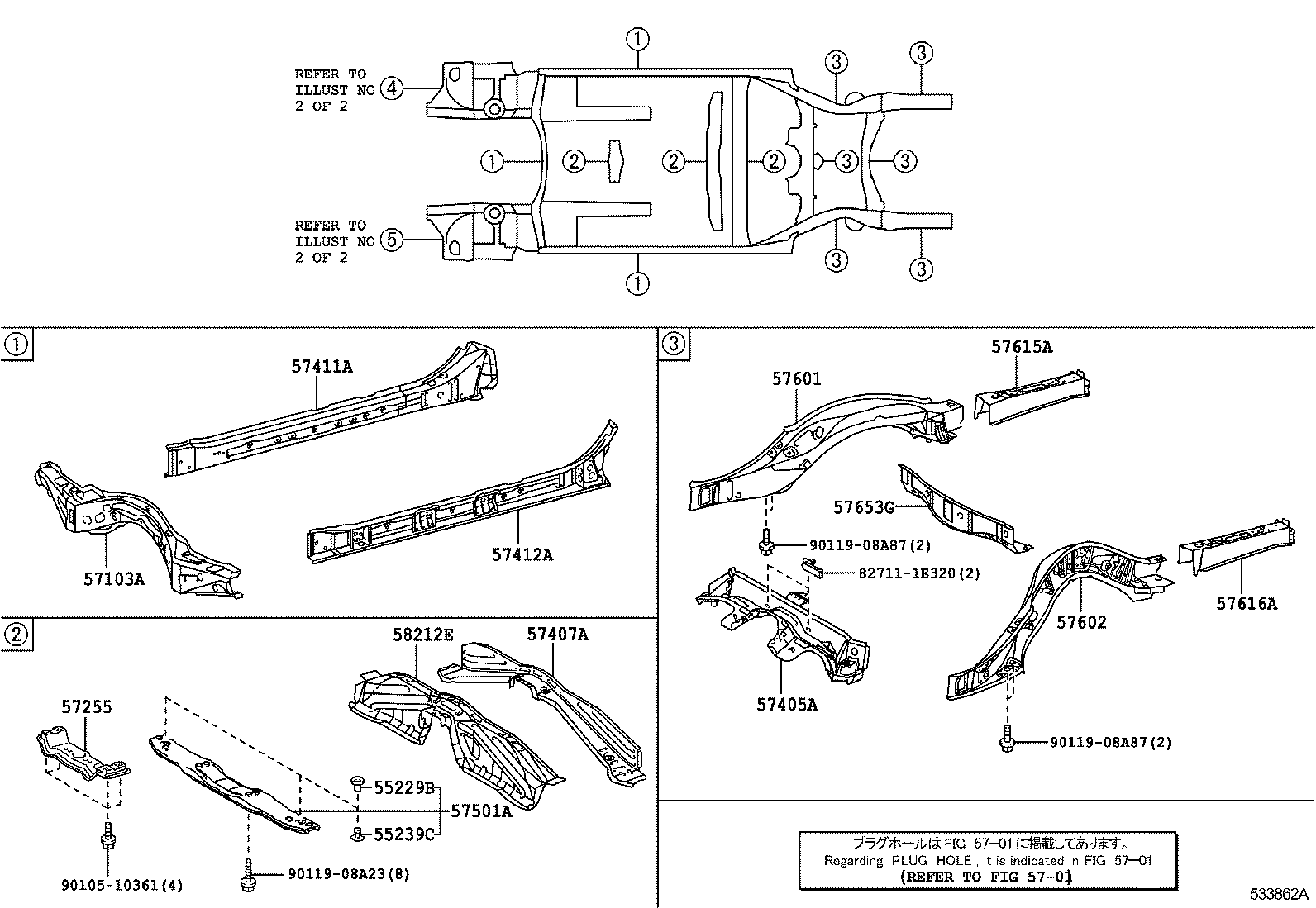

| 55229B | Plate, Dash Panel Insulator, NO.4 |
| 55239C | Plate, Dash Panel Insulator, NO.3 |
| 57025D | Member Sub-assy, Front Side, Outer RH |
| 57026C | Member Sub-assy, Front Side, Outer LH |
| 57101E | Member Sub-assy, Front Side, Inner RH |
| 57102C | Member Sub-assy, Front Side, Inner LH |
| 57103A | Crossmenber Sub-assy, Floor, NO.3 |
| 57141A | Support, Front Bumper Arm, RH |
| 57142A | Support, Front Bumper Arm, LH |
| 57151A | Reinforcement, Front Side Member, NO.1 RH |
| 57152 | Reinforcement, Front Side Member, NO.1 LH |
| 57197 | Box, Torque, Front RH |
| 57198 | Box, Torque, Front LH |
| 57255 | Member, Engine Rear Mounting |
| 57405A | Member Sub-assy, Center Floor Cross, NO.2 |
| 57407A | Member Sub-assy, Center Floor Cross |
| 57411A | Member, Floor Side, Inner RH |
| 57412A | Member, Floor Side, Inner LH |
| 57501A | Brace Sub-assy, Front Floor, Center |
| 57601 | Member Sub-assy, Rear Floor Side, RH |
| 57602 | Member Sub-assy, Rear Floor Side, LH |
| 57615A | Member, Rear Floor Side, Rear RH |
| 57616A | Member, Rear Floor Side, Rear LH |
| 57653G | Member, Rear Floor Cross, NO.2 |
| 58212E | Pan, Center Floor, Front |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
