Toyota Lexus LS460/460L

2012-09 → 2017-08 · chassis USF4# · catalogue 431250 · Europe

Supported model Data version 2018-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

14 part groups · 4 illustrations

Illustrations

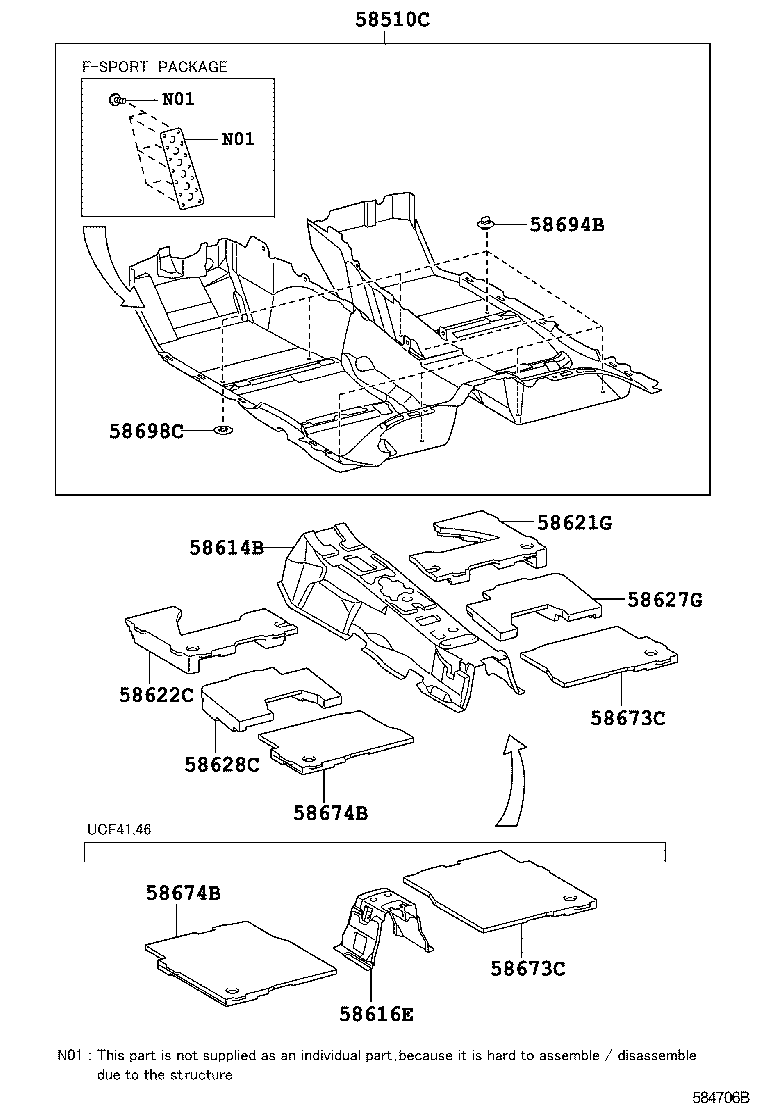

Figure 584704A 584704A 2012-09 → — Figure 584705 584705 2012-09 → — Figure 584706B 584706B 2012-09 → — Figure 584707 584707 2012-09 → —

Part groups

PNCDescription
58510C Carpet Assy, Front Floor, Front
58520C Clip(FOR FRONT FLOOR CARPET)
58521B Hook, Floor Carpet
58530B Clip(FOR FRONT FLOOR CARPET)
58614B Sheet, Center Floor Silencer
58616E Sheet, Center Floor Silencer, Center
58621G Pad, Front Floor Silencer, RH
58622C Pad, Front Floor Silencer, LH
58627G Pad, Center Floor Silencer, Rear RH
58628C Pad, Center Floor Silencer, Rear LH
58673C Pad, Rear Floor Silencer, NO.1
58674B Pad, Rear Floor Silencer, NO.2
58694B Plate, Mat Set, Upper
58698C Plate, Mat Set, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
