Toyota Lexus LS460/460L
2012-09 → 2017-08 · chassis USF4# · catalogue 431250 · Europe
Supported model
Data version 2018-03

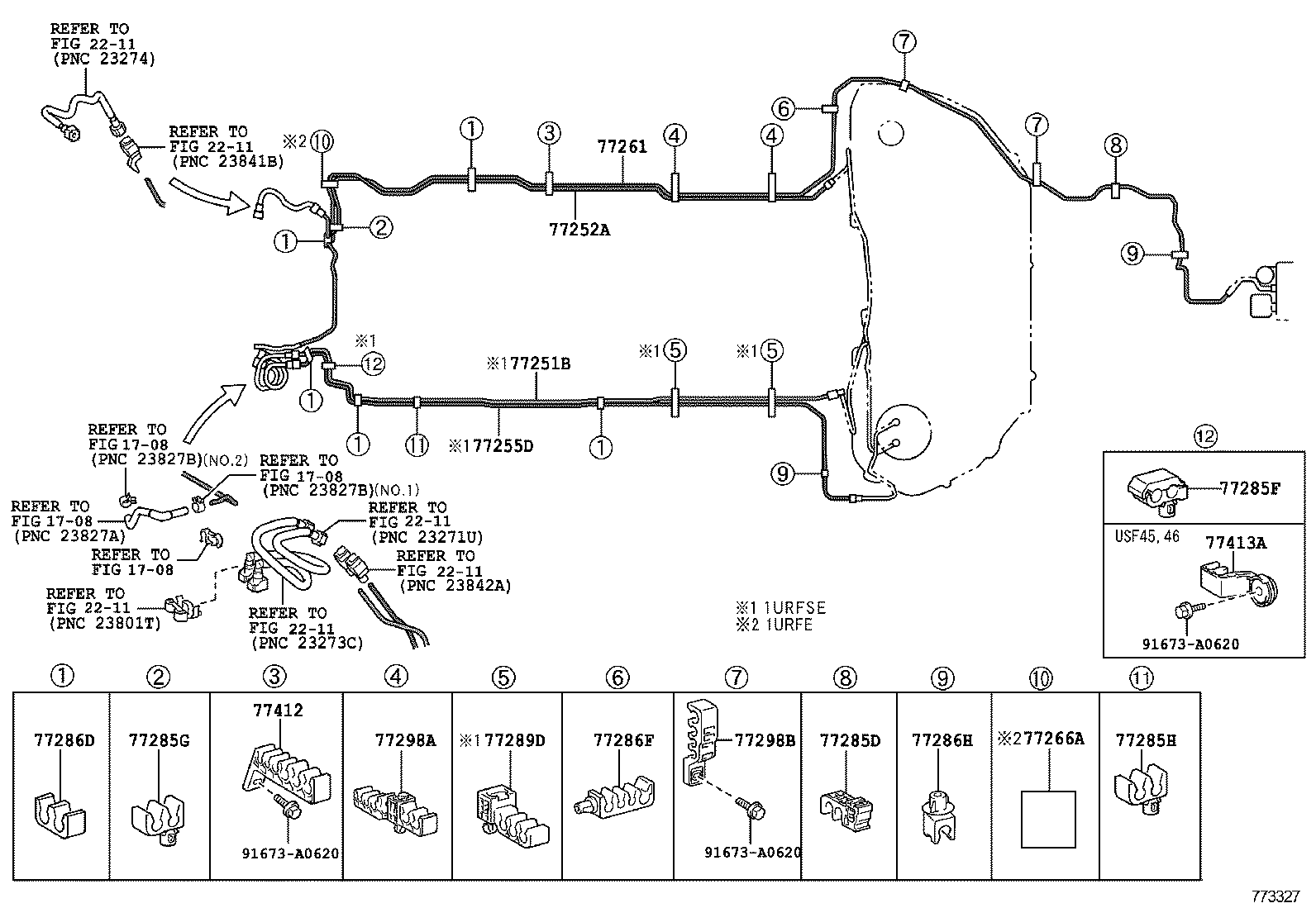

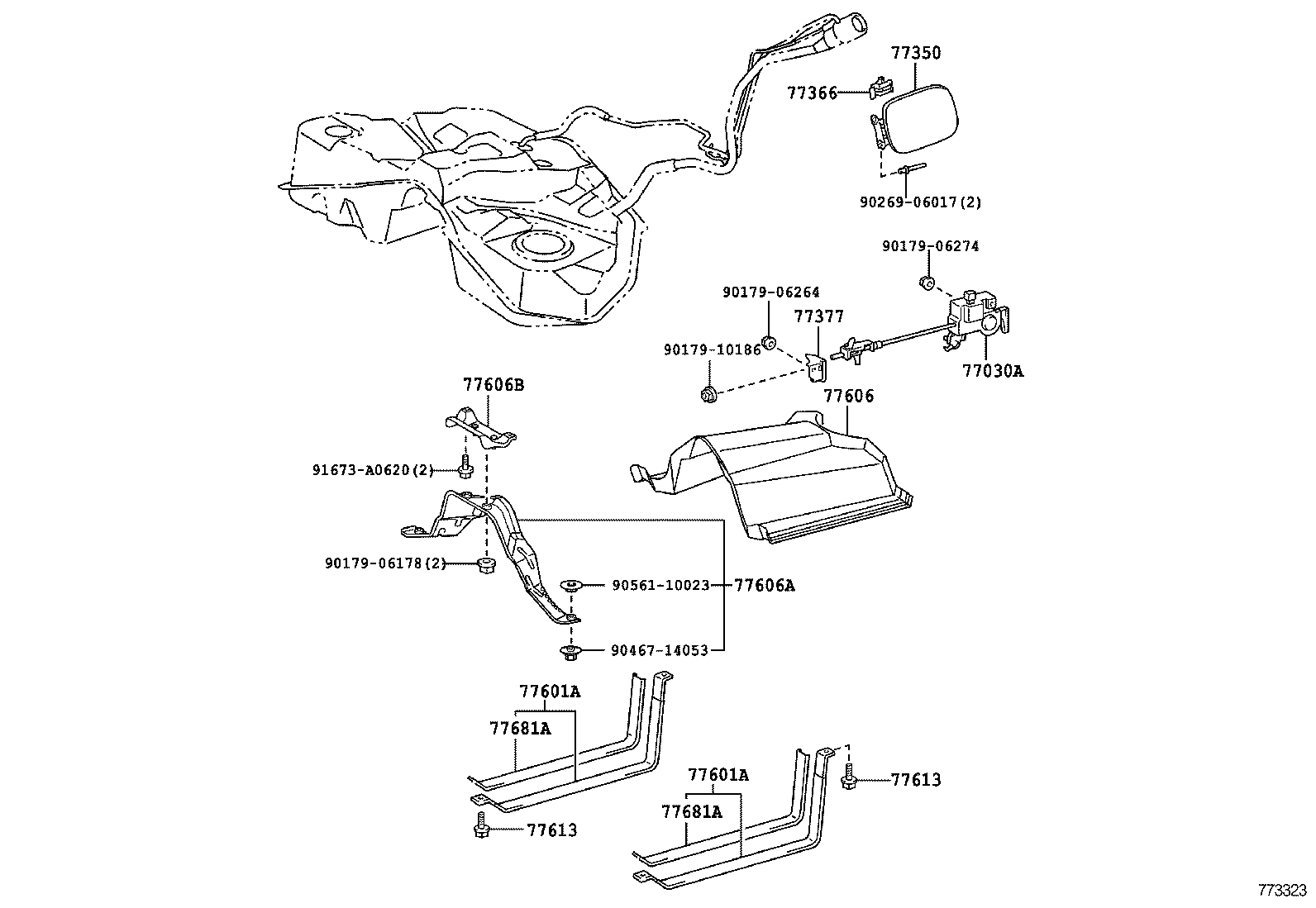

Fuel Tank & Tube
77 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 23070 | Valve Assy, Fuel Main |
| 23221 | Pump, Fuel |
| 23225A | Spacer, Fuel Pump |
| 23280J | Regulator Assy, Fuel Pressure |
| 23280K | Ring, O(FOR FUEL PRESSURE REGULATOR) |
| 77012A | Tube Sub-assy, Fuel Tank Breather, NO.1 |
| 77019J | Tube Sub-assy, Fuel Tank TO Canister |
| 77024C | Plate Sub-assy, Fuel Suction W/Fuel Filter |
| 77030A | Lock Assy, Fuel Lid W/Motor |
| 77100 | Tank Assy, Fuel |
| 77131C | Sub-tank, Fuel, NO.1 |
| 77161C | Protector, Fuel Tank, Lower |
| 77168A | Plate, Fuel Tank Vent Tube Set |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77174 | Support, Fuel Suction, NO.1 |
| 77175 | Support, Fuel Suction, NO.2 |
| 77179A | Gasket, Fuel Tank Breather Tube |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77203A | Tube Sub-assy, Fuel Suction |
| 77209F | Tube Sub-assy, Fuel Tank Main |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77216A | Support, Fuel Tank Filler Pipe, NO.1 |
| 77217A | Support, Fuel Tank Filler Pipe, NO.2 |
| 77229E | Clamp, Breather Tube |
| 77233 | Joint, Fuel Hose |
| 77241W | Clip, Tube Joint |
| 77245D | Tube, Fuel Tank Return Vent |
| 77251B | Tube, Fuel Main |
| 77252A | Tube, Fuel Main, NO.2 |
| 77255D | Tube, Fuel Return |
| 77260 | Hose Assy, Fuel Main |
| 77261 | Tube Sub-assy, Fuel Emission |
| 77266A | Protector, Fuel Tube, NO.1 |
| 77281A | Clamp, Fuel Filler Pipe |
| 77285D | Clamp, Fuel Tube, NO.1 |
| 77285F | Clamp, Fuel Tube, NO.1 |
| 77285G | Clamp, Fuel Tube, NO.1 |
| 77285H | Clamp, Fuel Tube, NO.1 |
| 77286D | Clamp, Fuel Tube, NO.2 |
| 77286F | Clamp, Fuel Tube, NO.2 |
| 77286H | Clamp, Fuel Tube, NO.3 |
| 77286Q | Clamp, Fuel Tube, NO.9 |
| 77286R | Clamp, Fuel Tube, NO.10 |
| 77289 | Holder, Fuel Tank Pipe Setting |
| 77289C | Clamp, Fuel Tube, NO.4 |
| 77289D | Clamp, Fuel Tube, NO.5 |
| 77290 | Shield Assy, Fuel Tank Filler Pipe |
| 77293A | Shield, Fuel Tank Filler Pipe, NO.3 |
| 77295C | Grommet, Fuel Tube |
| 77298A | Clamp, Fuel Tube, NO.4 |
| 77298B | Clamp, Fuel Tube, NO.4 |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77391 | Ring, Fuel Inlet Box |
| 77412 | Support, Fuel Tube Grommet, NO.2 |
| 77413A | Support, Fuel Tube Grommet, NO.3 |
| 77601A | Band Sub-assy, Fuel Tank, NO.1 |
| 77606 | Protector Sub-assy, Fuel Tank, NO.1 |
| 77606A | Protector, Fuel Tank Filler Pipe |
| 77606B | Bracket, Fuel Tank Protector, Side |
| 77613 | Bolt, Fuel Tank Band Set |
| 77642A | Protector, Fuel Tank, NO.2 |
| 77652A | Cushion, Fuel Tank, NO.2 |
| 77681A | Seat, Fuel Tank Band |
| 77706 | Filter Sub-assy, Charcoal Canister |
| 77740 | Canister Assy, Charcoal |
| 77740A | Hose, Fuel, NO.1(FOR CHARCOAL CANISTER) |
| 77751 | Bracket, Charcoal Canister Base |
| 77752 | Bracket, Charcoal Canister Support |
| 77754 | Hose, Charcoal Canister Outlet, NO.1 |
| 77759 | Hose, Charcoal Canister |
| 77777 | Bracket, Fuel Tube Clamp |
| 77779 | Tube, Charcoal Canister Outlet |
| 77785 | Harness, Fuel Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
