Toyota Lexus LS460/460L

2012-09 → 2017-08 · chassis USF4# · catalogue 431250 · Europe

Supported model Data version 2018-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

9 part groups · 2 illustrations

Illustrations

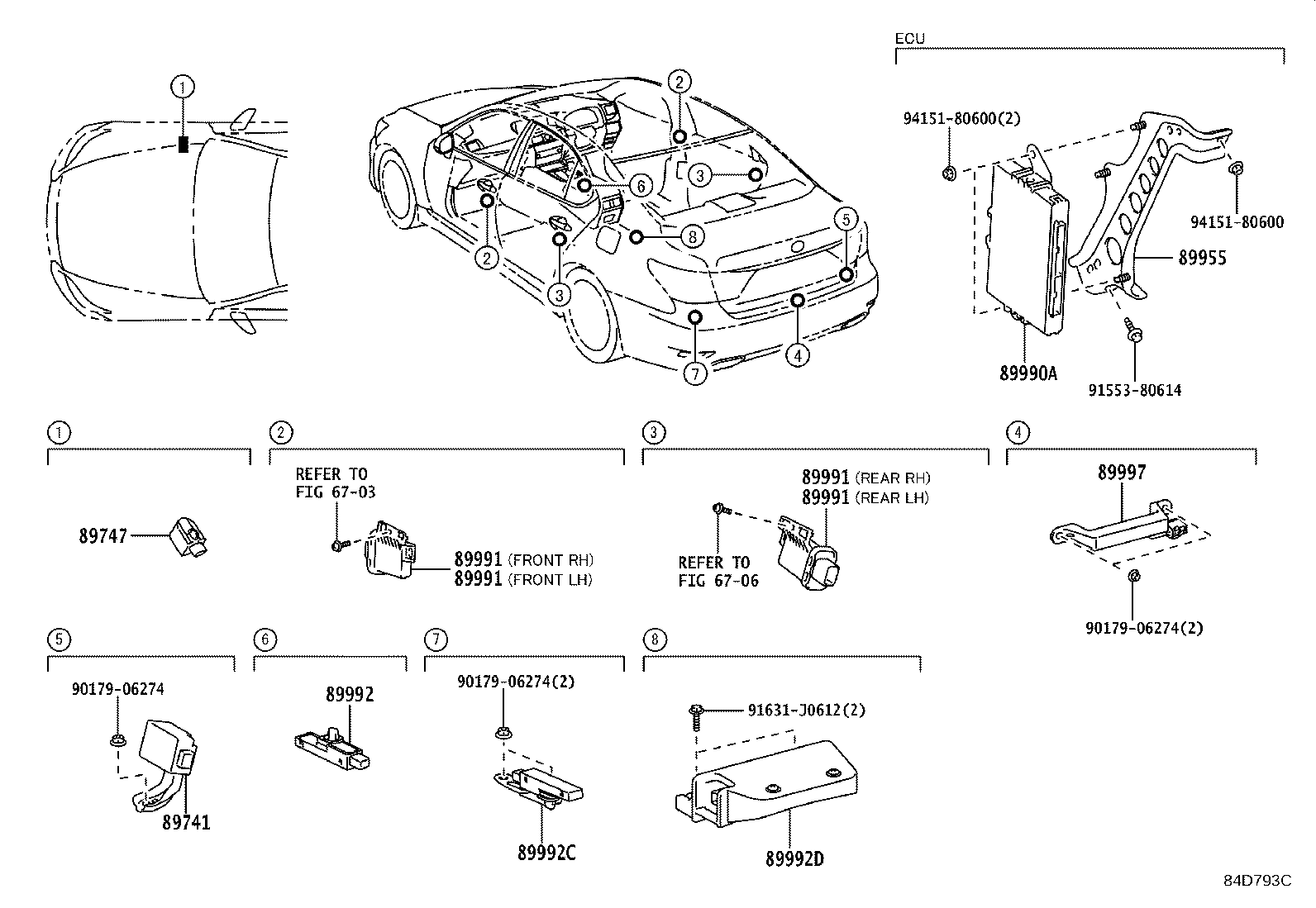

Figure 84D792C 84D792C 2012-09 → — Figure 84D793C 84D793C 2012-09 → —

Part groups

PNCDescription
89741 Receiver, Door Control
89747 Buzzer, Wireless Door Lock
89955 Bracket, Smart Key Computer
89990A Computer Assy, Smart Key
89991 Oscillator, Door Electrical Key
89992 Oscillator, Indoor Electrical Key
89992C Oscillator, Indoor Electrical Key, NO.2
89992D Oscillator, Indoor Electrical Key, NO.3
89997 Antenna, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
