Factory parts data · Europe

Toyota Lexus LS460/460L

2012-09 → 2017-08 · chassis USF4# · catalogue 431250 · Europe

Supported model Data version 2018-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

4 part groups · 2 illustrations

Illustrations

Figure 84D816A

84D816A 2012-09 → —

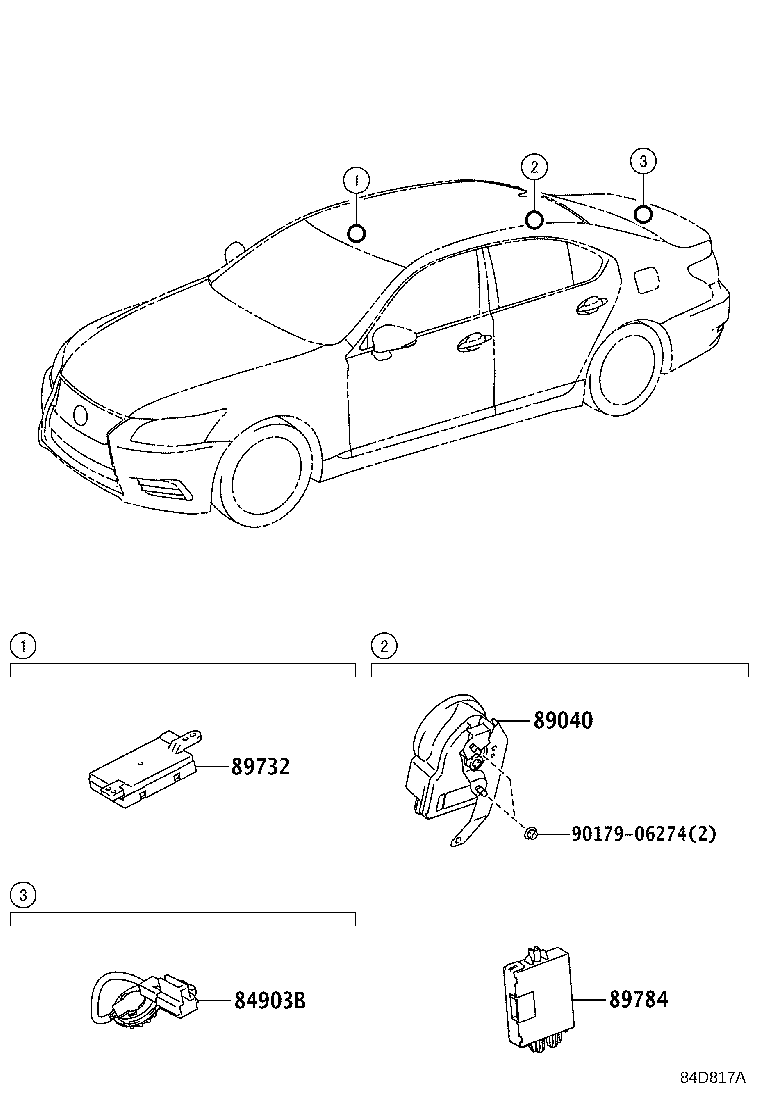

Figure 84D817A

84D817A 2012-09 → —

Part groups

PNC	Description
84903B	Switch Sub-assy, Door Unlock
89040	Siren Assy, Theft Warning
89732	Sensor, Theft Warning Radar
89784	Computer, Immobilizer Code

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
