Toyota Lexus LS460/460L

2012-09 → 2017-08 · chassis USF4# · catalogue 431250 · Europe

Supported model Data version 2018-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camera & Rear Monitor Display

13 part groups · 6 illustrations

Illustrations

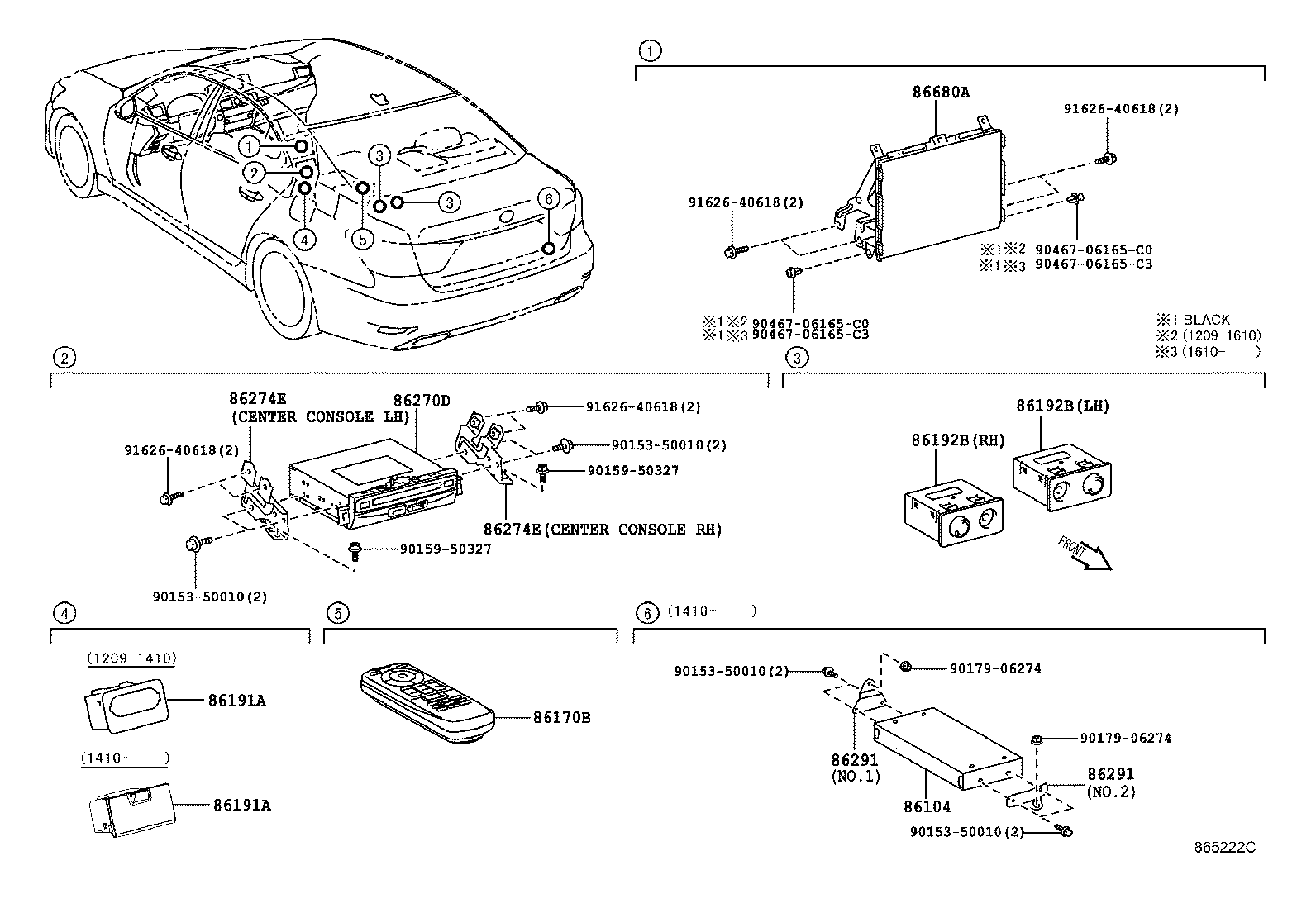

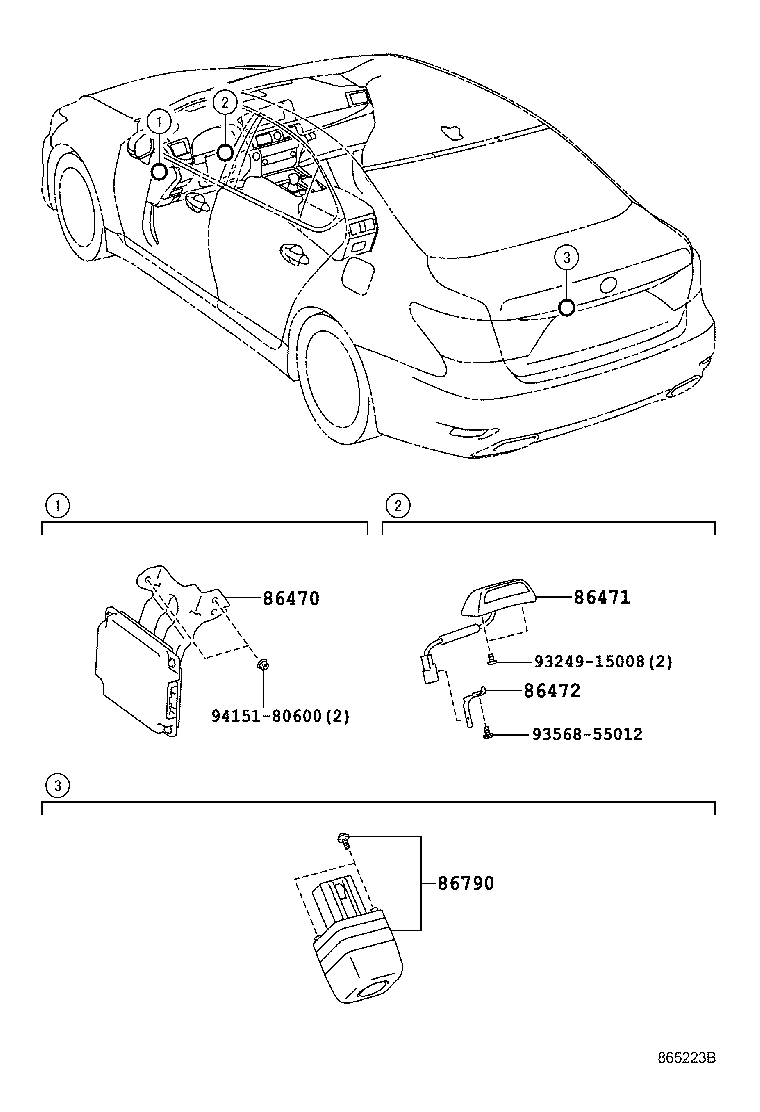

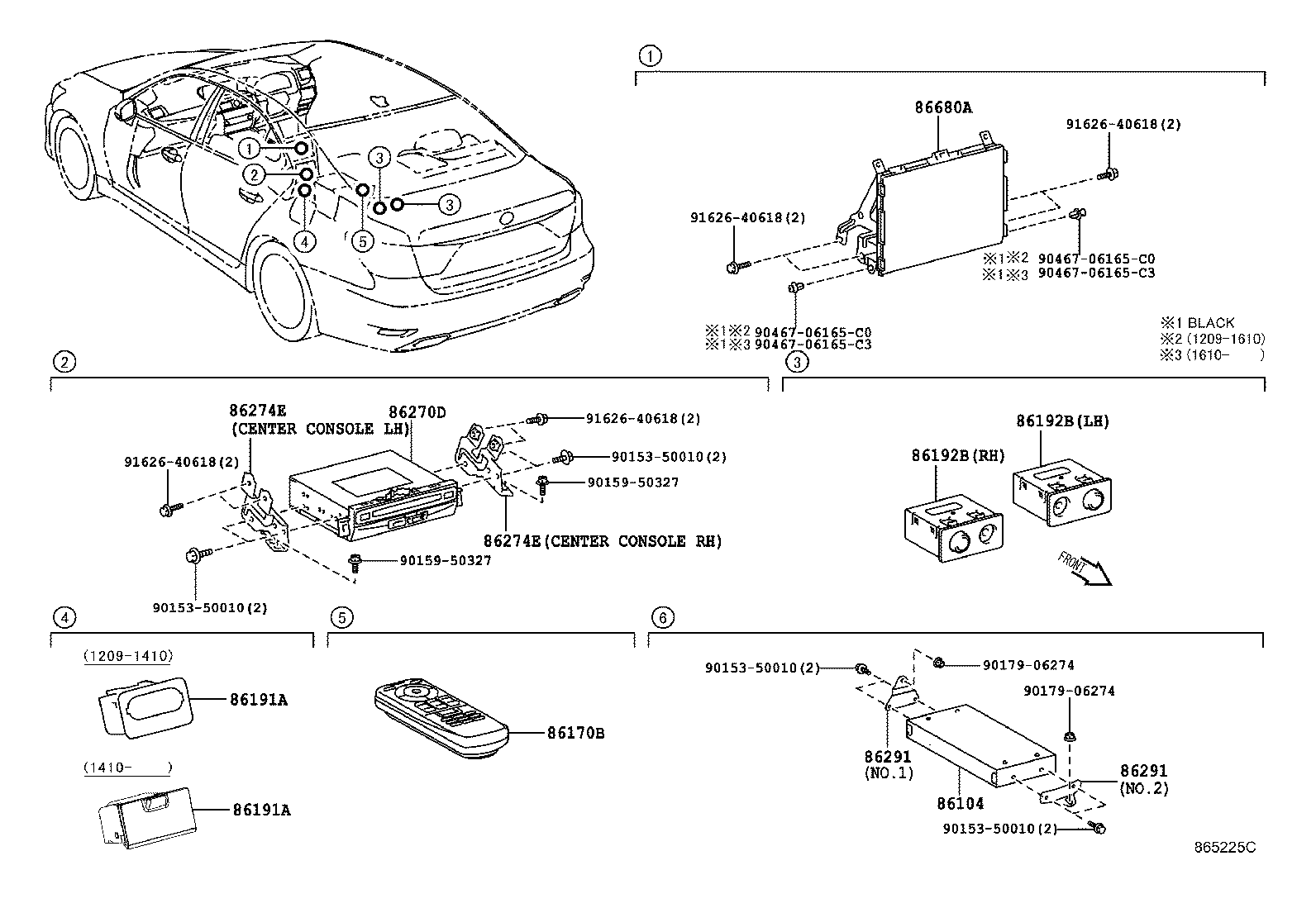

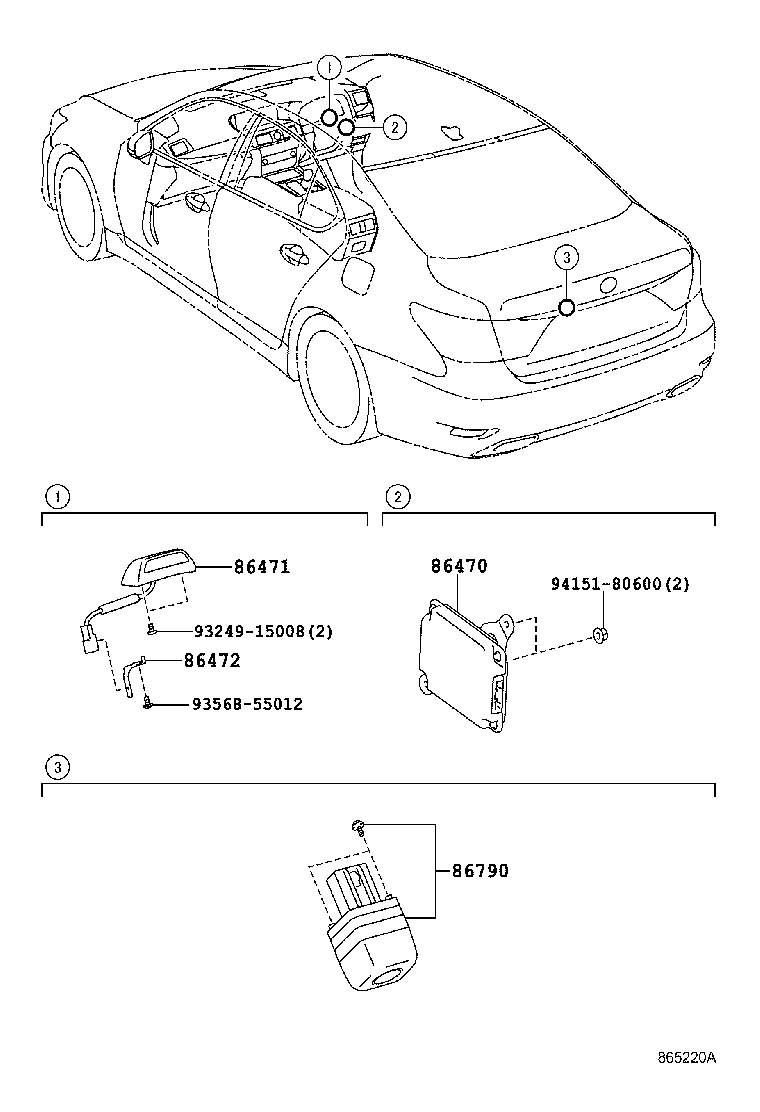

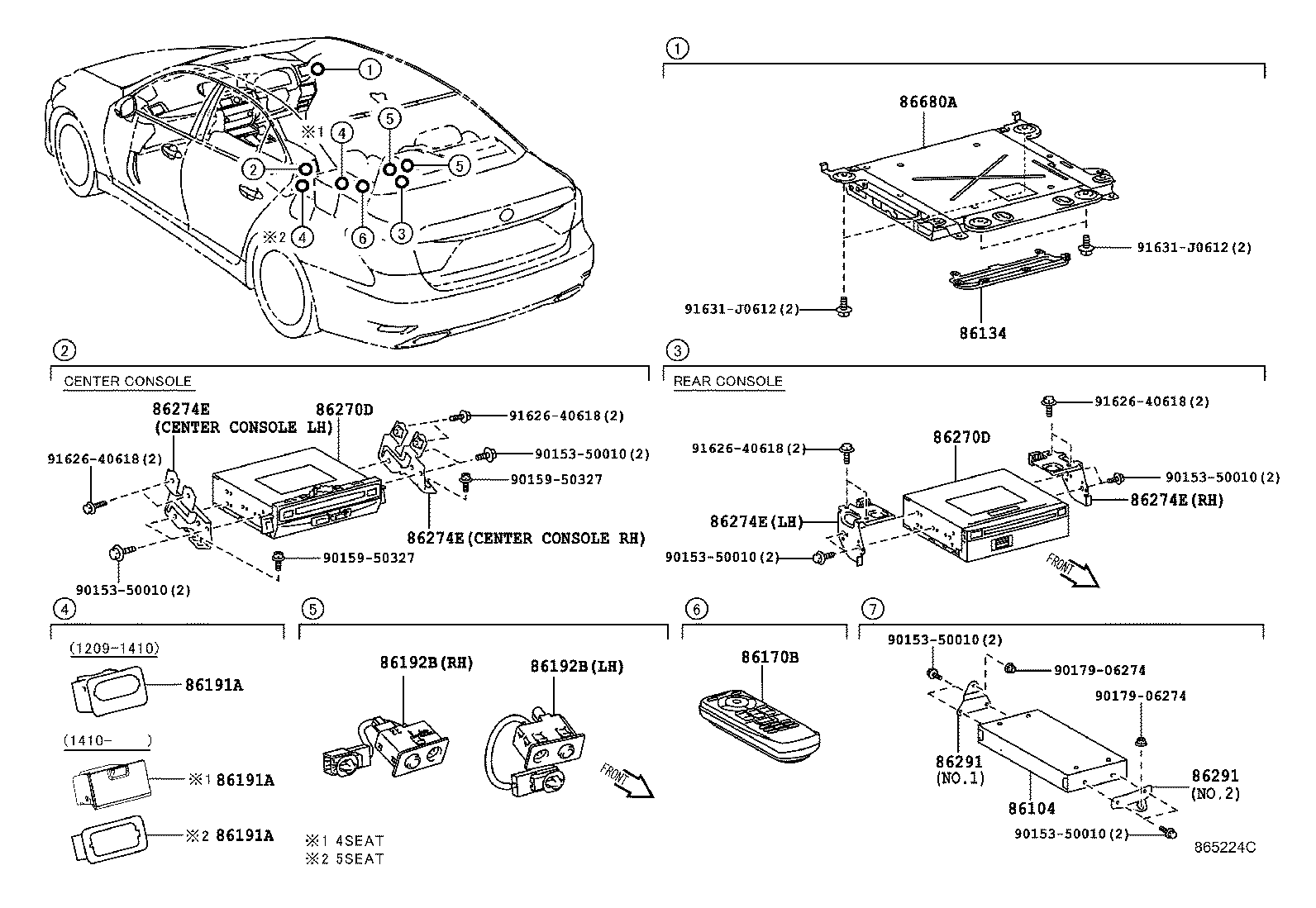

Figure 865221C 865221C 2012-09 → — Figure 865222C 865222C 2012-09 → — Figure 865223B 865223B 2012-09 → — Figure 865224C 865224C 2012-09 → — Figure 865225C 865225C 2012-09 → — Figure 865220A 865220A 2012-09 → —

Part groups

PNCDescription
86104 Controller Sub-assy, Multi-display
86134 Parts, Multi-display
86170B Switch & Volume Assy, Television
86191A Terminal, Video(VIDEO ADAPTER)
86192B Terminal, Headphone
86270D Disc Player Assy
86274E Bracket, Disc Player
86291 Bracket, Television
86470 Computer Assy, Driver Monitor
86471 Camera, Driver Monitor
86472 Bracket, Driver Monitor
86680A Display Assy, Television
86790 Camera Assy, Television
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
