Toyota Lexus LS460/460L
2012-09 → 2017-08 · chassis USF4# · catalogue 431250 · Europe
Supported model
Data version 2018-03
Telephone & Mayday
8 part groups · 3 illustrations
Part groups

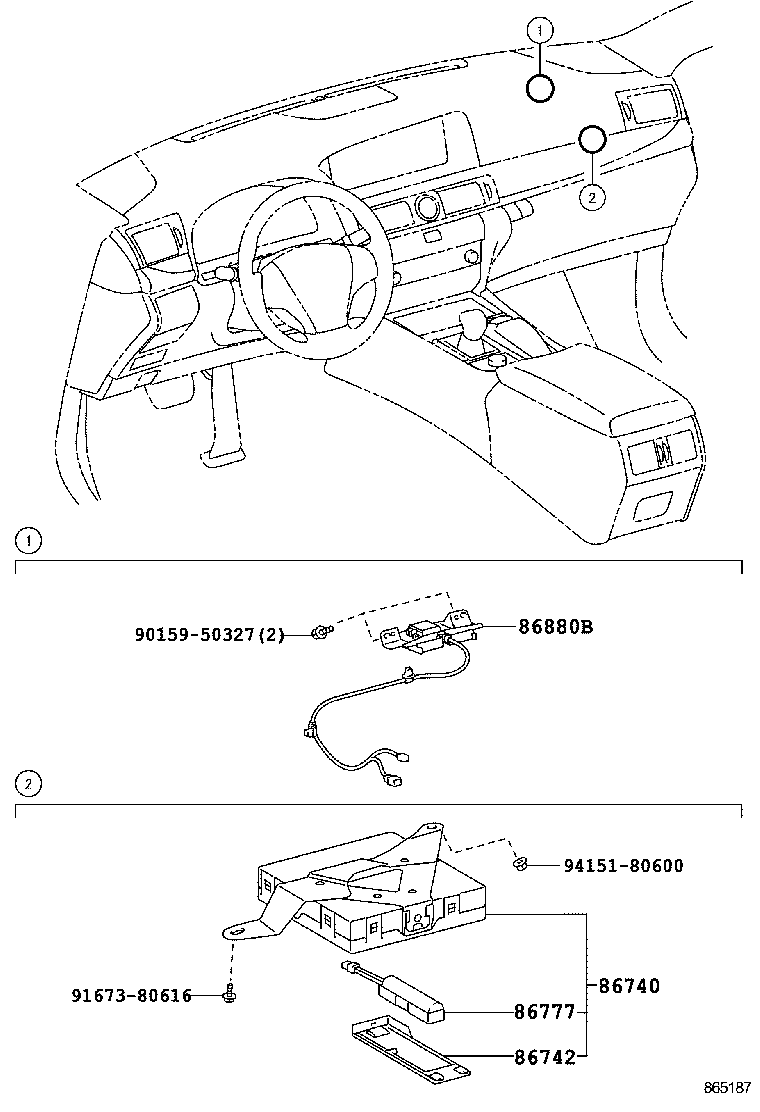

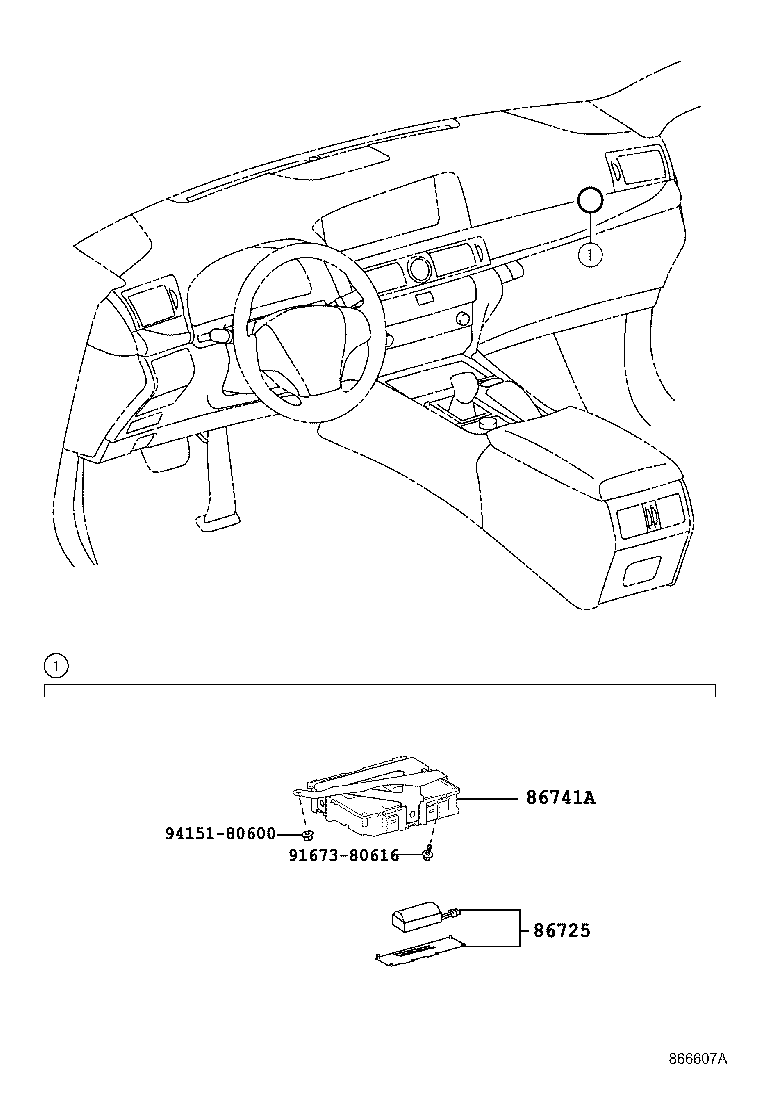

| PNC | Description |
|---|---|
| 86719A | Bracket, Telephone NO.1 |
| 86719B | Bracket, Telephone NO.2 |
| 86725 | Battery, Mobilephone |
| 86740 | Transceiver Assy, Telephone |
| 86741A | Transceiver, Telematics |
| 86742 | Cover, Transceiver |
| 86777 | Battery, Mayday |
| 86880B | Antenna Assy, Instrument Panel Integration |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
