Toyota Lexus LS460/460L
2012-09 → 2017-08 · chassis USF4# · catalogue 431250 · Europe
Supported model
Data version 2018-03
Heating & Air Conditioning - Control & Air Duct
36 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|

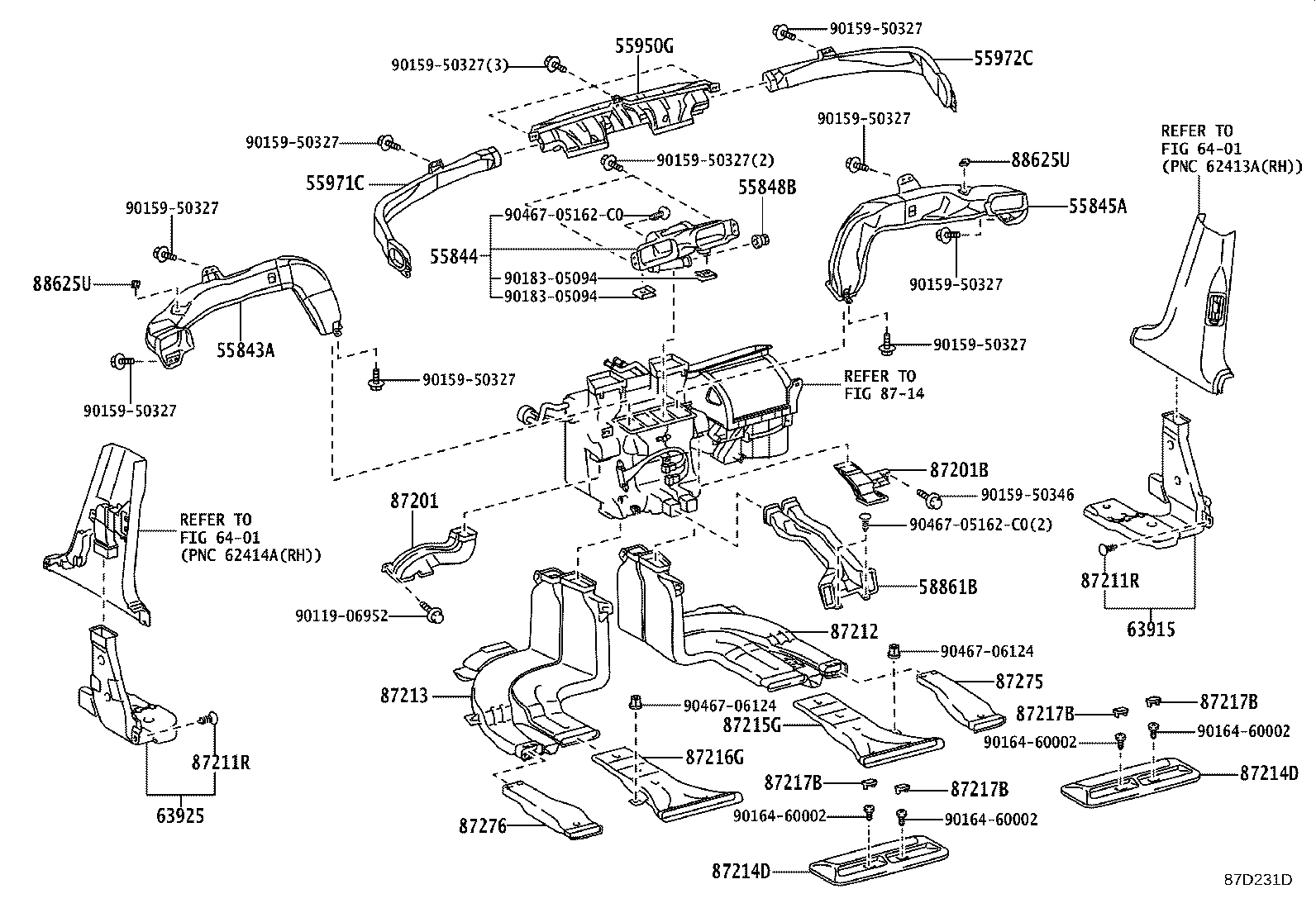

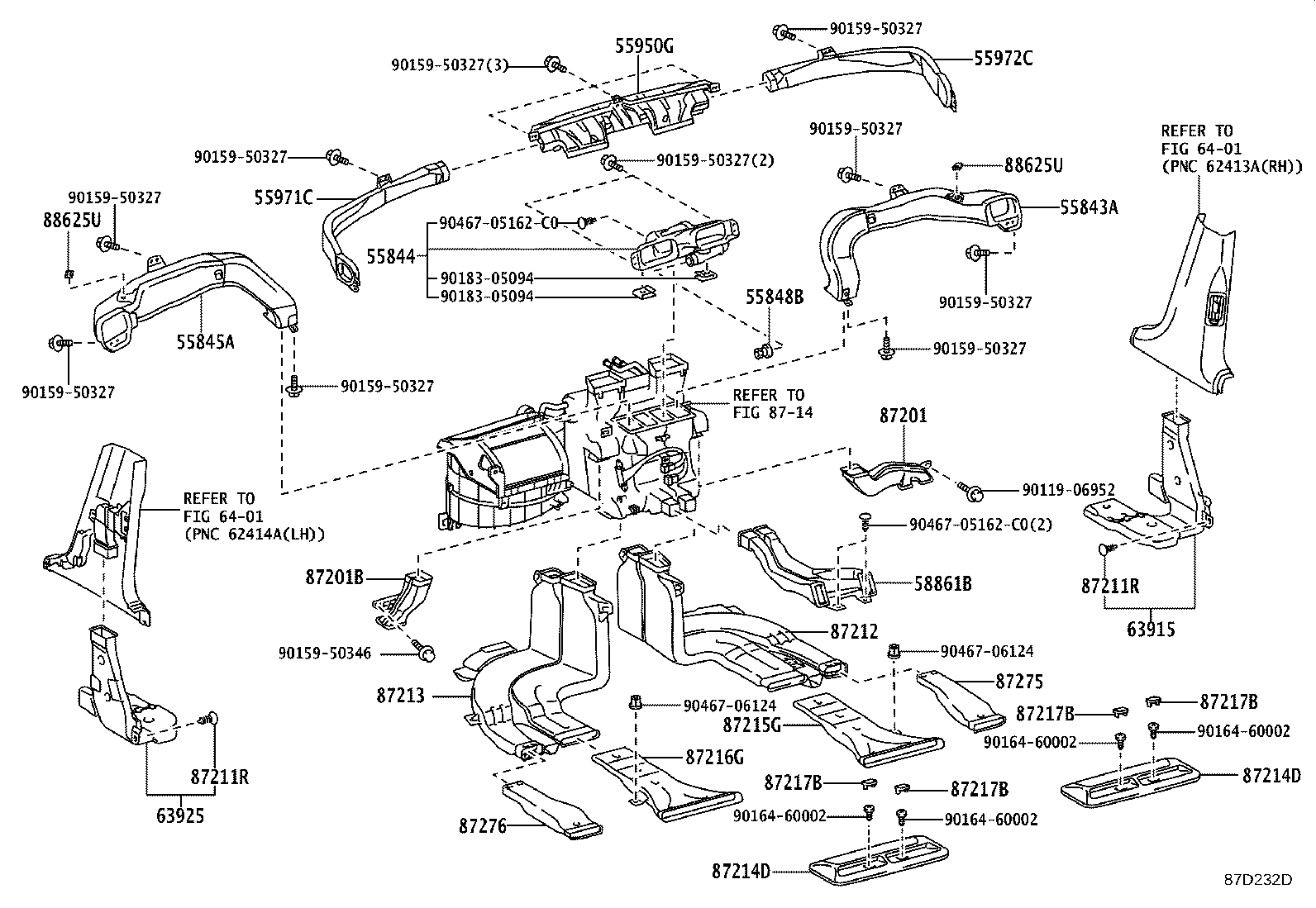

| 55843A | Duct, Heater TO Register, NO.1 |
| 55844 | Duct, Heater TO Register, NO.2 |
| 55845A | Duct, Heater TO Register, NO.3 |
| 55848B | Duct, Heater TO Register, NO.6 |
| 55950G | Nozzle Assy, Defroster |
| 55971C | Duct, Side Defroster Nozzle, NO.1 |
| 55972C | Duct, Side Defroster Nozzle, NO.2 |
| 58861B | Duct, Console Box, NO.1 |

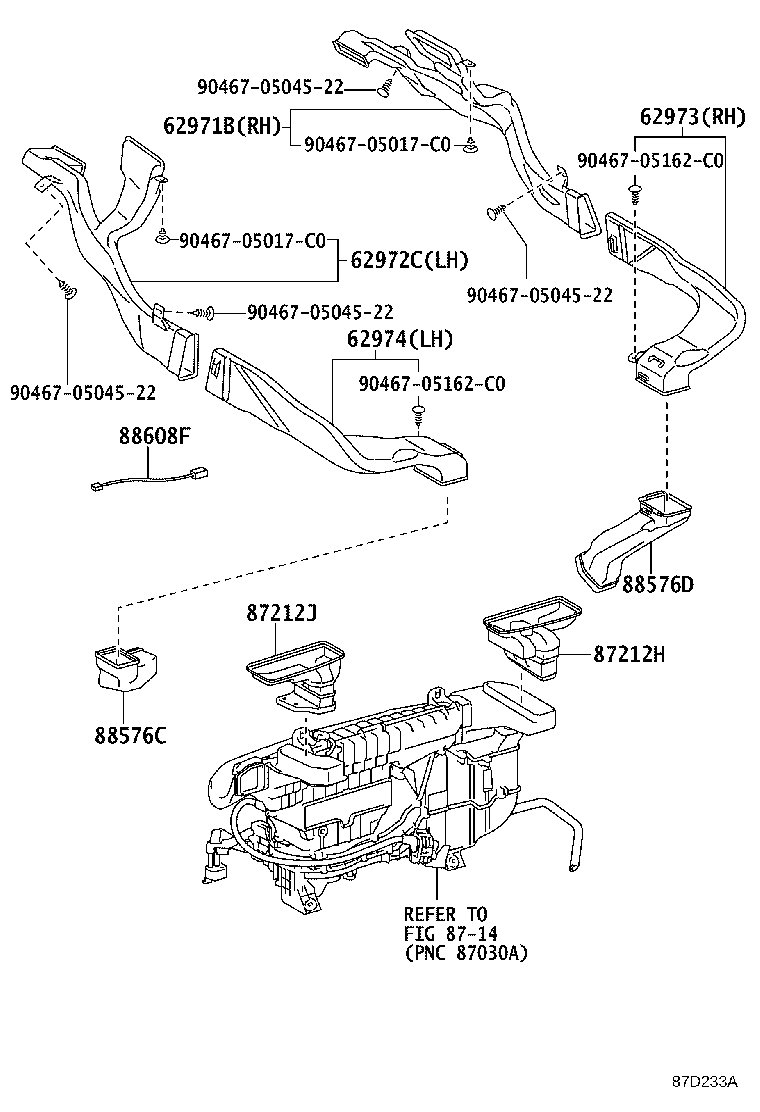

| 62971B | Duct, Roof Side Air, NO.1 RH |
| 62972C | Duct, Roof Side Air, NO.1 LH |
| 62973 | Duct, Roof Side Air, NO.2 RH |
| 62974 | Duct, Roof Side Air, NO.2 LH |
| 63915 | Duct, Cooler, Inner NO.1 RH |
| 63925 | Duct, Cooler, Inner NO.1 LH |
| 87201 | Duct Sub-assy, Air, NO.1 |
| 87201B | Duct Sub-assy, Air, NO.2 |
| 87211R | Clip, Air Duct |
| 87212 | Duct, Air, Rear NO.1 |
| 87212H | Duct, Air, Rear NO.4 |
| 87212J | Duct, Air, Rear NO.5 |
| 87213 | Duct, Air, Rear NO.2 |
| 87214D | Duct, Air, Rear NO.3 |
| 87215G | Guide, Air Duct, Rear RH |
| 87216G | Guide, Air Duct, Rear LH |
| 87217B | Plug, Air Duct |
| 87275 | Duct, Floor Heater Air, NO.1 RH |
| 87276 | Duct, Floor Heater Air, NO.1 LH |
| 88576C | Duct, Cooler Air, NO.1 |
| 88576D | Duct, Cooler Air, NO.2 |
| 88608F | Harness Sub-assy, Wiring Air Indicator, NO.2 |

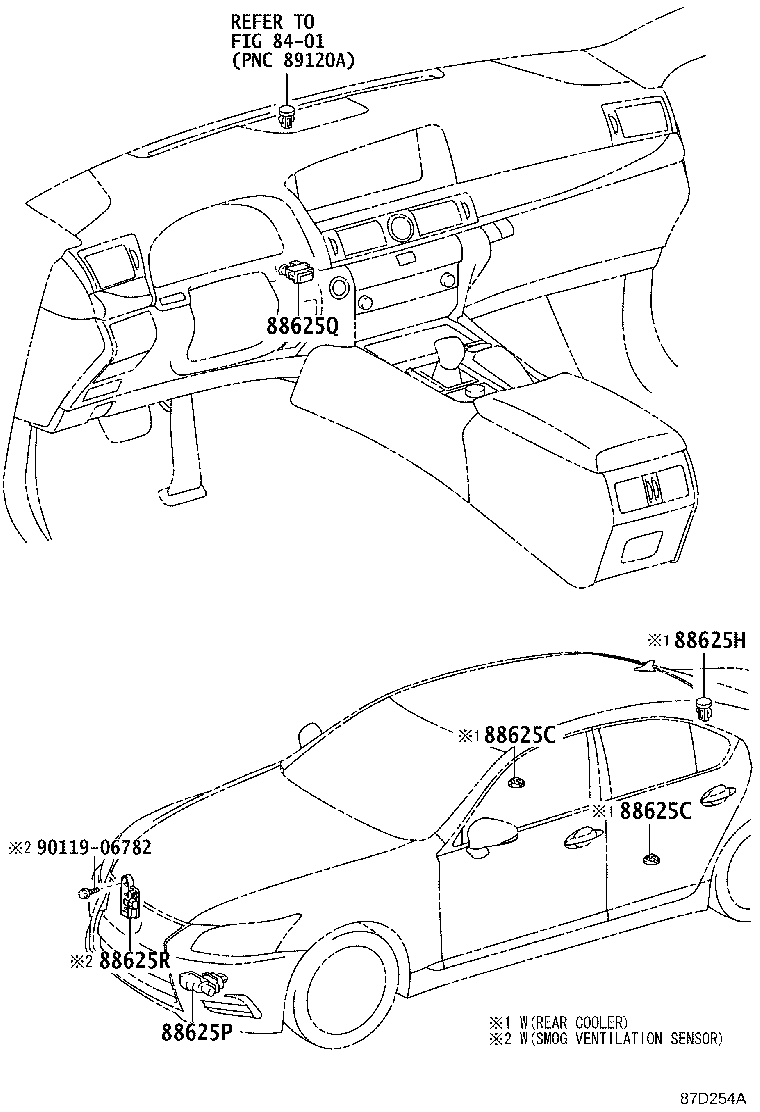

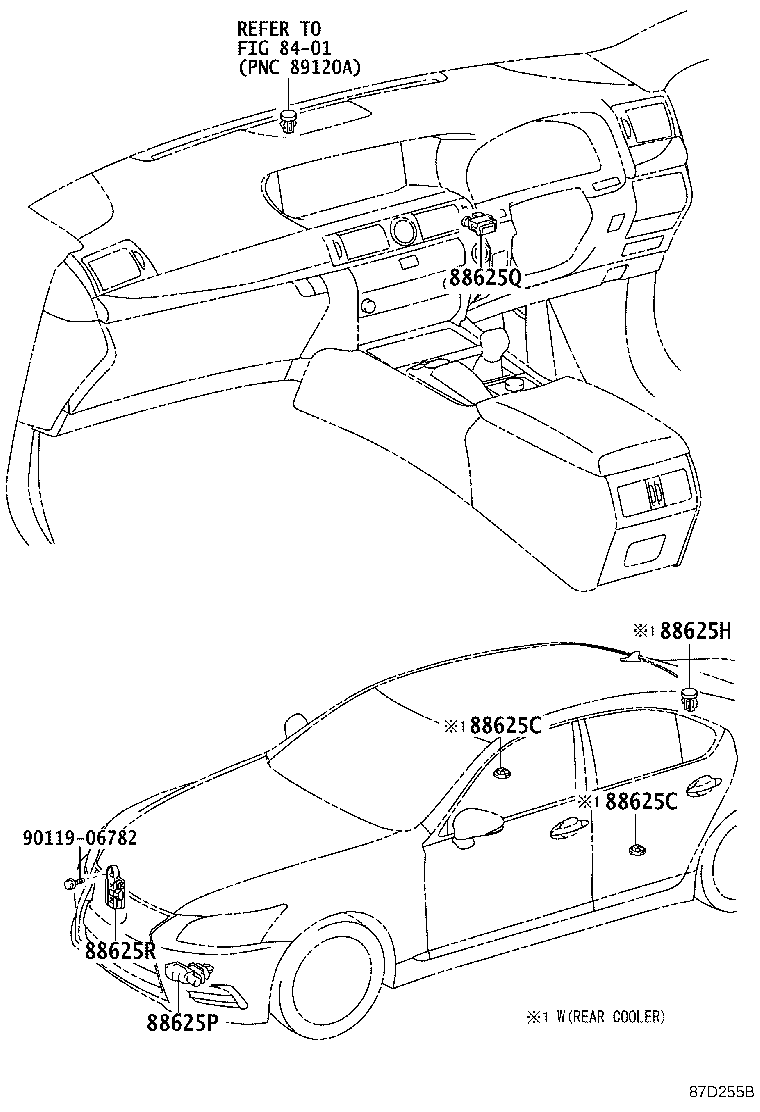

| 88625C | Thermistor, Cooler |
| 88625H | Thermistor, Cooler (SOLAR SENSOR) |
| 88625P | Thermistor, Cooler (AMBIENT TEMP. SENSOR) |
| 88625Q | Thermistor, Cooler (ROOM TEMP. SENSOR) |
| 88625R | Thermistor, Cooler (SENSOR, SMOG VENTILATION) |
| 88625U | Thermistor, Cooler (DUCT SENSOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
