Toyota Lexus LS460/460L

2012-09 → 2017-08 · chassis USF4# · catalogue 431250 · Europe

Supported model Data version 2018-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

21 part groups · 9 illustrations

Illustrations

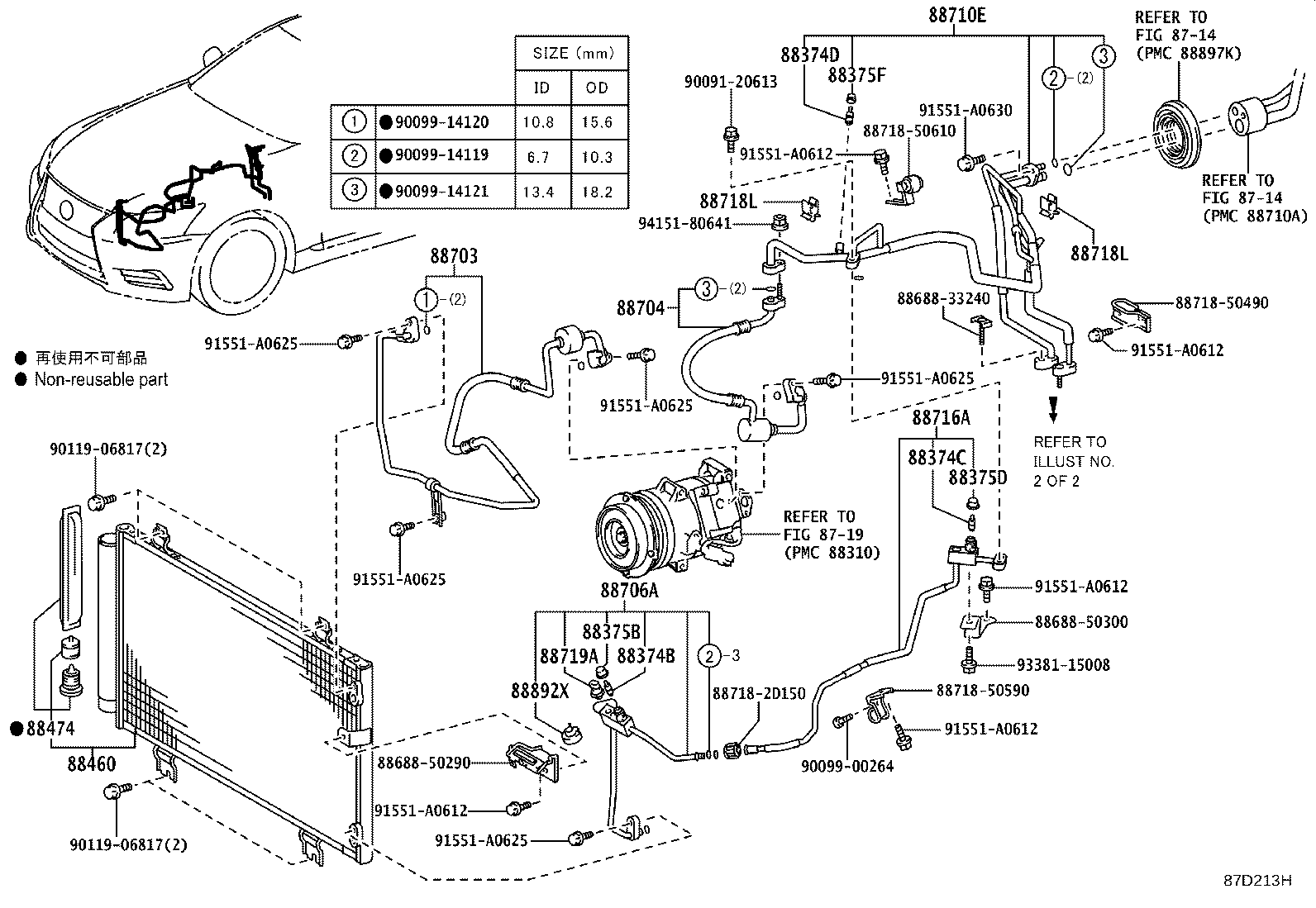

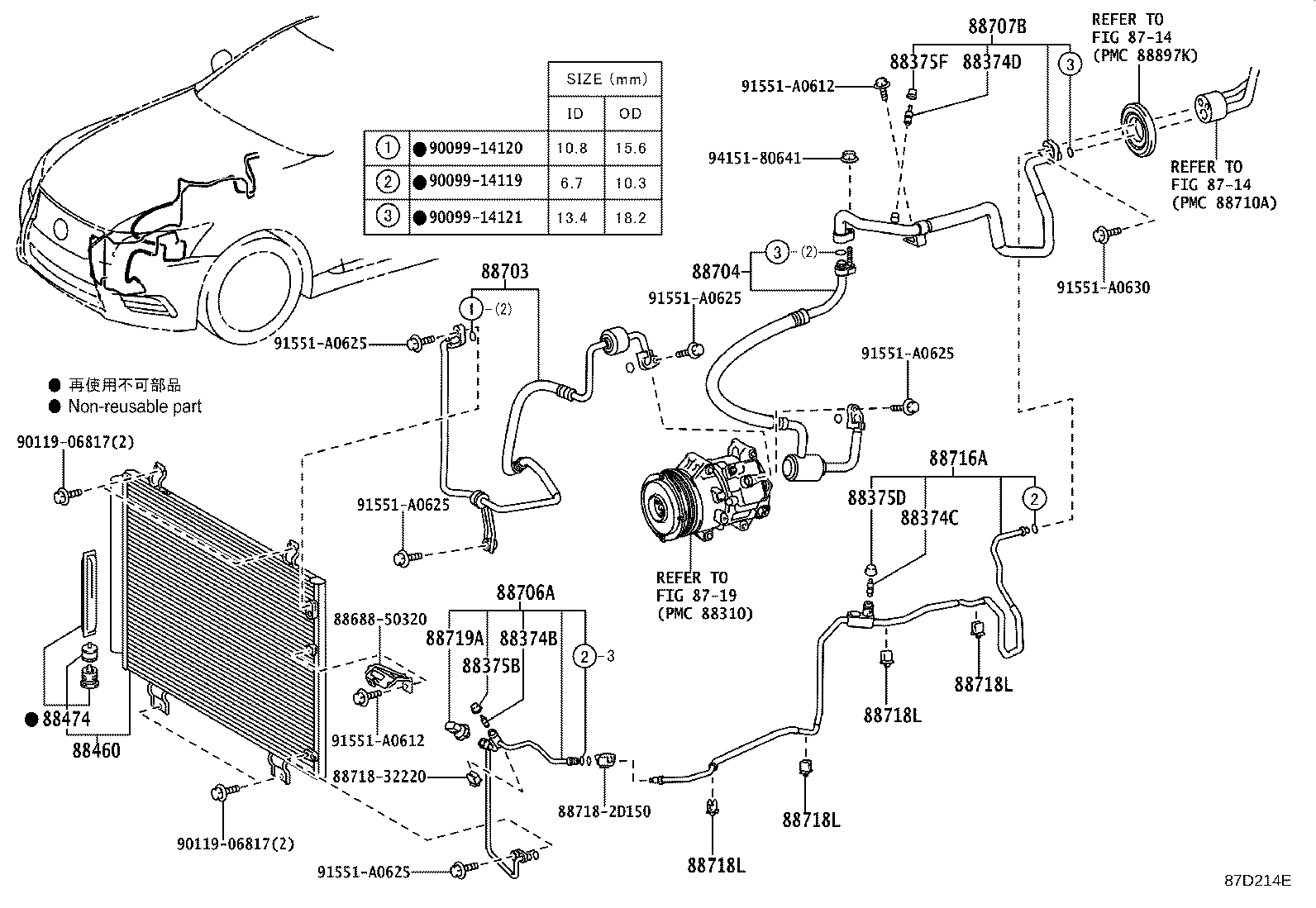

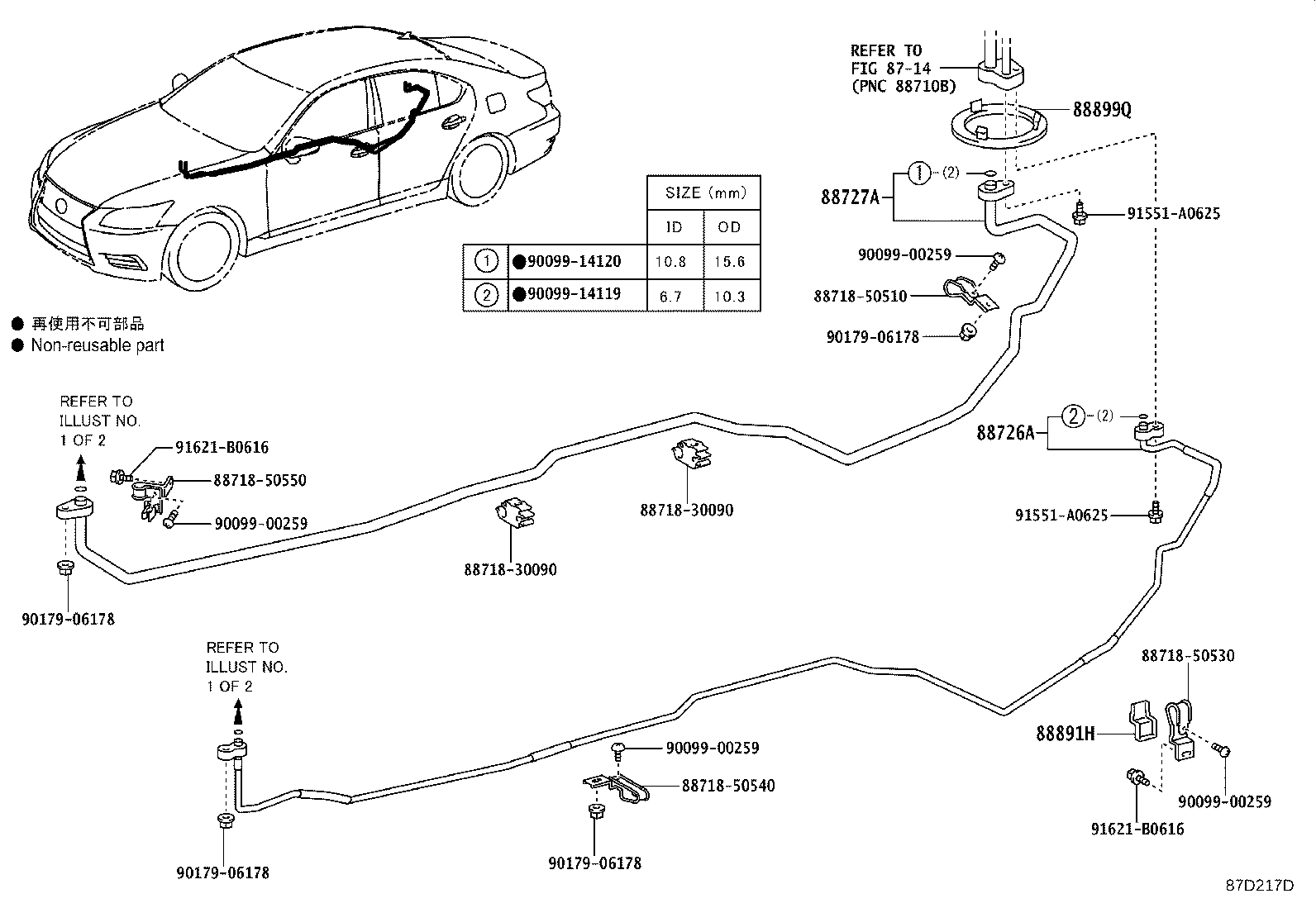

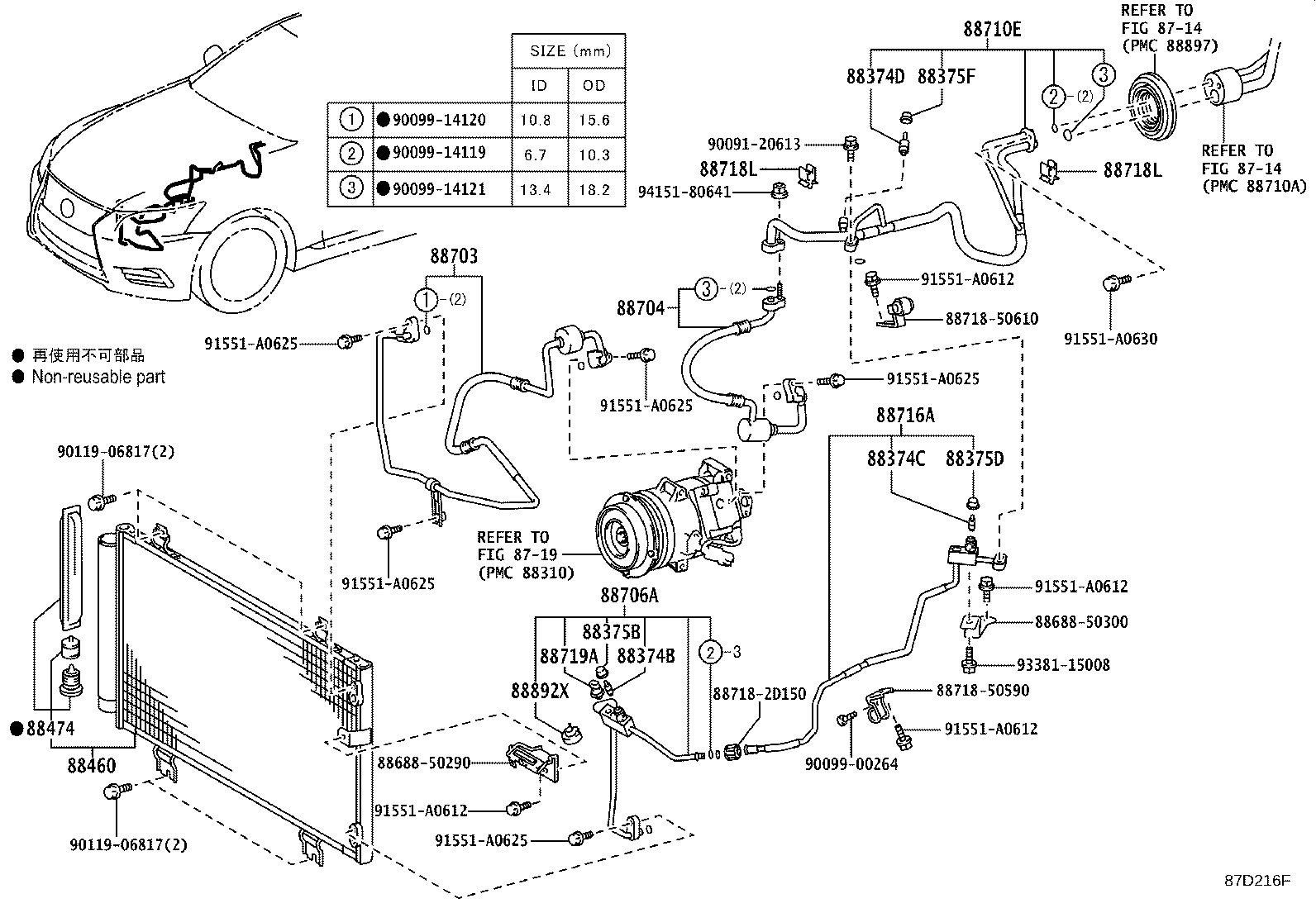

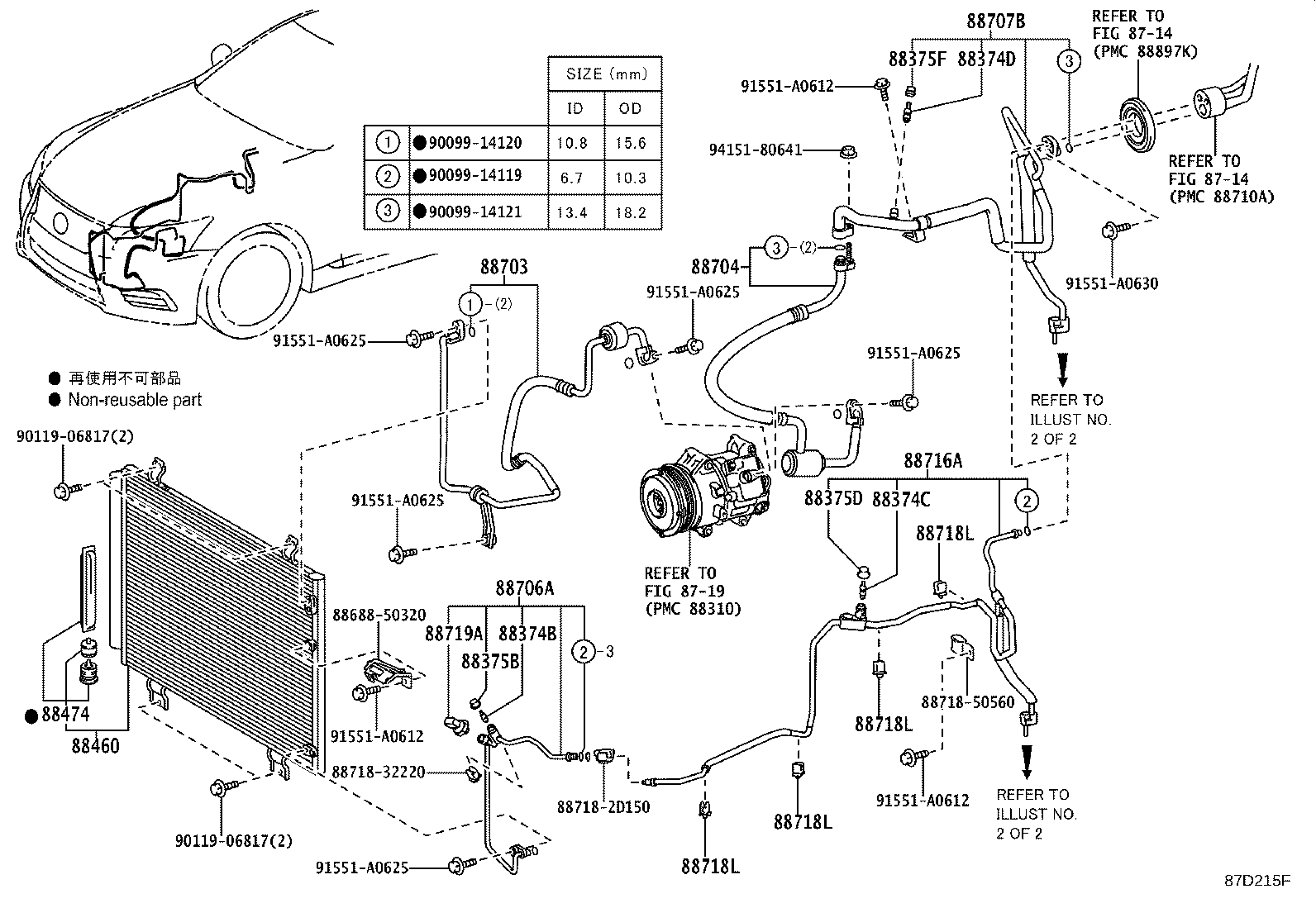

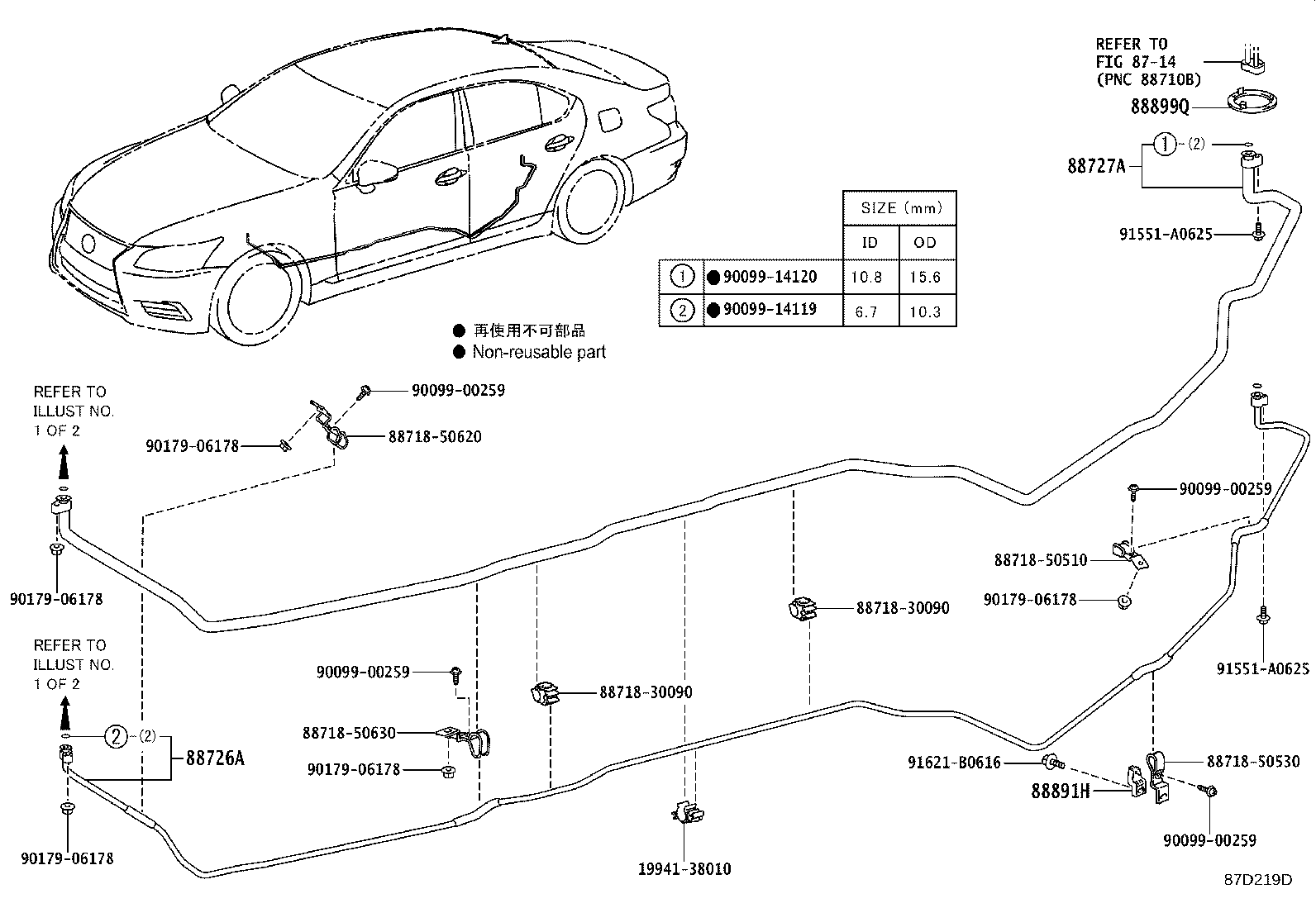

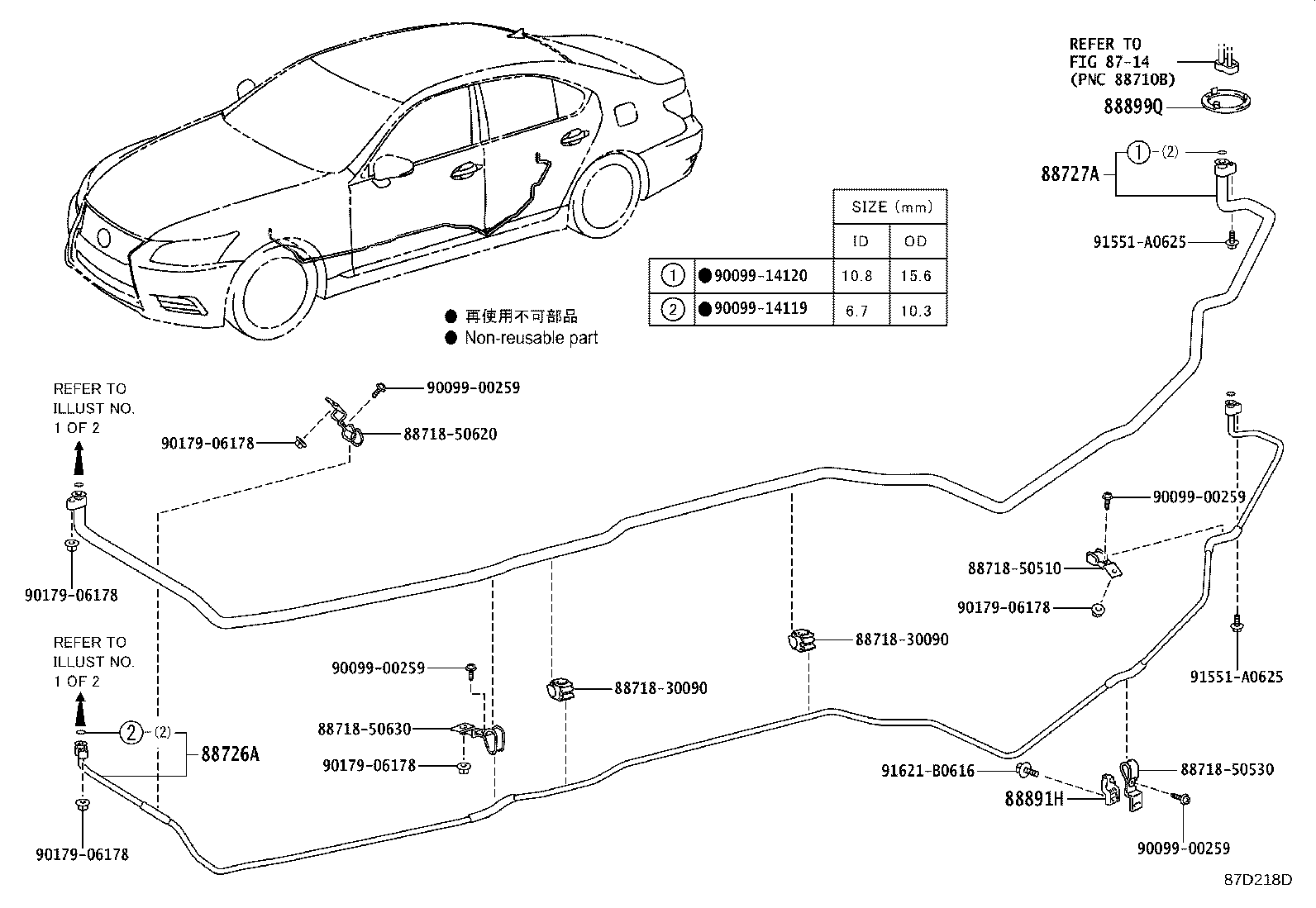

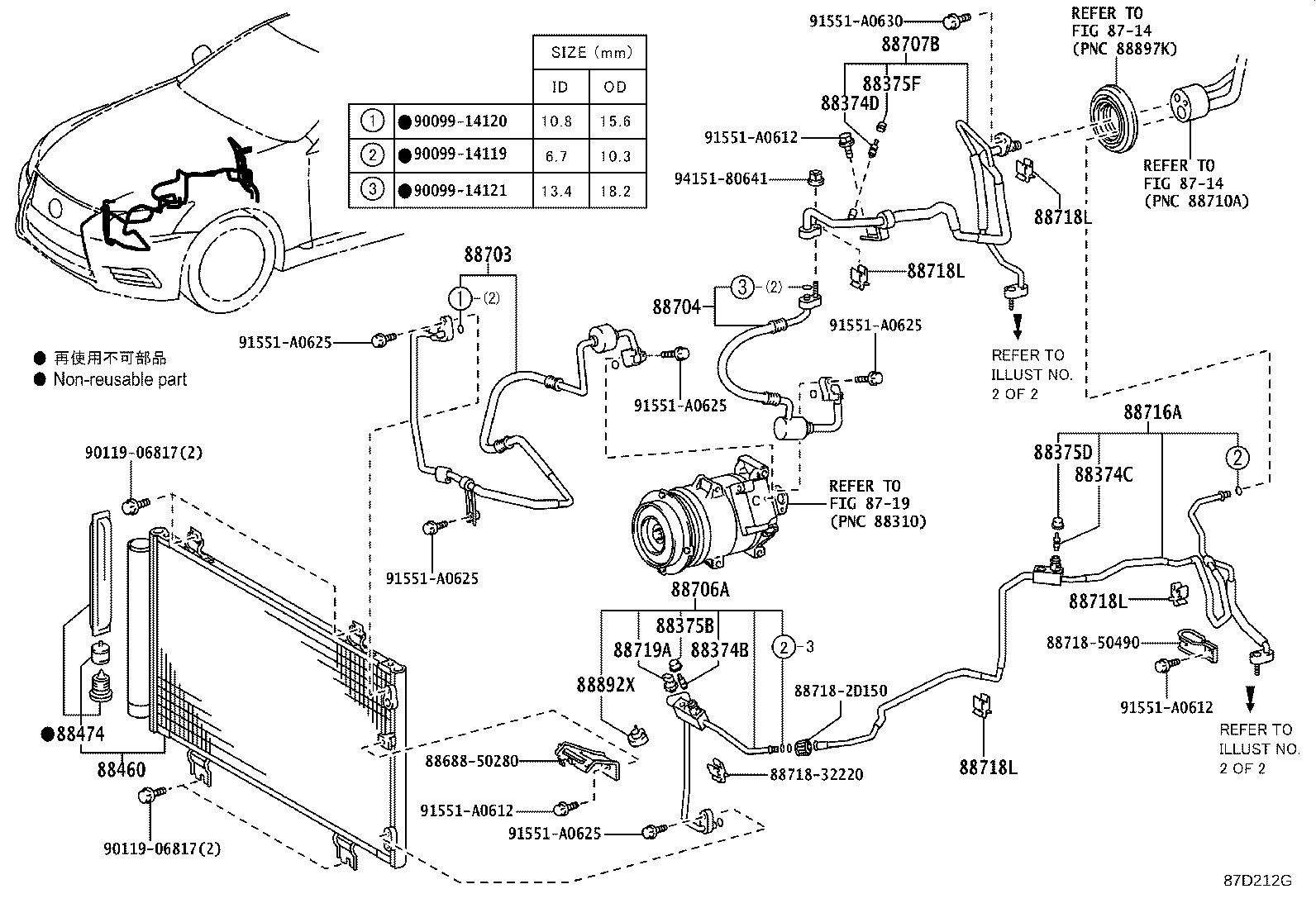

Figure 87D211F 87D211F 2012-09 → — Figure 87D212G 87D212G 2012-09 → — Figure 87D216F 87D216F 2012-09 → — Figure 87D213H 87D213H 2012-09 → — Figure 87D214E 87D214E 2012-09 → — Figure 87D215F 87D215F 2012-09 → — Figure 87D217D 87D217D 2012-09 → — Figure 87D218D 87D218D 2012-09 → — Figure 87D219D 87D219D 2012-09 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88374D Valve, Service NO.3
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88375F Cap, Service Valve, NO.3
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88706A Tube Sub-assy, Liquid, A
88707B Tube Sub-assy, Suction, B
88710E Tube & Accessory Assy, Air Conditioner
88716A Pipe, Cooler Refrigerant Liquid, A
88718L Clamp, Piping
88719A Sensor, Air Conditioner Pressure
88726A Pipe, Cooler Refrigerant Liquid, A
88727A Pipe, Cooler Refrigerant Suction, A
88891H Cover, Cooler, NO.1
88892X Cover, Cooler, NO.2
88899Q Plate, Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
