Toyota Lexus LS Series
2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe
Supported model
Data version 2020-11

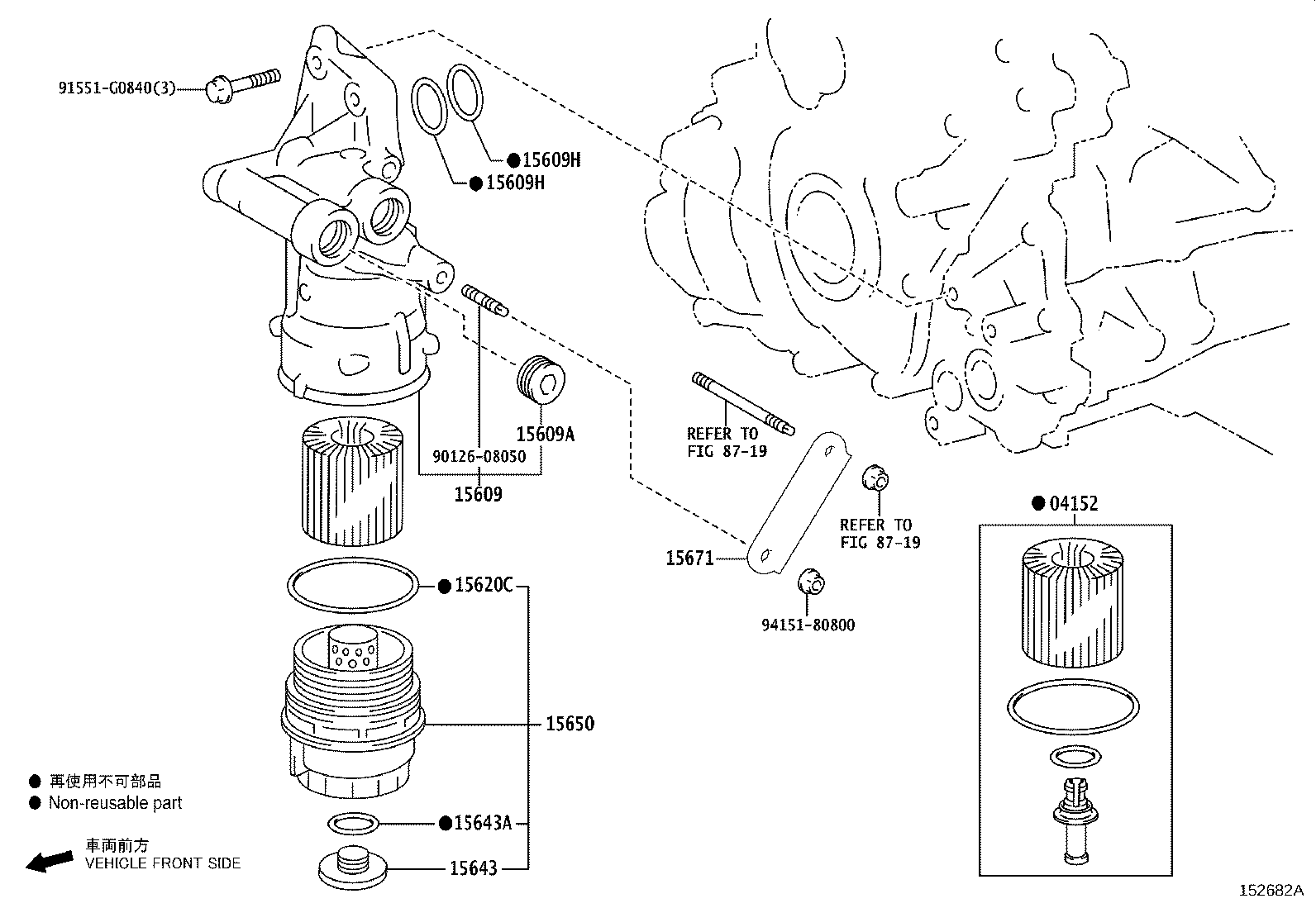

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04152 — Element Kit, Oil Filter | ||||
| 04152-31090 |
Element Kit, Oil Filter
2017-10 → 2020-10
ended
|
8GRFXS GVF55 | — | |
| 04152-31110 |
Element Kit, Oil Filter
2017-10 → 2020-10
ended
|
8GR# GSF50,GVF50 | — | |
| 04152-38010 |
Element Kit, Oil Filter
2017-12 → 2020-10
ended
|
V35AFTS VXFA55 | — | |
| 04152-31090 |
Element Kit, Oil Filter
2020-11 → 2025-09
ended
|
8GRFXS GVF55 | — | |
| 04152-31110 |
Element Kit, Oil Filter
2020-11 → 2024-10
ended
|
8GRFKS GSF50 | — | |
| 04152-31110 |
Element Kit, Oil Filter
2020-11 → 2025-09
ended
|
8GRFXS GVF50 | — | |
| 04152-38010 |
Element Kit, Oil Filter
2020-11 → 2024-10
ended
|
V35AFTS VXFA55 | — | |
| 15609 — Bracket Sub-assy, Oil Filter | ||||
| 15609-31051 |
Bracket Sub-assy, Oil Filter
2017-10 → 2020-10
ended
|
8GRFXS GVF50 | — | |
| 15609-31061 note |
Bracket Sub-assy, Oil Filter
2018-10 → 2020-10
ended
|
8GRFXS GVF50 LHD | — | |
| 15609-31061 note |
Bracket Sub-assy, Oil Filter
2017-10 → 2020-10
ended
|
8GRFXS GVF50 RHD | — | |
| 15609-31061 |
Bracket Sub-assy, Oil Filter
2017-10 → 2020-10
ended
|
8GRFKS GSF50 | — | |
| 15609-31080 |
Bracket Sub-assy, Oil Filter
2017-10 → 2020-10
ended
|
8GRFXS GVF55 | — | |
| 15609-70020 |
Bracket Sub-assy, Oil Filter
2017-12 → 2020-10
ended
|
V35AFTS VXFA55 | — | |
| 15609-31051 |
Bracket Sub-assy, Oil Filter
2020-11 → 2025-09
ended
|
8GRFXS GVF50 | — | |
| 15609-31061 note |
Bracket Sub-assy, Oil Filter
2020-11 → 2023-10
ended
|
8GRFXS GVF50 RHD | — | |
| 15609-31061 |
Bracket Sub-assy, Oil Filter
2020-11 → 2024-10
ended
|
8GRFKS GSF50 | — | |
| 15609-31061 note |
Bracket Sub-assy, Oil Filter
2020-11 → 2025-09
ended
|
8GRFXS GVF50 LHD | — | |
| 15609-31080 |
Bracket Sub-assy, Oil Filter
2020-11 → 2025-09
ended
|
8GRFXS GVF55 | — | |
| 15609-70020 |
Bracket Sub-assy, Oil Filter
2020-11 → 2024-10
ended
|
V35AFTS VXFA55 | — | |
| 15609A — Plug, Taper Screw(FOR OIL FILTER BRACKET) | ||||
| 90344-55002 |
Plug, Taper Screw(FOR OIL FILTER BRACKET)
2017-10 → 2020-10
ended
|
8GRFXS GVF55 | — | |
| 90344-55002 |
Plug, Taper Screw(FOR OIL FILTER BRACKET)
2017-12 → 2020-10
ended
|
V35AFTS VXFA55 | — | |
| 90344-55002 |
Plug, Taper Screw(FOR OIL FILTER BRACKET)
2020-11 → 2025-09
ended
|
8GRFXS GVF55 | — | |
| 90344-55002 |
Plug, Taper Screw(FOR OIL FILTER BRACKET)
2020-11 → 2024-10
ended
|
V35AFTS VXFA55 | — | |
| 15609H — Ring, O(FOR OIL FILTER BRACKET) | ||||
| 96723-35028 |
Ring, O(FOR OIL FILTER BRACKET)
2017-12 → 2020-09
ended
|
V35AFTS VXFA55 | — | |
| 15785-70010 |
Ring, O(FOR OIL FILTER BRACKET)
2020-11 → 2024-10
ended
|
V35AFTS VXFA55 | — | |
| 15620C — Gasket(FOR OIL FILTER CAP) | ||||
| 90301-79006 |
Gasket(FOR OIL FILTER CAP)
2017-10 → 2020-10
ended
|
8GR# GSF50,GVF5# | — | |
| 90301-79006 |
Gasket(FOR OIL FILTER CAP)
2017-12 → 2020-10
ended
|
V35AFTS VXFA55 | — | |
| 90301-79006 |
Gasket(FOR OIL FILTER CAP)
2020-11 → 2024-10
ended
|
8GRFKS GSF50 | — | |
| 90301-79006 |
Gasket(FOR OIL FILTER CAP)
2020-11 → 2024-10
ended
|
V35AFTS VXFA55 | — | |
| 90301-79006 |
Gasket(FOR OIL FILTER CAP)
2020-11 → 2025-09
ended
|
8GRFXS GVF5# | — | |
| 15643 — Plug, Oil Filter Drain | ||||
| 15643-31050 |
Plug, Oil Filter Drain
2017-10 → 2020-10
ended
|
8GRFXS GVF55 | — | |
| 15643-31050 |
Plug, Oil Filter Drain
2017-12 → 2020-10
ended
|
V35AFTS VXFA55 | — | |
| 15643-31050 |
Plug, Oil Filter Drain
2020-11 → 2025-09
ended
|
8GRFXS GVF55 | — | |
| 15643-31050 |
Plug, Oil Filter Drain
2020-11 → 2024-10
ended
|
V35AFTS VXFA55 | — | |
| 15643A — Ring, O(FOR OIL FILTER DRAIN PLUG) | ||||
| 96723-35028 |
Ring, O(FOR OIL FILTER DRAIN PLUG)
2017-10 → 2020-10
ended
|
8GRFXS GVF55 | — | |
| 96723-35028 |
Ring, O(FOR OIL FILTER DRAIN PLUG)
2017-12 → 2020-10
ended
|
V35AFTS VXFA55 | — | |
| 96723-35028 |
Ring, O(FOR OIL FILTER DRAIN PLUG)
2020-11 → 2024-10
ended
|
V35AFTS VXFA55 | — | |
| 96723-35028 |
Ring, O(FOR OIL FILTER DRAIN PLUG)
2020-11 → 2025-09
ended
|
8GRFXS GVF55 | — | |
| 15650 — Cap Assy, Oil Filter W/Elememt | ||||
| 15650-31060 |
Cap Assy, Oil Filter W/Elememt
2017-10 → 2020-10
ended
|
8GR# GSF50,GVF50 | — | |
| 15650-38020 |
Cap Assy, Oil Filter W/Elememt
2017-12 → 2020-10
ended
|
V35AFTS VXFA55 | — | |
| 15650-31060 |
Cap Assy, Oil Filter W/Elememt
2020-11 → 2024-10
ended
|
8GRFKS GSF50 | — | |
| 15650-31060 |
Cap Assy, Oil Filter W/Elememt
2020-11 → 2025-09
ended
|
8GRFXS GVF50 | — | |
| 15650-38020 |
Cap Assy, Oil Filter W/Elememt
2020-11 → 2024-10
ended
|
V35AFTS VXFA55 | — | |
| 15671 — Bracket, Oil Filter | ||||
| 15671-70040 |
Bracket, Oil Filter
2017-12 → 2020-10
ended
|
V35AFTS VXFA55 | — | |
| 15671-70040 |
Bracket, Oil Filter
2020-11 → 2024-10
ended
|
V35AFTS VXFA55 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
