Toyota Lexus LS Series

2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Head

87 part groups · 8 illustrations

Illustrations

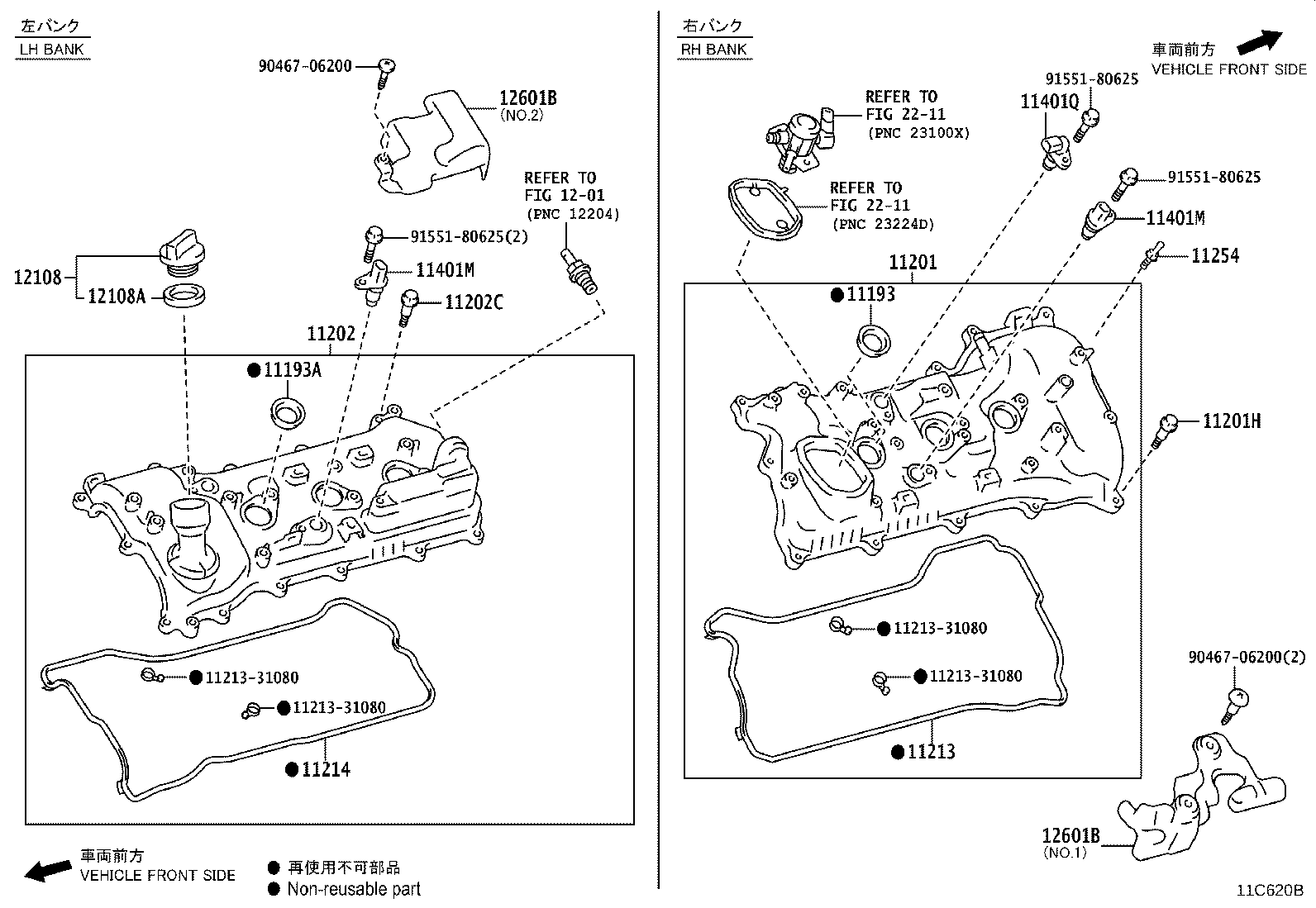

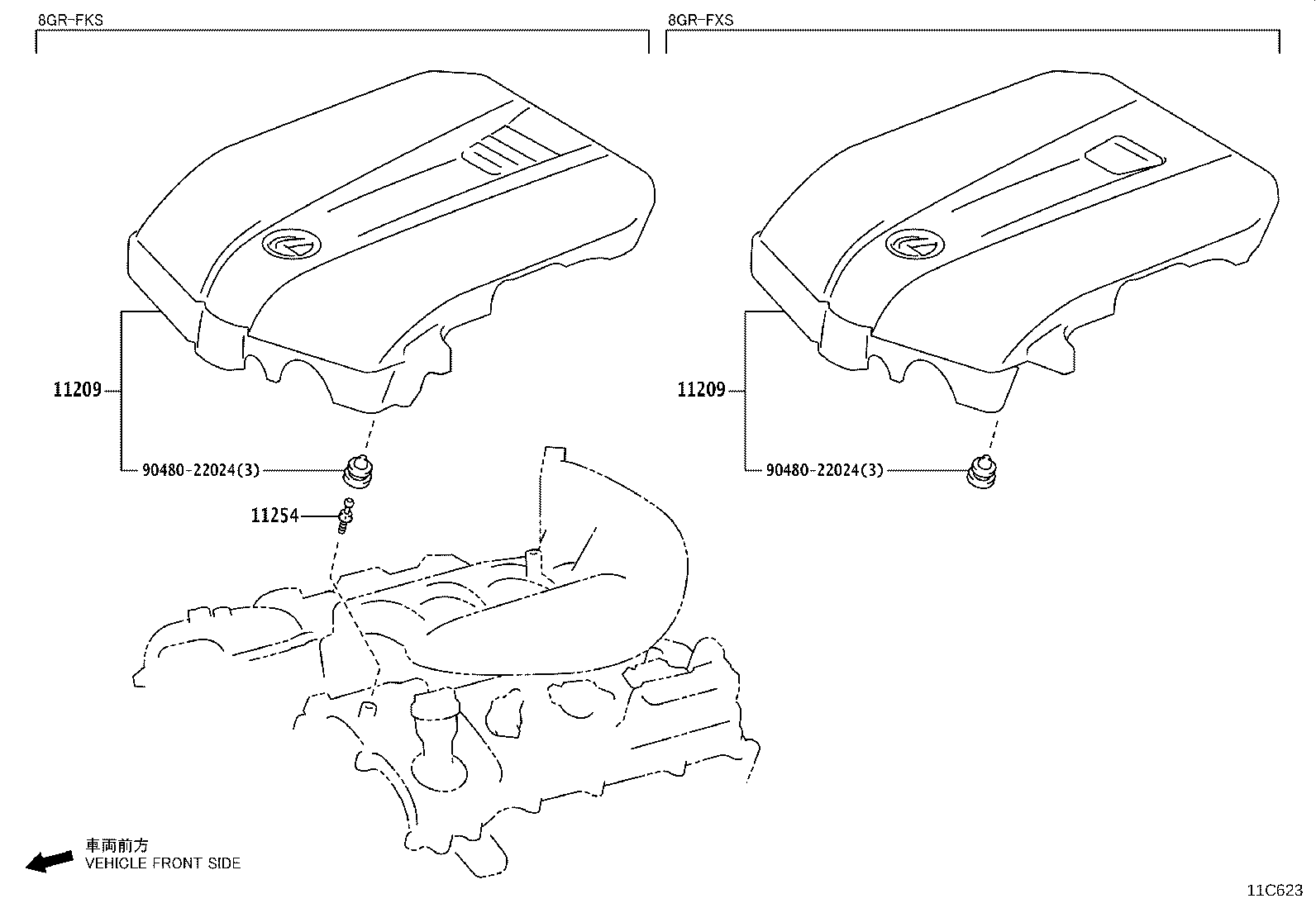

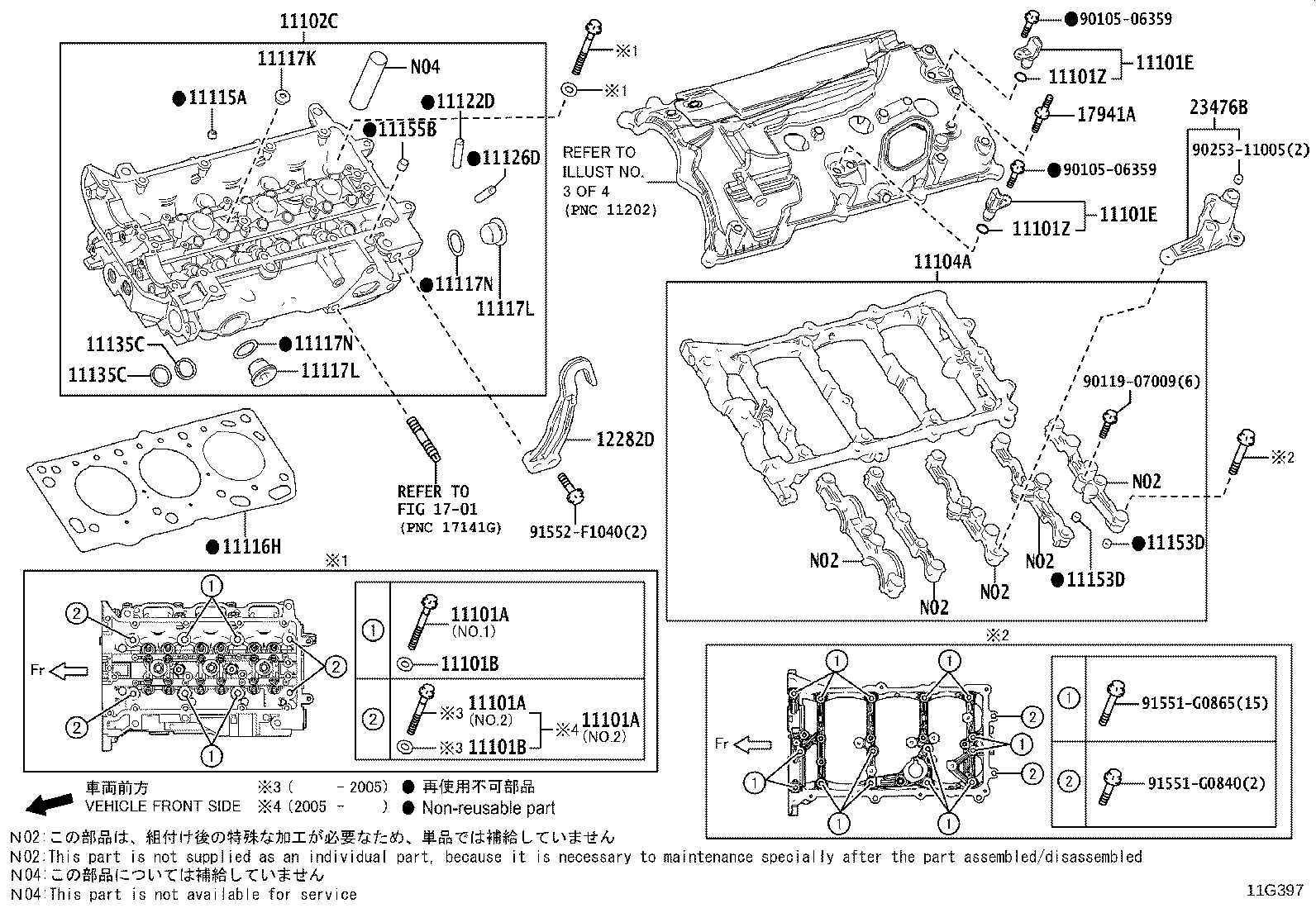

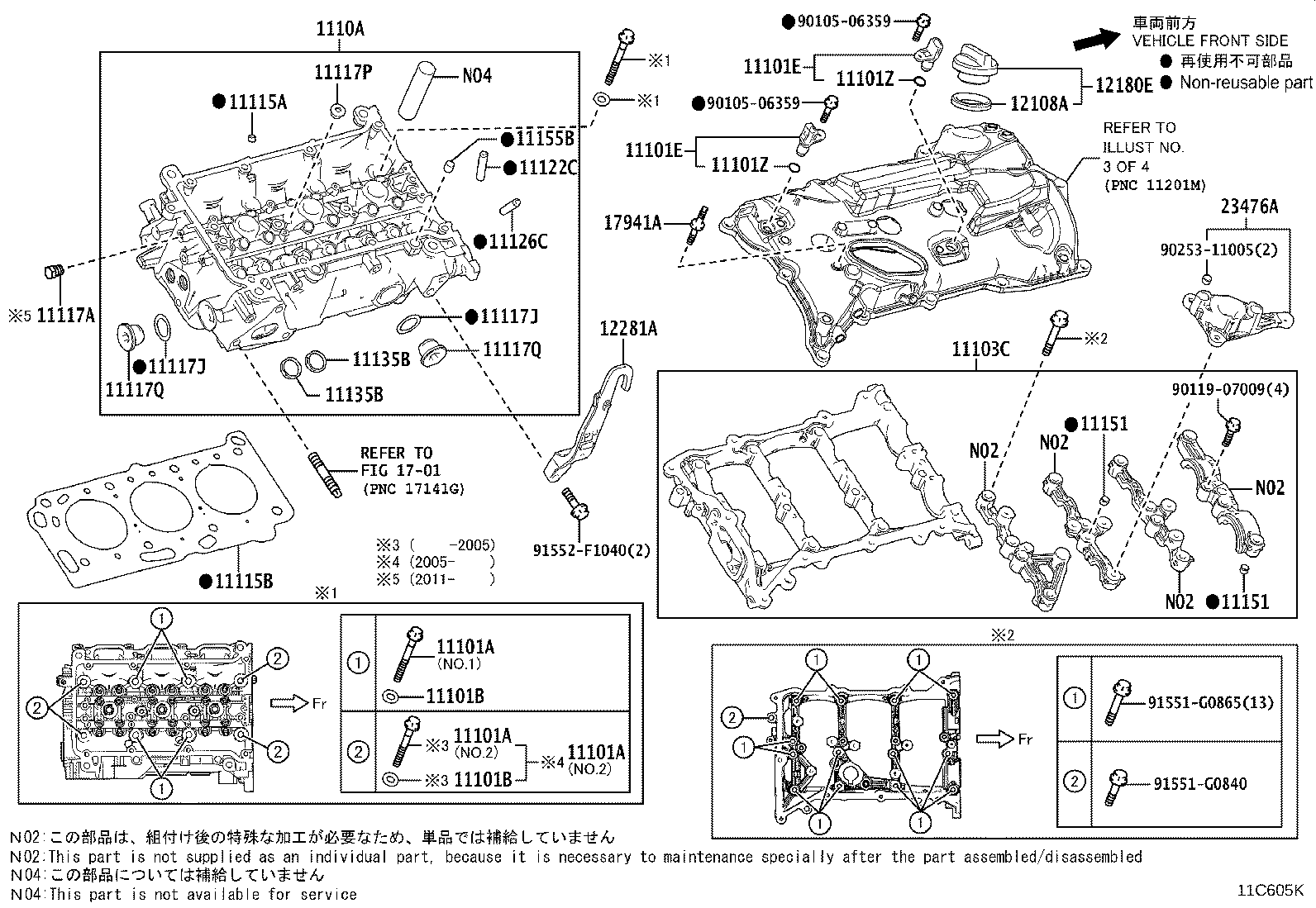

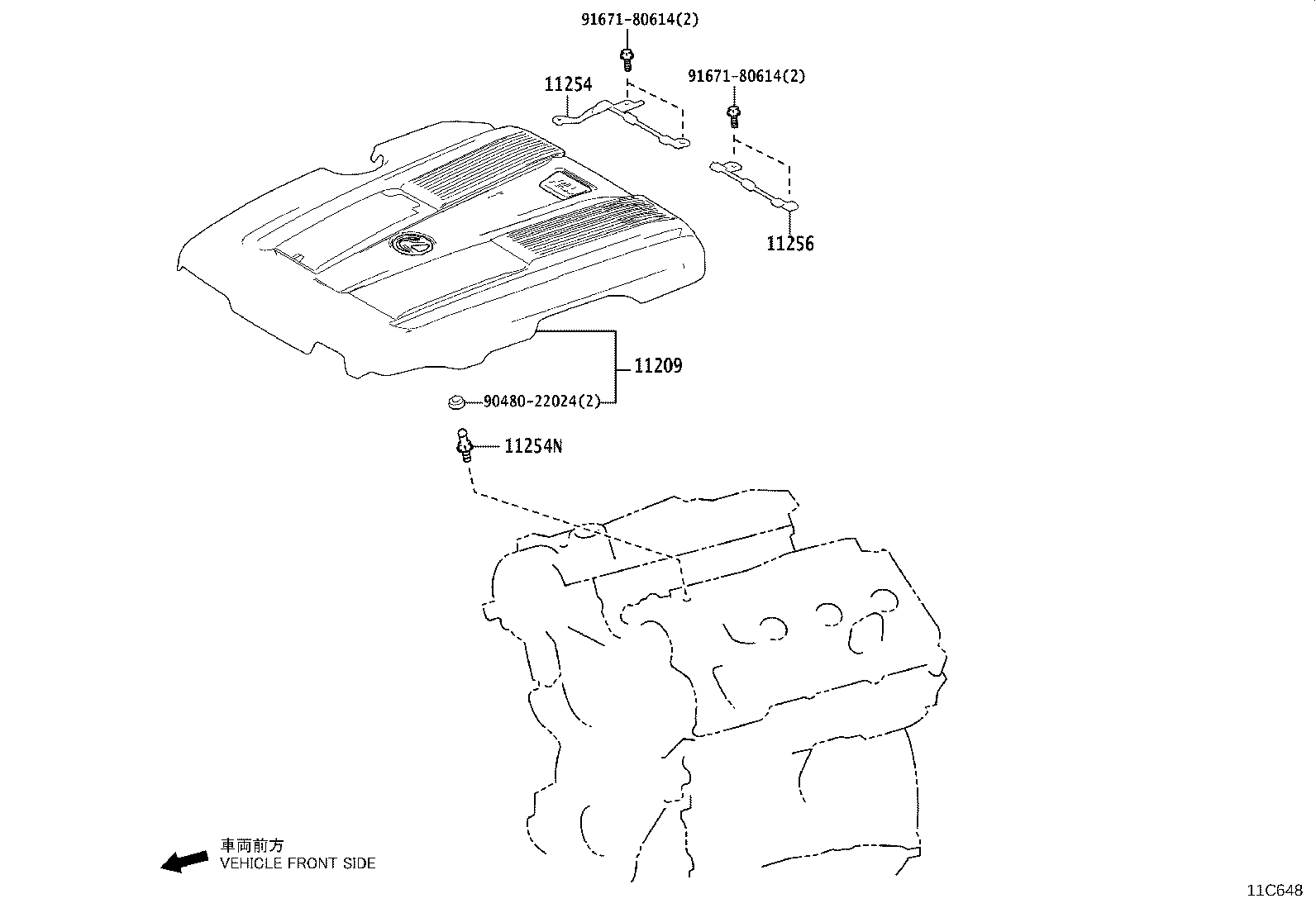

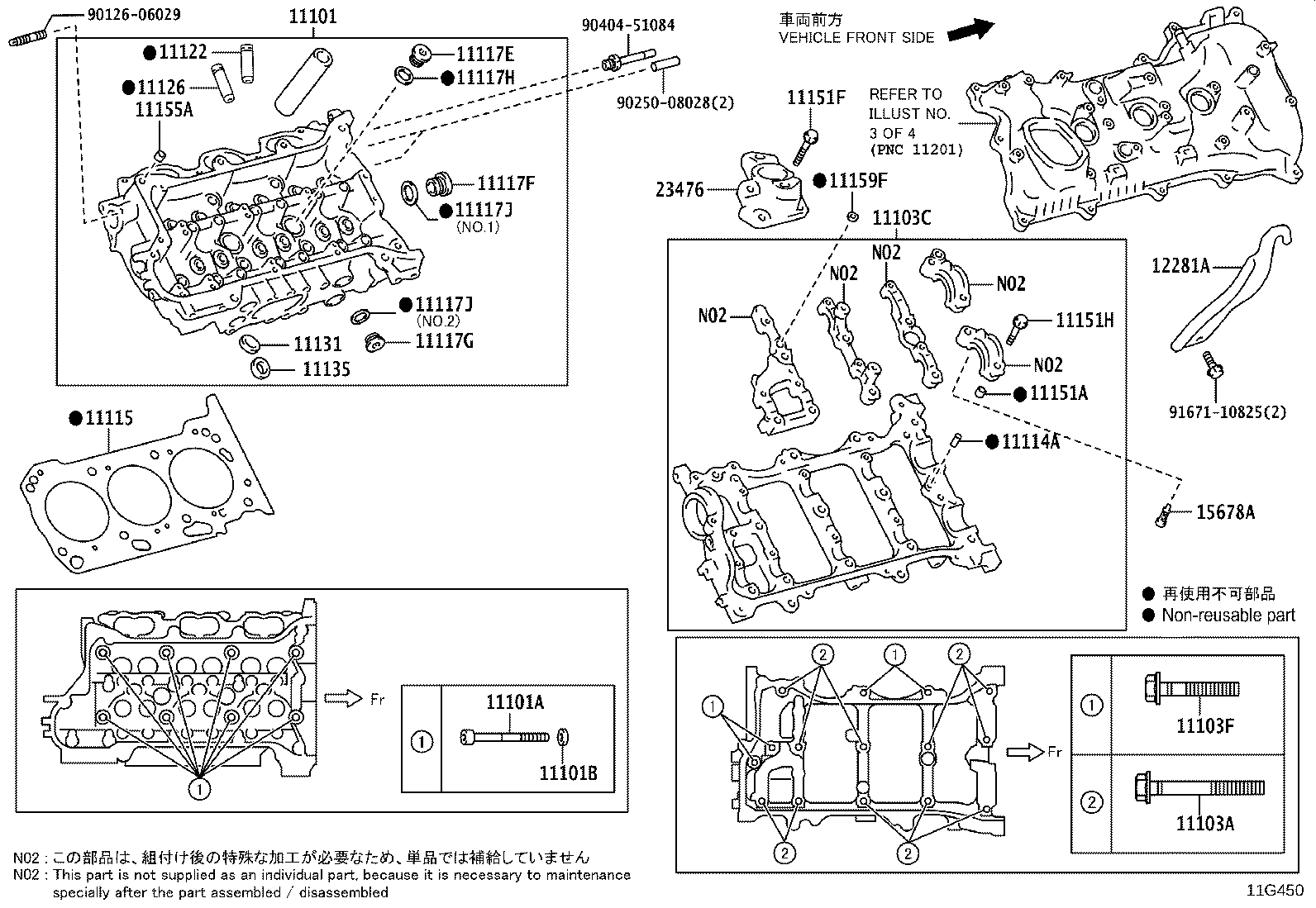

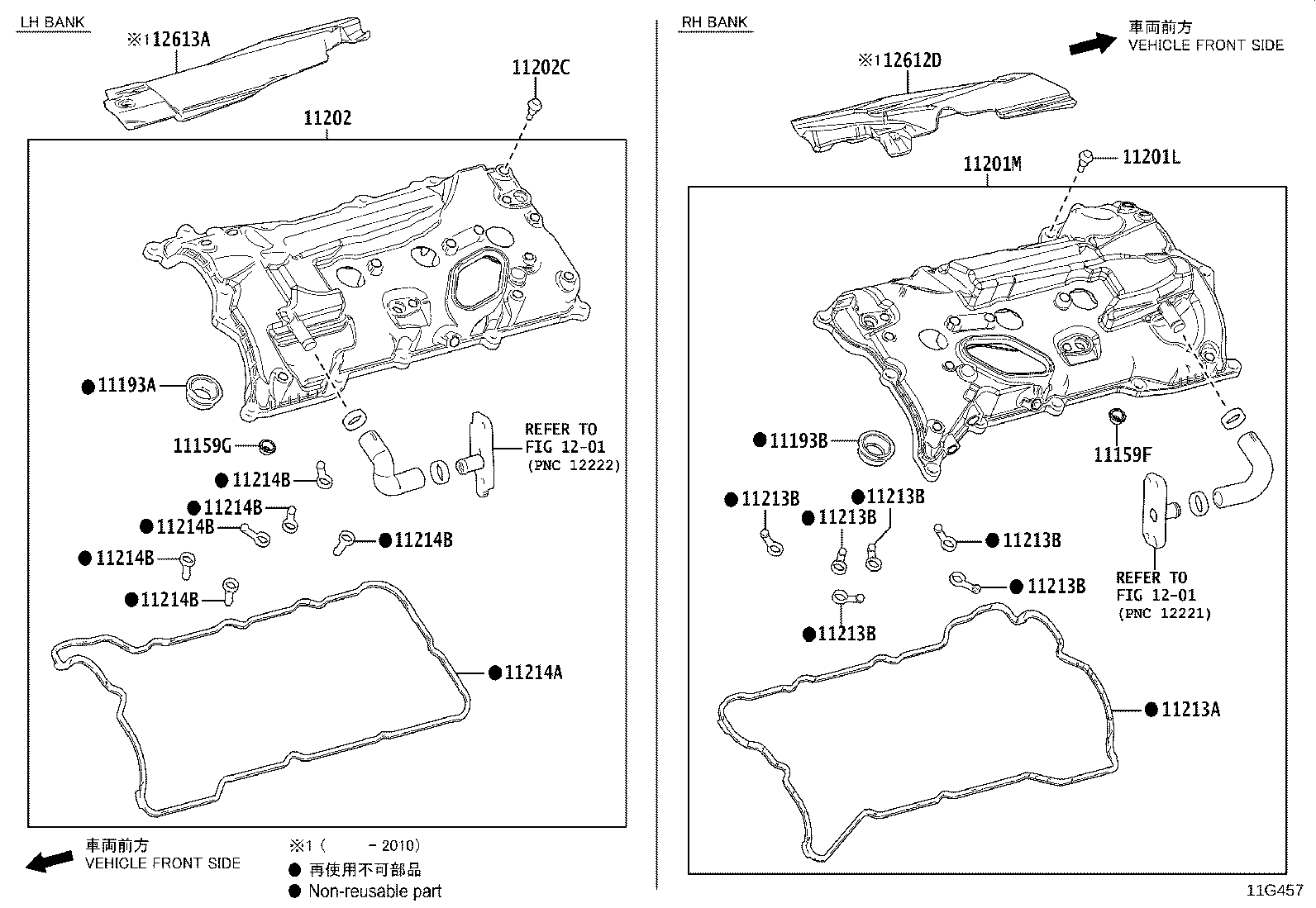

Figure 11G443 11G443 2017-10 → — Figure 11G450 11G450 2017-10 → — Figure 11C620B 11C620B 2017-10 → — Figure 11C623 11C623 2017-10 → — Figure 11G397 11G397 2017-12 → — Figure 11C605K 11C605K 2017-12 → — Figure 11G457 11G457 2017-12 → — Figure 11C648 11C648 2017-12 → —

Part groups

PNCDescription
11101 Head Sub-assy, Cylinder
11101A Bolt(FOR CYLINDER HEAD SET)
11101B Washer, Plate(FOR CYLINDER HEAD SET)
11101E Sensor, Cam Position
11101V Bolt(FOR CYLINDER HEAD SET SUB)
11101Z O Ring, Cam Position Sensor
11102 Head, Cylinder, LH
11102C Head Sub-assy, Cylinder, LH
11103A Bolt(FOR CAMSHAFT HOUSING SET)
11103C Housing Sub-assy, Camshaft, RH
11103F Bolt(FOR CAMSHAFT HOUSING SET)
11104A Housing Sub-assy, Camshaft, LH
1110A Head Sub-assy, Cylinder, RH
11114A Pin, Straight
11115 Gasket, Cylinder Head
11115A Pin, Ring
11115B Gasket, Cylinder Head, RH
11116 Gasket, Cylinder Head, NO.2
11116H Gasket, Cylinder Head, LH
11117A Plug, W/Head Taper Screw, NO.1
11117E Plug, W/Head Straight Screw, NO.1
11117F Plug, W/Head Straight Screw, NO.2
11117G Plug, W/Head Straight Screw, NO.3
11117H Gasket(FOR WATER HOLE)
11117J Gasket(FOR CYLINDER HEAD SCREW PLUG)
11117K Plug, W/Head Straight Screw, LH NO.1
11117L Plug, W/Head Straight Screw, LH NO.2
11117N Gasket(FOR CYLINDER HEAD SCREW PLUG NO.2)
11117P Plug, W/Head Straight Screw, RH NO.1
11117Q Plug, W/Head Straight Screw, RH NO.2
11122 Bush, Intake Valve Guide
11122B Bush, Intake Valve Guide, NO.2
11122C Bush, Intake Valve Guide, RH
11122D Bush, Intake Valve Guide, LH
11126 Bush, Exhaust Valve Guide
11126B Bush, Exhaust Valve Guide, NO.2
11126C Bush, Exhaust Valve Guide, RH
11126D Bush, Exhaust Valve Guide, LH
11131 Seat, Intake Valve
11131A Seat, Intake Valve, NO.2
11135 Seat, Exhaust Valve
11135A Seat, Exhaust Valve, NO.2
11135B Seat, Exhaust Valve, RH
11135C Seat, Exhaust Valve, LH
11151 Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING RH)
11151A Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
11151F Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2)
11151H Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
11153D Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING LH)
11155A Pin, Ring W/Head
11155B Pin, Ring
11159F Gasket, Camshaft Bearing Cap Oil Hole, RH
11159G Gasket, Camshaft Bearing Cap Oil Hole, LH
11193 Gasket, Spark Plug Tube
11193A Gasket, Spark Plug Tube, LH
11193B Gasket, Spark Plug Tube, RH
11201 Cover Sub-assy, Cylinder Head
11201H Bolt(FOR CYLINDER HEAD COVER)
11201L Bolt(FOR CYLINDER HEAD COVER RH)
11201M Cover Sub-assy, Cylinder Head, RH
11202 Cover Sub-assy, Cylinder Head, LH
11202C Bolt(FOR CYLINDER HEAD COVER LH)
11209 Cover Sub-assy, V-bank
11213 Gasket, Cylinder Head Cover
11213A Gasket, Cylinder Head Cover, RH NO.1
11213B Gasket, Cylinder Head Cover, RH NO.2
11214 Gasket, Cylinder Head Cover, NO.2
11214A Gasket, Cylinder Head Cover, LH NO.1
11214B Gasket, Cylinder Head Cover, LH NO.2
11254 Bracket, V-bank Cover, NO.1
11254N Bracket, V-bank Cover, NO.3
11256 Bracket, V-bank Cover, NO.2
11401M Sensor, Crank Position, NO.2
11401Q Sensor, Crank Position
12108 Cap Sub-assy, Oil Filler
12108A Gasket(FOR OIL FILLER CAP)
12180E Cap Assy, Oil Filler
12281A Hanger, Engine, NO.1
12282D Hanger, Engine, NO.2
12601B Cover Sub-assy, Engine, NO.1
12612D Cover, Engine, NO.2 RH
12613A Cover, Engine, NO.2 LH
15678A Filter, Oil Control Valve
17941A Guide, Intercooler Air, NO.1
23476 Housing, Fuel Pump Lifter
23476A Housing, Fuel Pump Lifter, RH
23476B Housing, Fuel Pump Lifter, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
