Toyota Lexus LS Series

2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

5 part groups · 3 illustrations

Illustrations

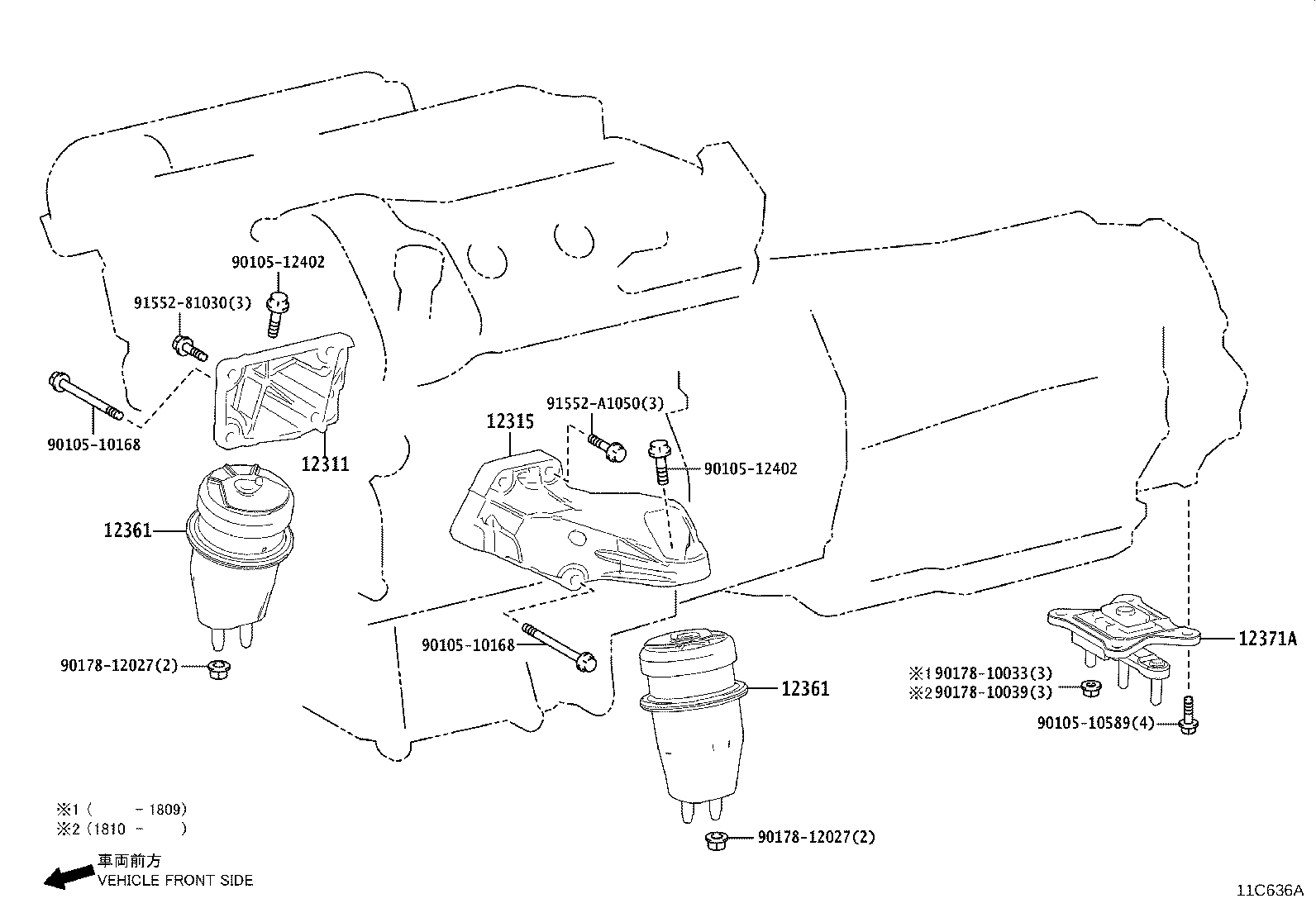

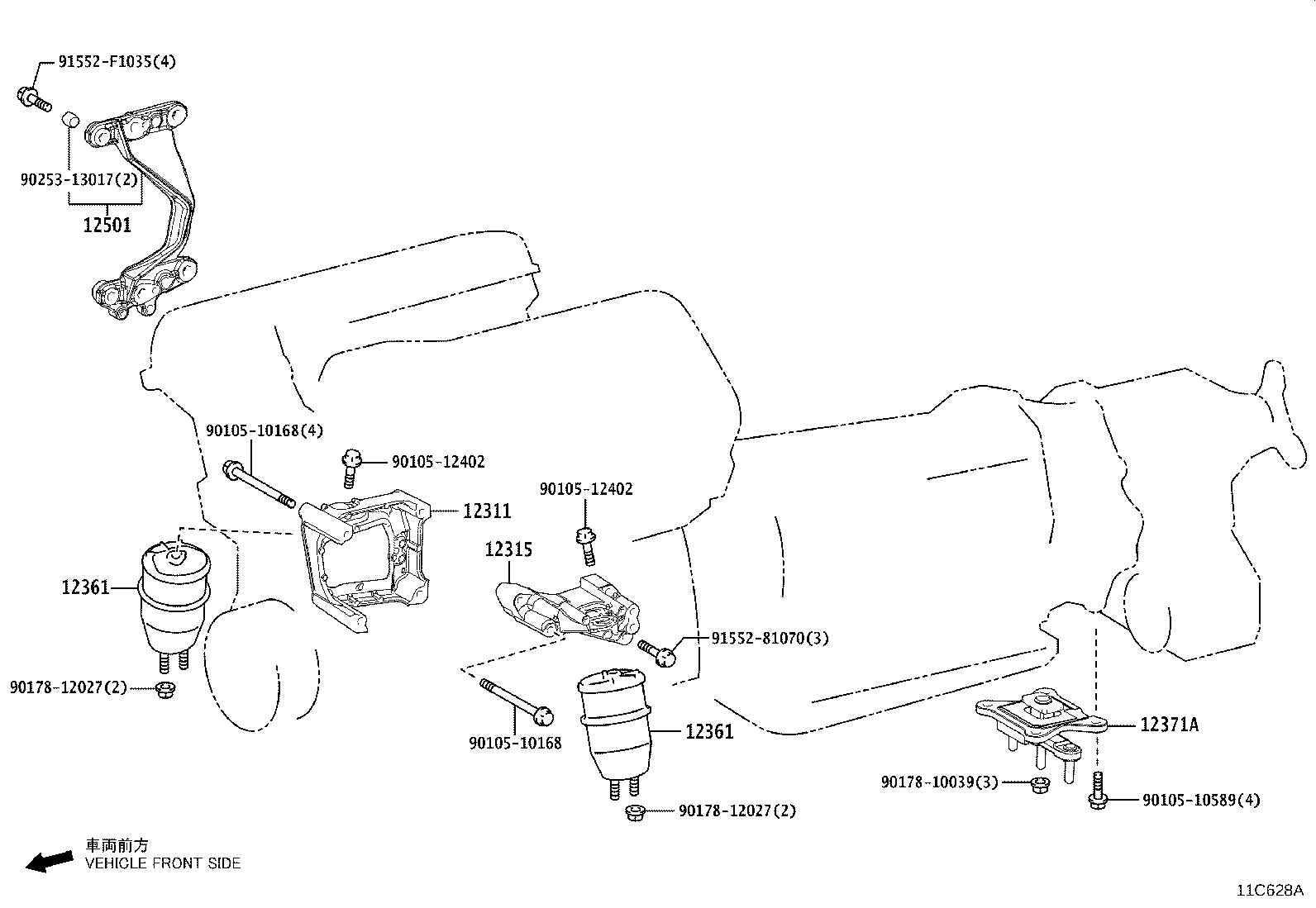

Figure 11C635A 11C635A 2017-10 → — Figure 11C636A 11C636A 2017-10 → — Figure 11C628A 11C628A 2017-12 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12361 Insulator, Engine Mounting, Front
12371A Insulator, Engine Mounting, Rear
12501 Bracket Sub-assy, Alternator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
