Toyota Lexus LS Series
2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe
Supported model
Data version 2020-11

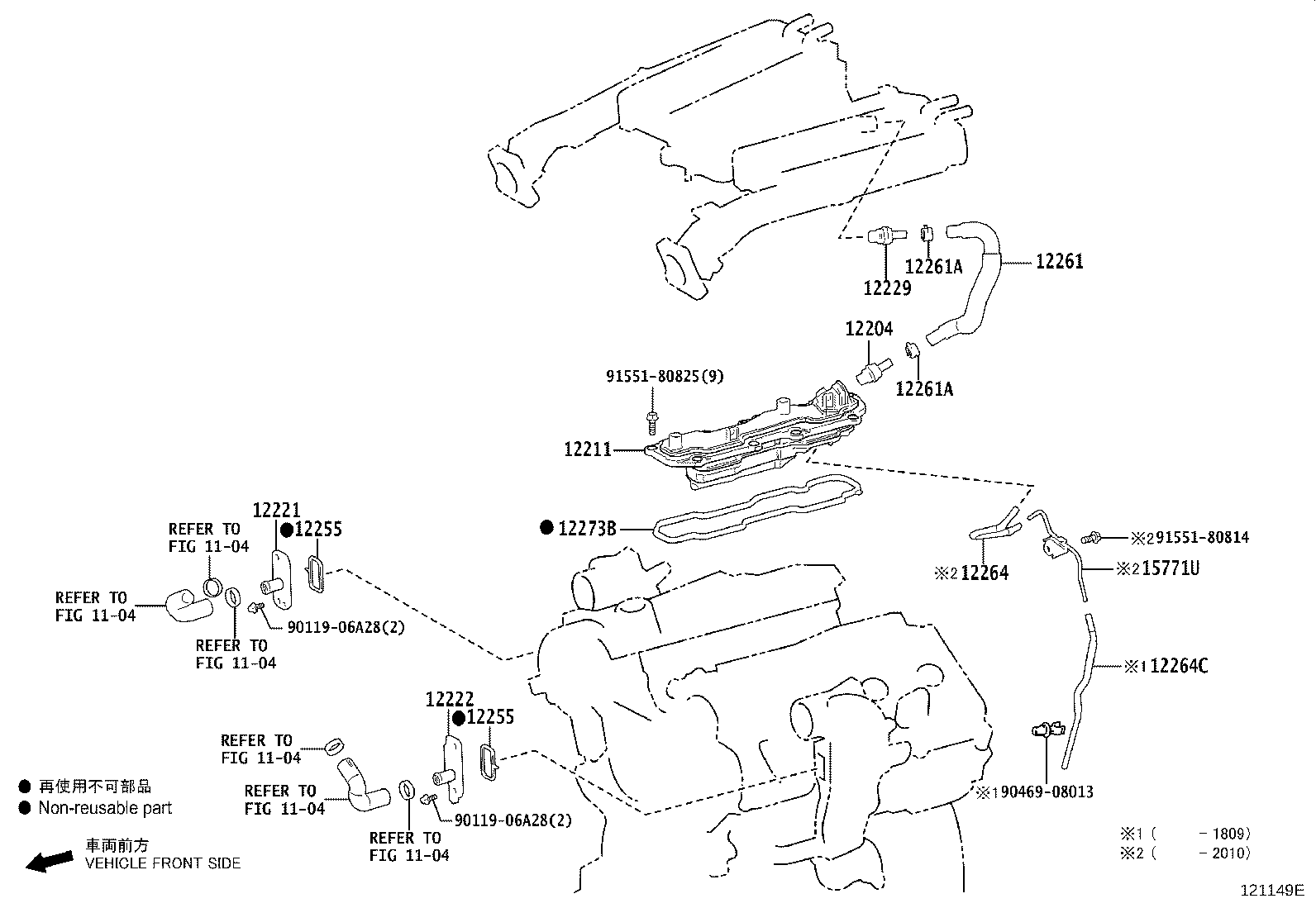

Ventilation Hose
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 12204 | Valve Sub-assy, Ventilation |
| 12211 | Case, Ventilation, NO.1 |
| 12221 | Tube, Ventilation NO.1 |
| 12222 | Tube, Ventilation, NO.2 |
| 12229 | Pipe, Ventilation |
| 12255 | Gasket, Ventilation |
| 12260 | Hose Assy, Ventilation |
| 12261 | Hose, Ventilation |
| 12261A | Clip OR Clamp(FOR VENTILATION HOSE) |
| 12262 | Hose, Ventilation, NO.2 |
| 12262A | Clip(FOR VENTILATION HOSE NO.2) |
| 12264 | Hose, Ventilation, NO.4 |
| 12264C | Hose, Ventilation, NO.5 |
| 12273B | Gasket, Oil Separator |
| 15771U | Pipe, Oil, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
