Engine Oil Pump

10 part groups · 3 illustrations

Illustrations

Figure 152711B

152711B 2017-10 → —

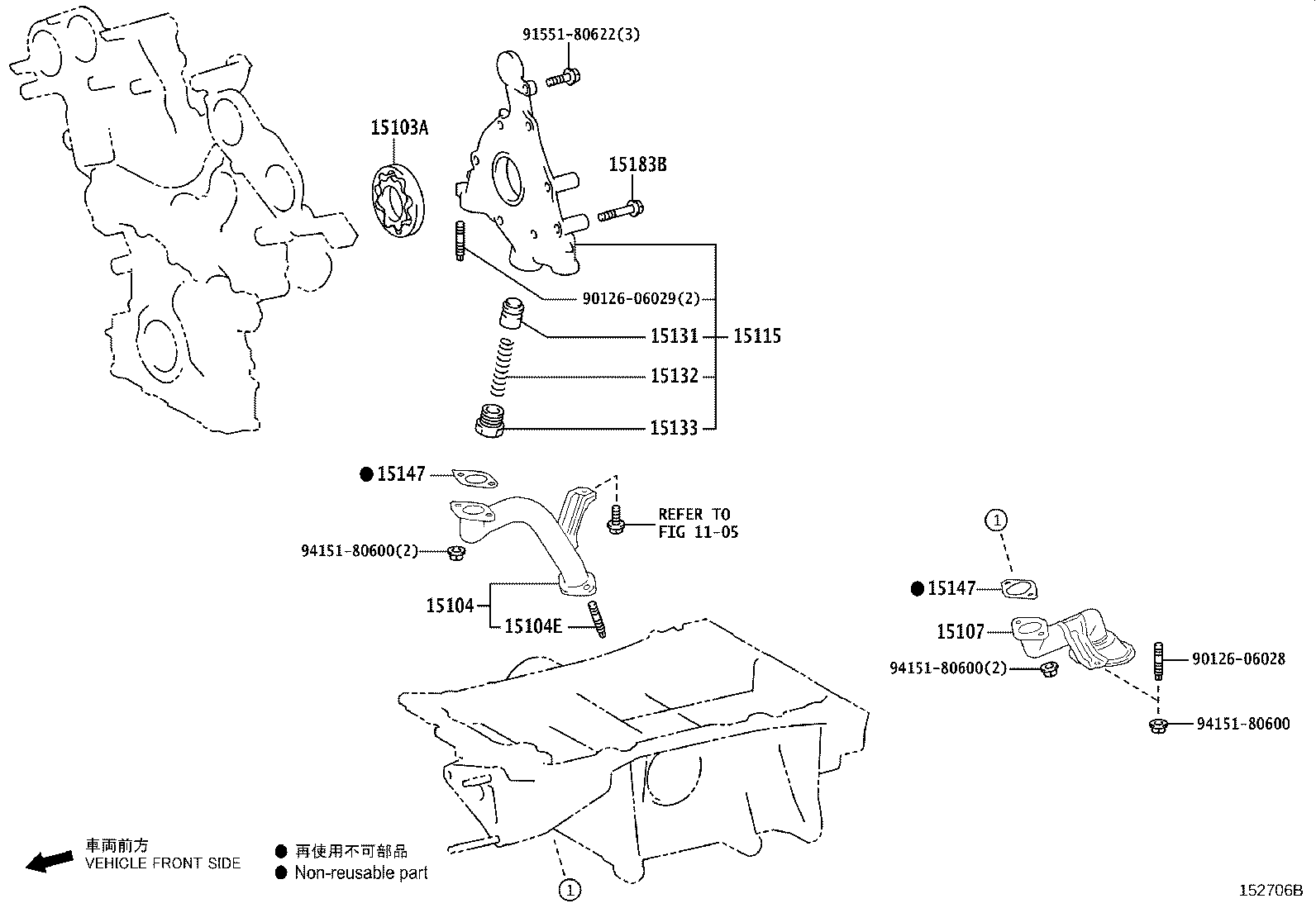

Figure 152706B

152706B 2017-10 → —

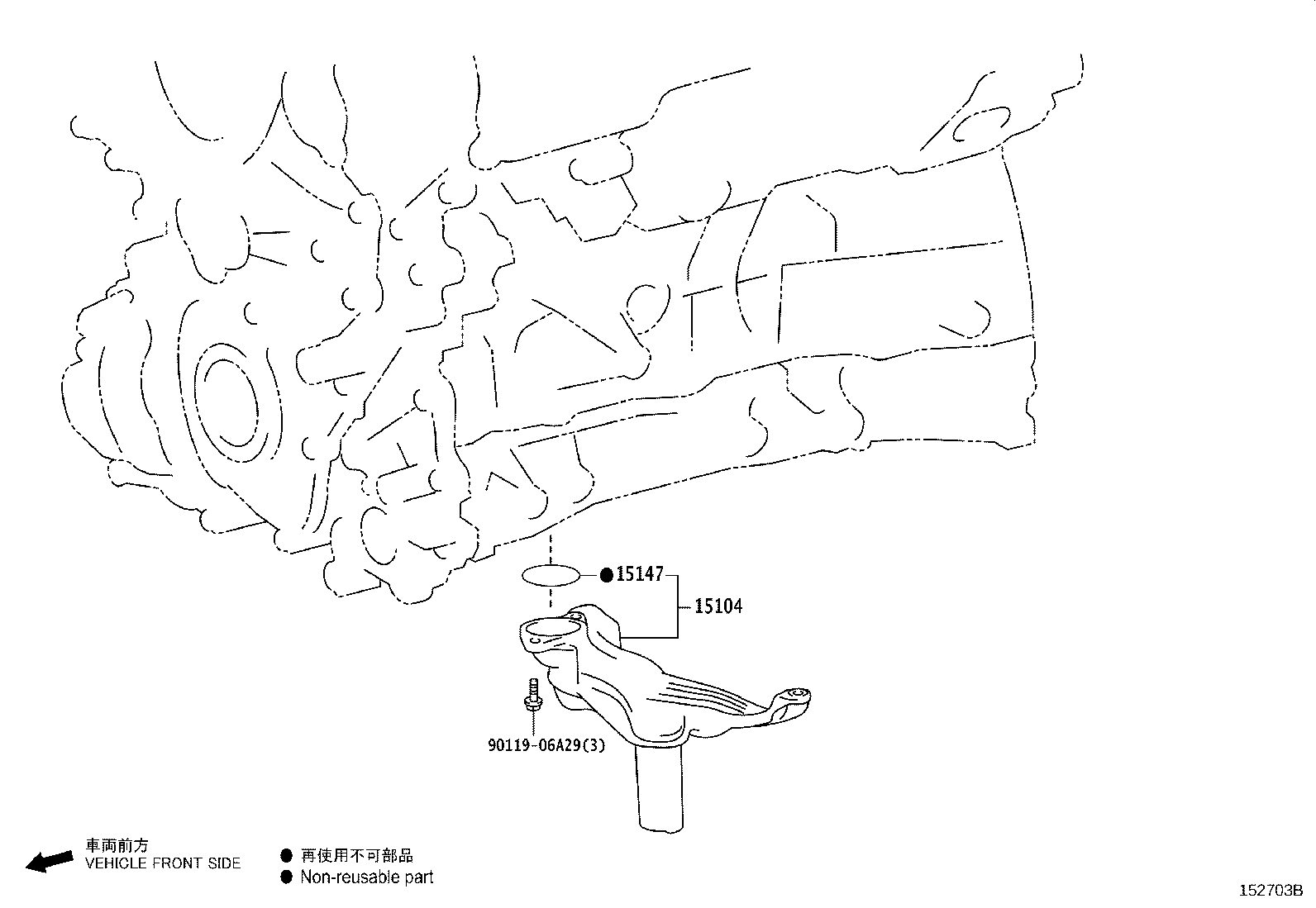

Figure 152703B

152703B 2017-12 → —

Part groups

PNC	Description
15103A	Rotor Sub-assy, Oil Pump
15104	Strainer Sub-assy, Oil
15104E	Bolt, Stud(FOR OIL STRAINER)
15107	Pipe Sub-assy, Oil W/Strainer
15115	Cover, Oil Pump
15131	Valve, Oil Pump Relief
15132	Spring, Oil Pump Relief Valve
15133	Plug, Oil Pump Relief Valve
15147	Gasket, Oil Strainer
15183B	Bolt, Oil Pump Cover

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
