Toyota Lexus LS Series
2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe
Supported model
Data version 2020-11

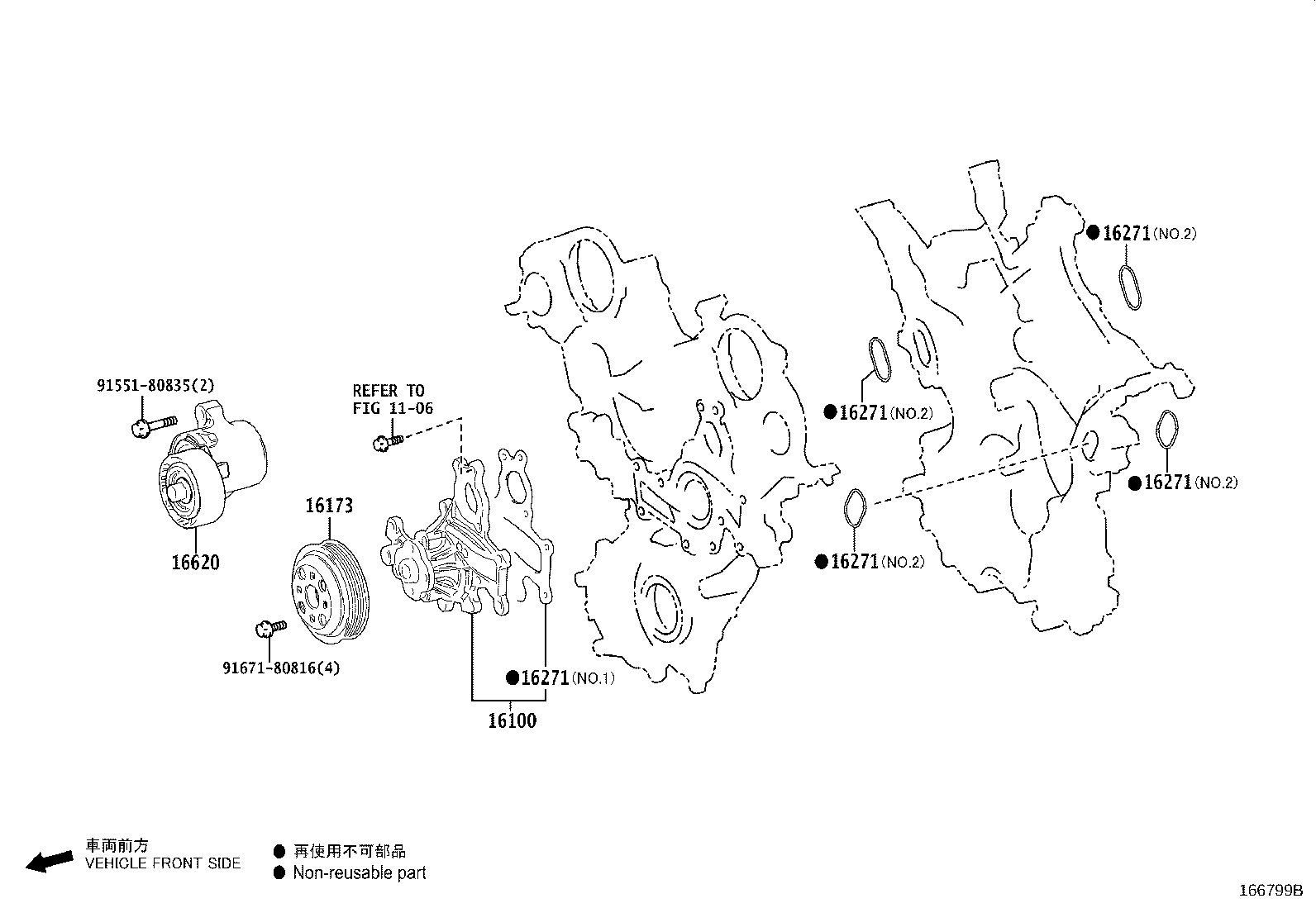

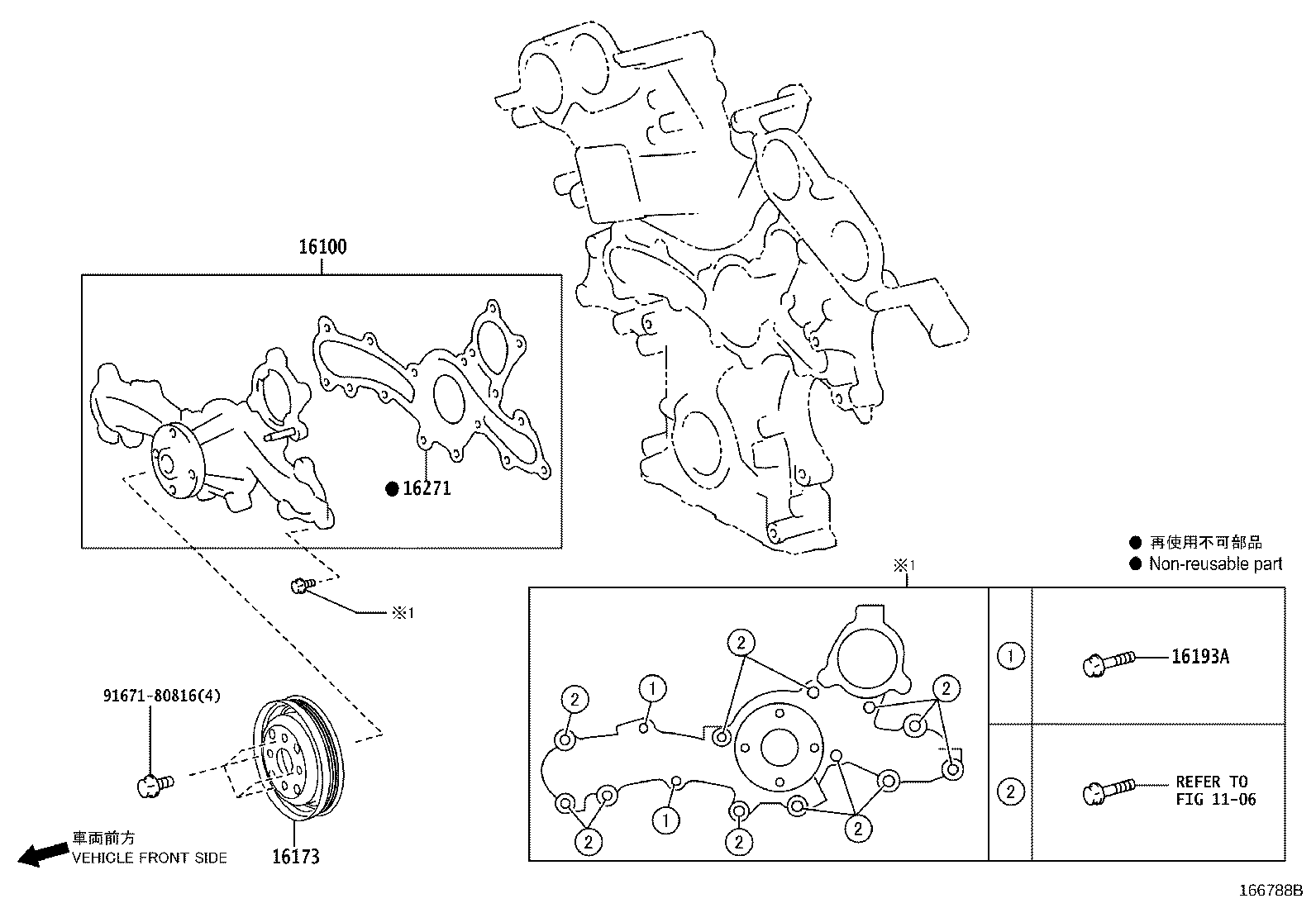

Water Pump
7 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 16100 | Pump Assy, Engine Water |
| 16100B | Pin, Ring(FOR WATER PUMP SET) |
| 16173 | Pulley, Water Pump |
| 16193A | Bolt(FOR WATER PUMP COVER) |
| 16271 | Gasket, Water Pump |
| 16603 | Pulley Sub-assy, Idler, NO.1 |
| 16620 | Tensioner Assy, V-ribbed Belt |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
