Toyota Lexus LS Series

2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

168 part groups · 10 illustrations

Illustrations

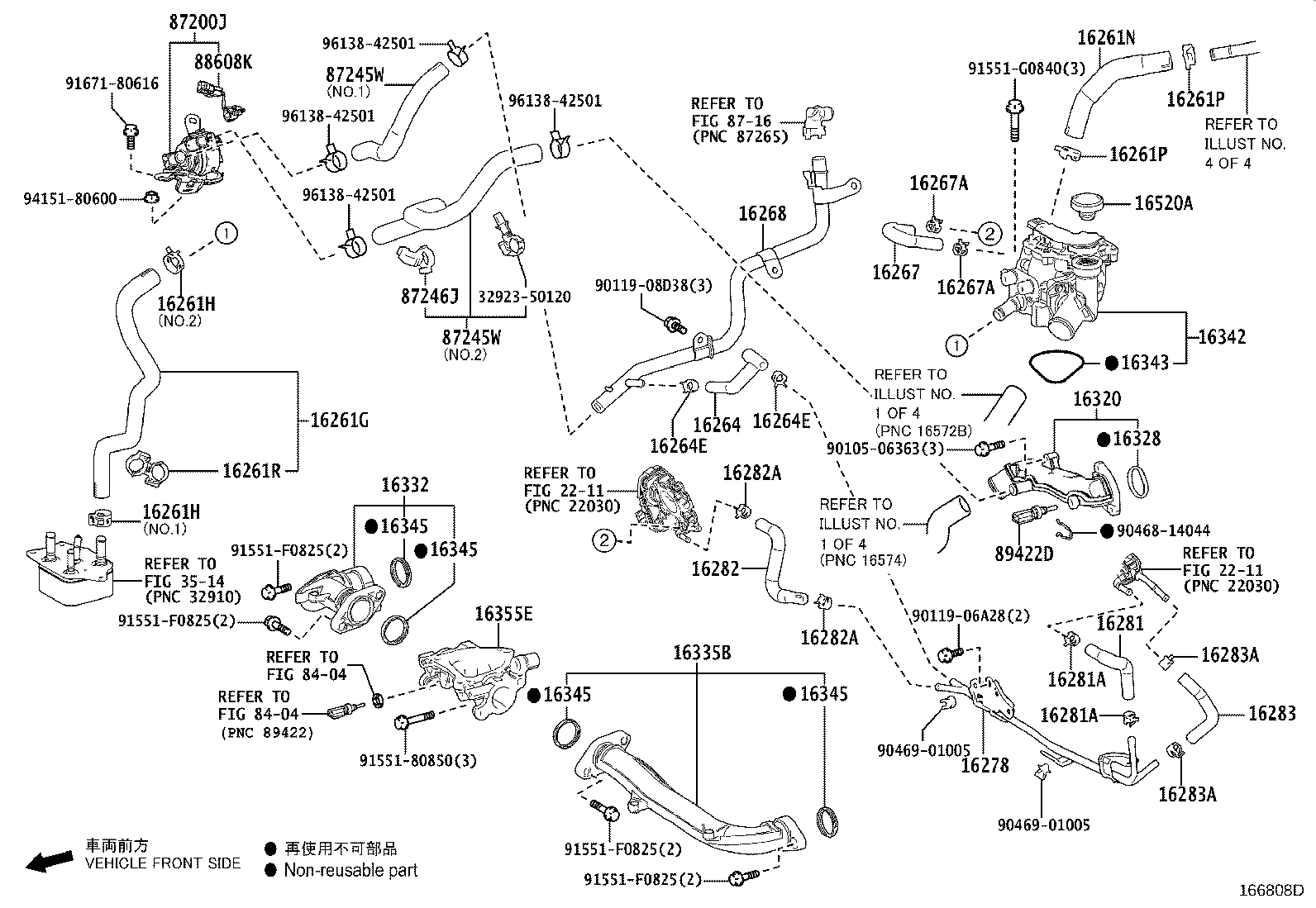

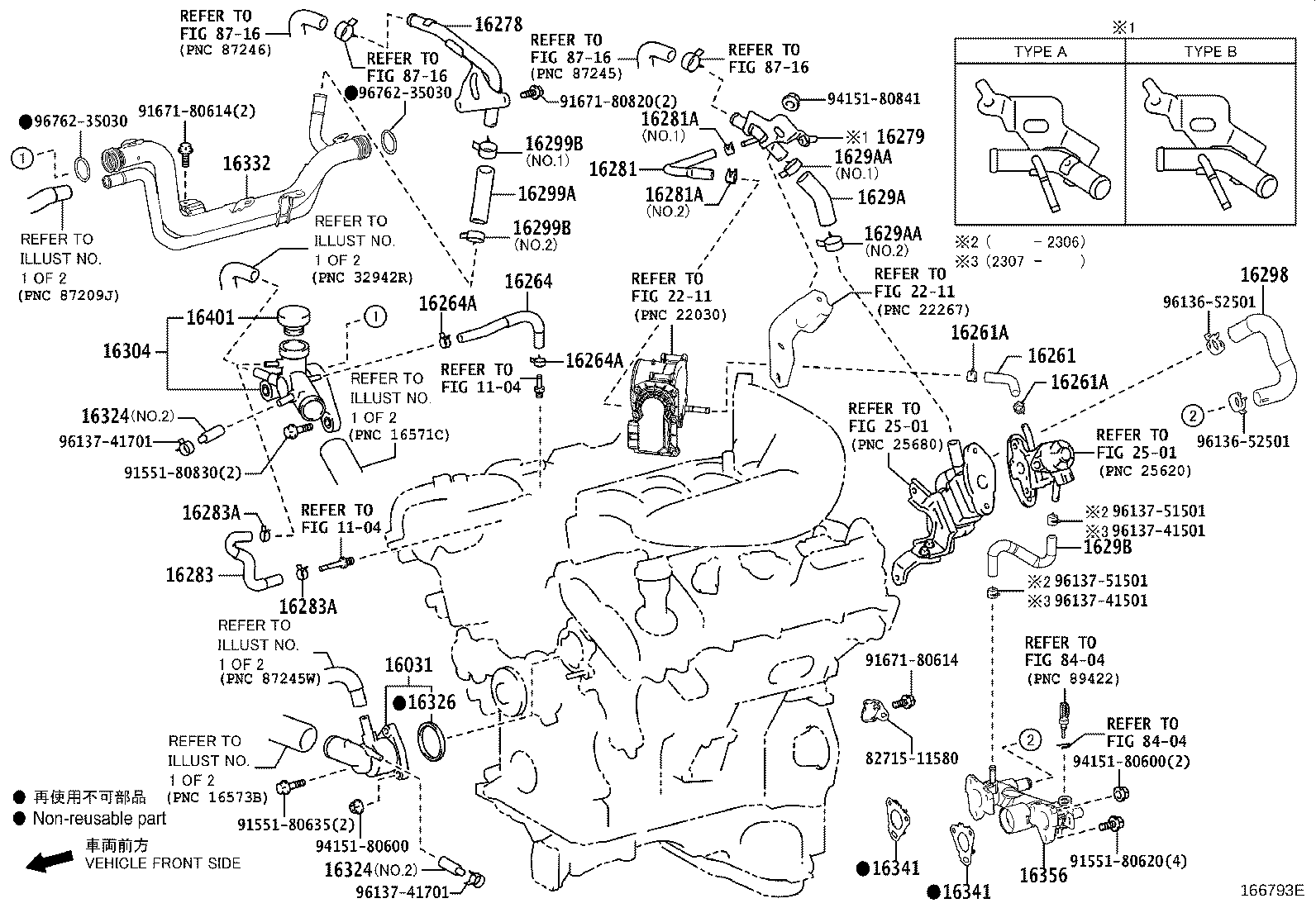

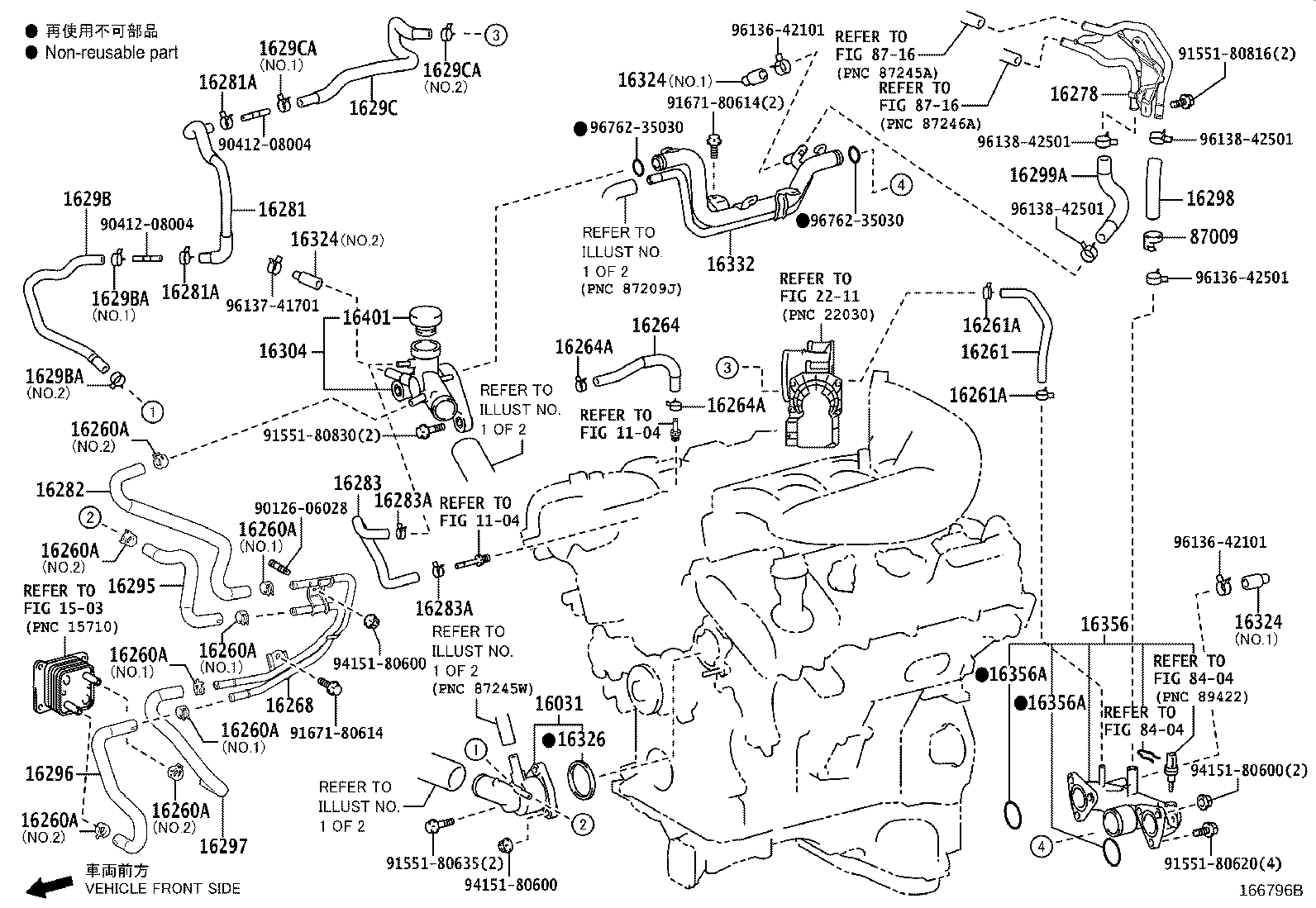

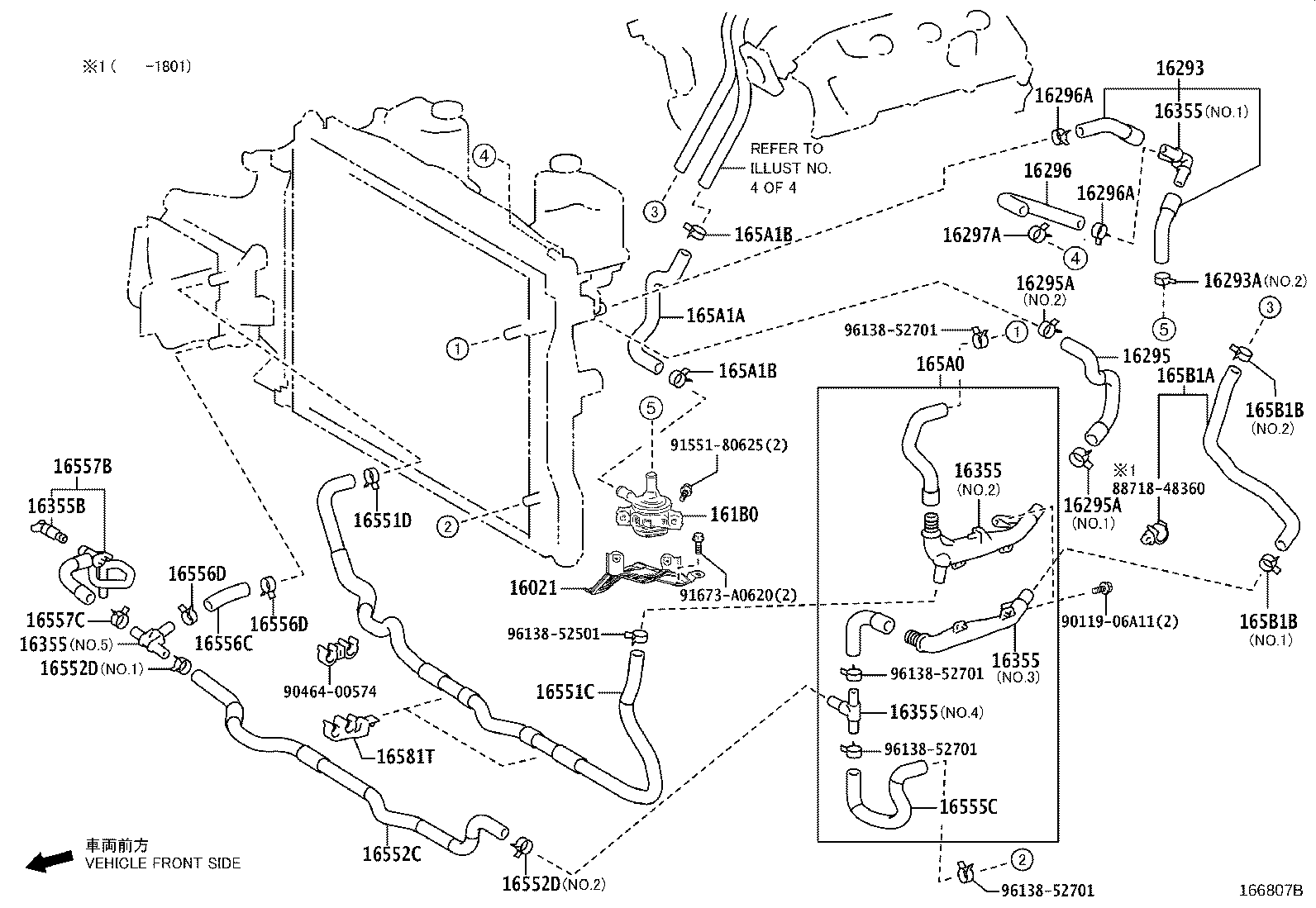

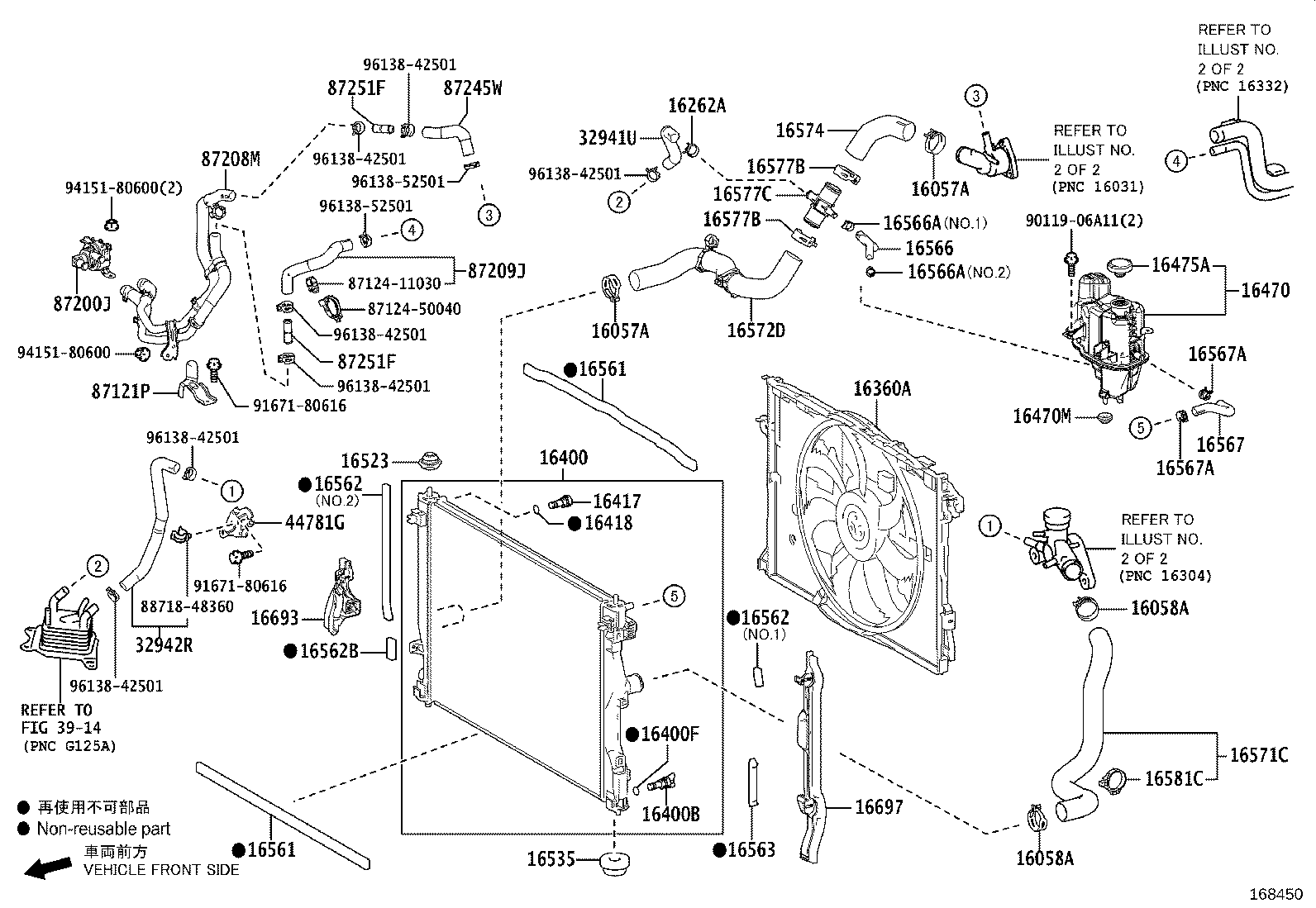

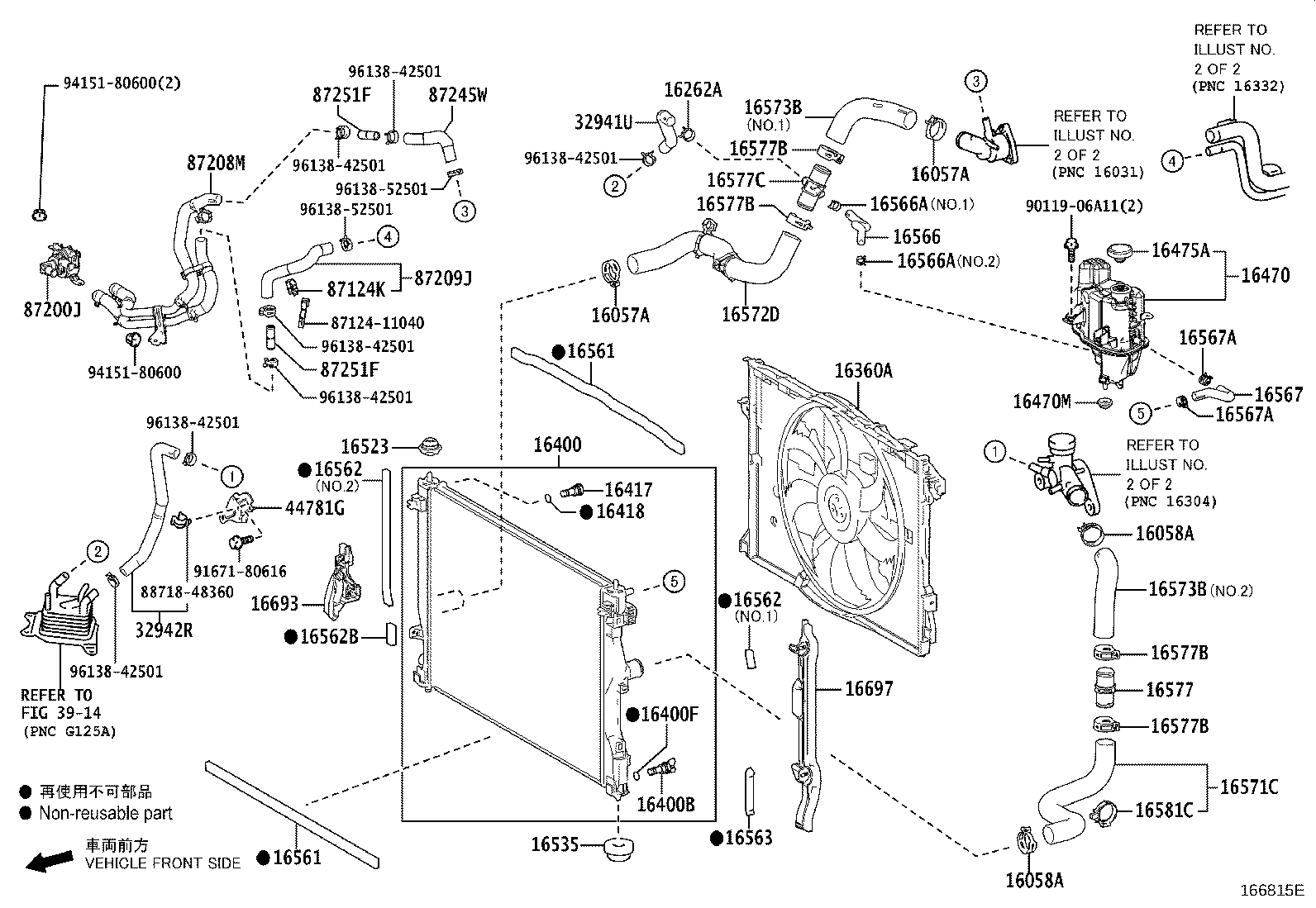

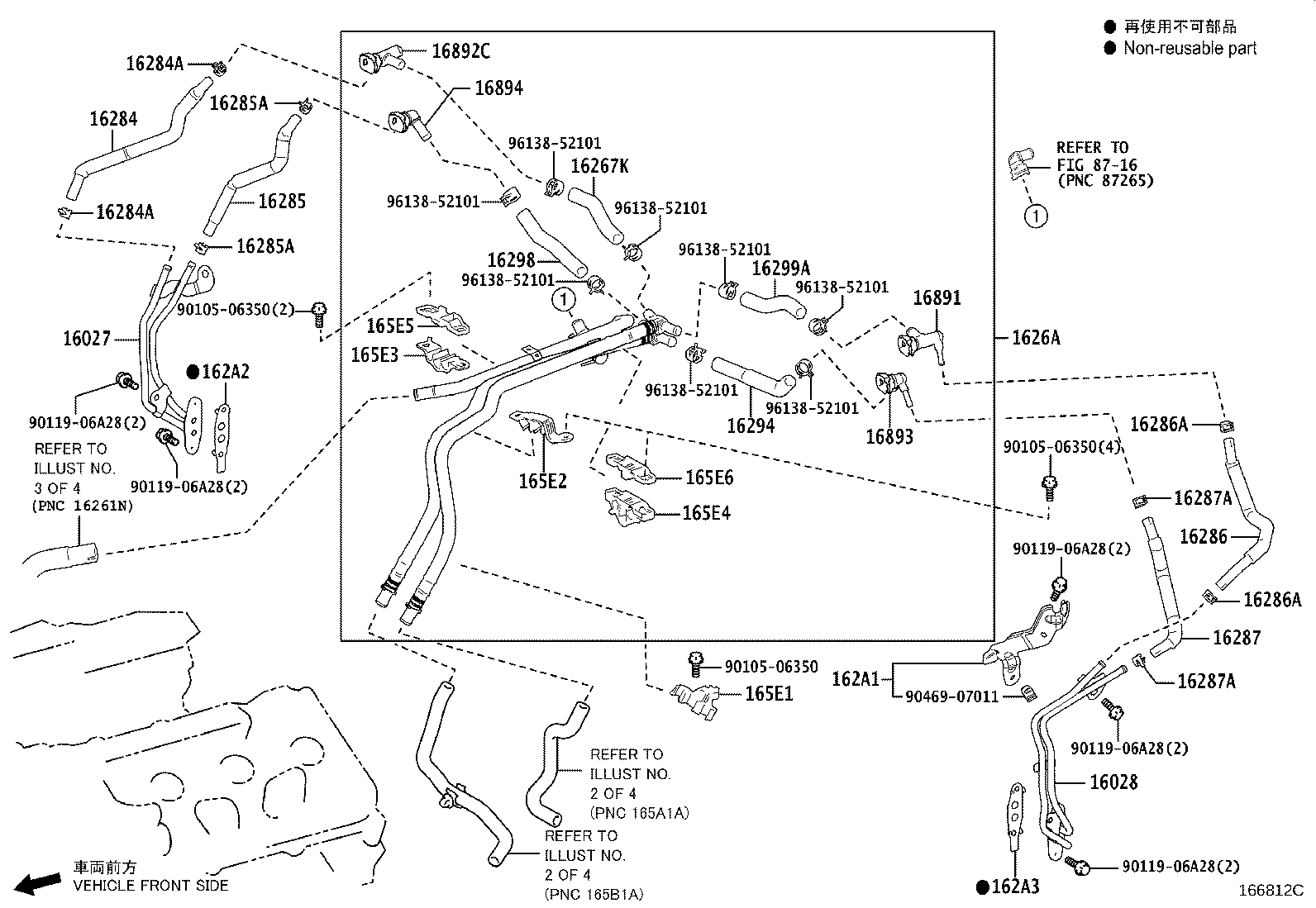

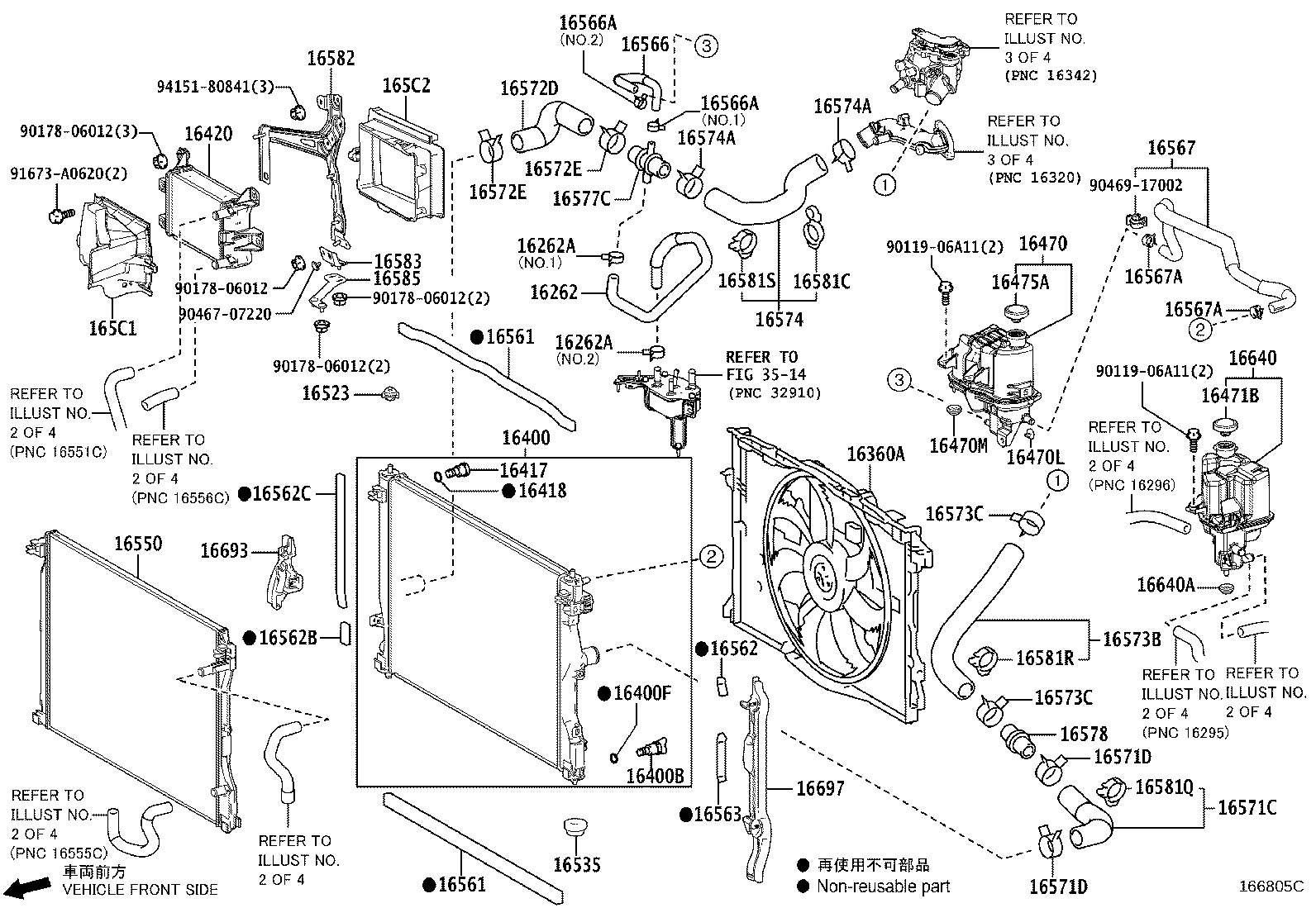

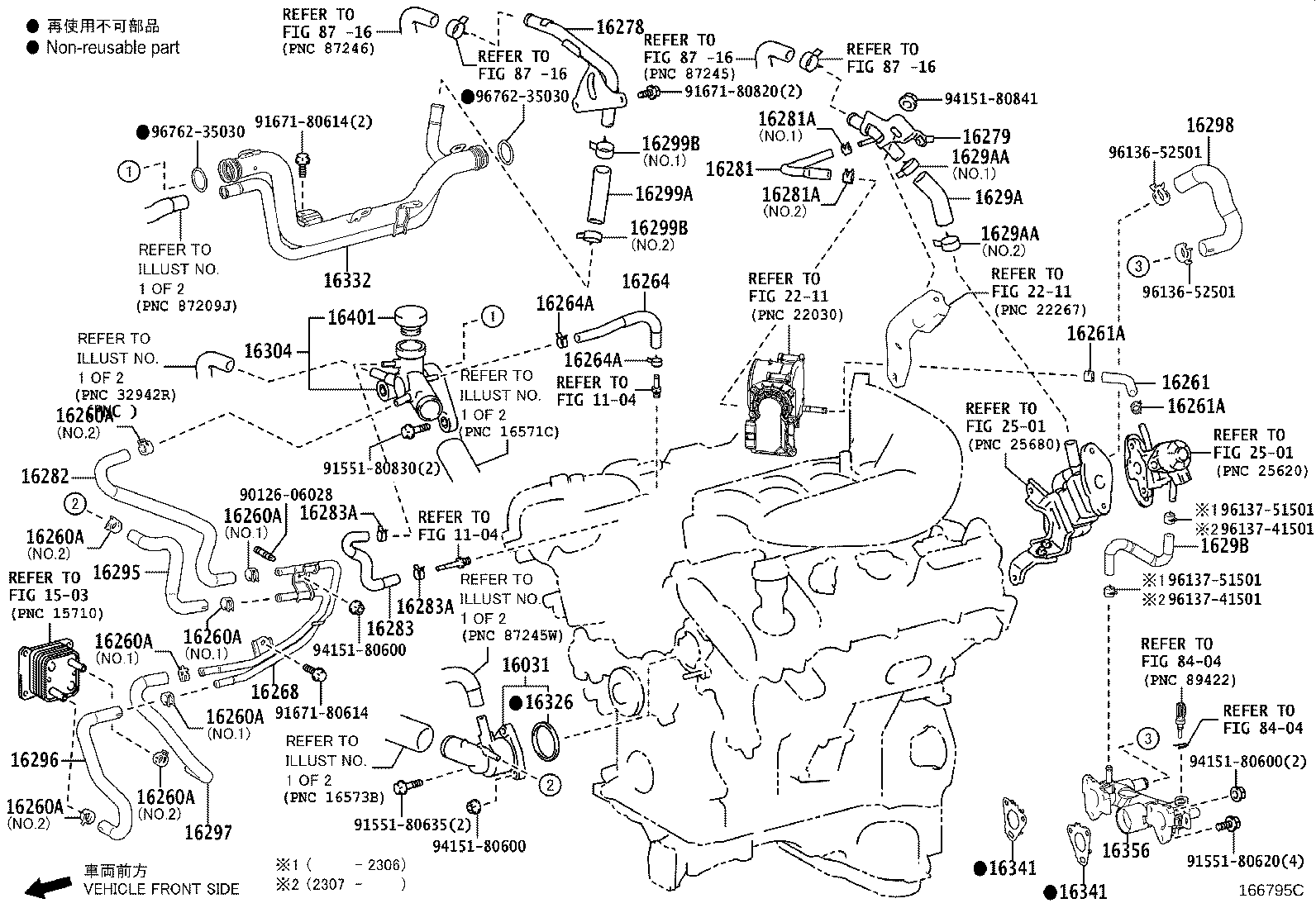

Figure 166802E 166802E 2017-10 → — Figure 166815E 166815E 2017-10 → — Figure 168450 168450 2017-10 → — Figure 166796B 166796B 2017-10 → — Figure 166793E 166793E 2017-10 → — Figure 166795C 166795C 2017-10 → — Figure 166805C 166805C 2017-12 → — Figure 166807B 166807B 2017-12 → — Figure 166808D 166808D 2017-12 → — Figure 166812C 166812C 2017-12 → —

Part groups

PNCDescription
16021 Bracket Sub-assy, Water Pump
16027 Pipe Sub-assy, Turbo Water, NO.1
16028 Pipe Sub-assy, Turbo Water, NO.2
16031 Water Inlet Sub-assy, W/Thermostat
16057A Clip, Hose(FOR RADIATOR HOSE SUB-ASSY)
16058A Clip, Hose(FOR RADIATOR HOSE SUB-ASSY)
161B0 Pump Assy, Electric Water
16260A Clip(FOR WATER BY-PASS HOSE ASSY)
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261G Hose, Water By-pass, NO.1
16261H Clip(FOR WATER BY-PASS HOSE NO.1)
16261N Hose, Water By-pass, NO.2
16261P Clip(FOR WATER BY-PASS HOSE NO.2)
16261R Clamp OR Clip(FOR WATER BY-PASS HOSE)
16262 Hose, Water Inlet
16262A Clip(FOR WATER INLET HOSE)
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16264E Clip(FOR WATER BY-PASS HOSE NO.2)
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16267K Hose, Water By-pass, NO.3
16268 Pipe, Water By-pass, NO.1
1626A Tube, Water By-pass, NO.1
16278 Pipe, Water By-pass, NO.2
16279 Pipe, Water By-pass, NO.3
16281 Hose, Water By-pass, NO.4
16281A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16282 Hose, Water By-pass, NO.5
16282A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
16283 Hose, Water By-pass, NO.6
16283A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
16284 Hose, Turbo Water, NO.1
16284A Clip(FOR TURBO WATER HOSE NO.1)
16285 Hose, Turbo Water, NO.2
16285A Clip(FOR TURBO WATER HOSE NO.2)
16286 Hose, Turbo Water, NO.3
16286A Clip(FOR TURBO WATER HOSE NO.3)
16287 Hose, Turbo Water, NO.4
16287A Clip(FOR TURBO WATER HOSE NO.4)
16293 Hose, Water By-pass, NO.10
16293A Clip(FOR WATER BY-PASS HOSE NO.10)
16294 Hose, Water By-pass, NO.11
16295 Hose, Water By-pass, NO.7
16295A Clip(FOR WATER BY-PASS HOSE NO.7)
16296 Hose, Water By-pass, NO.8
16296A Clip(FOR WATER BY-PASS HOSE NO.8)
16297 Hose, Water By-pass, NO.9
16297A Clip(FOR WATER BY-PASS HOSE NO.9)
16298 Hose, Water By-pass, NO.12
16299A Hose, Water By-pass, NO.13
16299B Clip(FOR WATER BY-PASS HOSE NO.13)
1629A Hose, Water By-pass, NO.14
1629AA Clip(FOR WATER BY-PASS HOSE NO.14)
1629B Hose, Water By-pass, NO.15
1629BA Clip(FOR WATER BY-PASS HOSE NO.15)
1629C Hose, Water By-pass, NO.16
1629CA Clip(FOR WATER BY-PASS HOSE NO.16)
162A1 Stay, Turbo Water Pipe
162A2 Gasket, Turbo Water Pipe, RH
162A3 Gasket, Turbo Water Pipe, LH
16304 Outlet Sub-assy, Water
16320 Inlet Assy, Water
16324 Cap, Water Inlet
16326 Gasket, Water Inlet Housing, NO.2
16328 Gasket, Water Inlet Pipe
16332 Pipe, Water Outlet, NO.1
16335B Pipe, Water Outlet, NO.2
16341 Gasket, Water Outlet
16342 Valve, Water Control
16343 Gasket, Water Outlet Housing
16345 Gasket, Water Outlet Pipe
16355 Joint, Water By-pass, Front
16355B Cock Sub-assy, Water Drain(FOR WATER BY-PASS JOINT)
16355E Joint, Water By-pass(FOR WATER OUTLET PIPE)
16356 Joint, Water By-pass, Rear
16356A Gasket(WATER BY-PASS JOINT, REAR)
16360A Fan Assy, W/Motor
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16401 Cap Sub-assy, Radiator
16417 Cock
16418 Packing
16420 Radiator Assy, Sub
16470 Tank Assy, Radiator Reserve
16470L Clip(FOR RADIATOR RESERVE TANK)
16470M Grommet
16471B Cap, Reserve Tank
16475A Cap, Reserve Tank
16520A Cap Sub-assy, Water Filler
16523 Cushion, Sub-radiator Support
16535 Support, Radiator, Lower
16550 Radiator Assy, Intercooler Cooling
16551C Hose, Intercooler Cooling Water, NO.1
16551D Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.1)
16552C Hose, Intercooler Cooling Water, NO.2
16552D Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2)
16555C Hose, Intercooler Cooling Water, NO.5
16556C Hose, Intercooler Cooling Water, NO.6
16556D Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.6)
16557B Hose, Intercooler Cooling Water, NO.7
16557C Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.7)
16561 Seal, Radiator TO Support, NO.1
16562 Seal, Radiator TO Support, NO.2
16562B Seal, Radiator TO Support, NO.4
16562C Seal, Radiator TO Support, NO.5
16563 Seal, Radiator TO Support, NO.3
16566 Hose, Reserve Tank Outlet
16566A Clip(FOR RESERVE TANK OUTLET)
16567 Hose(FOR RADIATOR RESERVE TANK)
16567A Clip(FOR RADIATOR RESERVE TANK HOSE)
16571C Hose, Radiator, NO.1
16571D Clip, Radiator Hose, NO.1
16572D Hose, Radiator, NO.2
16572E Clip, Radiator Hose, NO.2
16573B Hose, Radiator, NO.3
16573C Clamp OR Clip, Radiator Hose, NO.3
16574 Hose, Radiator, NO.4
16574A Clip, Radiator Hose, NO.4
16577 Pipe, Radiator, NO.7
16577B Clamp OR Clip, Hose(FOR RADIATOR PIPE)
16577C Pipe, Radiator
16578 Pipe, Radiator, NO.2
16581C Clamp, Hose(FOR RADIATOR HOSE NO.2)
16581Q Clamp, Hose(FOR RADIATOR HOSE NO.1)
16581R Clamp, Hose(FOR RADIATOR HOSE NO.3)
16581S Clamp, Hose(FOR RADIATOR HOSE NO.4)
16581T Clamp(FOR INTERCOOLER COOLING WATER HOSE)
16582 Bracket, Radiator, NO.1
16583 Bracket, Radiator, NO.2
16585 Bracket, Radiator, NO.3
165A0 Hose Assy, Intercooler Cooling Water, NO.1
165A1A Hose, Intercooler Cooling Water Inlet
165A1B Clip(FOR INTERCOOLER COOLING WATER INLET HOSE)
165B1A Hose, Intercooler Cooling Water Outlet
165B1B Clip(FOR INTERCOOLER COOLING WATER OUTLET HOSE)
165C1 Duct, Sub-radiator, NO.1
165C2 Duct, Sub-radiator, NO.2
165E1 Clamp, Water By-pass Pipe, NO.1
165E2 Clamp, Water By-pass Pipe, NO.2
165E3 Clamp, Water By-pass Pipe, NO.3
165E4 Clamp, Water By-pass Pipe, NO.4
165E5 Clamp, Water By-pass Pipe, NO.5
165E6 Clamp, Water By-pass Pipe, NO.6
16640 Tank Assy, Intercooler Reserve
16640A Grommet(FOR INTERCOOLER RESERVE TANK)
16693 Plate, Radiator Side Air Guide, RR RH
16697 Plate, Radiator Side Air Guide, RR LH
16891 Connector, Turbo Water, NO.1
16892C Connector, Turbo Water, NO.2
16893 Connector, Turbo Water, NO.3
16894 Connector, Turbo Water, NO.4
32941U Hose, Oil Cooler Inlet
32942R Hose, Oil Cooler Outlet
44781G Bracket, Hose
87009 Hose Set, Water, NO.1
87121P Bracket, Water Pump
87124K Clamp, Heater
87200J Accessory Assy, Heater
87208M Pipe Sub-assy, Water
87209J Hose Sub-assy, Water
87245W Hose, Water
87246J Clamp(FOR WATER HOSE)
87251F Joint, Water
88608K Harness Sub-assy, Wiring Air Indicator, NO.2
89422D Sensor, Water Temperature
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
