Toyota Lexus LS Series

2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Pump

8 part groups · 2 illustrations

Illustrations

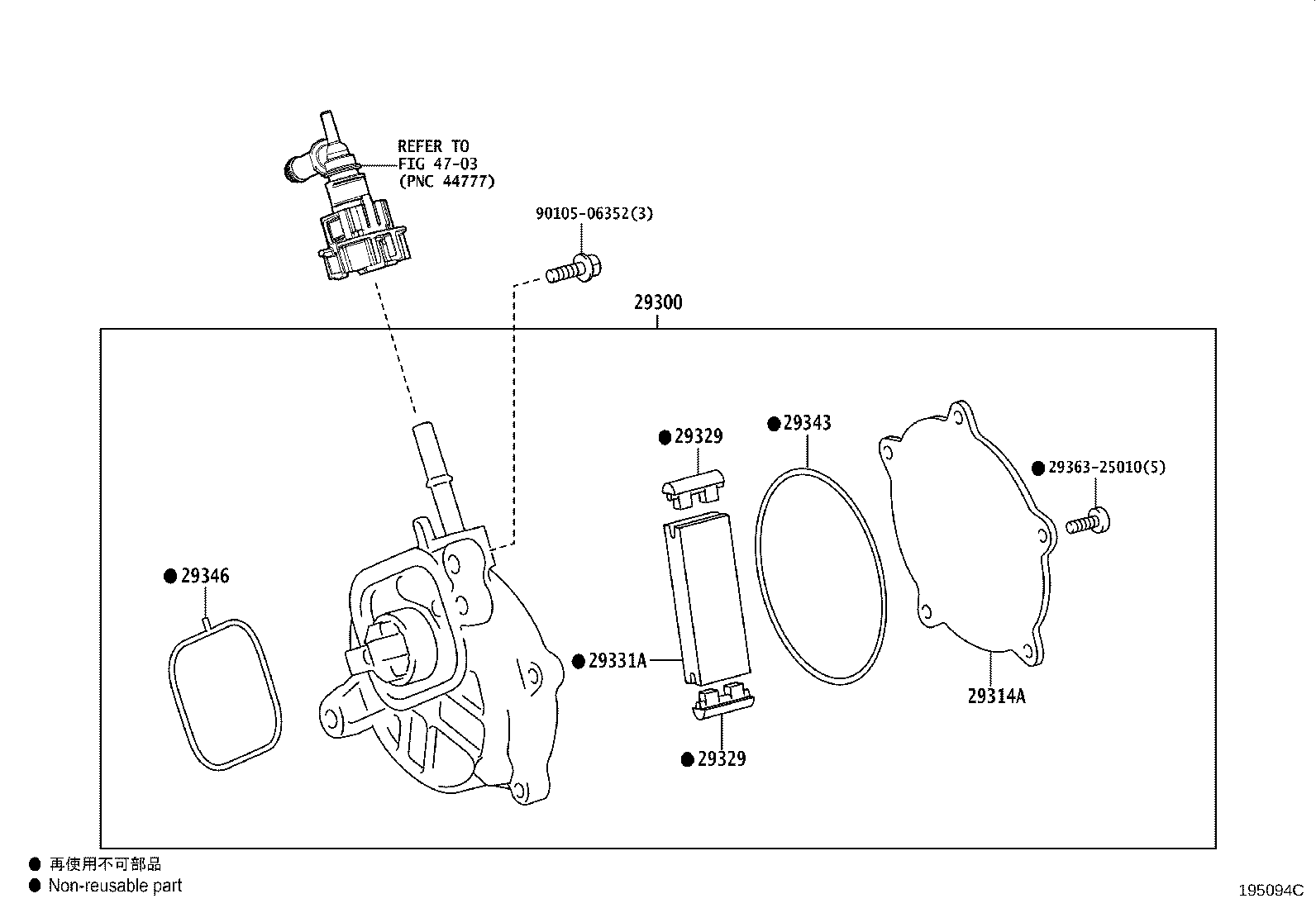

Figure 195095D 195095D 2017-10 → — Figure 195094C 195094C 2017-12 → —

Part groups

PNCDescription
29300 Pump Assy, Vacuum
29314A Cover, End
29329 Cap, Vacuum Pump Vane
29331A Vane, Vacuum Pump
29343 Ring, O Vacuum Pump, NO.1
29344 Ring, O Vacuum Pump, NO.2
29345 Ring, O Vacuum Pump, NO.3
29346 Ring, O Vacuum Pump Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
