Toyota Lexus LS Series

2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transmission Case & Oil Pan (ATM)

26 part groups · 3 illustrations

Illustrations

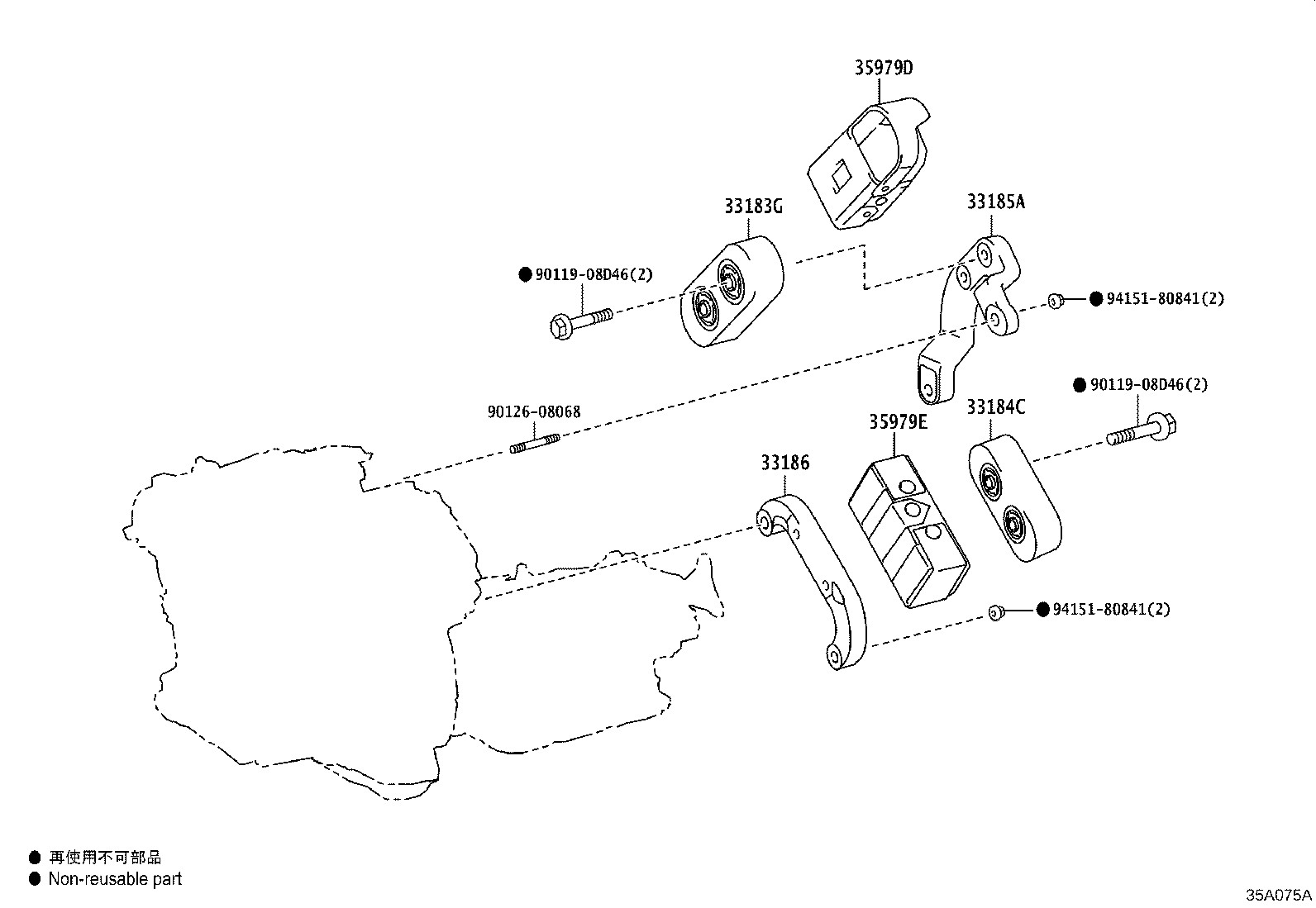

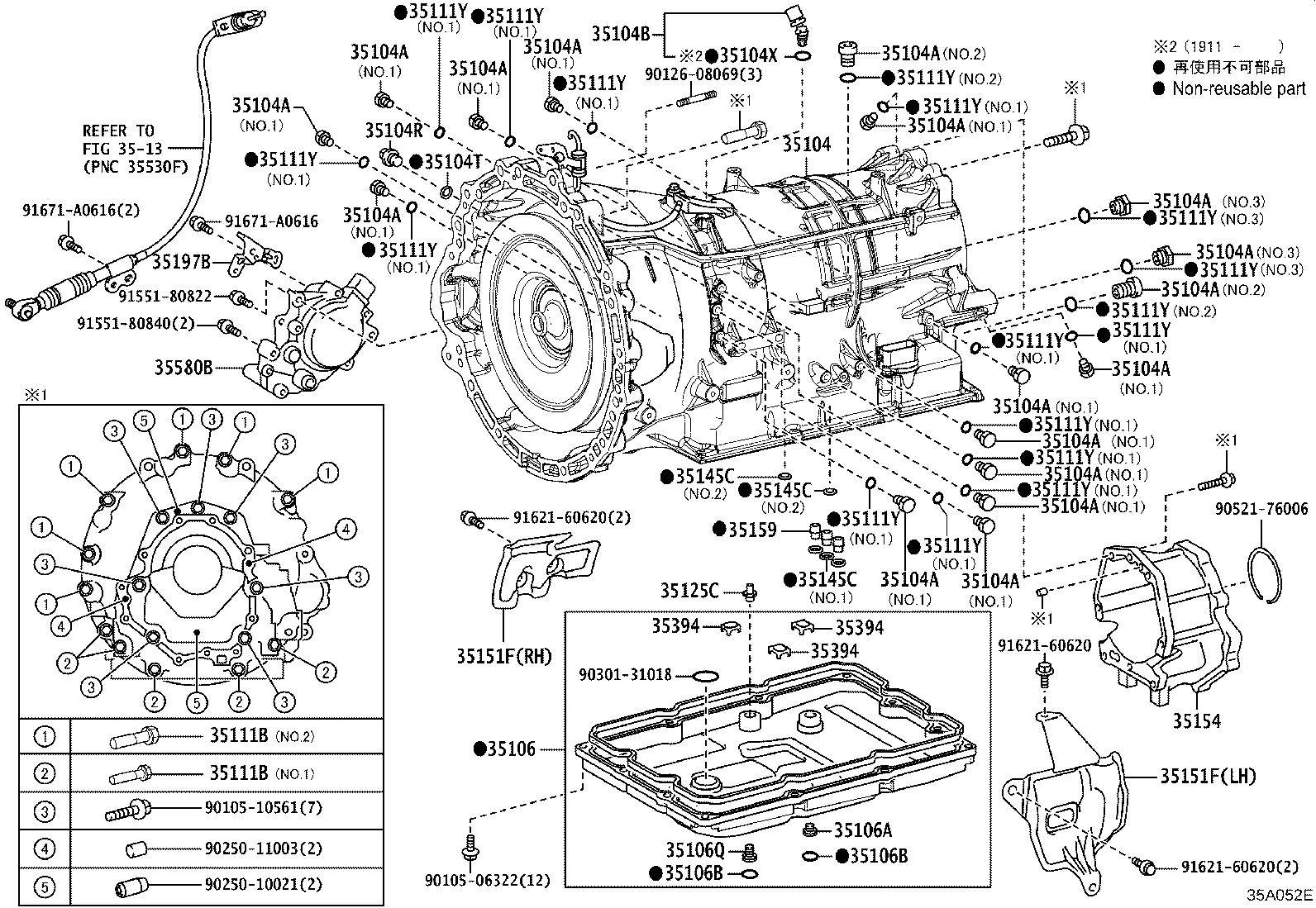

Figure 35A050C 35A050C 2017-10 → — Figure 35A052E 35A052E 2017-12 → — Figure 35A075A 35A075A 2017-12 → 2020-01

Part groups

PNCDescription
33183G Damper, Transmission Dynamic, RH
33184C Damper, Transmission Dynamic, LH
33185A Bracket, Transmission Dynamic Damper, RH
33186 Bracket, Transmission Dynamic Damper, LH
35104 Case Sub-assy, Automatic Transmission
35104A Plug, Automatic Transmission Case
35104B Plug, Breather, NO.1 (ATM)
35104R Plug, NO.2 (FOR TRANSAXLE CASE)
35104T Ring, O (FOR TRANSAXLE CASE PLUG NO.2)
35104X Ring, O (FOR BREATHER PLUG)
35106 Pan Sub-assy, Automatic Transmission Oil
35106A Plug Sub-assy, Drain (ATM)
35106B Gasket, Drain Plug (ATM)
35106Q Plug (FOR AUTOMATIC TRANSMISSION OIL PAN)
35111B Bolt (FOR TRANSMISSION HOUSING & ENGINE SETTING)
35111Y Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
35125C Tube, Transmission Oil Filler, NO.1
35145C Gasket, Transaxle Case
35151F Cover, Transmission Case, Side
35154 Adapter, Transmission Case
35159 Gasket, Brake Drum
35197B Bracket, Heat Insulator, NO.2
35394 Magnet, Oil Cleaner (FOR TRANSMISSION)
35580B Actuator Assy, Shift Control
35979D Insulator, Transmission Dynamic Damper, RH
35979E Insulator, Transmission Dynamic Damper, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
