Toyota Lexus LS Series

2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube (ATM)

20 part groups · 2 illustrations

Illustrations

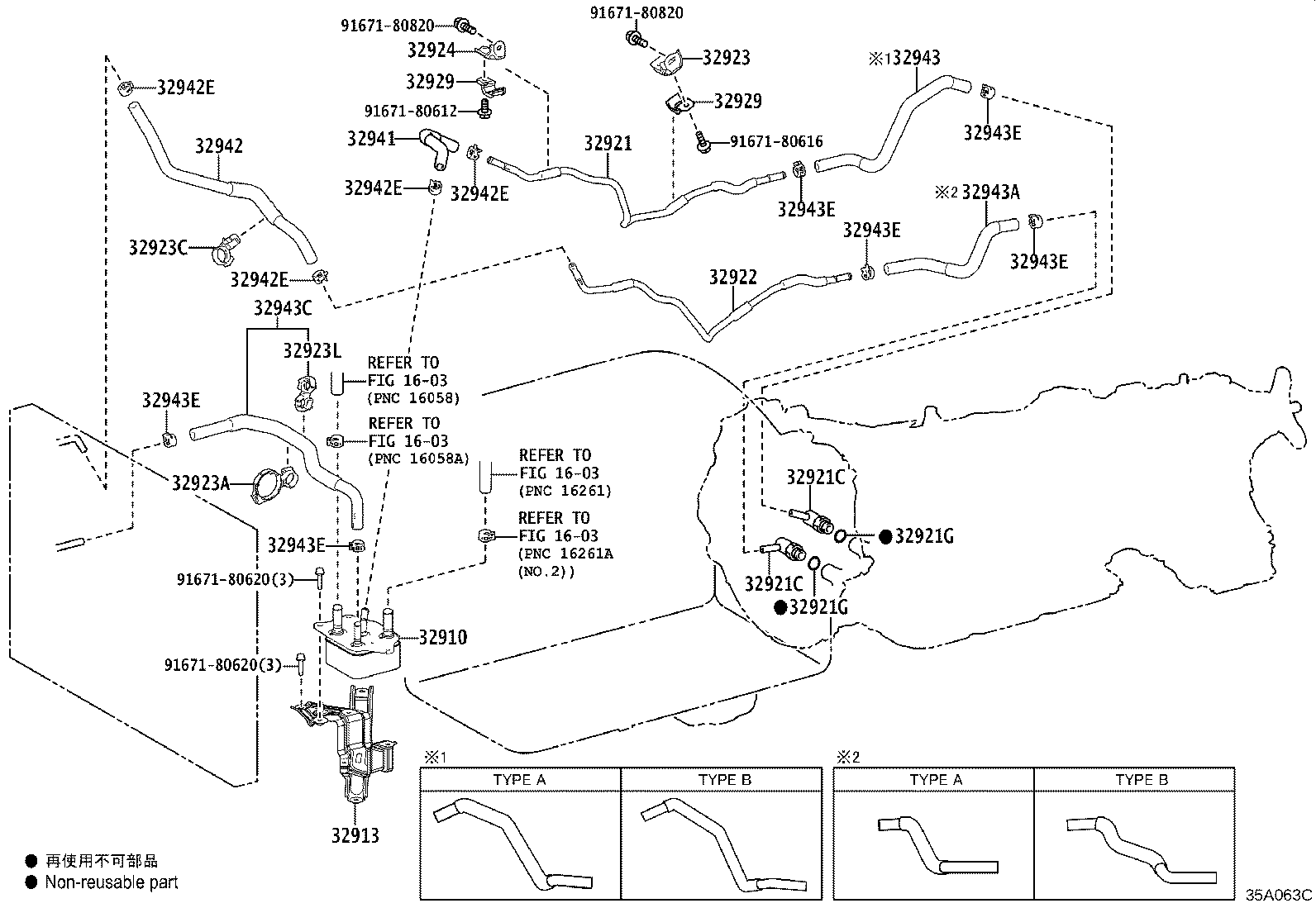

Figure 35A062B 35A062B 2017-10 → — Figure 35A063C 35A063C 2017-12 → —

Part groups

PNCDescription
32910 Cooler Assy, Oil
32913 Bracket, Oil Cooler
32921 Tube, Oil Cooler Inlet, NO.1
32921C Union(FOR OIL COOLER TUBE)
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32922 Tube, Oil Cooler Outlet, NO.1
32923 Clamp, Automatic Transmission Oil Cooler Tube
32923A Clamp, Automatic Transmission Oil Cooler Tube
32923C Clamp, Automatic Transmission Oil Cooler Tube, NO.4
32923K Clamp, Automatic Transmission Oil Cooler Tube, NO.2
32923L Clamp, Automatic Transmission Oil Cooler Tube, NO.3
32924 Clamp, Oil Cooler Tube, NO.2
32929 Clamp, Flexible Hose, NO.2
32941 Hose, Oil Cooler Inlet, NO.1
32942 Hose, Oil Cooler Outlet, NO.1
32942E Clip, NO.2(FOR OIL COOLER HOSE)
32943 Hose, Transmission Oil Cooler, NO.1
32943A Hose, Transmission Oil Cooler, NO.2
32943C Hose, Transmission Oil Cooler, NO.3
32943E Clip, NO.3(FOR OIL COOLER HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
