Toyota Lexus LS Series

2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Propeller Shaft & Universal Joint

13 part groups · 2 illustrations

Illustrations

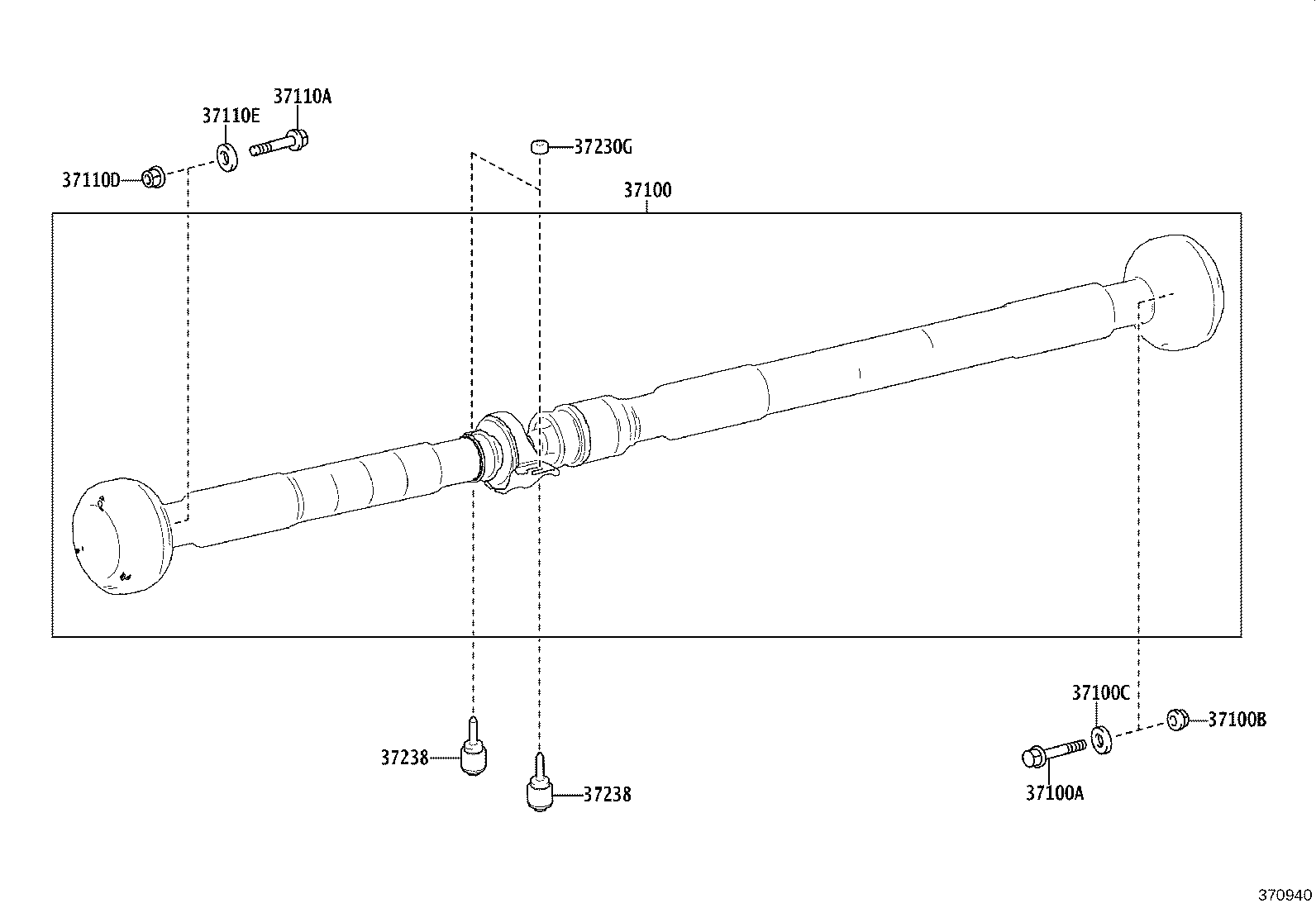

Figure 370939 370939 2017-10 → — Figure 370940 370940 2017-10 → —

Part groups

PNCDescription
37100 Shaft Assy, Propeller W/Center Bearing
37100A Bolt, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100B Nut, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100C Washer, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37110A Bolt (FOR PROPELLER SHAFT)
37110D Nut (FOR PROPELLER SHAFT)
37110E Washer (FOR PROPELLER SHAFT)
37117 Insulator, Propeller Shaft Heat
37140 Shaft Assy, Propeller, Front
37140A Bolt (F0R FRONT PROPELLER SHAFT)
37230G Washer, NO.2 (FOR CENTER SUPPORT BEARING)
37238 Damper, Center Support Bearing
43489B Washer, Constant Velocity Universal Joint
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
