Front Axle Hub

9 part groups · 2 illustrations

Illustrations

Figure 433857D

433857D 2017-10 → —

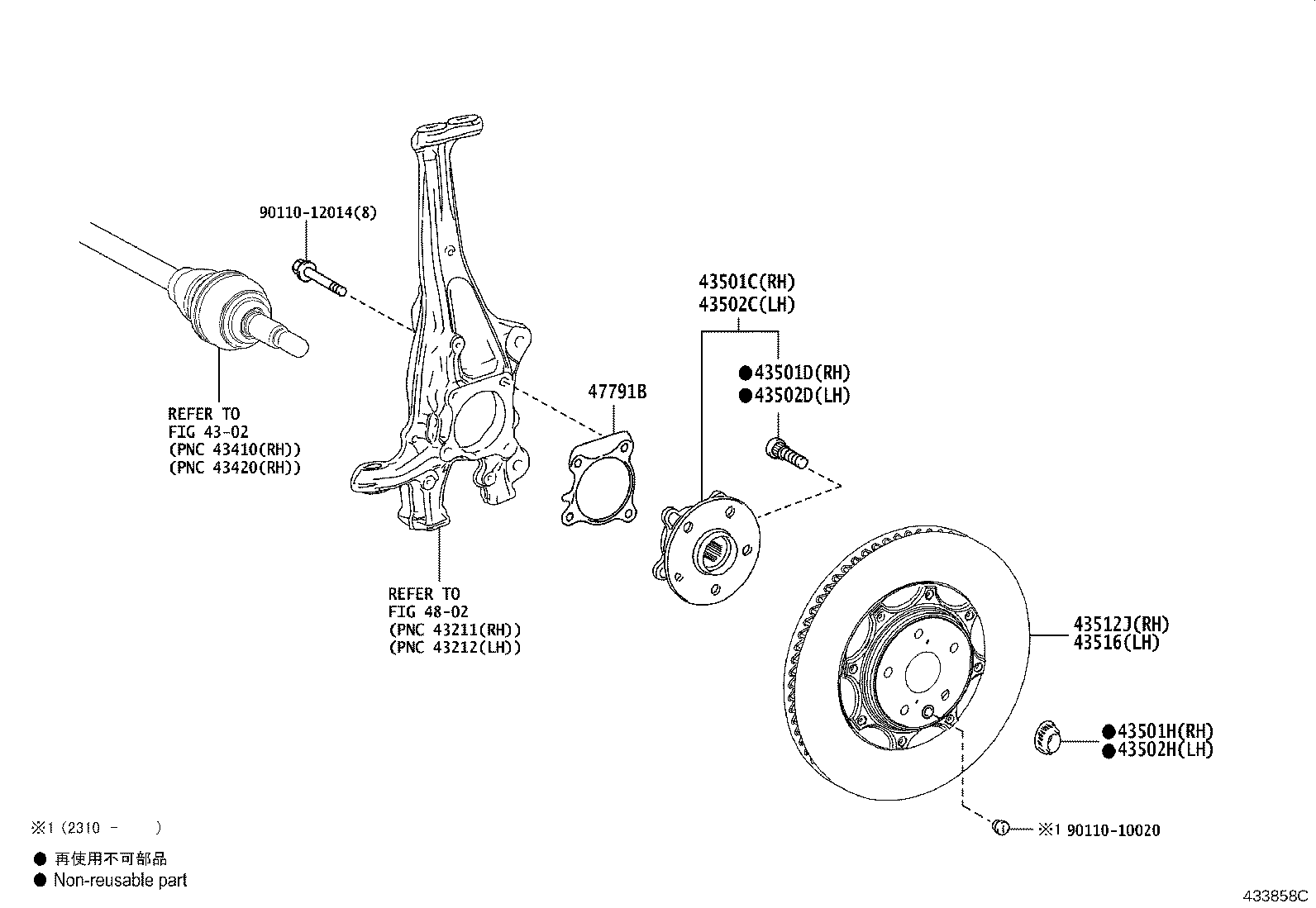

Figure 433858C

433858C 2017-10 → —

Part groups

PNC	Description
43501C	Hub Sub-assy, Front Axle, RH
43501D	Bolt, Hub (FOR FRONT AXLE RH)
43501H	Nut (FOR FRONT AXLE SHAFT RH)
43502C	Hub Sub-assy, Front Axle, LH
43502D	Bolt, Hub (FOR FRONT AXLE LH)
43502H	Nut (FOR FRONT AXLE SHAFT LH)
43512J	Disc, Front RH
43516	Disc, Front LH
47791B	Plate, Disc Brake Air Guide

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
