Toyota Lexus LS Series

2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

16 part groups · 2 illustrations

Illustrations

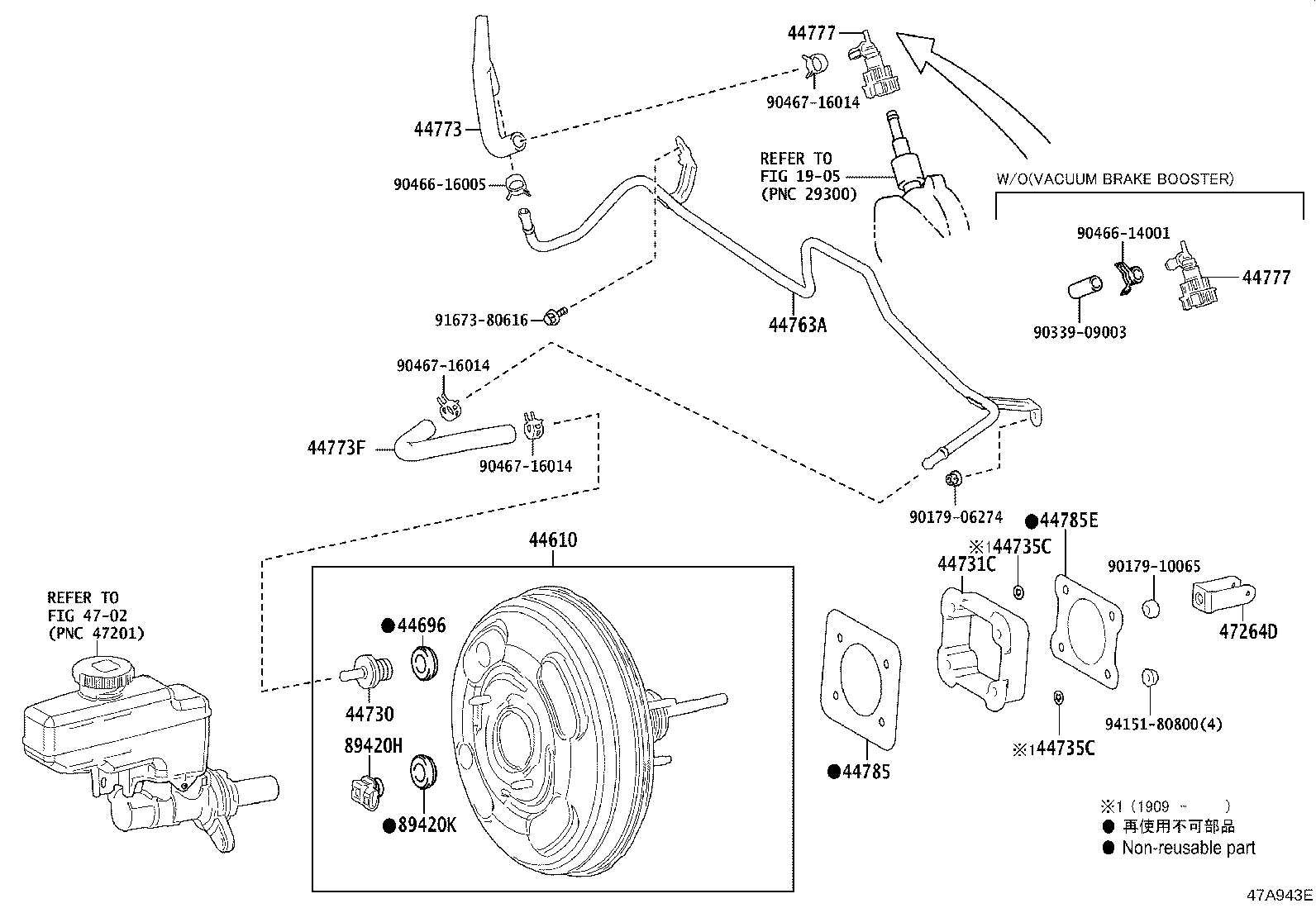

Figure 47A924G 47A924G 2017-10 → — Figure 47A943E 47A943E 2017-12 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44731C Bracket, Brake Booster
44735C Ring, Booster Bracket Stopper
44763A Tube, Hose TO Hose, NO.1
44773 Hose, Vacuum, NO.2
44773F Hose, Union TO Check Valve
44777 Connector, Vacuum Hose, NO.1
44785 Gasket, Brake Booster
44785E Gasket, Brake Booster, NO.2
47264D Clevis, Brake Master Cylinder Push Rod
83390H Switch Assy, Vacuum Warning
83390J Grommet, Vacuum Warning Switch
89420H Sensor Assy, Vacuum
89420K Grommet, Vacuum Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
