Toyota Lexus LS Series

2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Disc Brake Caliper & Dust Cover

22 part groups · 3 illustrations

Illustrations

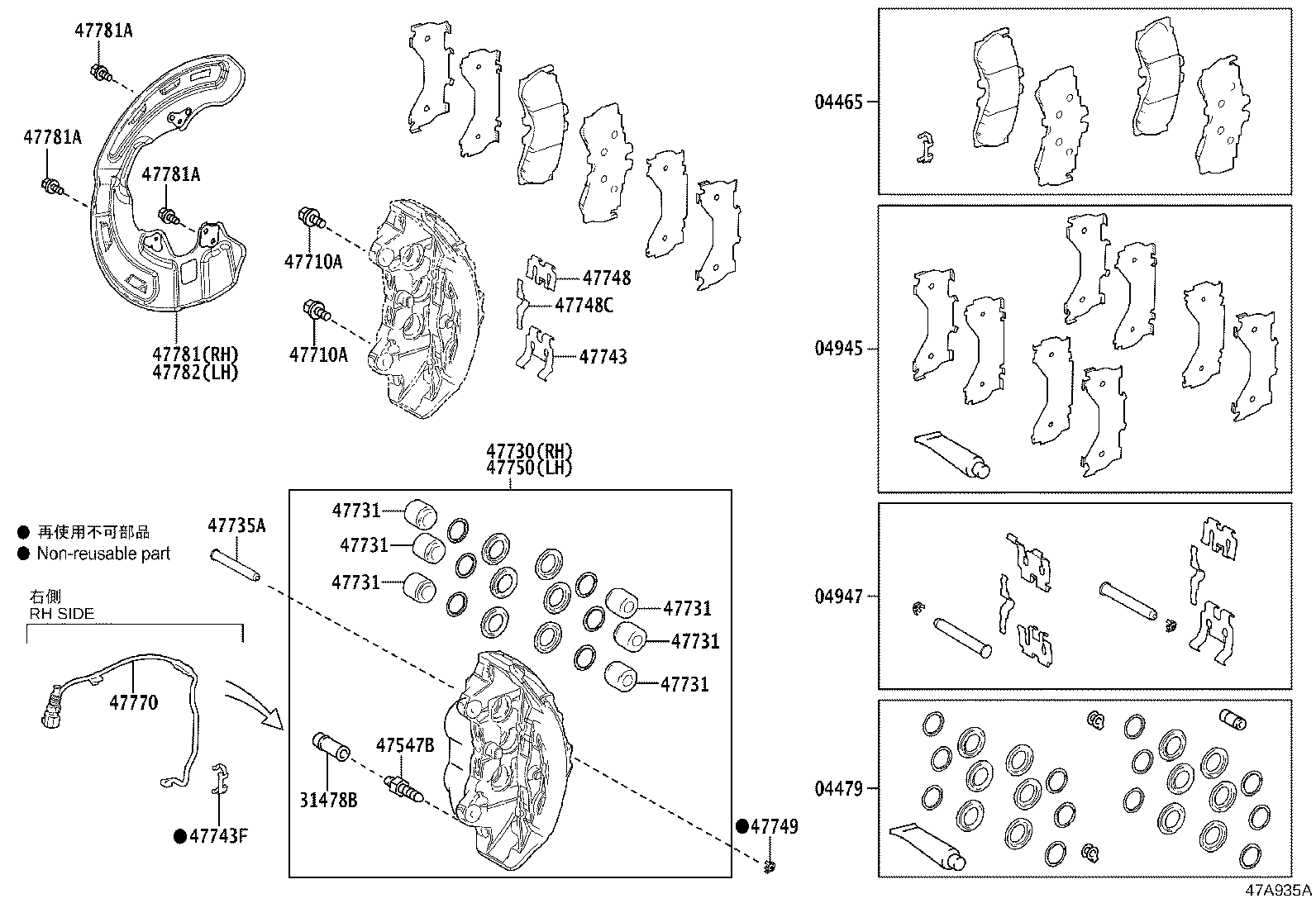

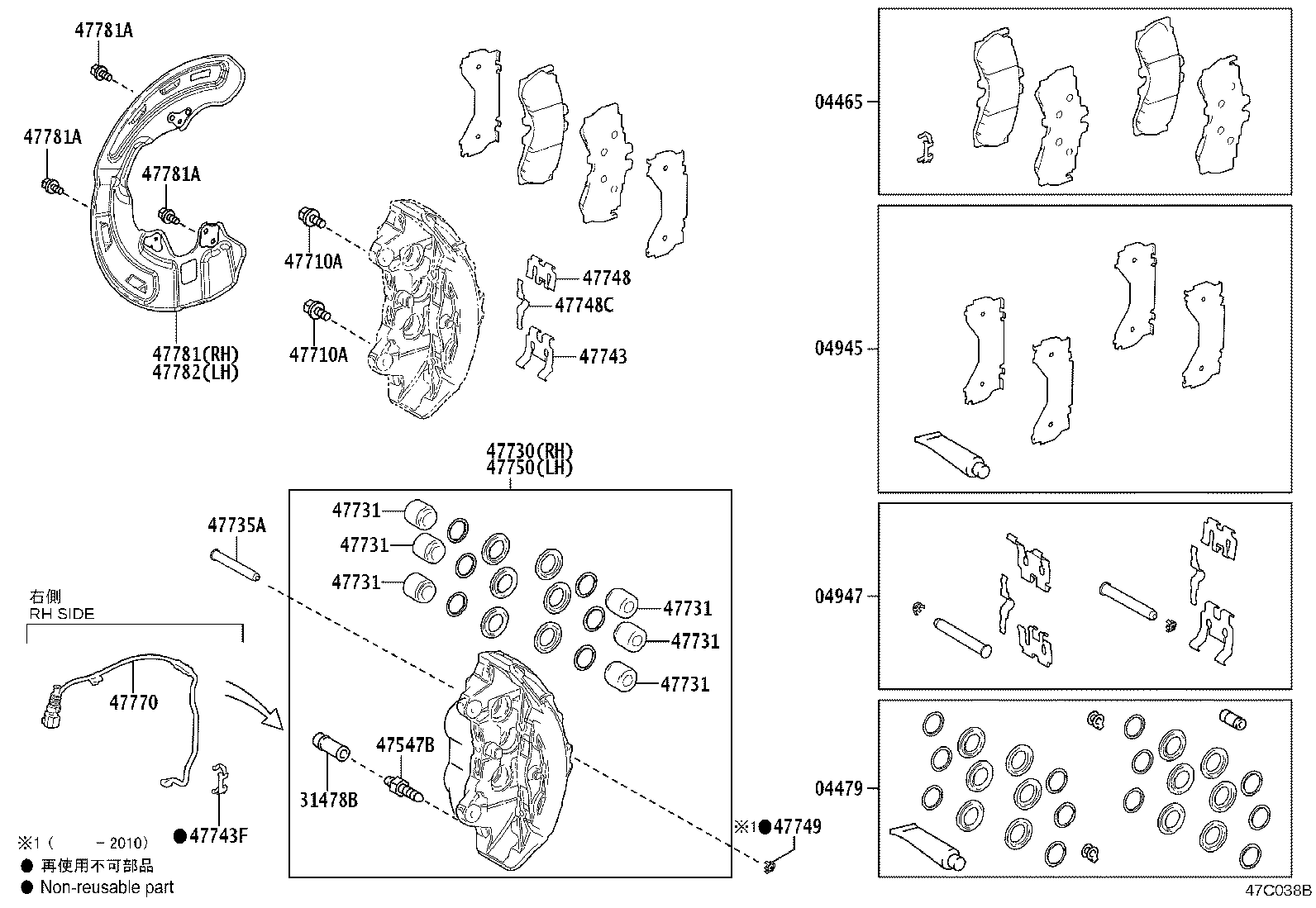

Figure 47A934 47A934 2017-10 → — Figure 47A935A 47A935A 2017-10 → 2018-09 Figure 47C038B 47C038B 2018-09 → —

Part groups

PNCDescription
04465 Pad Kit, Disc Brake, Front
04479 Cylinder Kit, Disc Brake, Front
04945 Shim Kit, Anti Squeal, Front
04947 Fitting Kit, Disc Brake, Front
31478B Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
47547B Plug, Bleeder(FOR FRONT DISC BRAKE)
47710A Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
47730 Cylinder Assy, Front Disc Brake, RH
47731 Piston, Front Disc Brake
47735A Pin, Torque
47743 Spring, Anti-rattle, NO.2(FOR FRONT DISC BRAKE)
47743F Clip, Pad Wear Indicator Wire
47748 Spring, Anti-rattle, NO.1(FOR FRONT DISC BRAKE)
47748B Pin, W/Hole(FOR FRONT DISC BRAKE ANTI-RATTLE)
47748C Spring, Anti-rattle, NO.2(FOR FRONT DISC BRAKE)
47749 Clip, Pin Hold
47750 Cylinder Assy, Disc Brake, LH
47770 Wire Assy, Pad Wear Indicator, Front RH
47773 Retainer, Pad Wear Indicator
47781 Cover, Disc Brake Dust, Front RH
47781A Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
47782 Cover, Disc Brake Dust, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
