Brake Tube & Clamp

47 part groups · 18 illustrations

Illustrations

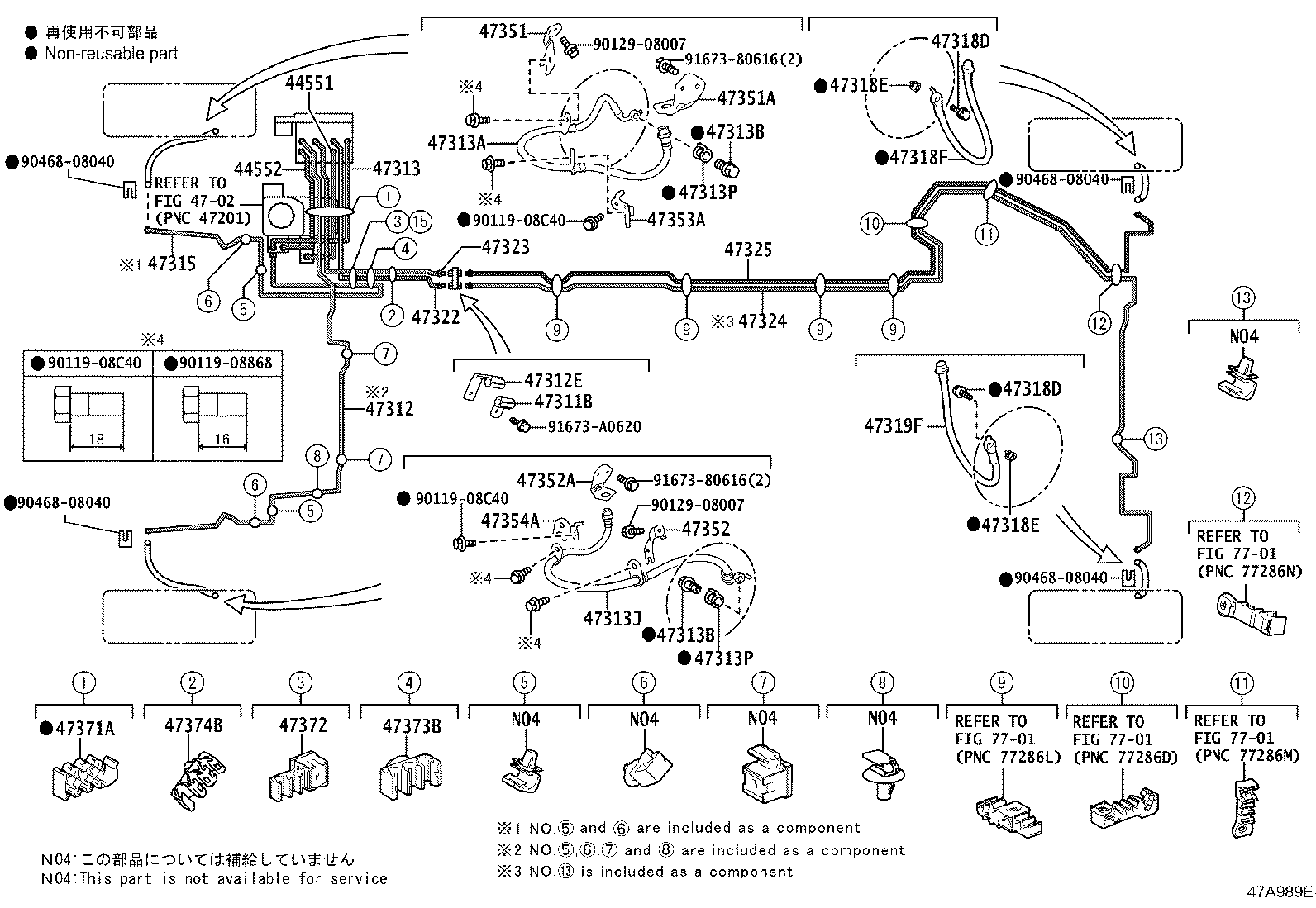

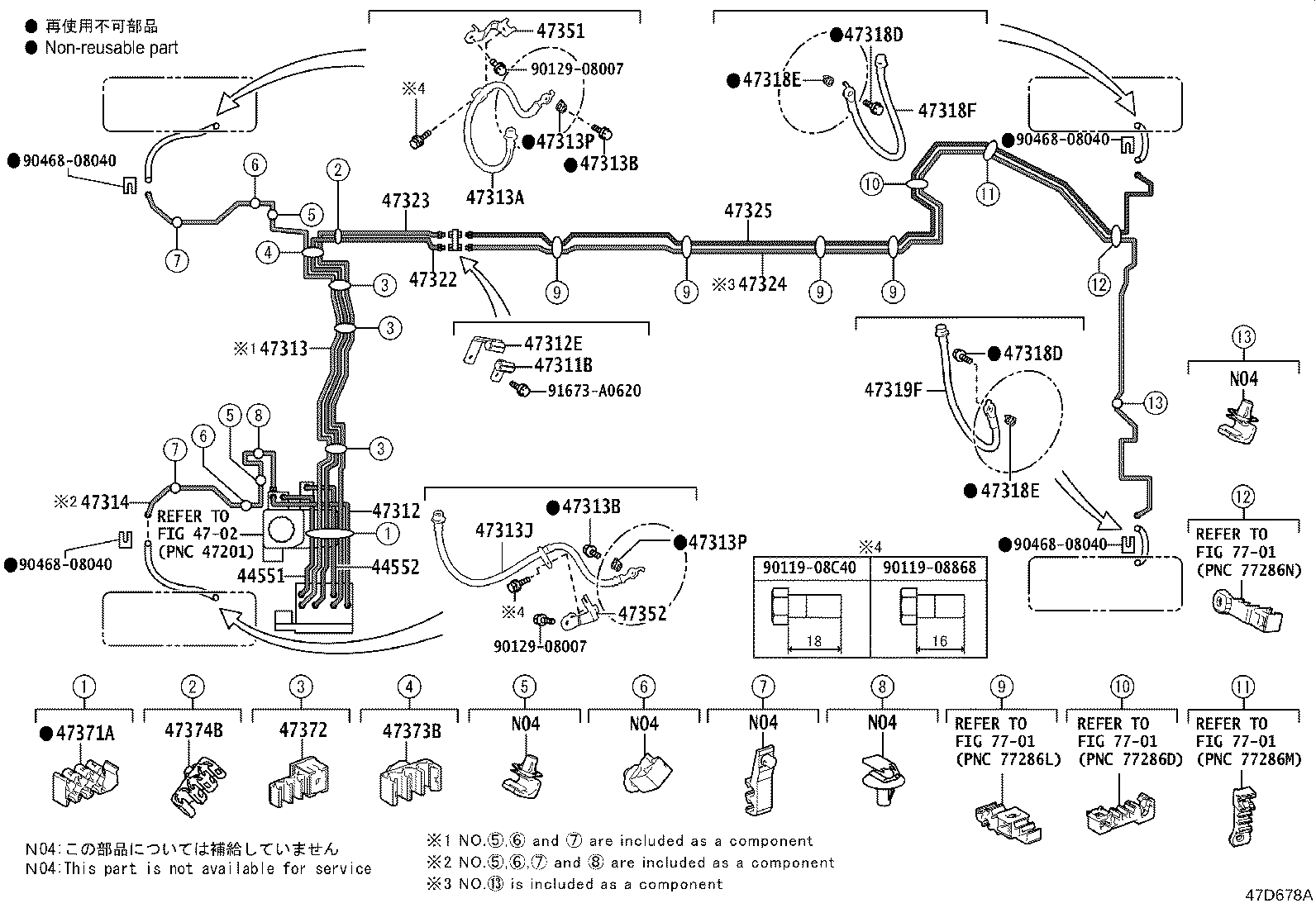

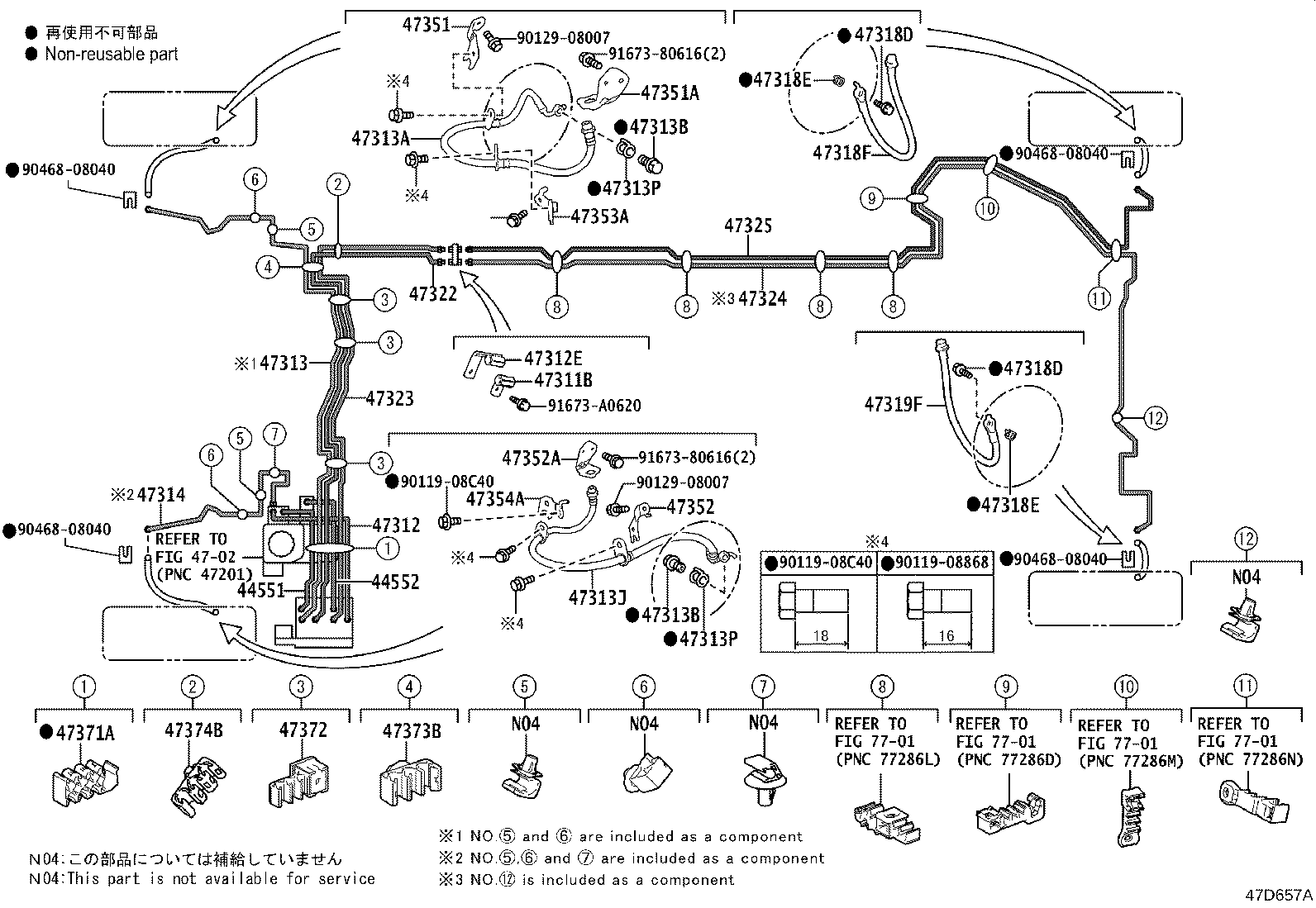

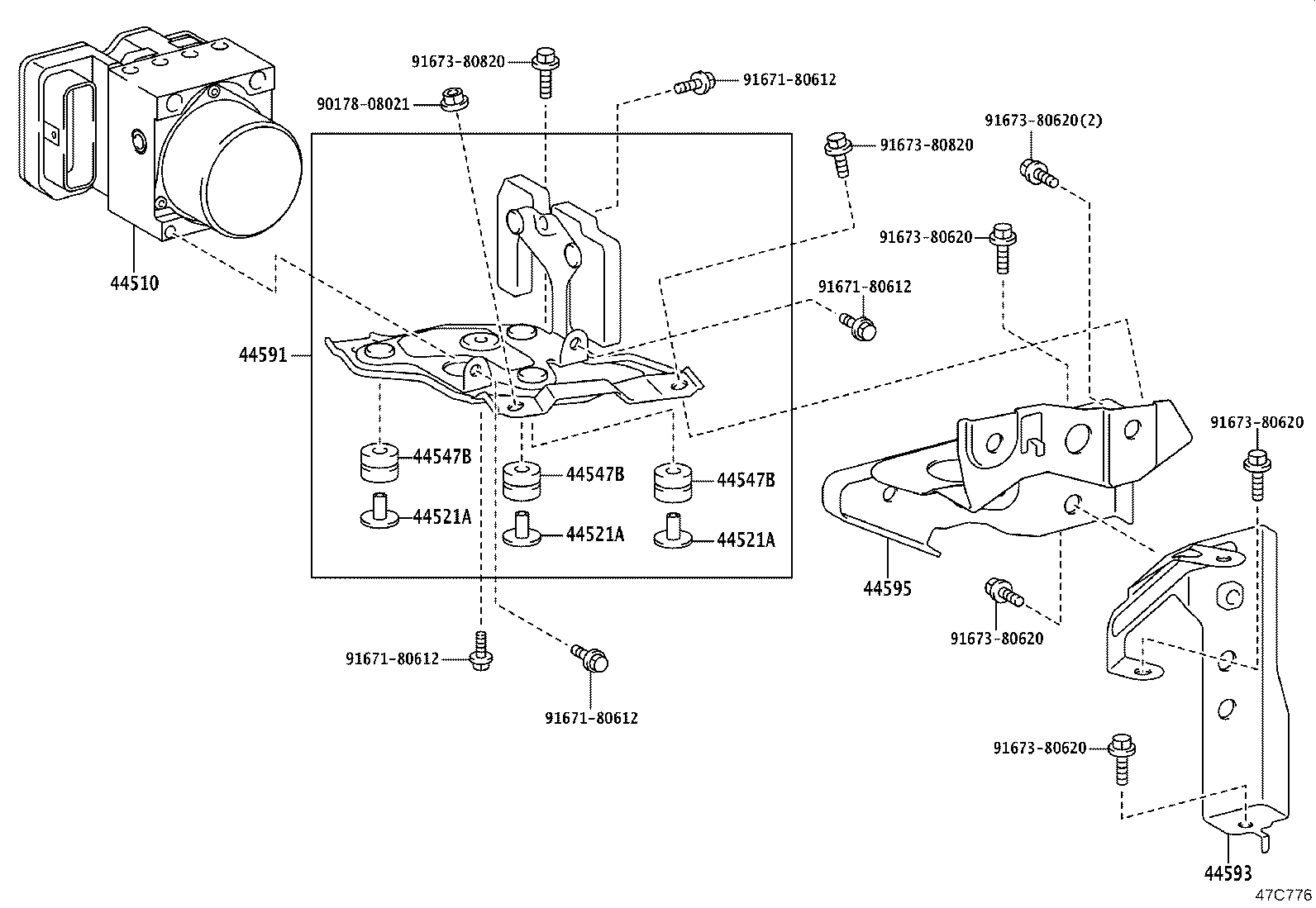

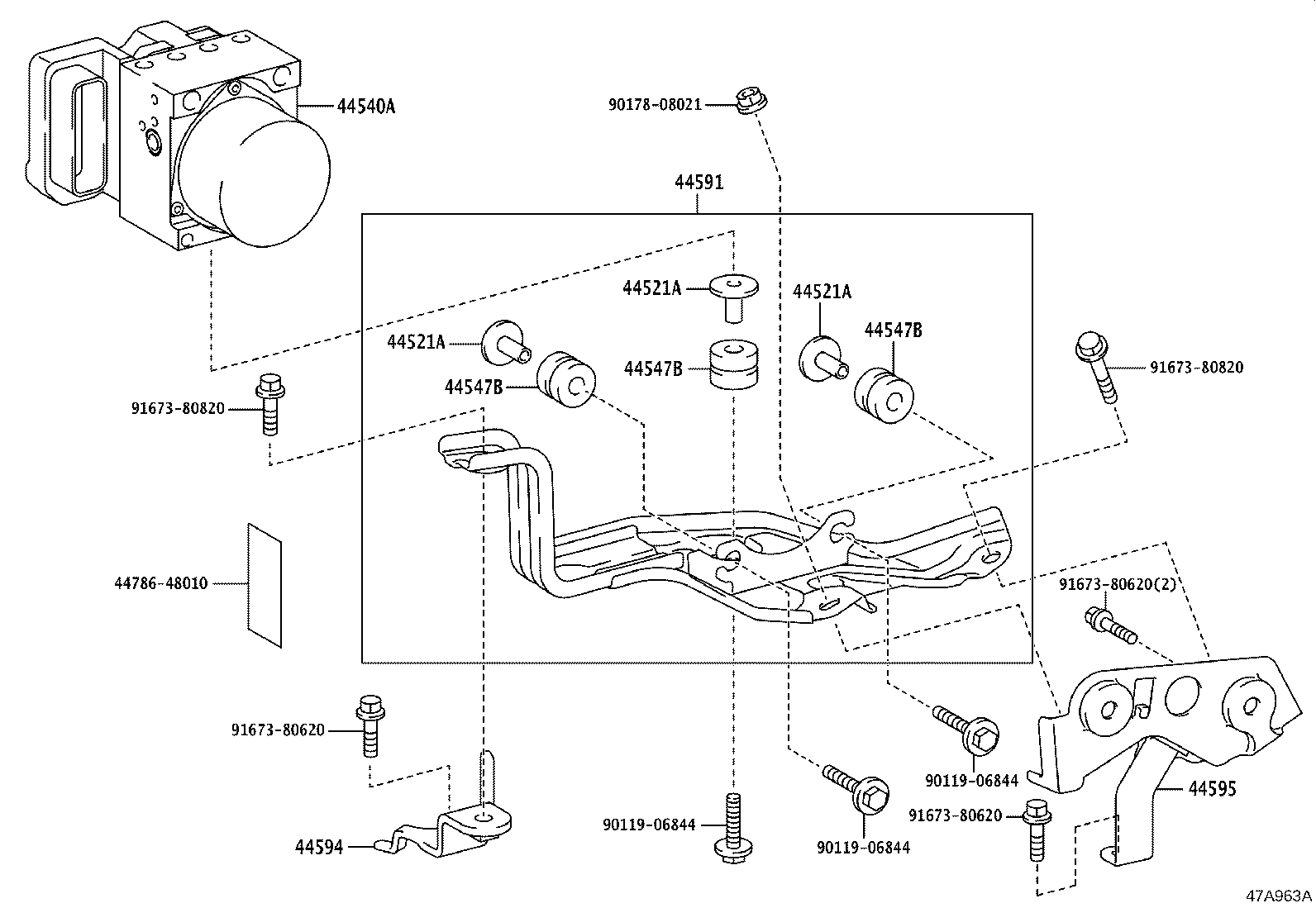

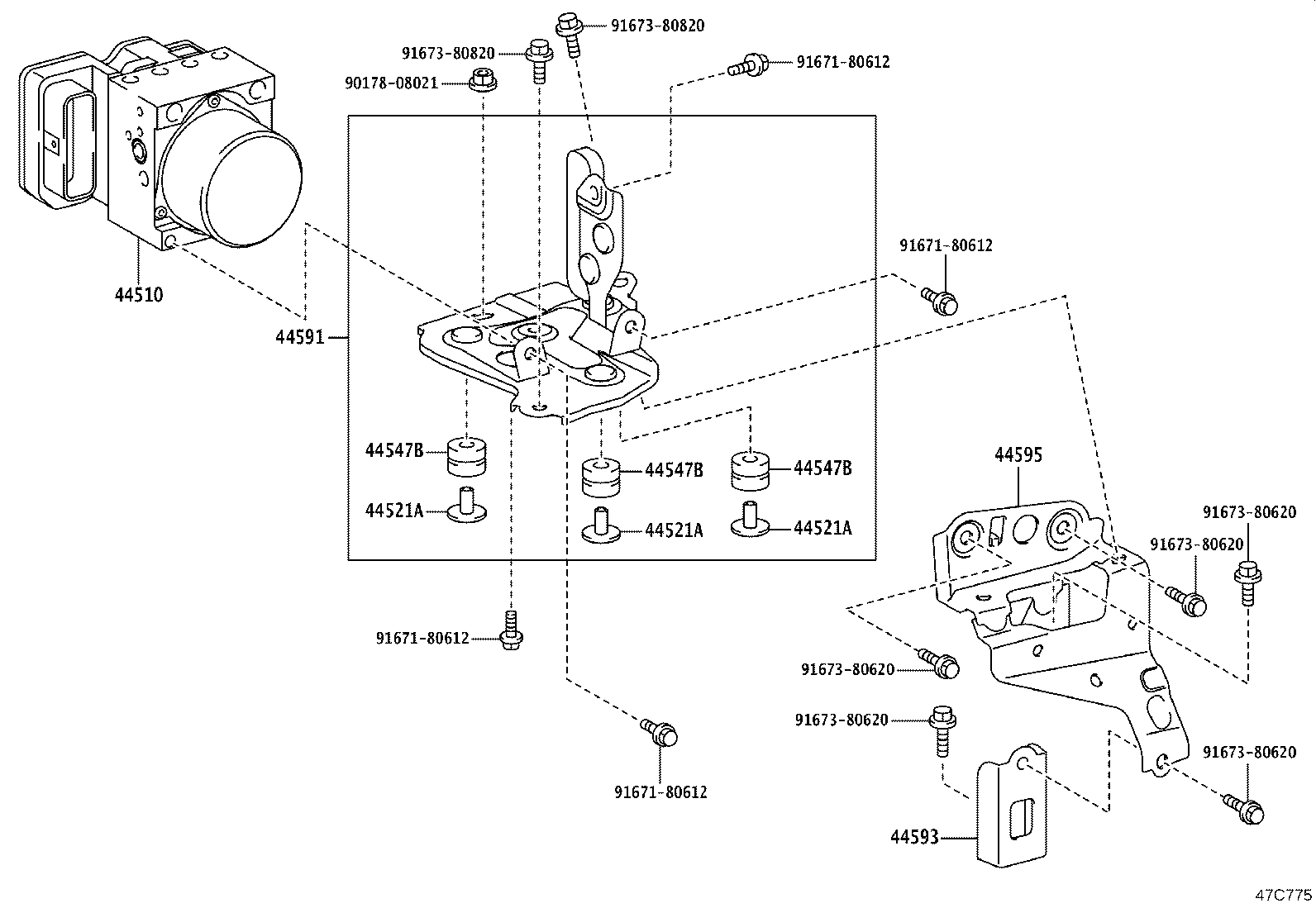

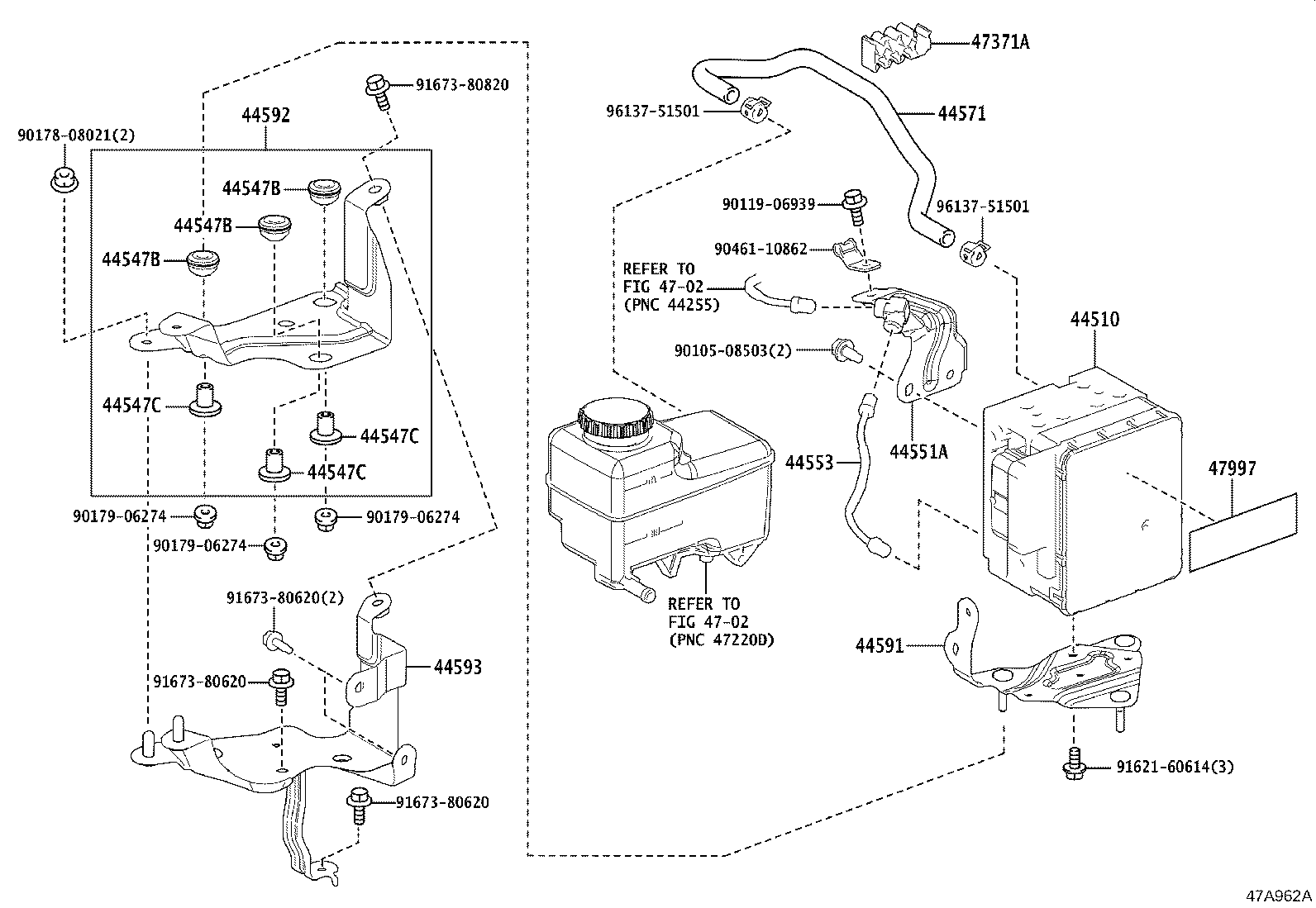

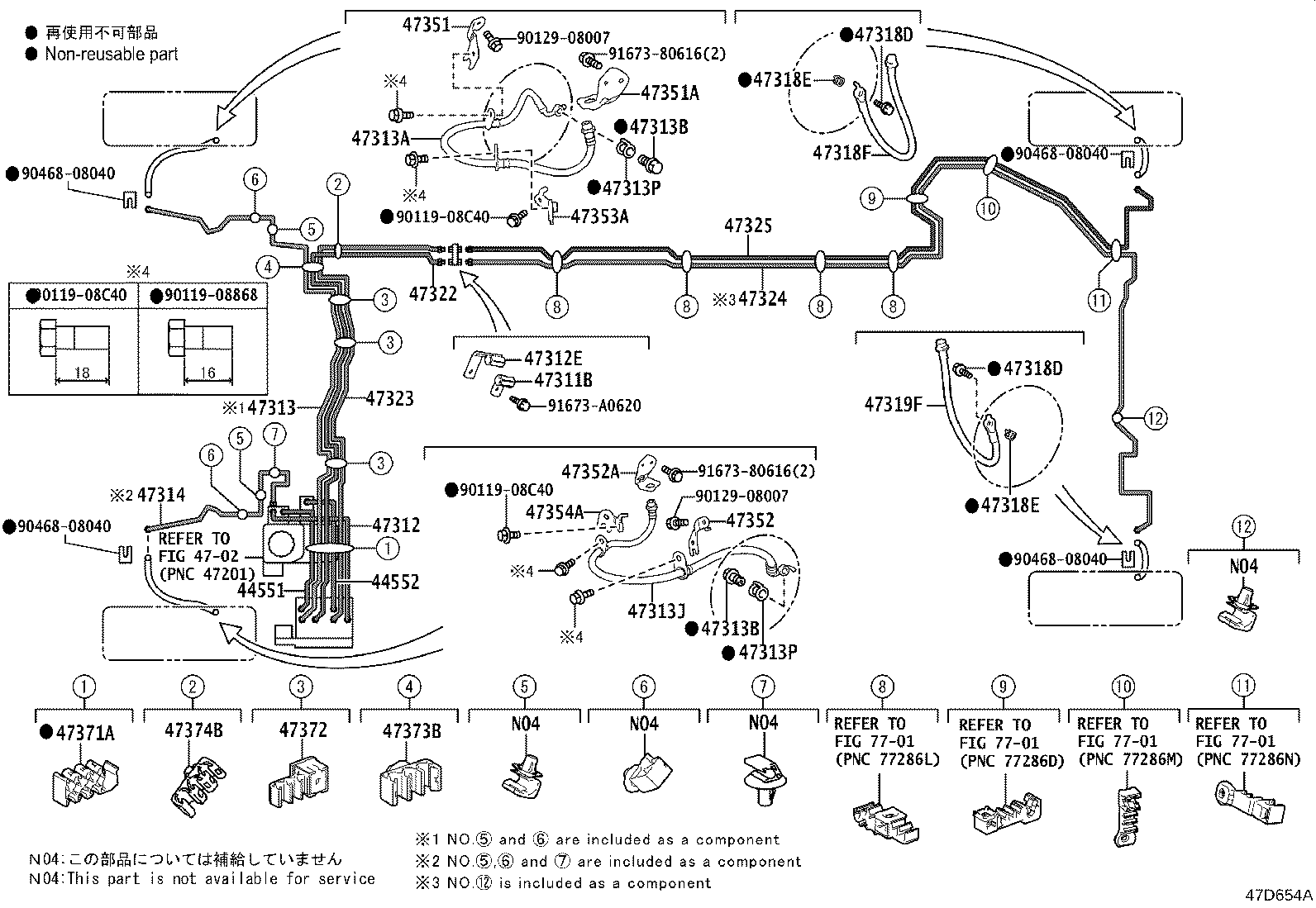

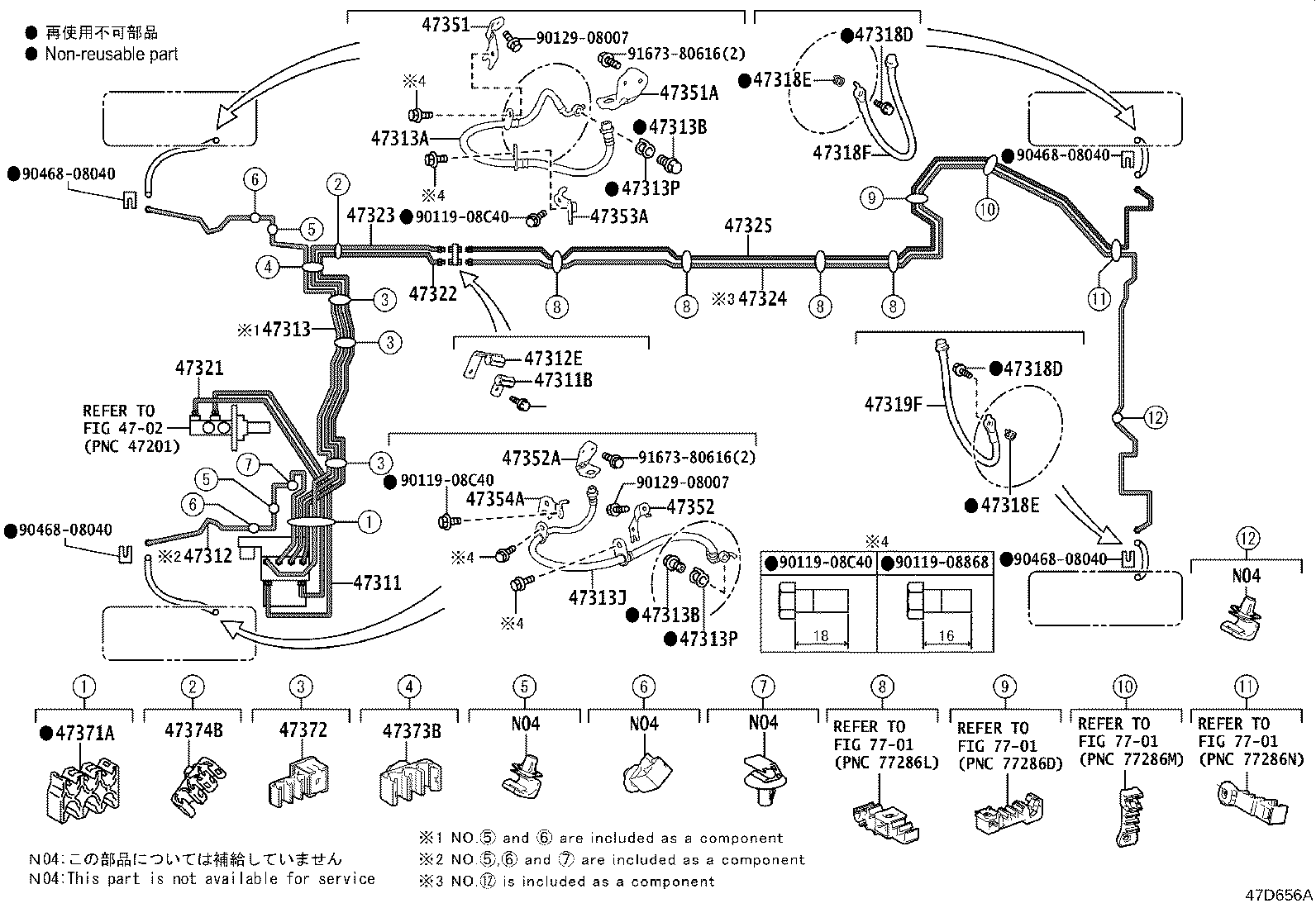

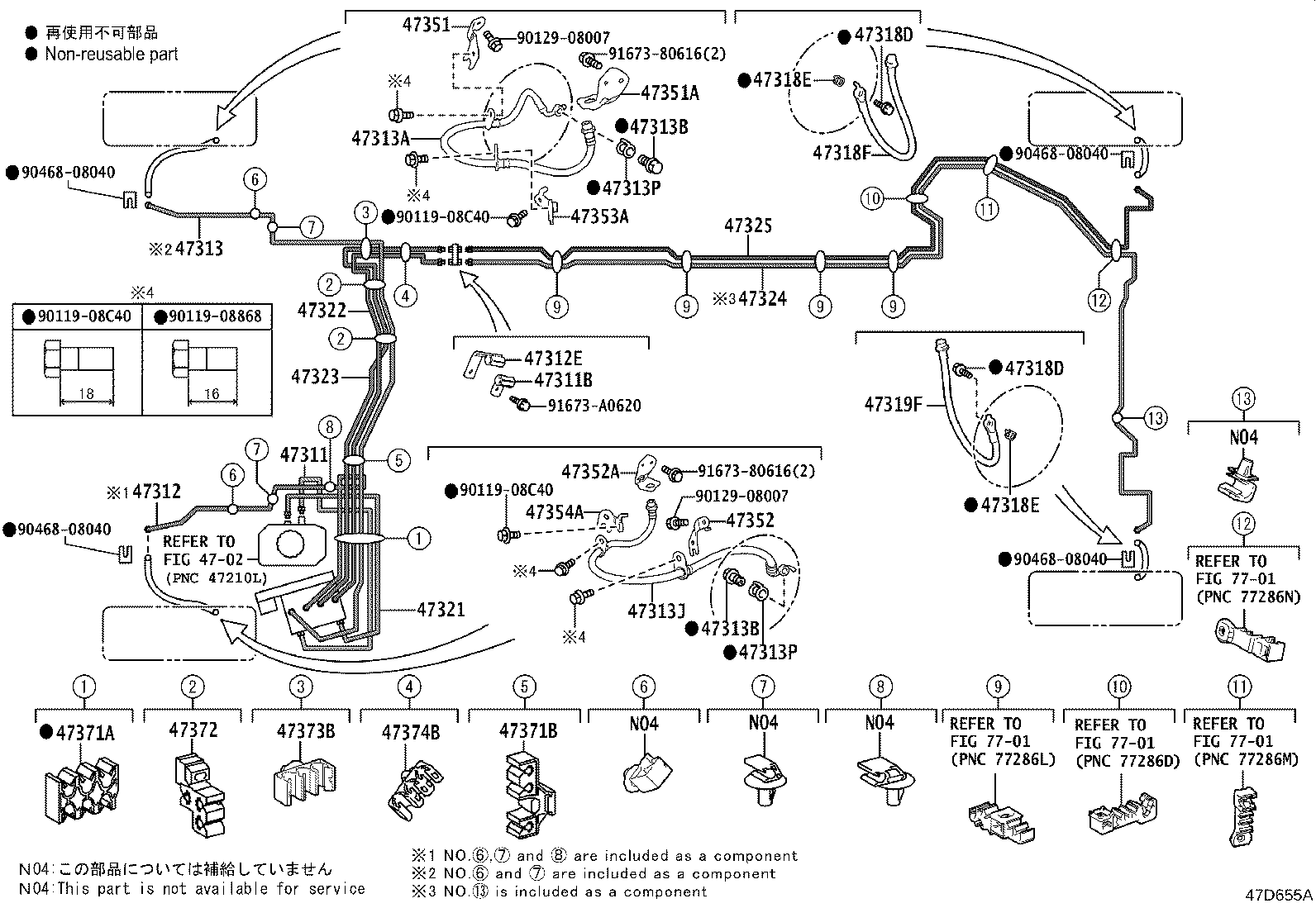

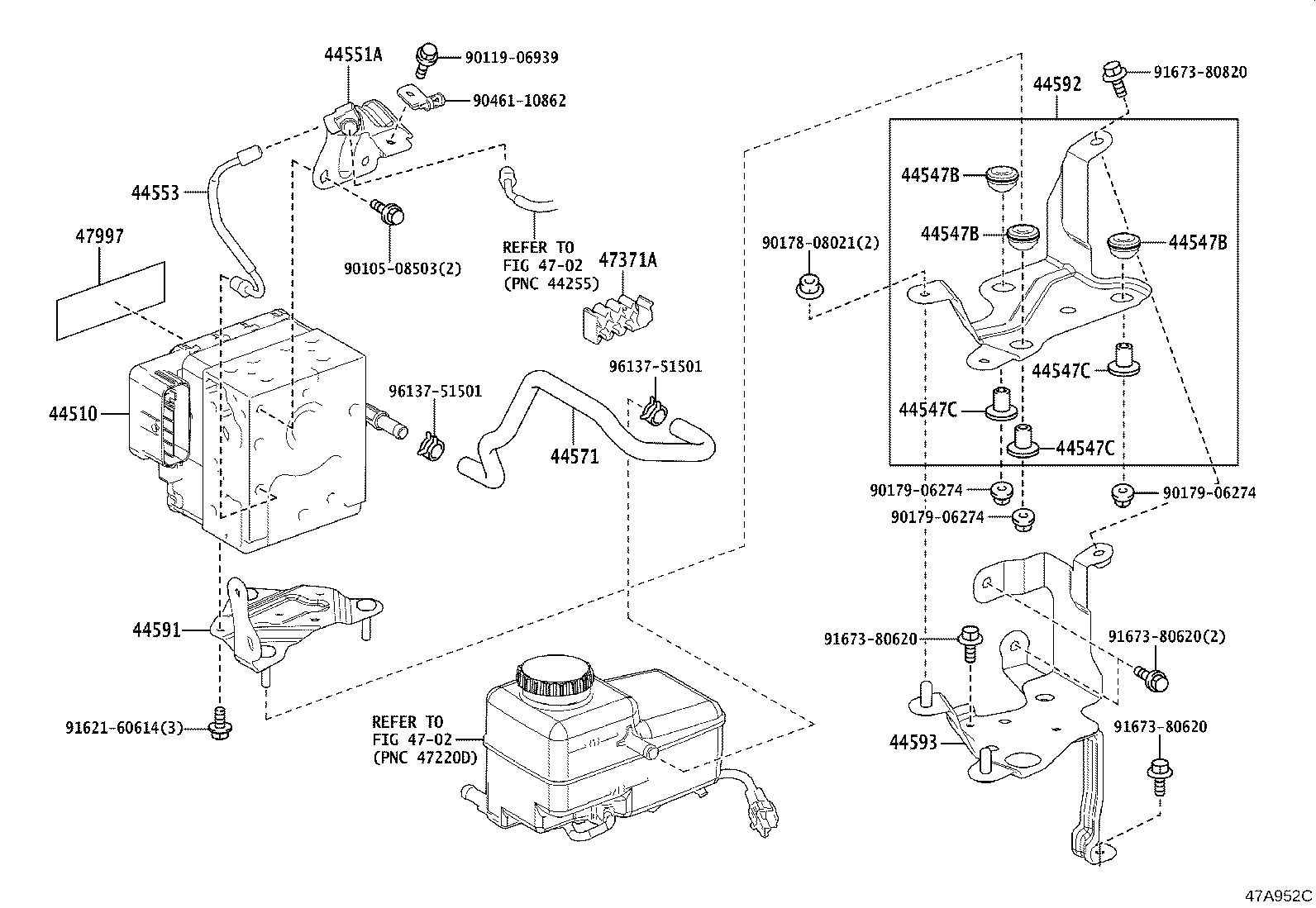

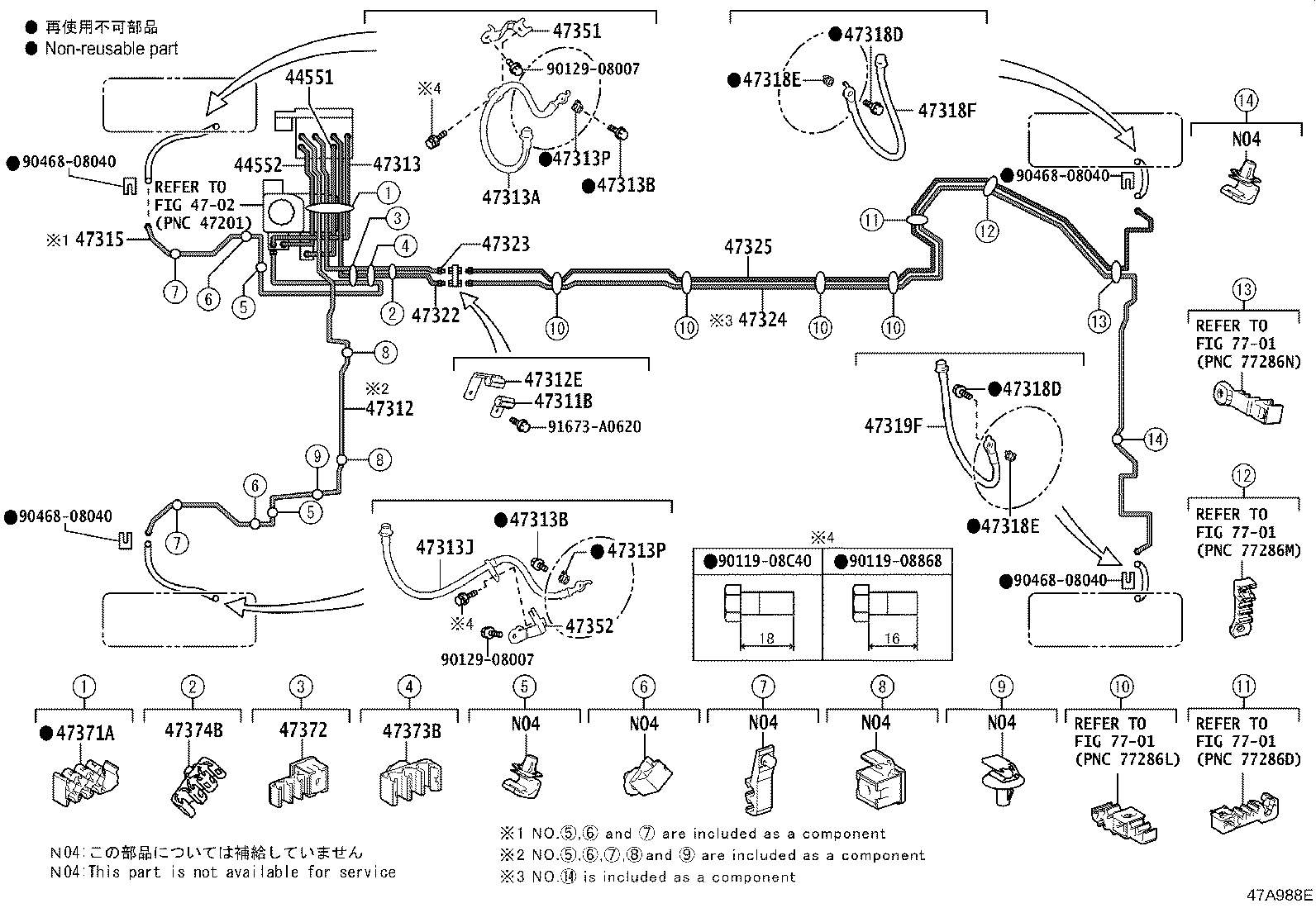

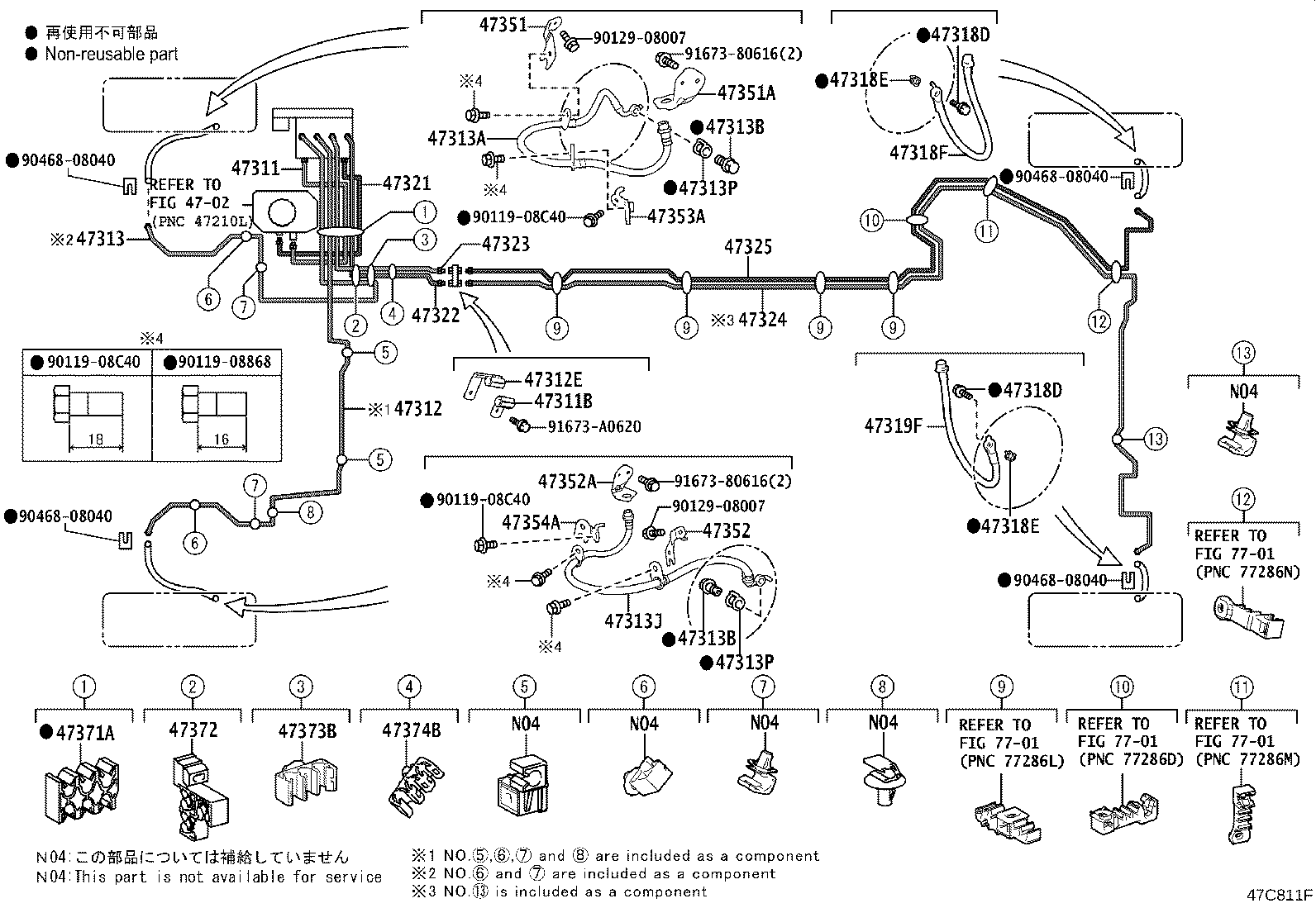

Figure 47A957E 47A957E 2017-10 → — Figure 47D678A 47D678A 2017-10 → — Figure 47A988E 47A988E 2017-10 → — Figure 47D654A 47D654A 2017-10 → — Figure 47D655A 47D655A 2020-11 → — Figure 47D655A 47D655A 2023-10 → — Figure 47A989E 47A989E 2017-10 → — Figure 47C811E 47C811E 2020-11 → — Figure 47C811E 47C811E 2023-10 → — Figure 47D656A 47D656A 2017-12 → — Figure 47D657A 47D657A 2018-09 → — Figure 47A962A 47A962A 2017-10 → — Figure 47C776 47C776 2020-11 → — Figure 47C776 47C776 2023-10 → — Figure 47A952C 47A952C 2017-10 → — Figure 47C775 47C775 2020-11 → — Figure 47C775 47C775 2023-10 → — Figure 47A963A 47A963A 2017-10 → —

Part groups

PNCDescription
44510 Actuator Assy, Brake
44521A Collar, Brake Actuator Case, NO.1
44540A Actuator Assy, Vsc
44547B Cushion, Brake Actuator Bracket
44547C Spacer(FOR BRAKE ACTUATOR BRACKET)
44551 Tube, Brake Actuator, NO.1
44551A Way, NO.1(FOR BRAKE ACTUATOR)
44552 Tube, Brake Actuator, NO.2
44553 Tube, Brake Actuator, NO.3
44571 Hose, Brake Actuator
44591 Bracket, Brake Actuator, NO.1
44592 Bracket, Brake Actuator, NO.2
44593 Bracket, Brake Actuator, NO.3
44594 Bracket, Brake Actuator, NO.4
44595 Bracket, Brake Actuator, NO.5
47311 Tube, Front Brake, NO.1
47311B Way, NO.1(FOR FRONT BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47312E Way, NO.2(FOR FRONT BRAKE TUBE)
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313J Hose, Flexible, NO.2(FOR FRONT)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47318D Bolt, Union(FOR REAR FLEXIBLE HOSE)
47318E Gasket(FOR REAR FLEXIBLE HOSE)
47318F Hose, Flexible(FOR REAR RH)
47319F Hose, Flexible(FOR REAR LH)
47321 Tube, Rear Brake, NO.1
47322 Tube, Rear Brake, NO.2
47323 Tube, Rear Brake, NO.3
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47351 Bracket, Flexible Hose(FOR FRONT RH)
47351A Bracket, Flexible Hose, Front RH NO.1
47352 Bracket, Flexible Hose(FOR FRONT LH)
47352A Bracket, Flexible Hose, Front LH NO.1
47353A Bracket, Flexible Hose, Front RH NO.2
47354A Bracket, Flexible Hose, Front LH NO.2
47371A Clamp, Brake Tube, NO.1
47371B Clamp, Brake Tube, NO.6
47372 Clamp, Brake Tube, NO.2
47373B Clamp, Brake Tube, NO.3
47374B Clamp, Brake Tube, NO.4
47997 Label, Brake Booster Accumlator Caution, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
