Toyota Lexus LS Series

2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Axle Arm & Steering Knuckle

21 part groups · 3 illustrations

Illustrations

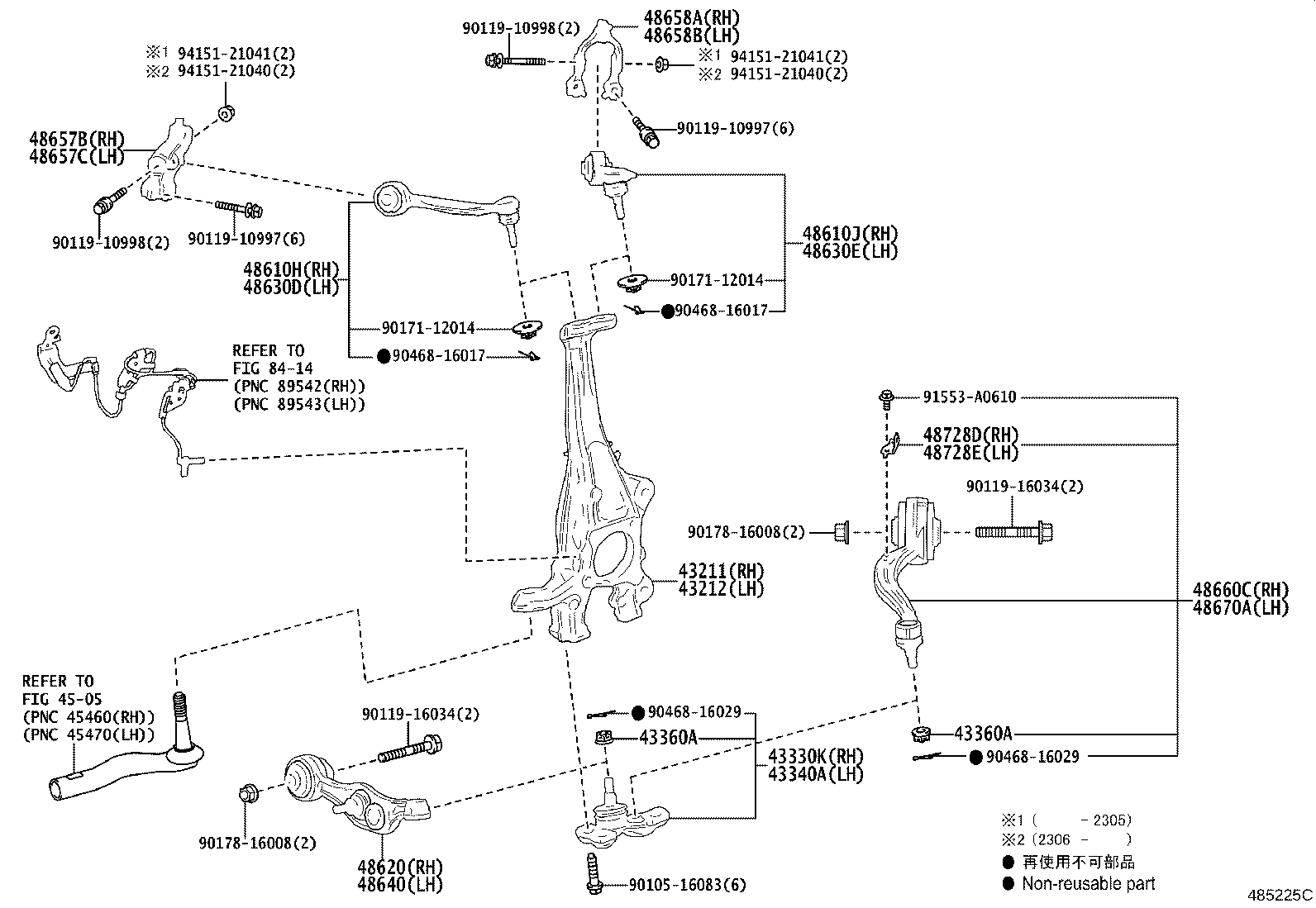

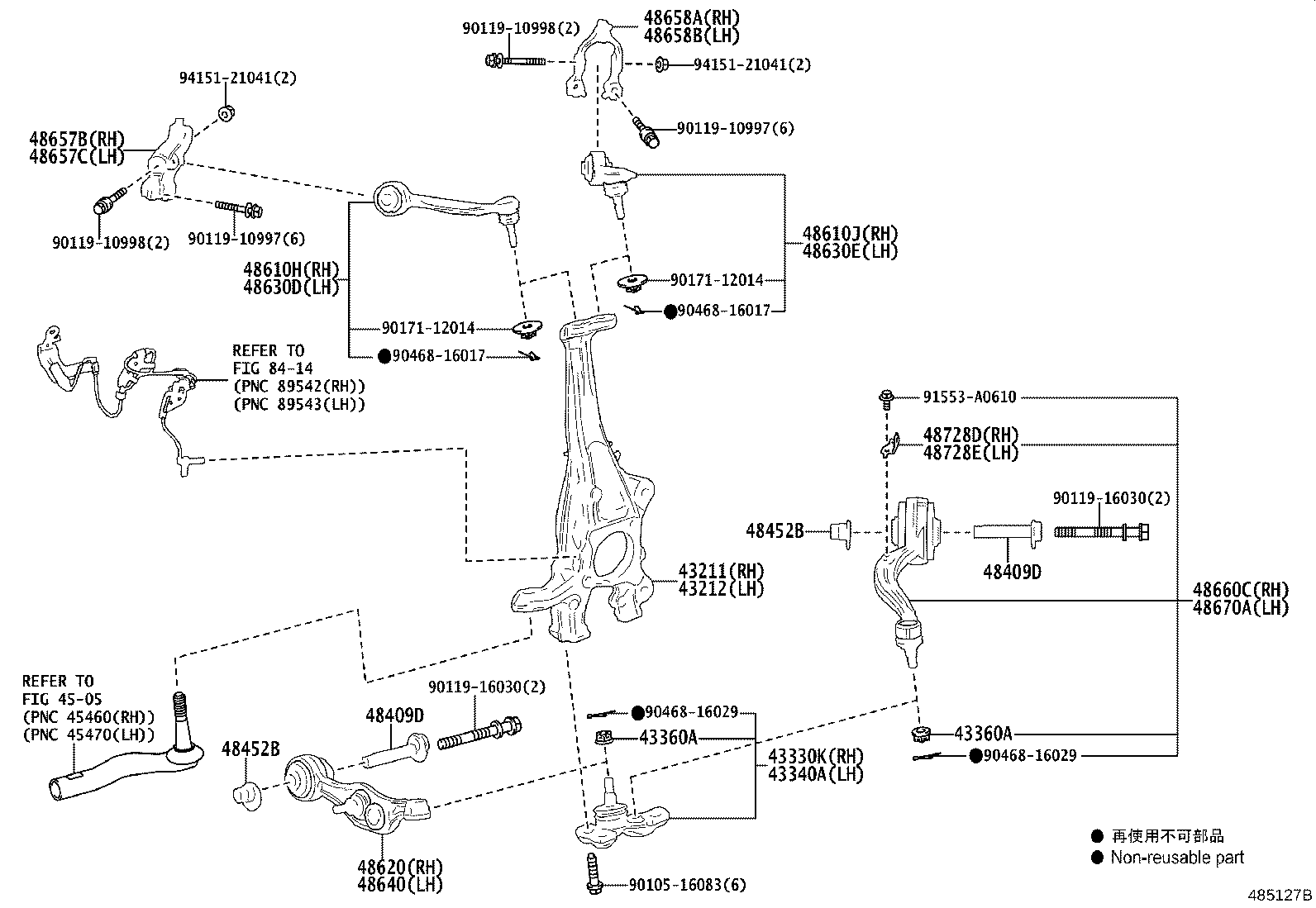

Figure 484983E 484983E 2017-10 → — Figure 485127B 485127B 2017-10 → 2020-06 Figure 485225C 485225C 2020-06 → —

Part groups

PNCDescription
43211 Knuckle, Steering, RH
43212 Knuckle, Steering, LH
43330K Joint Assy, Lower Ball, Front RH
43340A Joint Assy, Lower Ball, Front LH
43360A Nut (FOR FRONT UPPER BALL JOINT LH)
48409D Cam Sub-assy, Front Suspension Toe Adjust
48452B Plate, Front Suspension Toe Adjust, NO.2
48610H Arm Assy, Front Suspension Upper, NO.1 RH
48610J Arm Assy, Front Suspension Upper, NO.2 RH
48620 Arm Assy, Front Suspension, Lower RH
48630D Arm Assy, Front Suspension Upper, NO.1 LH
48630E Arm Assy, Front Suspension Upper, NO.2 LH
48640 Arm Assy, Front Suspension Lower, LH
48657B Bracket, Front Upper Arm, NO.1 RH
48657C Bracket, Front Upper Arm, NO.1 LH
48658A Bracket, Front Upper Arm, NO.2 RH
48658B Bracket, Front Upper Arm, NO.2 LH
48660C Arm Assy, Suspension, Lower NO.2 RH
48670A Arm Assy, Suspension, Lower NO.2 LH
48728D Bracket, Load Sensing Valve Sensor, RH
48728E Bracket, Load Sensing Valve Sensor, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
