Toyota Lexus LS Series

2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Spring & Shock Absorber

28 part groups · 5 illustrations

Illustrations

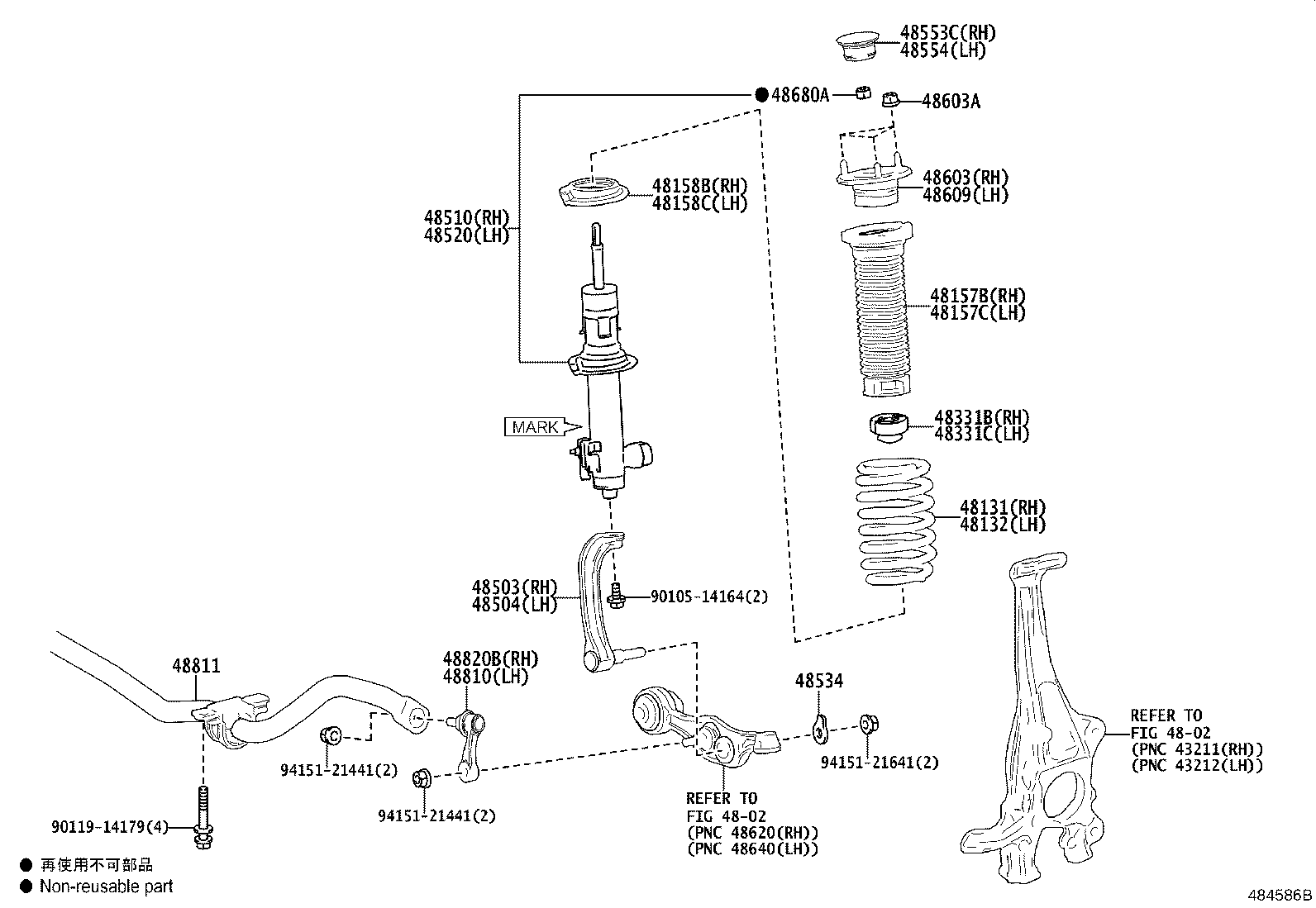

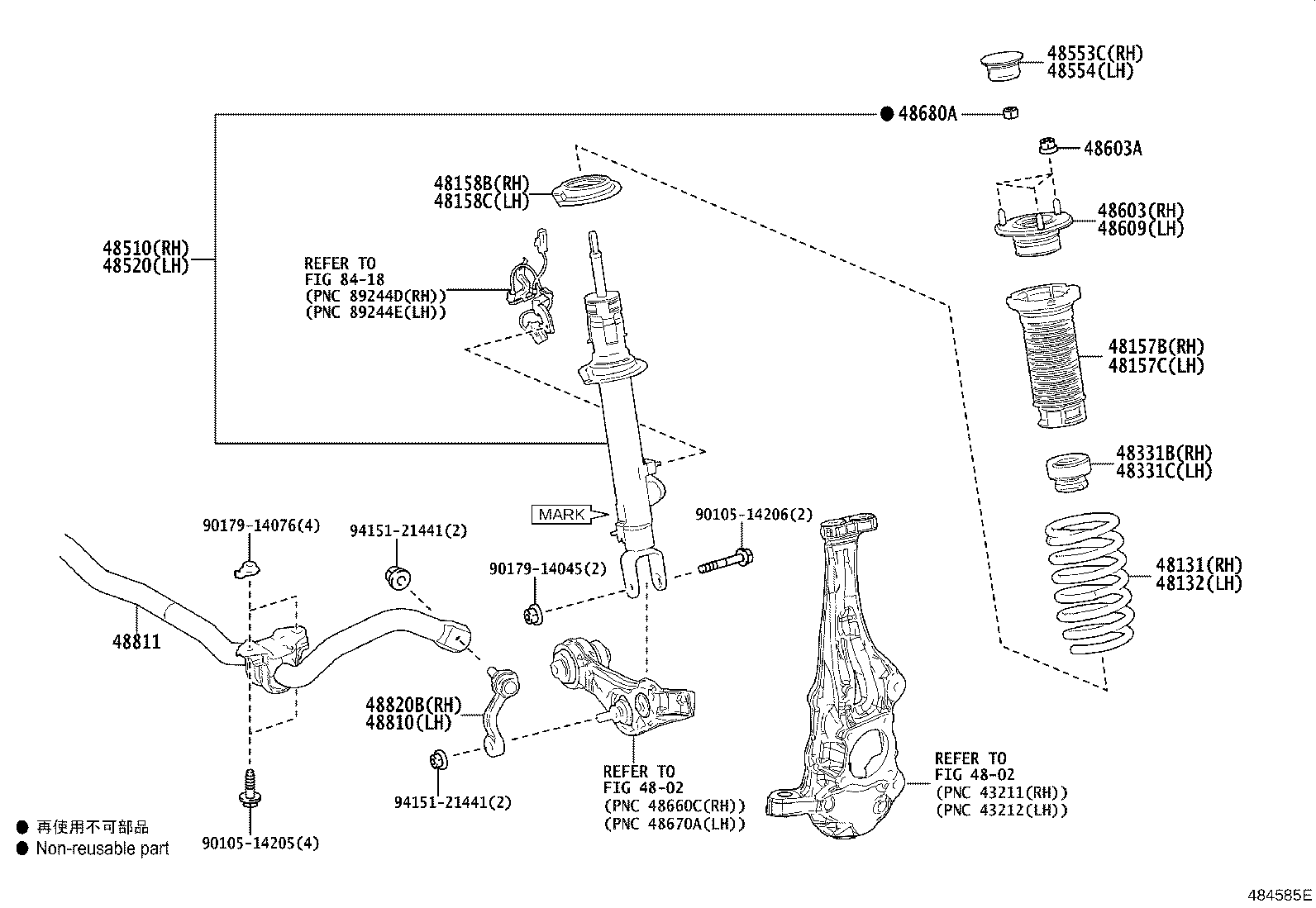

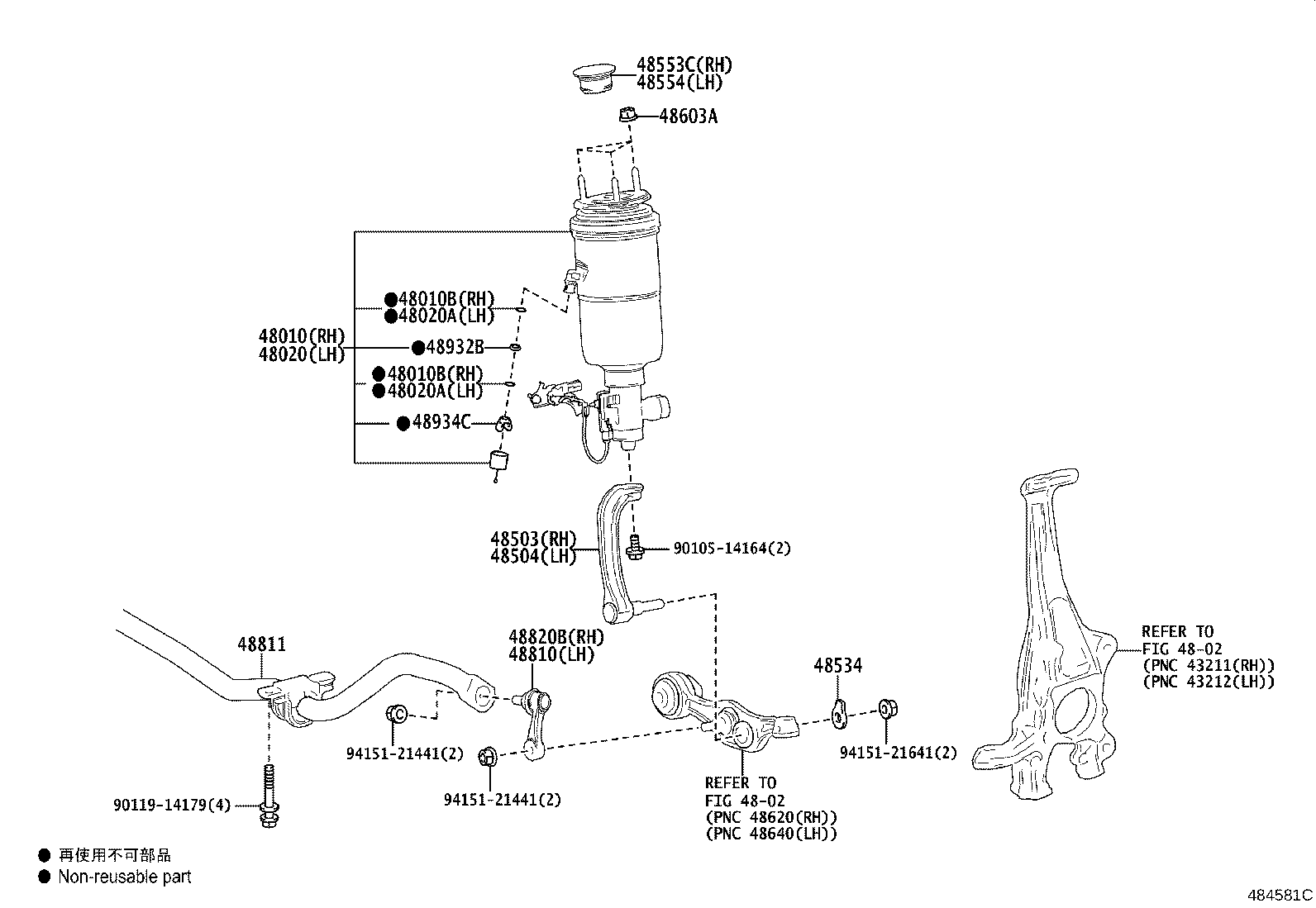

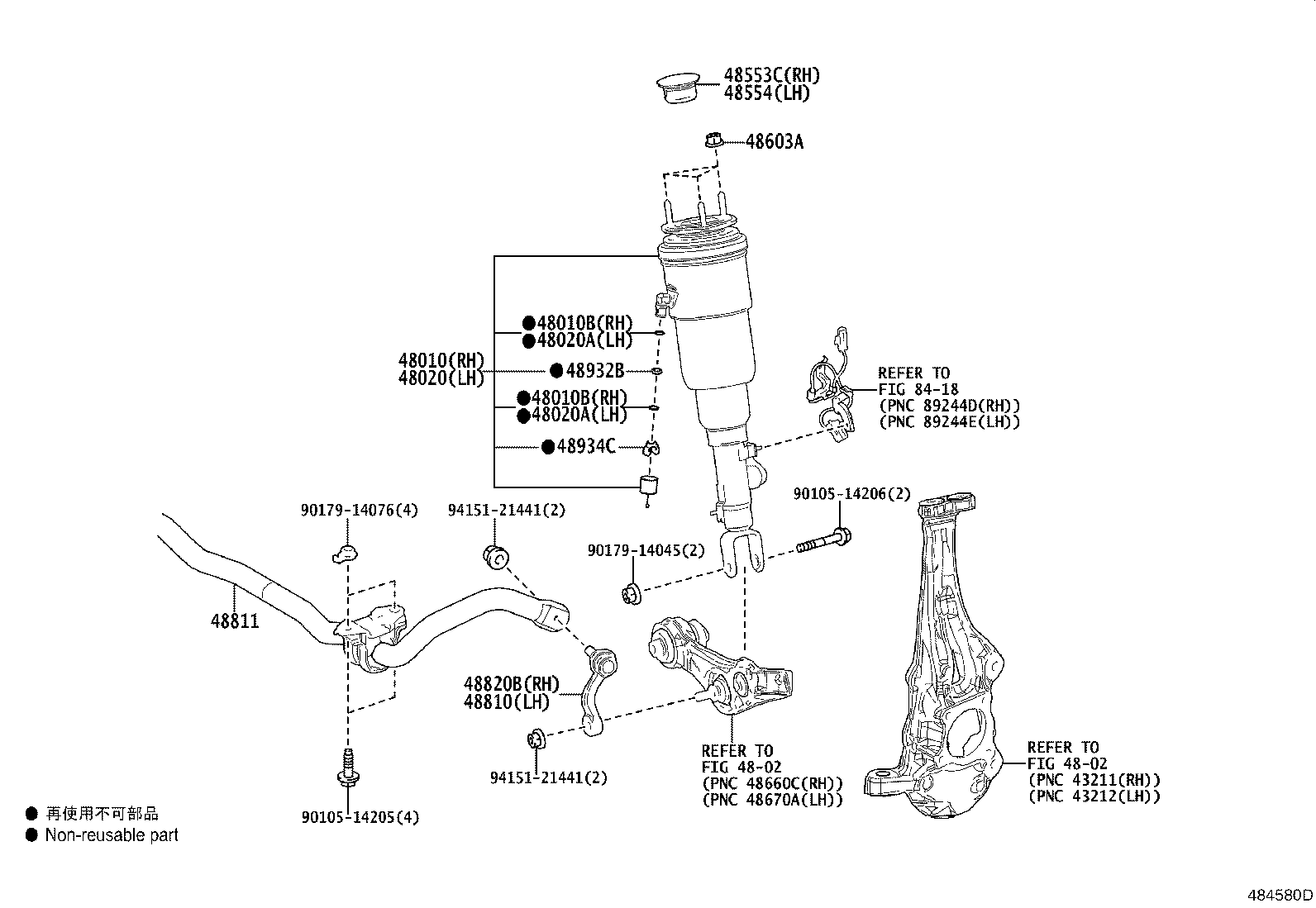

Figure 484584B 484584B 2017-10 → — Figure 484586B 484586B 2017-10 → — Figure 484585E 484585E 2017-10 → — Figure 484580D 484580D 2017-10 → — Figure 484581C 484581C 2017-10 → —

Part groups

PNCDescription
48010 Cylinder Assy, Pneumatic, Front RH W/Shock Absorber
48010B Ring, O(FOR FRONT PNEUMATIC CYLINDER RH)
48020 Cylinder Assy, Pneumatic, Front LH W/Shock Absorber
48020A Ring, O(FOR FRONT PNEUMATIC CYLINDER LH)
48131 Spring, Front Coil, RH
48132 Spring, Front Coil, LH
48157B Insulator, Front Coil Spring, Upper RH
48157C Insulator, Front Coil Spring, Upper LH
48158B Insulator, Front Coil Spring, Lower RH
48158C Insulator, Front Coil Spring, Lower LH
48331B Bumper, Front Spring, RH
48331C Bumper, Front Spring, LH
48503 Bracket Sub-assy, Front Shock Absorber, Lower RH
48504 Bracket Sub-assy, Front Shock Absorber, Lower LH
48510 Absorber Assy, Shock, Front RH
48520 Absorber Assy, Shock, Front LH
48534 Plate, Front Shock Absorber Upper Bracket
48553C Cap, Front Shock Absorber, RH
48554 Cap, Front Shock Absorber, LH
48603 Support Sub-assy, Front Suspension, RH
48603A Nut(FOR FRONT SUSPENSION SUPPORT)
48609 Support Sub-assy, Front Suspension, LH
48680A Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48810 Link Assy, Front Stabilizer, LH
48811 Bar, Stabilizer, Front
48820B Link Assy, Front Stabilizer, RH
48932B Plate, Height Control Tube
48934C Connector, Height Control Tube
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
