Toyota Lexus LS Series
2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe
Supported model
Data version 2020-11

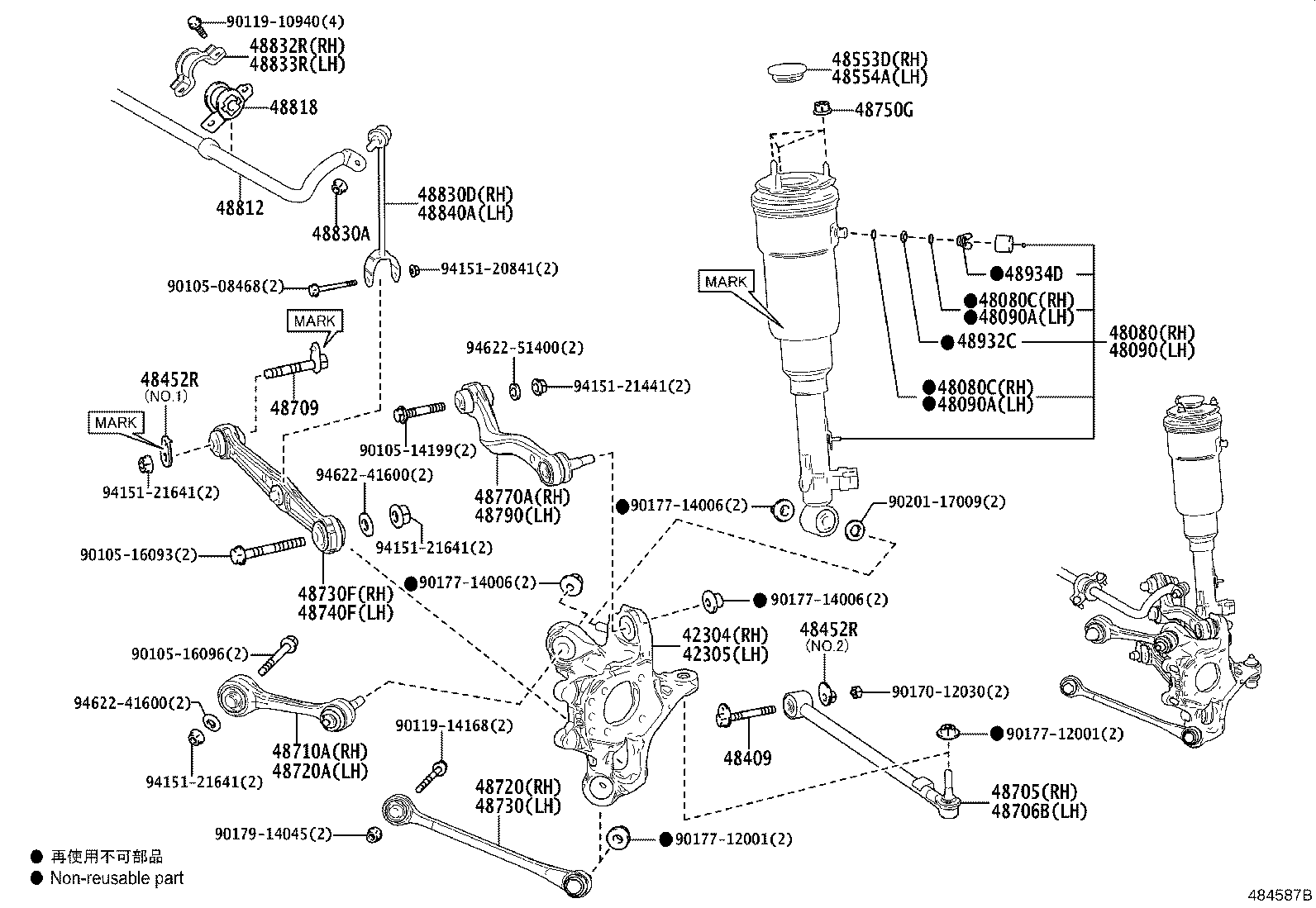

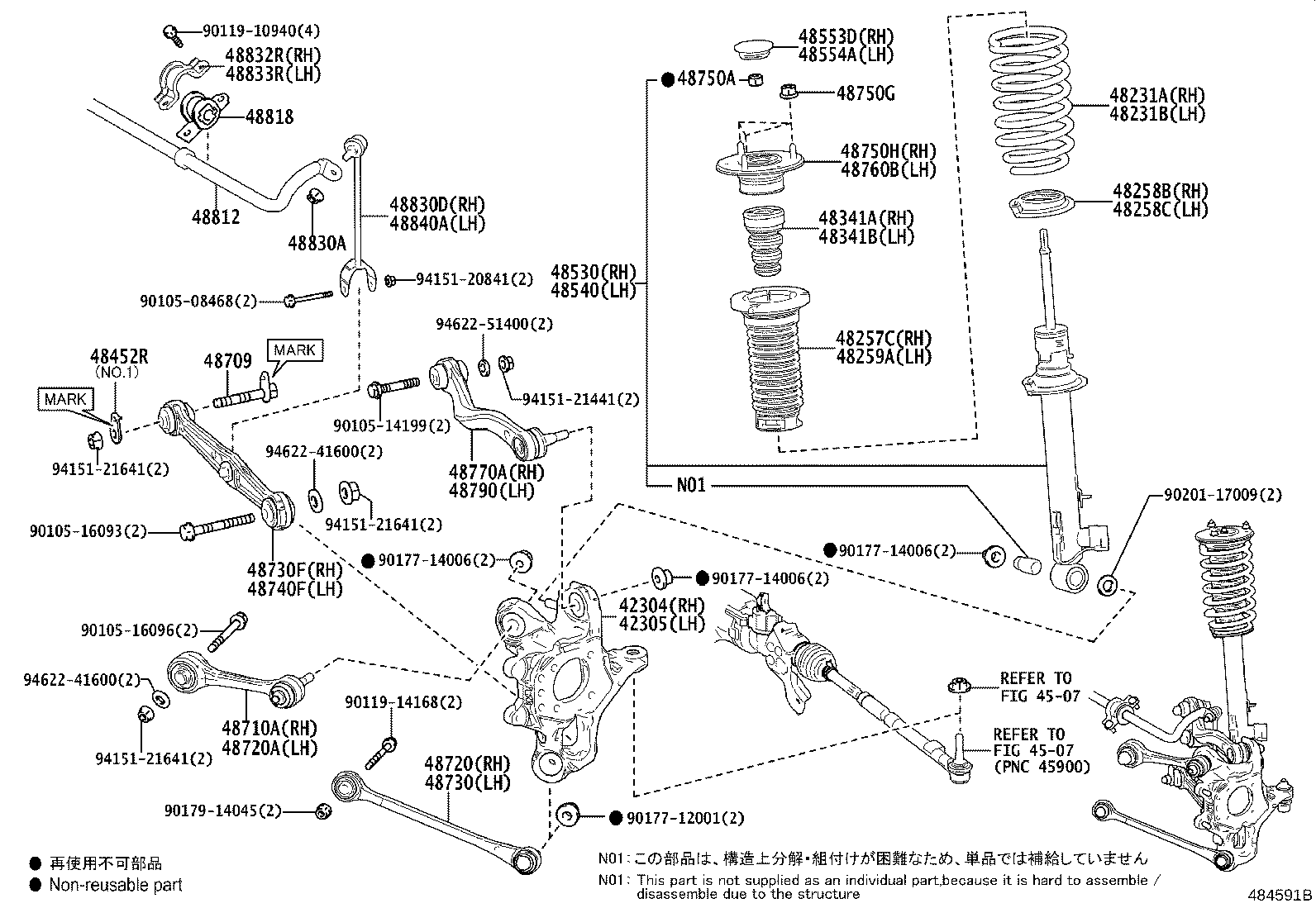

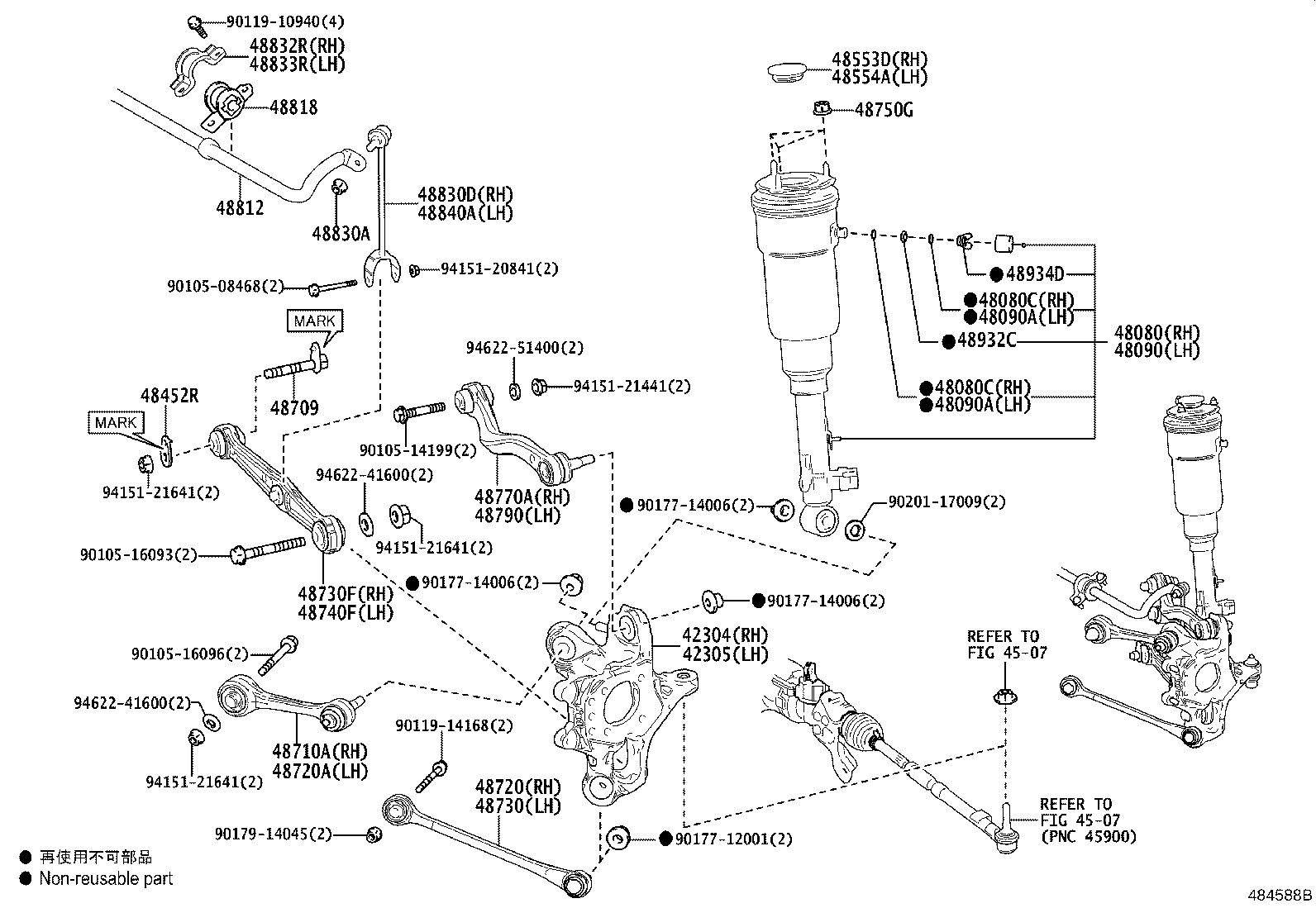

Rear Spring & Shock Absorber
44 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 42304 | Carrier Sub-assy, Rear Axle, RH |
| 42305 | Carrier Sub-assy, Rear Axle, LH |
| 48080 | Cylinder Assy, Pneumatic, Rear RH W/Shock Absorber |
| 48080C | Ring, O(FOR REAR PNEUMATIC CYLINDER RH) |
| 48090 | Cylinder Assy, Pneumatic, Rear LH W/Shock Absorber |
| 48090A | Ring, O(FOR REAR PNEUMATIC CYLINDER LH) |
| 48231A | Spring, Coil, Rear RH |
| 48231B | Spring, Coil, Rear LH |
| 48257C | Insulator, Rear Coil Spring, Upper RH |
| 48258B | Insulator, Rear Coil Spring, Lower RH |
| 48258C | Insulator, Rear Coil Spring, Lower LH |
| 48259A | Insulator, Rear Coil Spring, Upper LH |
| 48341A | Bumper, Rear Spring, NO.1 RH |
| 48341B | Bumper, Rear Spring, NO.1 LH |
| 48409 | Cam Sub-assy, Rear Suspension Toe Adjust |
| 48452R | Plate, Rear Suspension Toe Adjust, NO.2 |
| 48530 | Absorber Assy, Shock, Rear RH |
| 48540 | Absorber Assy, Shock, Rear LH |
| 48553D | Cap, Rear Shock Absorber, RH |
| 48554A | Cap, Rear Shock Absorber, LH |
| 48705 | Link Sub-assy, Toe Control, RH |
| 48706B | Link Sub-assy, Toe Control, LH |
| 48709 | Attachment Sub-assy, Rear Suspension Arm |
| 48710A | Arm Assy, Rear Suspension, NO.1 RH |
| 48720 | Arm Assy, Lower Control, RH |
| 48720A | Arm Assy, Rear Suspension, NO.1 LH |
| 48730 | Arm Assy, Lower Control, LH |
| 48730F | Arm Assy, Rear Suspension, NO.2 RH |
| 48740F | Arm Assy, Rear Suspension, NO.2 LH |
| 48750A | Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER) |
| 48750G | Nut(FOR REAR SUSPENSION SUPPORT) |
| 48750H | Support Assy, Rear Suspension, RH |
| 48760B | Support Assy Rear Suspension, LH |
| 48770A | Arm Assy, Upper Control, Rear RH |
| 48790 | Arm Assy, Upper Control, Rear LH |
| 48812 | Bar, Stabilizer, Rear |
| 48818 | Bush, Stabilizer, Rear |
| 48830A | Nut(FOR REAR STABILIZER LINK) |
| 48830D | Link Assy, Rear Stabilizer, RH |
| 48832R | Bracket, Rear Stabilizer Bar, NO.1 RH |
| 48833R | Bracket, Rear Stabilizer Bar, NO.1 LH |
| 48840A | Link Assy, Rear Stabilizer, LH |
| 48932C | Plate, Height Control Tube |
| 48934D | Connector, Height Control Tube |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
