Front Fender Apron & Dash Panel

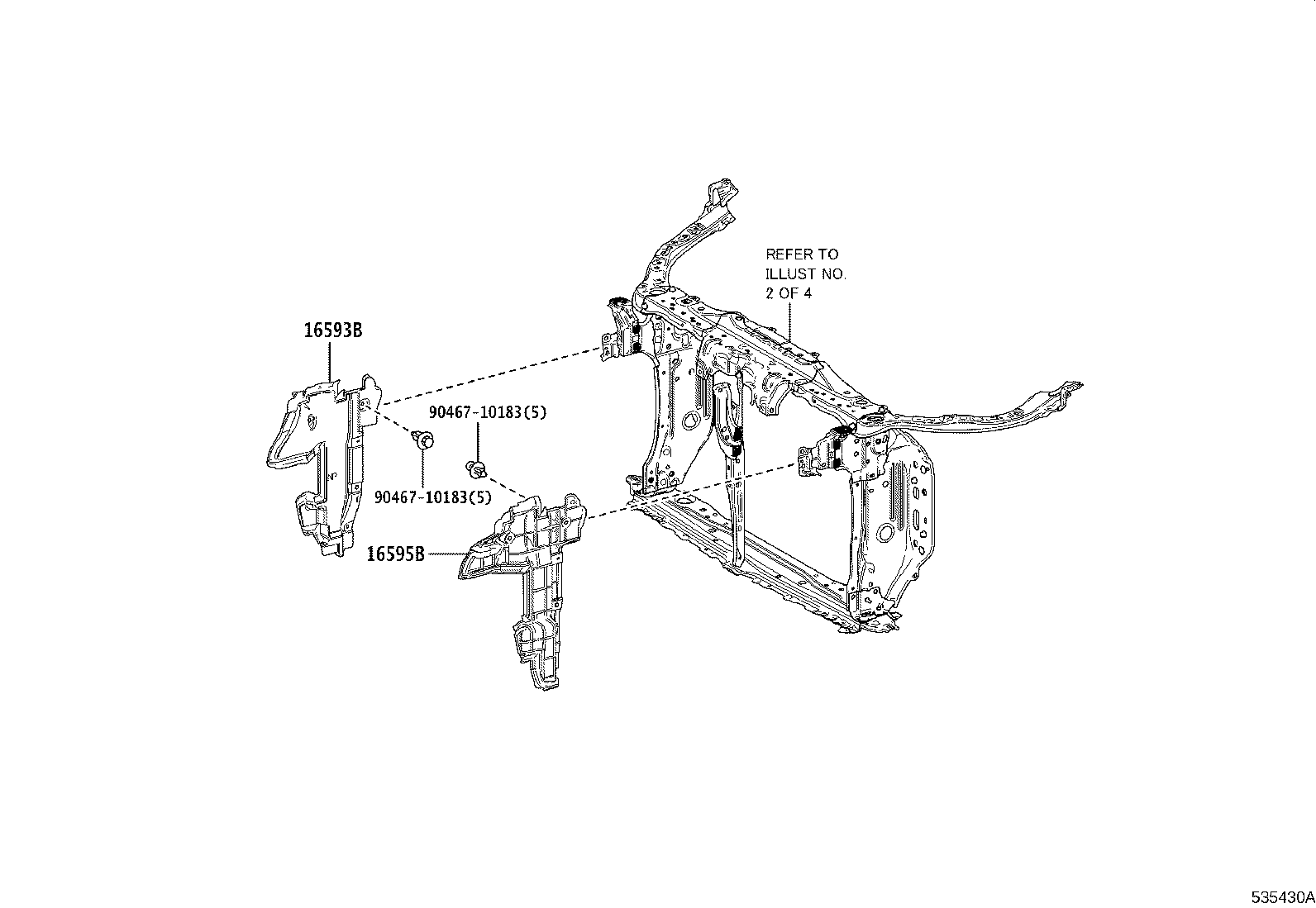

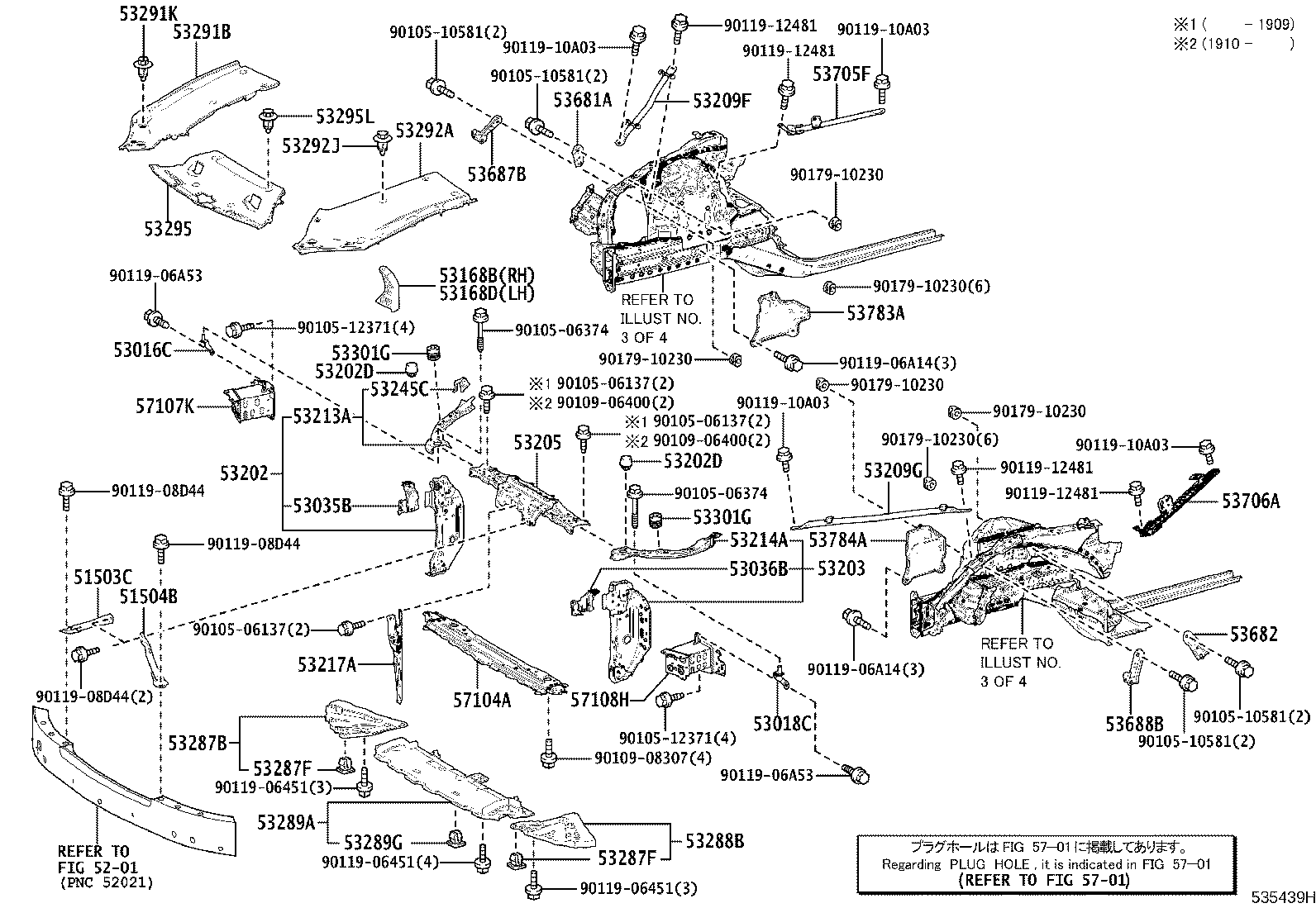

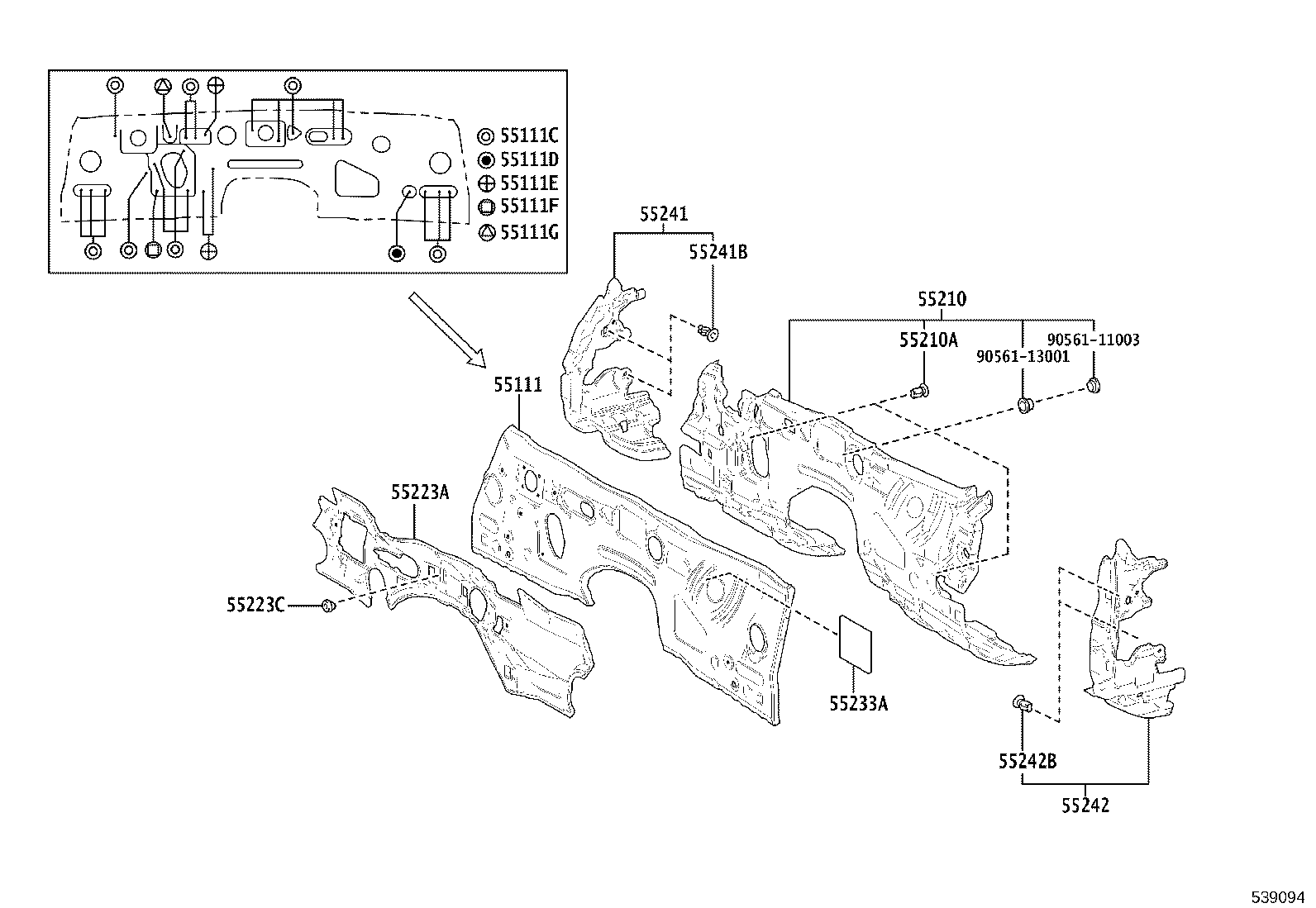

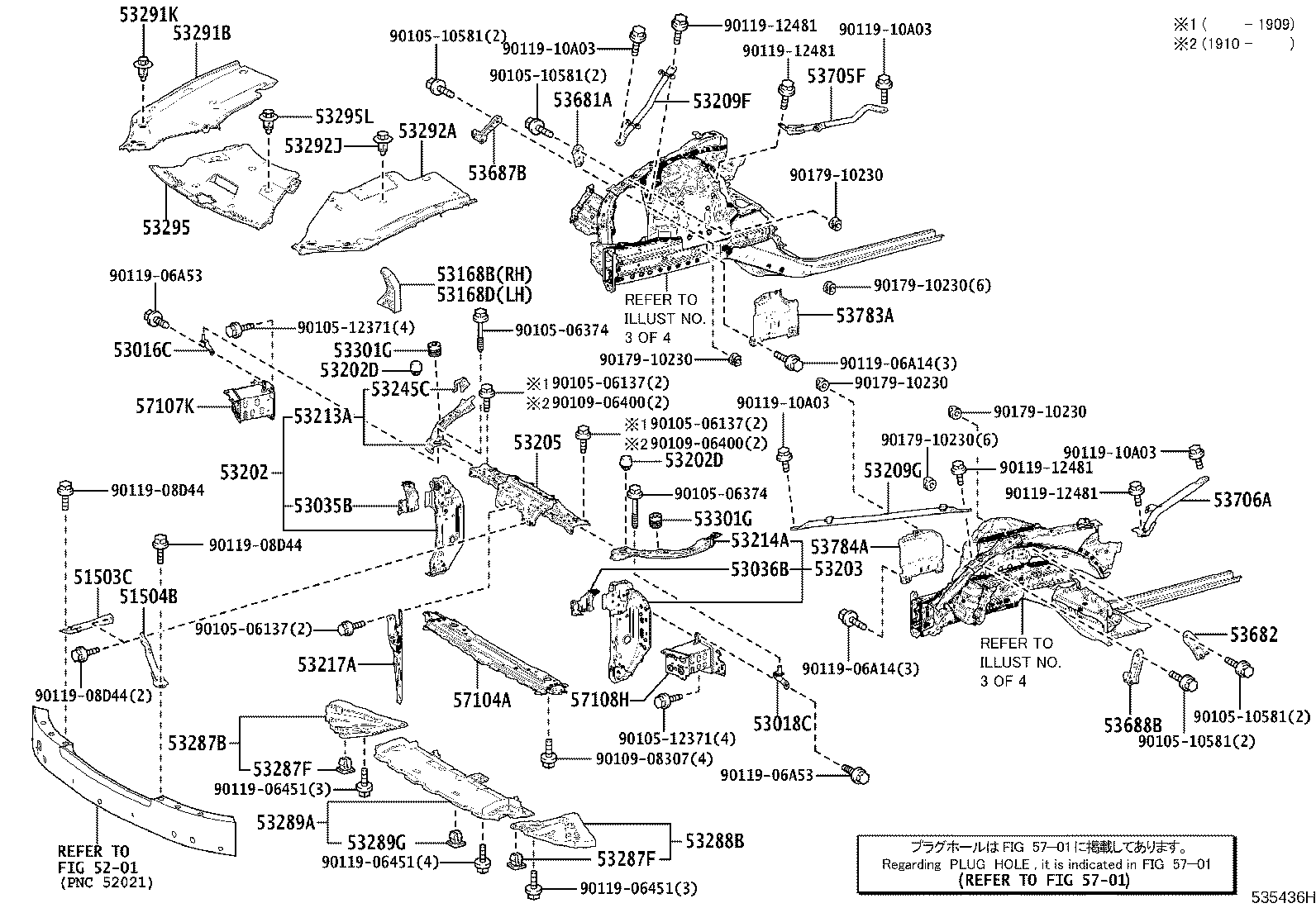

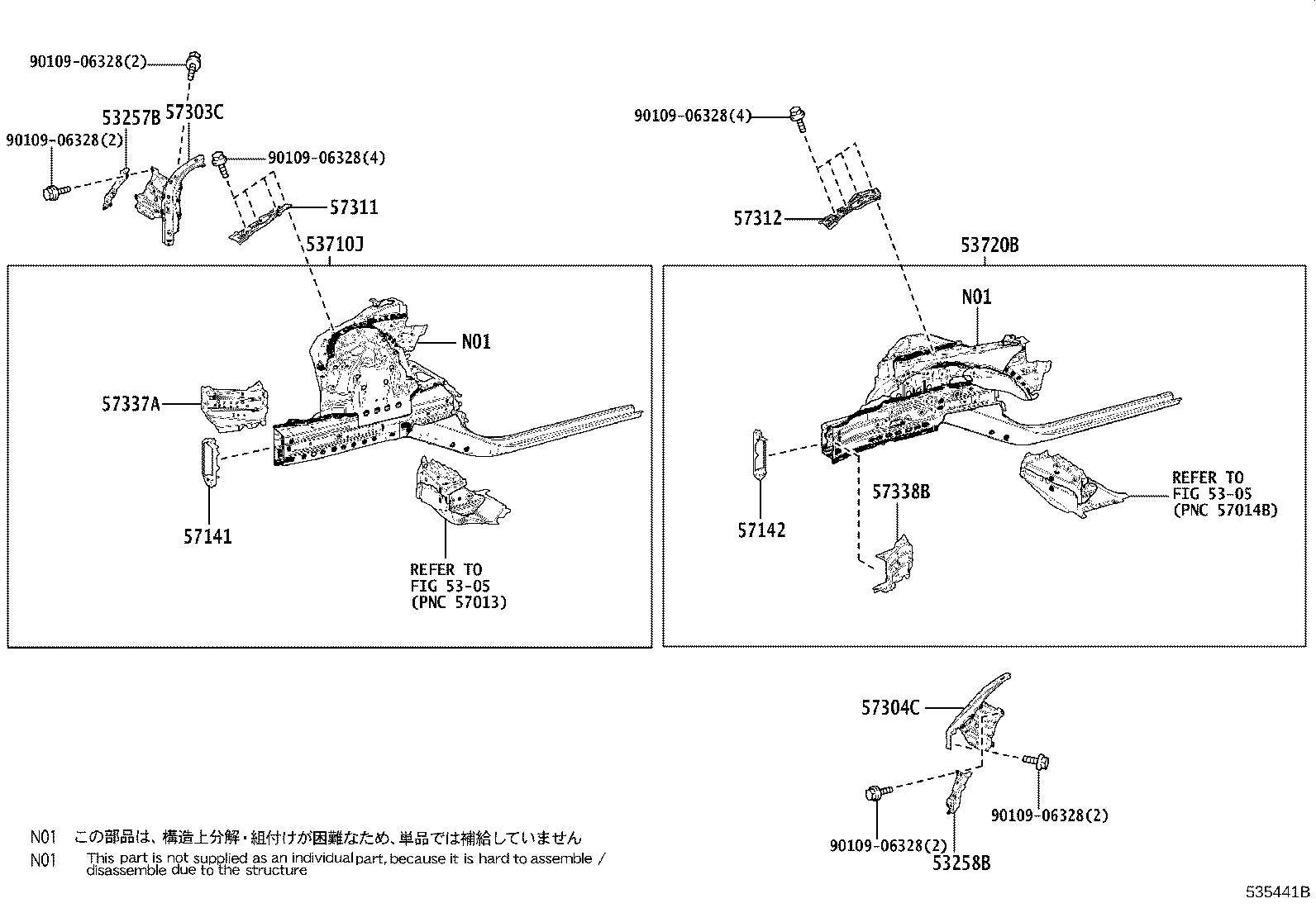

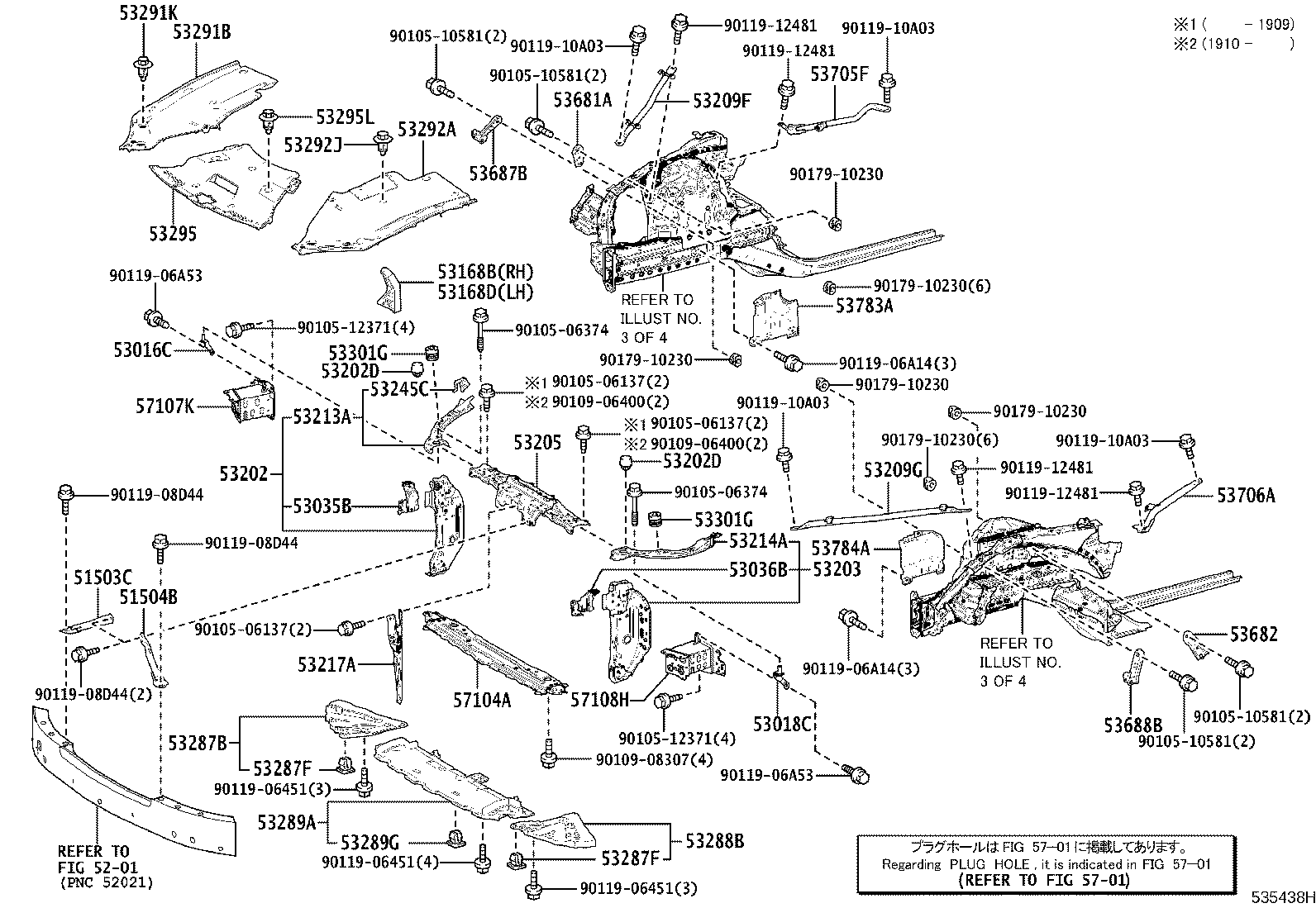

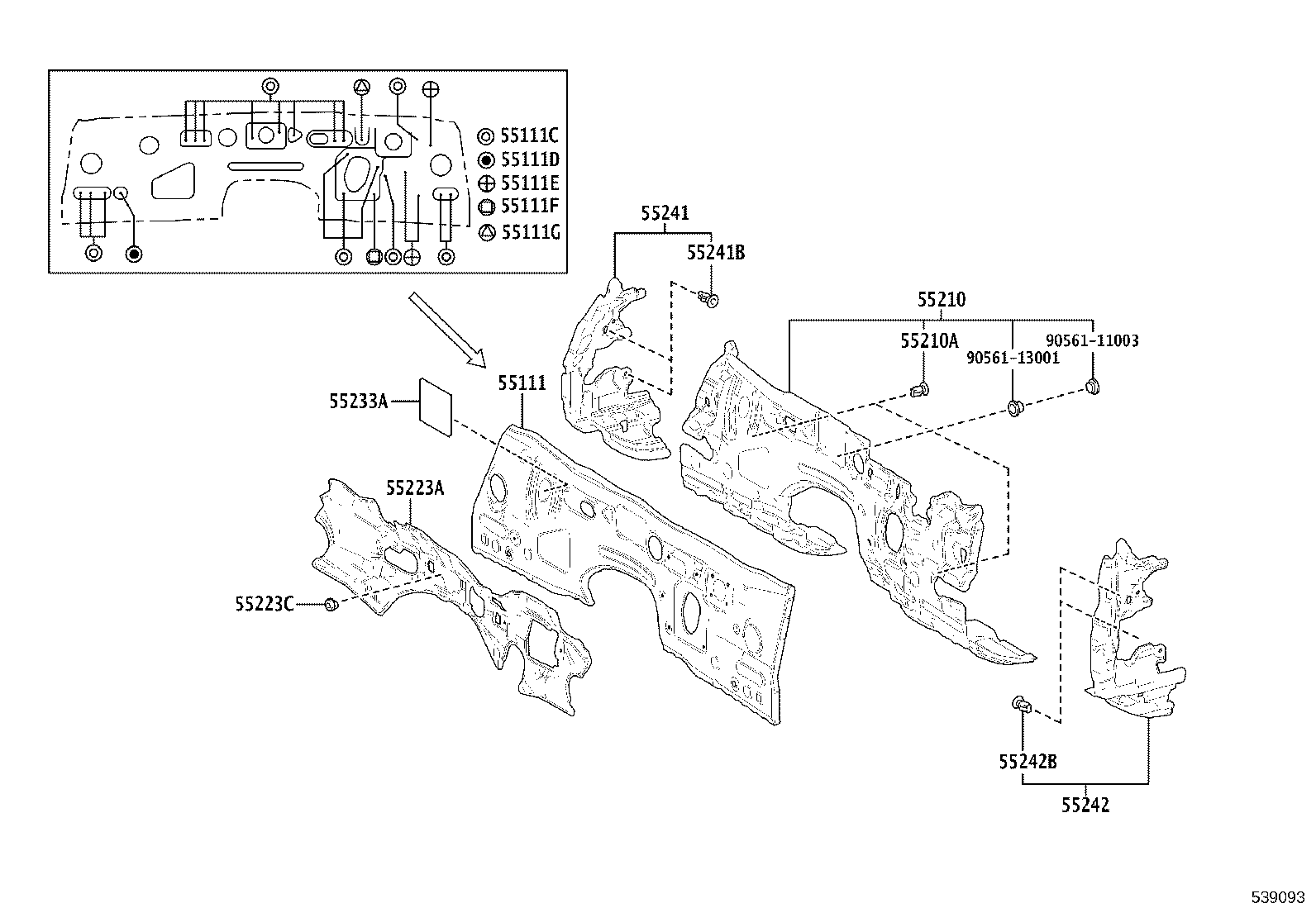

78 part groups · 11 illustrations
Part groups
| PNC | Description |
|---|---|
| 16593B | Guide, Radiator Air, NO.1 RH |
| 16595B | Guide, Radiator Air, NO.1 LH |
| 16683A | Plate, Radiator Lower Air Guide |
| 51503C | Brace Sub-assy, Lower Arm Bracket, RH |
| 51504B | Brace Sub-assy, Lower Arm Bracket, LH |
| 53016C | Rod Sub-assy, Radiator Brace, RH |
| 53018C | Rod Sub-assy, Radiator Brace, LH |
| 53019F | Shutter Sub-assy, Radiator |
| 53035B | Bracket Sub-assy, Headlamp Mounting, RH |
| 53036B | Bracket Sub-assy, Headlamp Mounting, LH |
| 53155J | Seal, Radiator Grille, NO.1 |
| 53156G | Seal, Radiator Grille, NO.2 |
| 53168B | Bracket, Radiator Brace Rod |
| 53168D | Bracket, Radiator Brace Rod |
| 53188A | Bracket, Radiator Shutter Support, RH |
| 53189A | Bracket, Radiator Shutter Support, LH |
| 53202 | Support Sub-assy, Radiator, RH |
| 53202D | Cushion, Radiator Support |
| 53203 | Support Sub-assy, Radiator, LH |
| 53205 | Support Sub-assy, Radiator, Upper |
| 53209F | Brace Sub-assy, Radiator Support TO Crossmember, RH |
| 53209G | Brace Sub-assy, Radiator Support TO Crossmember, LH |
| 53213A | Support, Radiator, Upper RH |
| 53214A | Support, Radiator, Upper LH |
| 53217A | Brace, Hood Lock Support |
| 53245C | Bracket, Headlamp Mounting, Upper RH |
| 53257B | Bracket, Radiator Support TO Front Fender |
| 53258B | Bracket, Radiator Support TO Front Fender, LH |
| 53287B | Extension, Radiator Support, RH |
| 53287F | Grommet, NO.1 |
| 53288B | Extension, Radiator Support, LH |
| 53289A | Cover, Radiator Support Opening |
| 53289G | Grommet, NO.2 |
| 53291B | Plate, Radiator Cover |
| 53291K | Clip, Radiator Cover Plate |
| 53292A | Seal, Radiator Support, Upper |
| 53292J | Clip, Radiator Support Seal |
| 53295 | Deflector, Radiator Lower Air |
| 53295L | Clip, Radiator Lower Air Deflector |
| 53301G | Cushion, Hood Bumper |
| 53681A | Brace, Front Suspension Upper TO Cowl, RH |
| 53682 | Brace, Front Suspension Upper TO Cowl, LH |
| 53687B | Brace, Front Suspension Lower TO Crossmember, RH |
| 53688B | Brace, Front Suspension Lower TO Crossmember, LH |
| 53705F | Brace Sub-assy, Fender Apron, RH |
| 53706A | Brace Sub-assy, Fender Apron, LH |
| 53710J | Apron Assy, Front Fender, RH |
| 53720B | Apron Assy, Front Fender, LH |
| 53783A | Insulator, Apron Front Fender, RH |
| 53784A | Insulator, Apron Front Fender, LH |
| 55111 | Panel, Dash |
| 55111C | Bolt, Weld(FOR DASH PANEL) |
| 55111D | Bolt, Weld(FOR DASH PANEL) |
| 55111E | Bolt, Weld(FOR DASH PANEL) |
| 55111F | Nut, Weld(FOR DASH PANEL) |
| 55111G | Nut, Cap(FOR DASH PANEL) |
| 55210 | Insulator Assy, Dash Panel |
| 55210A | Clip |
| 55223A | Insulator, Dash Panel, Outer |
| 55223C | Clip |
| 55233A | Sheet, Dash Panel Insulator |
| 55241 | Silencer, Front Panel Side, NO.1 RH |
| 55241B | Clip, Front Panel Side Silencer |
| 55242 | Silencer, Front Panel Side, NO.1 LH |
| 55242B | Clip, Front Panel Side Silencer |
| 57104A | Member Sub-assy, Front Cross |
| 57107K | Reinforce Sub-assy, Front Bumper Mounting, RH |
| 57108H | Reinforce Sub-assy, Front Bumper Mounting, LH |
| 57141 | Support, Front Bumper Arm, RH |
| 57142 | Support, Front Bumper Arm, RH |
| 57303C | Outrigger Sub-assy, NO.2 RH |
| 57304C | Outrigger Sub-assy, NO.2 LH |
| 57311 | Outrigger, NO.1 RH |
| 57312 | Outrigger, NO.1 LH |
| 57337A | Gusset, Outrigger, NO.1 RH |
| 57338B | Gusset, Outrigger, NO.1 LH |
| 85667F | Cover, Motor |
| 88940D | Actuator Assy, Swing Grille |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
