Toyota Lexus LS Series

2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Side Member

22 part groups · 6 illustrations

Illustrations

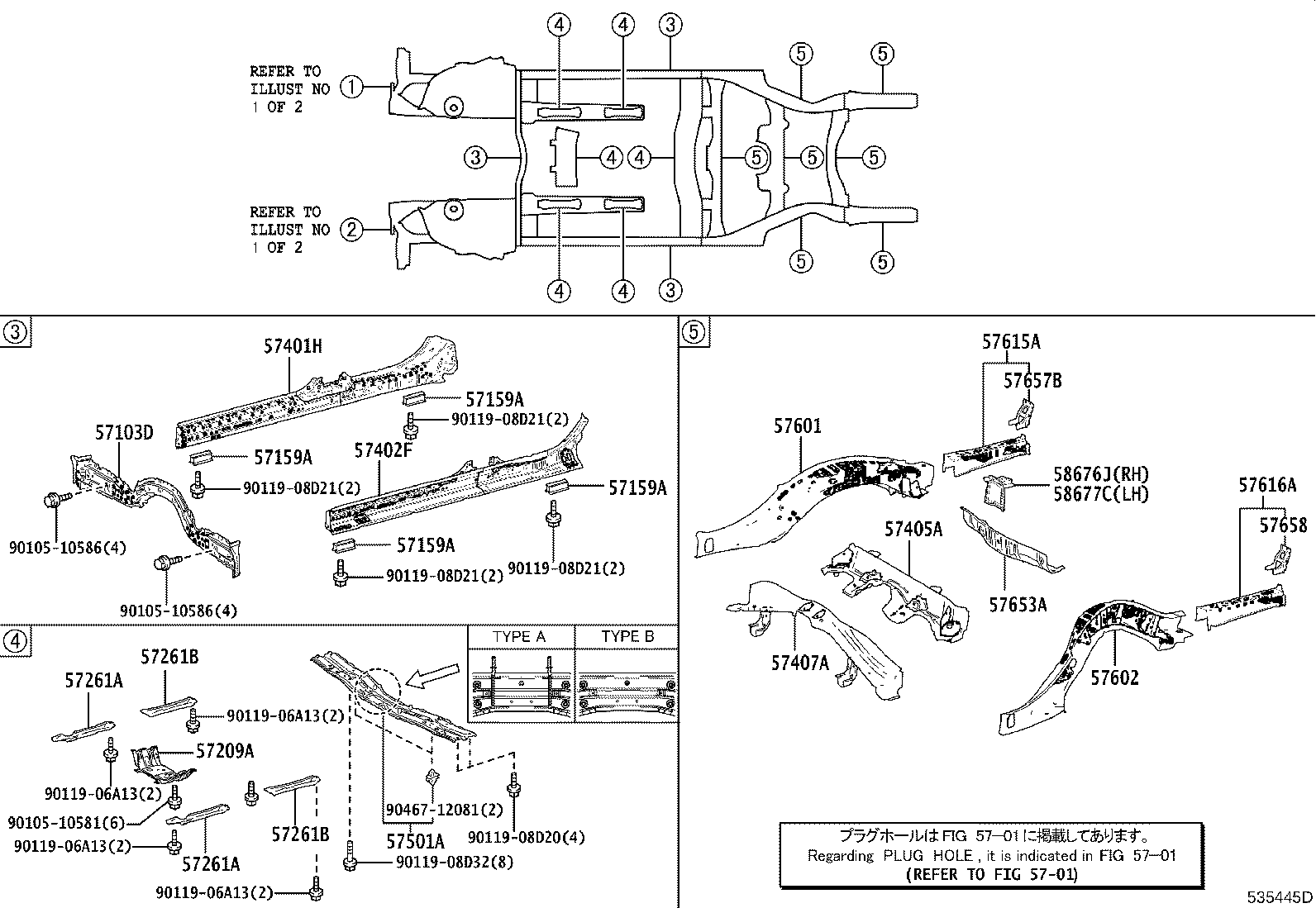

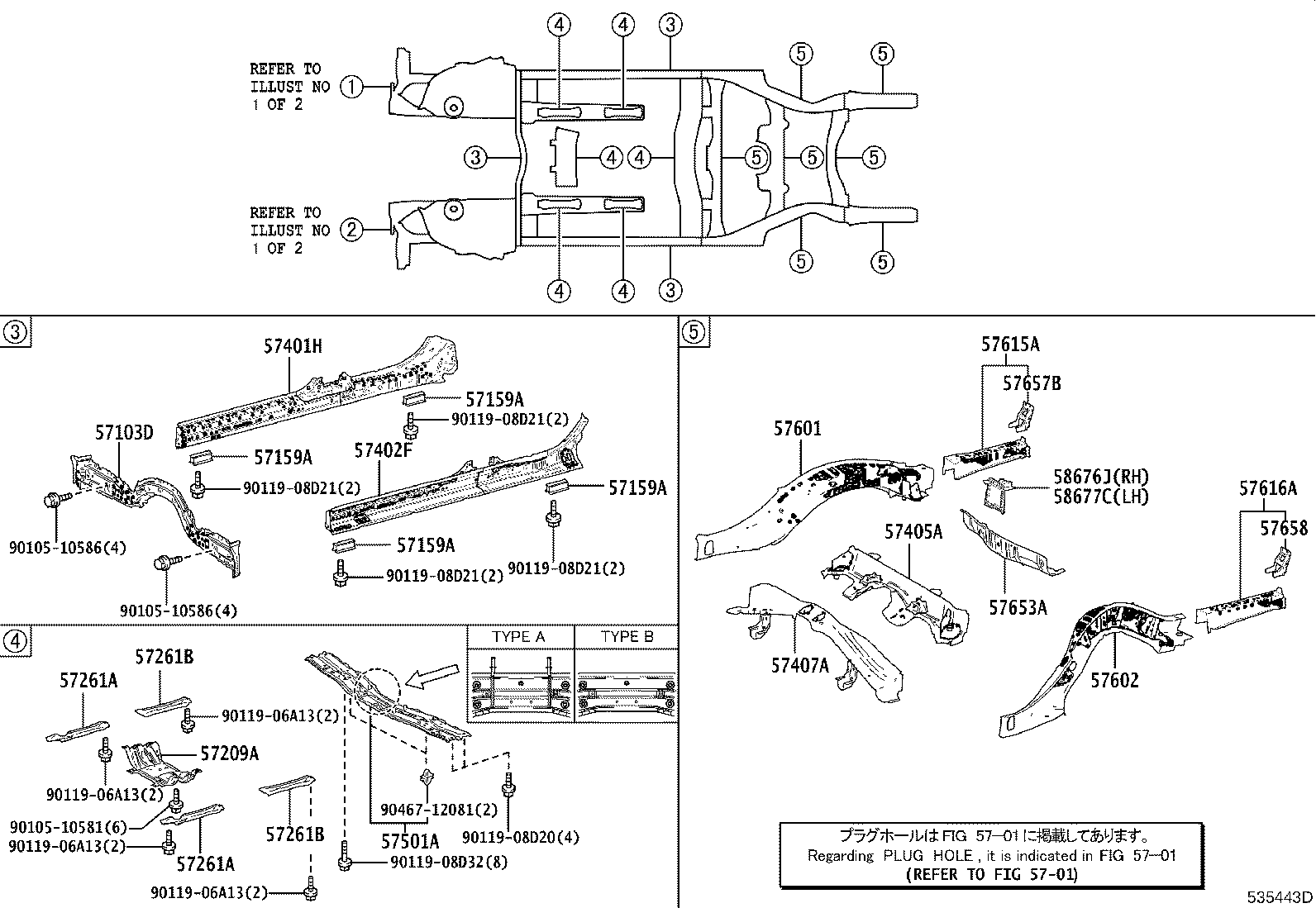

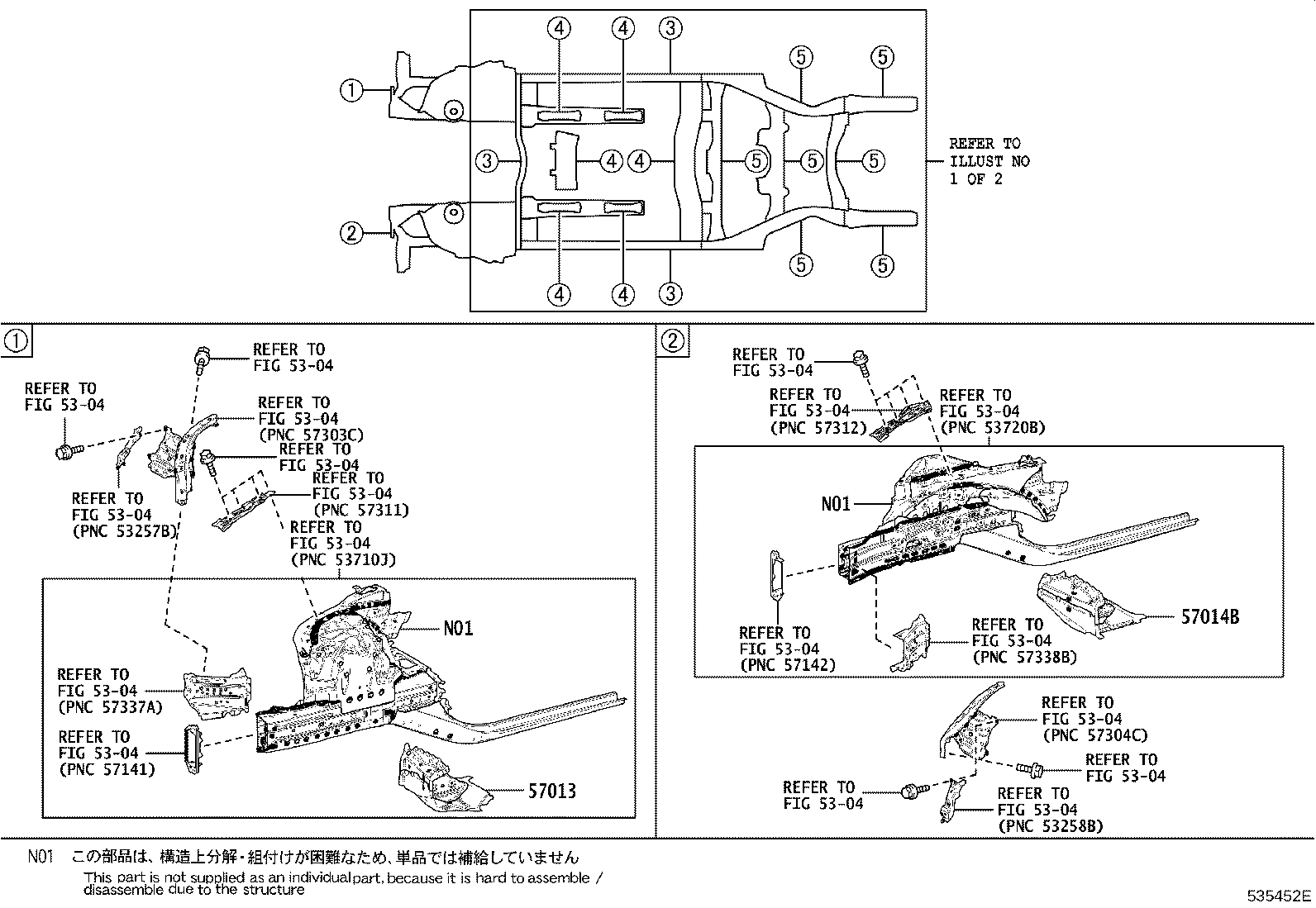

Figure 535451E 535451E 2017-10 → — Figure 535452E 535452E 2017-10 → — Figure 535444D 535444D 2017-10 → — Figure 535585A 535585A 2017-10 → — Figure 535443D 535443D 2017-10 → — Figure 535445D 535445D 2017-12 → —

Part groups

PNCDescription
57013 Bracket Sub-assy, Front Side Member, RH
57014B Bracket Sub-assy, Front Side Member, LH
57103D Crossmember Sub-assy, Front Side Member TO Dash Panel
57159A Reinforcement, Engine Under Cover Mounting
57209A Member Sub-assy, Engine Rear Mounting
57255 Member, Engine Rear Mounting
57261A Plate, Engine Rear Mounting Member
57261B Plate, Engine Rear Mounting Member
57401H Member Sub-assy, Floor Side, Inner RH
57402F Member Sub-assy, Floor Side, Inner LH
57405A Member Sub-assy, Center Floor Cross, NO.2
57407A Member Sub-assy, Center Floor Cross
57501A Brace Sub-assy, Front Floor, Center
57601 Member Sub-assy, Rear Floor Side, RH
57602 Member Sub-assy, Rear Floor Side, LH
57615A Member, Rear Floor Side, Rear RH
57616A Member, Rear Floor Side, Rear LH
57653A Member, Rear Floor Cross, NO.2
57657B Member, Rear Floor Cross, NO.6
57658 Member, Rear Floor Cross, NO.7
58676J Pad, Rear Floor Silencer, NO.1 RH
58677C Pad, Rear Floor Silencer, NO.1 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
