Toyota Lexus LS Series

2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Insulator

7 part groups · 4 illustrations

Illustrations

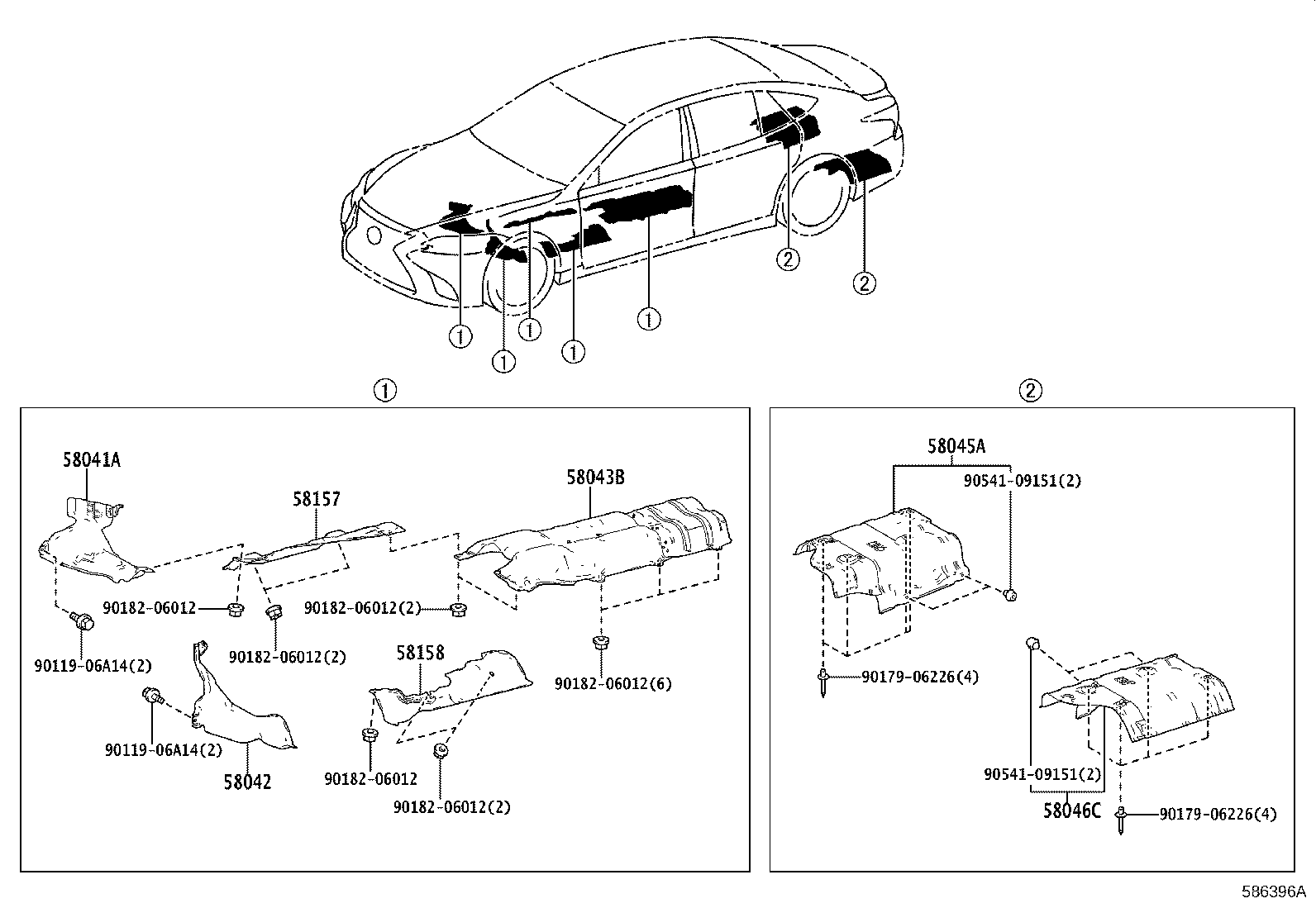

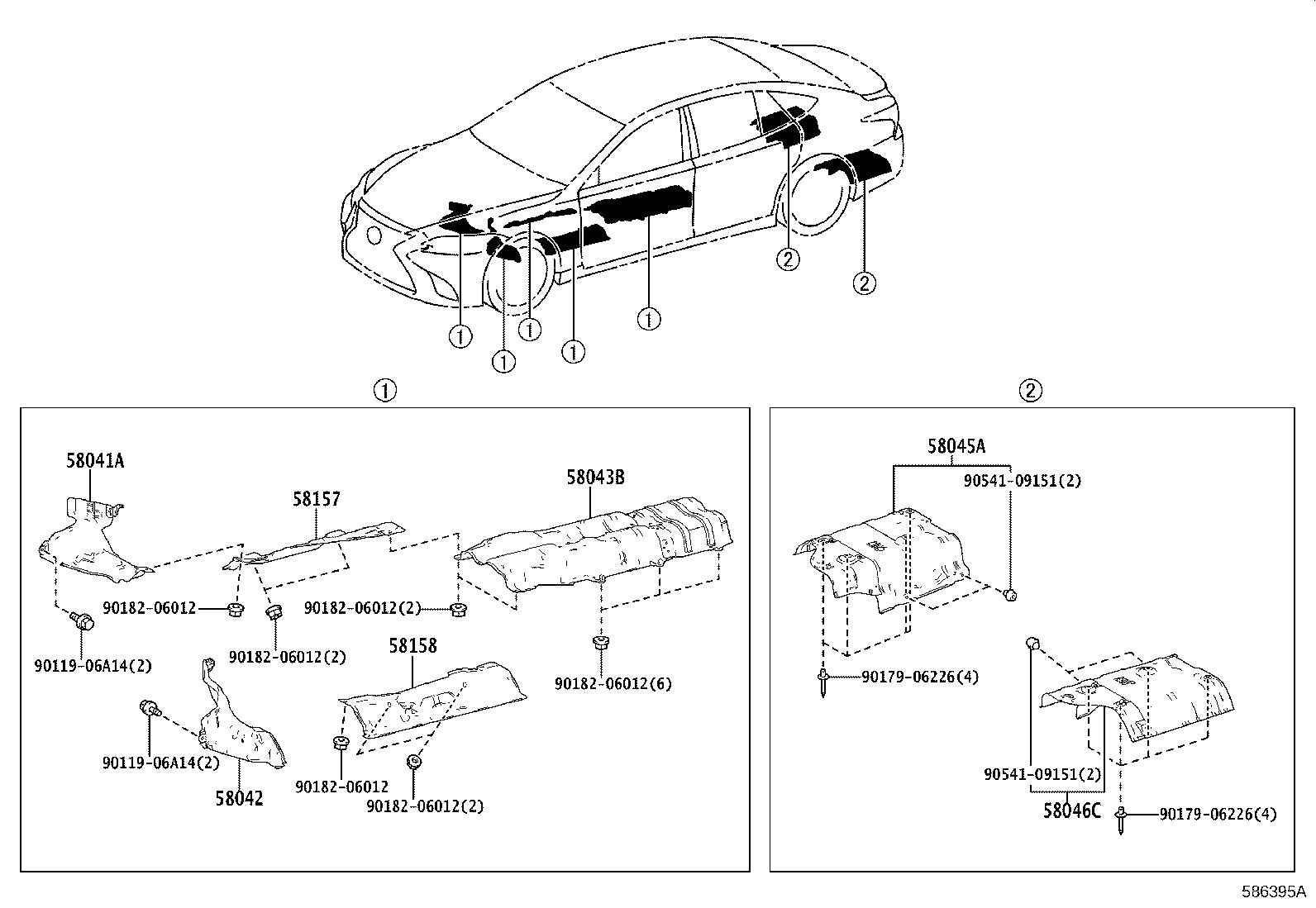

Figure 586399A 586399A 2017-10 → — Figure 586395A 586395A 2017-10 → — Figure 586396A 586396A 2017-10 → — Figure 586398A 586398A 2017-12 → —

Part groups

PNCDescription
58041A Insulator Sub-assy, Front Floor Heat, NO.1
58042 Insulator Sub-assy, Front Floor Heat, NO.2
58043B Insulator Sub-assy, Center Floor Heat, NO.1
58045A Insulator Sub-assy, Rear Floor Heat
58046C Insulator Sub-assy, Rear Floor Heat, NO.2
58157 Insulator, Front Floor Heat, NO.5
58158 Insulator, Front Floor Heat, NO.6
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
