Toyota Lexus LS Series

2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

19 part groups · 2 illustrations

Illustrations

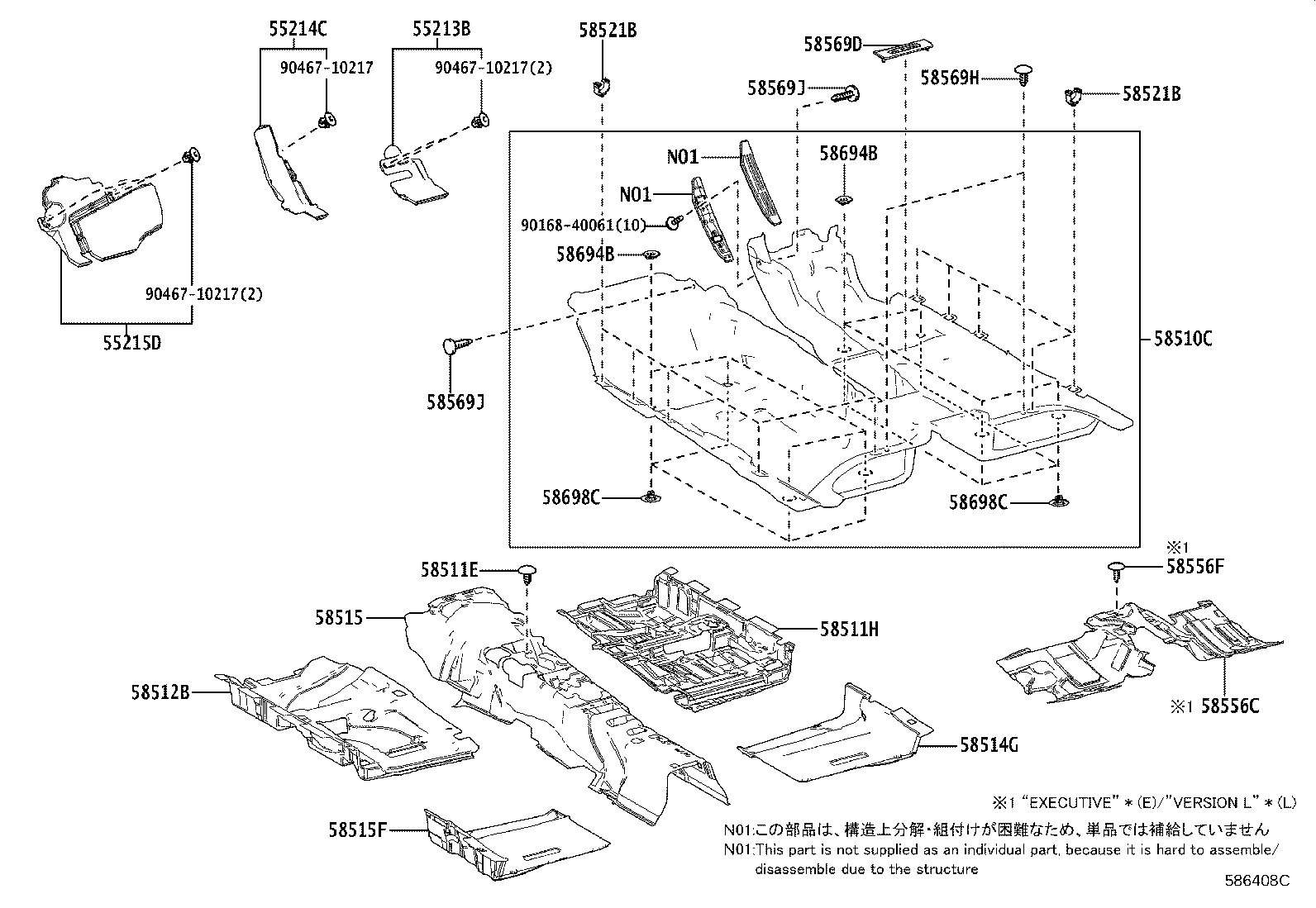

Figure 586409C 586409C 2017-10 → — Figure 586408C 586408C 2017-10 → —

Part groups

PNCDescription
55213B Pad, Dash Panel Insulator, NO.1
55214C Pad, Dash Panel Insulator, NO.2
55215D Pad, Dash Panel Insulator, NO.3
55216C Pad, Dash Panel Insulator, NO.4
58510C Carpet Assy, Front Floor, Front
58511E Clip(FOR FRONT FLOOR MAT)
58511H Mat, Floor, Front RH
58512B Mat, Floor, Front LH
58514G Mat, Floor, Rear RH
58515 Mat, Floor, Center
58515F Mat, Floor, Rear LH
58521B Hook, Floor Carpet
58556C Silencer, Rear Floor
58556F Clip, Rear Floor Silencer
58569D Cover, Front Floor Caution Plate
58569H Clip, Front Floor Caution Plate Cover, NO.1
58569J Clip, Front Floor Caution Plate Cover, NO.2
58694B Plate, Mat Set, Upper
58698C Plate, Mat Set, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
