Toyota Lexus LS Series

2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

19 part groups · 2 illustrations

Illustrations

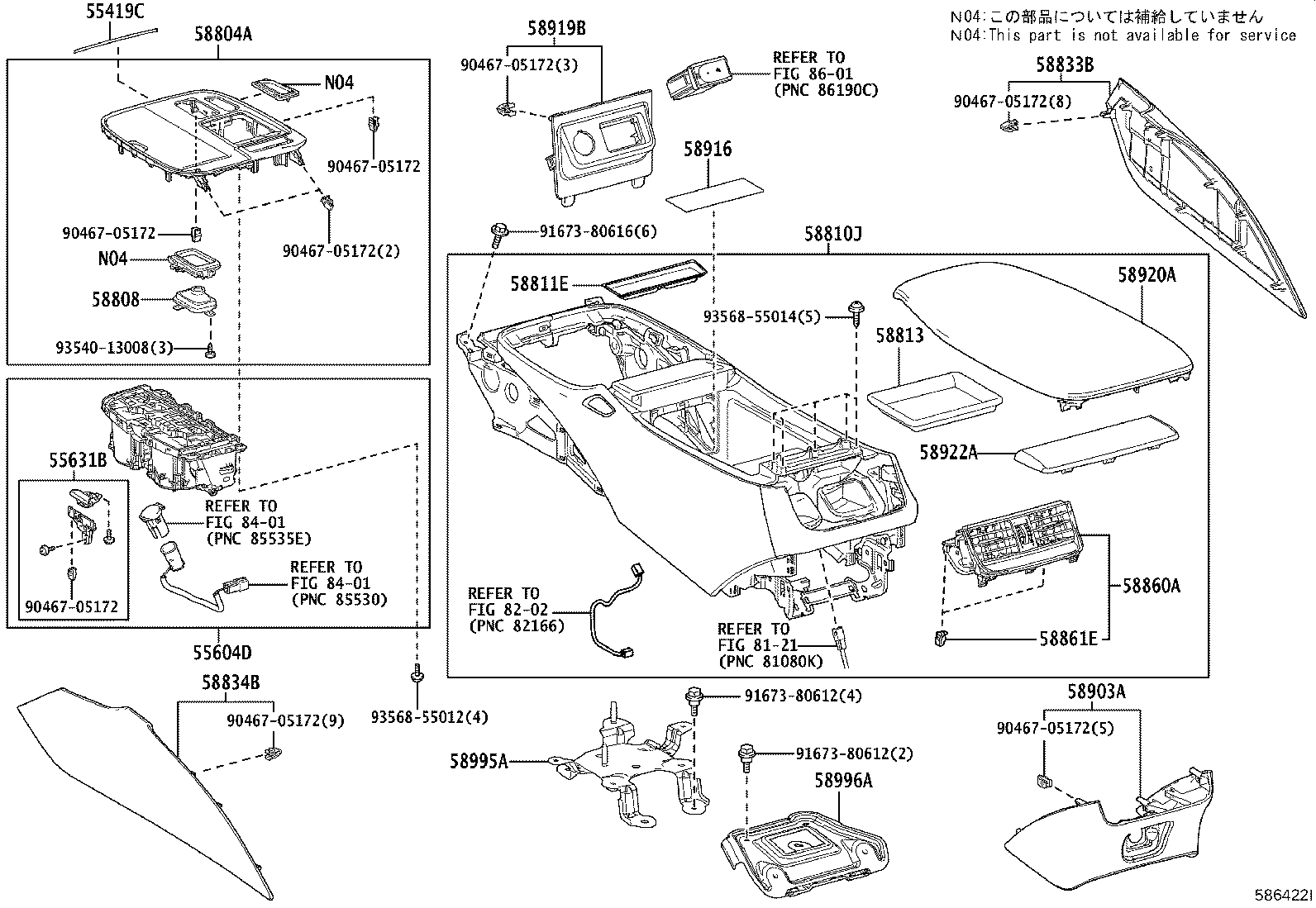

Figure 586423I 586423I 2017-10 → — Figure 586422I 586422I 2017-10 → —

Part groups

PNCDescription
55419C Cushion, Console Panel, NO.1
55604D Holder Sub-assy, Instrument Panel Cup
55631B Lock, Instrument Panel Cup Holder, NO.1
58804A Panel Sub-assy, Console, Upper
58808 Cover Sub-assy, Shifting Hole
58810J Box Assy, Console
58811E Box, Console, Upper
58813 Box, Console, Upper
58833B Garnish, Console Upper Panel, NO.1
58834B Garnish, Console Upper Panel, NO.2
58860A Register Assy, Console Box
58861E Clip, Console Box Duct
58903A Panel Sub-assy, Console Rear End
58916 Mat, Box Bottom
58919B Plate, Console Box
58920A Armrest Assy, Rear Console
58922A Plate, Box, Upper NO.2
58995A Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
