Toyota Lexus LS Series
2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe
Supported model
Data version 2020-11

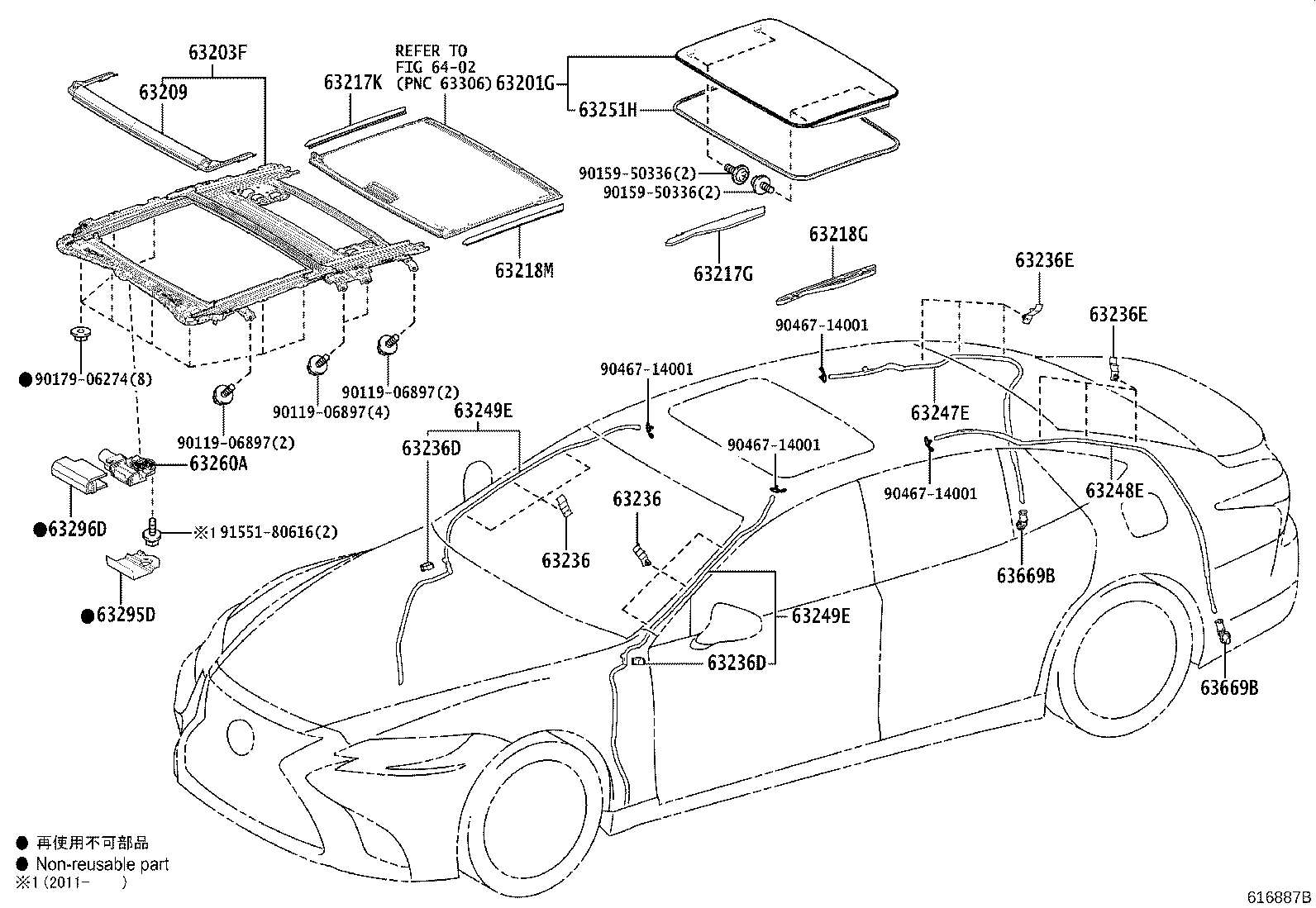

Roof Panel & Back Window Glass
44 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04641 | Dam Kit, Back Window Glass |
| 56115B | Stopper, Back Window Glass, NO.1 |
| 56116D | Stopper, Back Window Glass, NO.2 |
| 56119F | Seal, Windshield Glass |
| 61281B | Bracket, Sliding Roof Housing Side Mounting, NO.1 |
| 61282D | Bracket, Sliding Roof Housung Side Mounting, NO.2 |
| 63102A | Panel Sub-assy, Windshield Header |
| 63105C | Moulding Sub-assy, Roof Drip |
| 63105D | Frame Sub-assy, Back Window, Upper |
| 63111 | Panel, Roof |
| 63123C | Reinforcement, Roof Panel |
| 63124 | Reinforcement, Roof Panel, NO.1 |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63144B | Reinforcement, Roof Panel, NO.4 |
| 63146A | Bracket, Roof Panel Reinforcement, NO.1 |
| 63148A | Reinforcement, Roof Panel, NO.7 |
| 63149E | Bracket, Roof Panel Reinforcement, NO.2 |
| 63201G | Glass Sub-assy, Sliding Roof |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63209 | Panel Sub-assy, Roof Wind Deflector |
| 63217G | Garnish, Sliding Roof Side, RH |
| 63217K | Garnish, Sliding Roof Side, RH |
| 63218G | Garnish, Sliding Roof Side, LH |
| 63218M | Garnish, Sliding Roof Side, LH |
| 63236 | Clamp, Sliding Roof OR Removable Roof Drain Hose |
| 63236D | Clamp, Sliding Roof Drain Hose |
| 63236E | Clamp, Sliding Roof Drain Hose |
| 63247E | Hose, Sliding Roof Drain, Rear RH |
| 63248E | Hose, Sliding Roof Drain, Rear LH |
| 63249E | Hose, Sliding Roof Drain |
| 63251H | Weatherstrip, Sliding Roof |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63295D | Pad, Sliding Roof Housing |
| 63296D | Pad, Sliding Roof Housing, NO.2 |
| 63669B | Grommet, Sliding Roof Drain |
| 63692 | Pad, Roof Silencer, NO.22 |
| 64101 | Panel Sub-assy, Upper Back |
| 64194A | Pad, Back Panel Silencer, Upper |
| 64206F | Panel Sub-assy, Room Partition |
| 64227B | Extension, Center Floor TO Blace, NO.1 |
| 64228B | Extension, Center Floor TO Brace, NO.2 |
| 64298A | Panel, Room Partition Center |
| 64811 | Glass, Back Window |
| 75571G | Moulding, Back Window, Outside Upper, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
