Toyota Lexus LS Series

2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Luggage Compartment Door & Lock

23 part groups · 2 illustrations

Illustrations

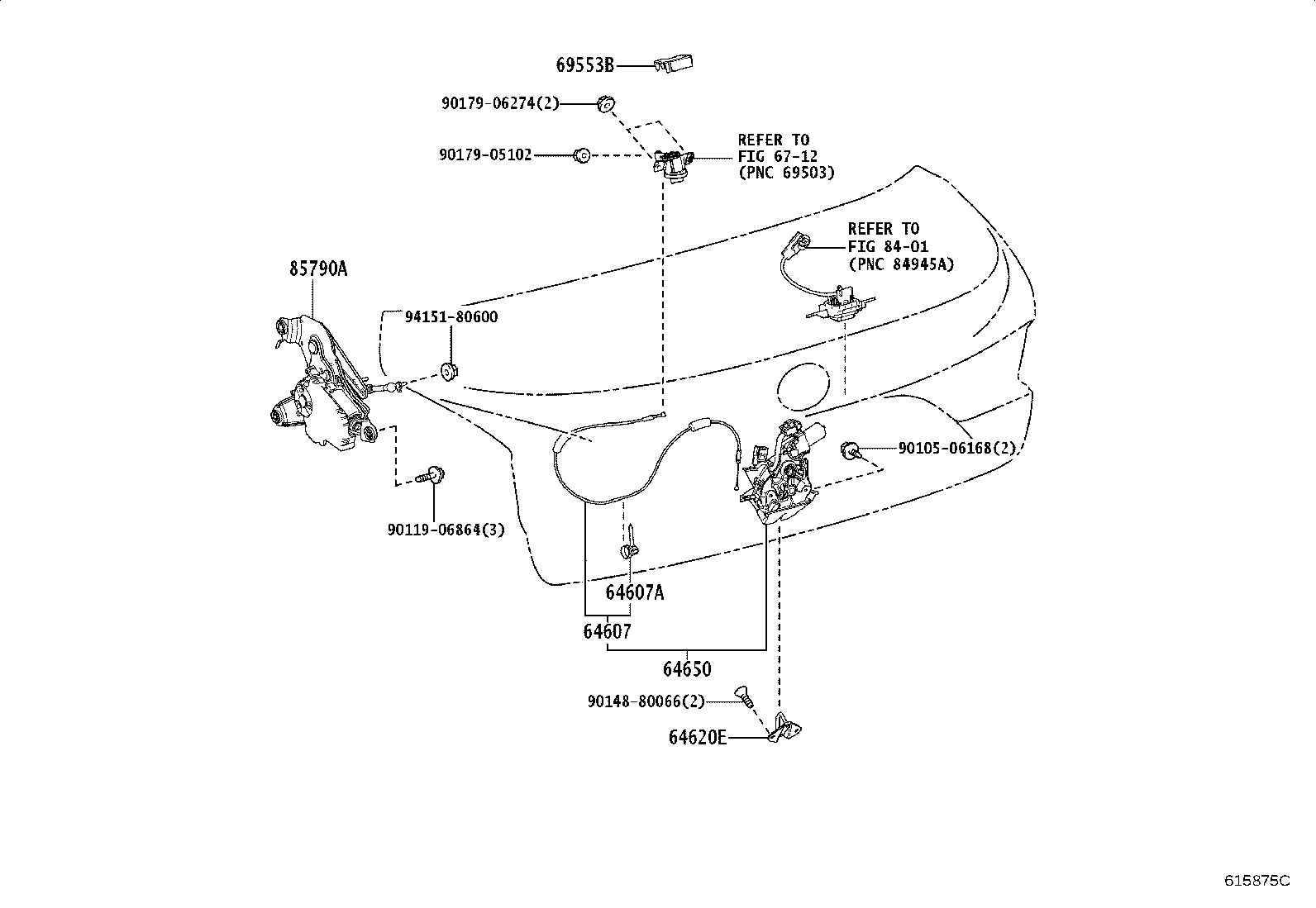

Figure 615873B 615873B 2017-10 → — Figure 615875C 615875C 2017-10 → —

Part groups

PNCDescription
64128A Support, Luggage Compartment Door Torsion Bar, NO.2
64165F Cover, Upper Back Panel Hole, NO.1
64401 Panel Sub-assy, Luggage Compartment Door
64459 Cushion, Luggage Compartment Door
64461 Weatherstrip, Luggage Compartment Door
64510 Hinge Assy, Luggage Compartment Door, RH
64520 Hinge Assy, Luggage Compartment Door, LH
64531 Bar, Luggage Door Hinge Torsion, RH
64532 Bar, Luggage Door Hinge Torsion, LH
64571B Cover, Luggage Compartment Door Hinge, RH
64571C Cover, Luggage Compartment Door, RH
64571D Clip(FOR LUGGAGE COMPARTMENT DOOR HINGE COVER)
64572 Cover, Luggage Compartment Door Hinge, LH
64572A Cover, Luggage Compartment Door, LH
64607 Cable Sub-assy, Luggage Door Lock Control
64607A Clamp, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
64620E Striker Assy, Luggage Compartment Door
64650 Closer Assy, Luggage Door
69553B Protector, Luggage Compartment Key Cylinder
75545F Clip, Windshield Outside Moulding, NO.1
75547A Clip, Windshield Outside Moulding, NO.3
75575F Moulding, Back Window, Outside Lower
85790A Motor Assy, Luggage Closer
