Toyota Lexus LS Series
2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe
Supported model
Data version 2020-11

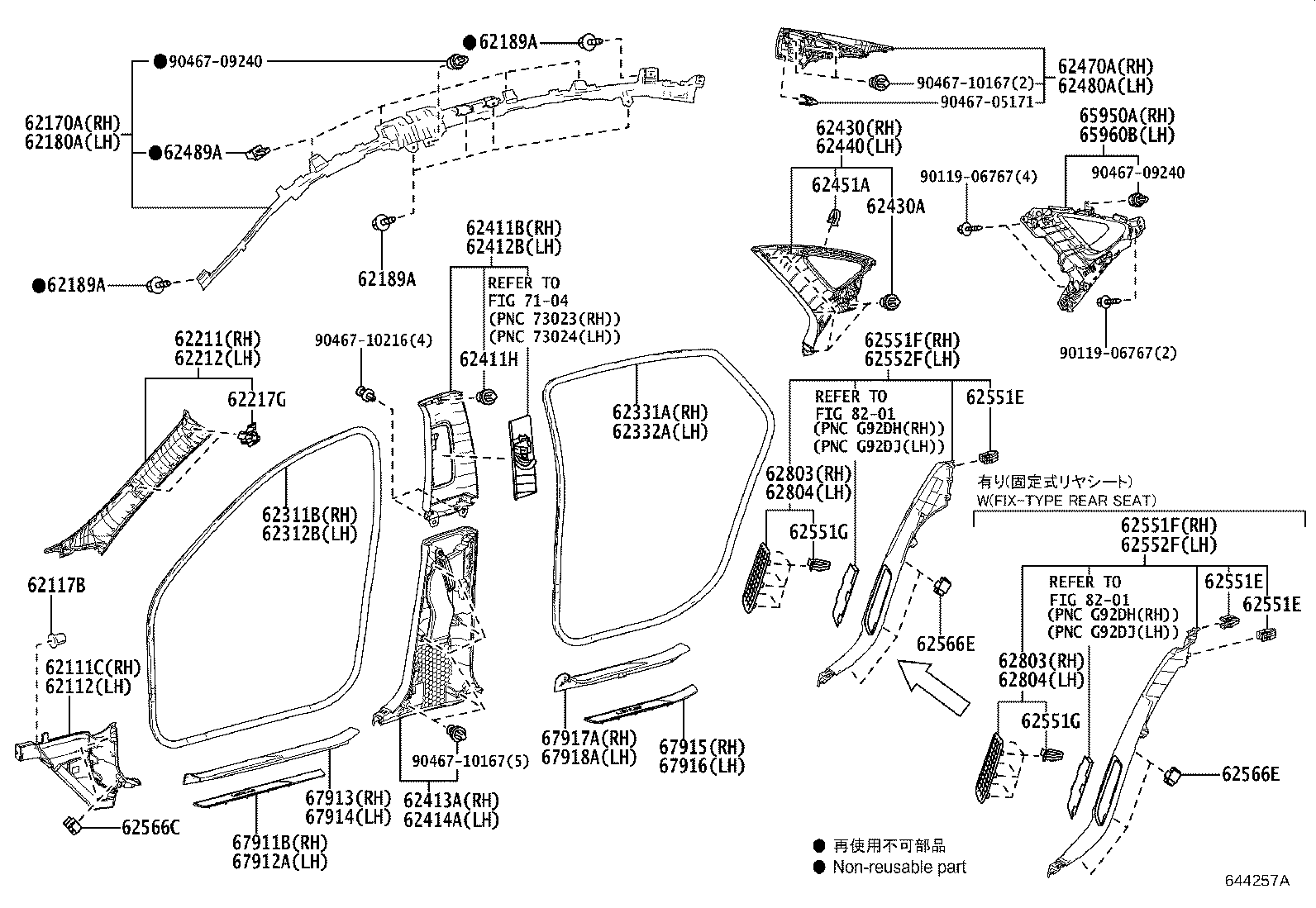

Inside Trim Board & Door Opening Trim Moulding
43 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62111C | Board, Cowl Side Trim, RH |
| 62112 | Board, Cowl Side Trim, LH |
| 62117B | Clip, NO.1(FOR COWL SIDE TRIM) |
| 62170A | Airbag Assy, Curtain Shield, RH |
| 62180A | Airbag Assy, Curtain Shield, LH |
| 62189A | Spacer, Curtain Shield Airbag Clip |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62217G | Clip, Front Pillar Garnish |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62331A | Weatherstrip, Rear Door Opening Trim, RH |
| 62332A | Weatherstrip, Rear Door Opening Trim, LH |
| 62411B | Garnish, Center Pillar, Upper RH |
| 62411H | Clip |
| 62412B | Garnish, Center Pillar, Upper LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62430 | Garnish Assy, Roof Side Rail, RH |
| 62430A | Clip, Roof Side Rail Garnish |
| 62440 | Garnish Assy, Roof Side Rail, LH |
| 62451A | Clip, Side Garnish |
| 62470A | Garnish Assy, Roof Side, Inner RH |
| 62480A | Garnish Assy, Roof Side, Inner LH |
| 62489A | Clip, Roof Side Inner Garnish |
| 62551E | Clip(FOR REAR SEAT SIDE GARNISH) |
| 62551F | Garnish, Rear Seat Side, RH |
| 62551G | Clip |
| 62552F | Garnish, Rear Seat Side, LH |
| 62566C | Clamp, Cowl Side Trim |
| 62566E | Clamp, Rear Seat Side Garnish |
| 62803 | Grille Sub-assy, Room Ventilation, RH |
| 62804 | Grille Sub-assy, Room Ventilation, LH |
| 65950A | Curtain Assy, Side Window, Rear RH |
| 65960B | Curtain Assy, Side Window, Rear LH |
| 67911B | Plate, Front Door Scuff, Outside, RH |
| 67912A | Plate, Front Door Scuff, Outside LH |
| 67913 | Plate, Front Door Scuff, RH |
| 67914 | Plate, Front Door Scuff, LH |
| 67915 | Plate, Rear Door Scuff, Outside RH |
| 67916 | Plate, Rear Door Scuff, Outside LH |
| 67917A | Plate, Rear Door Scuff, RH |
| 67918A | Plate, Rear Door Scuff, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
