Toyota Lexus LS Series
2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe
Supported model
Data version 2020-11

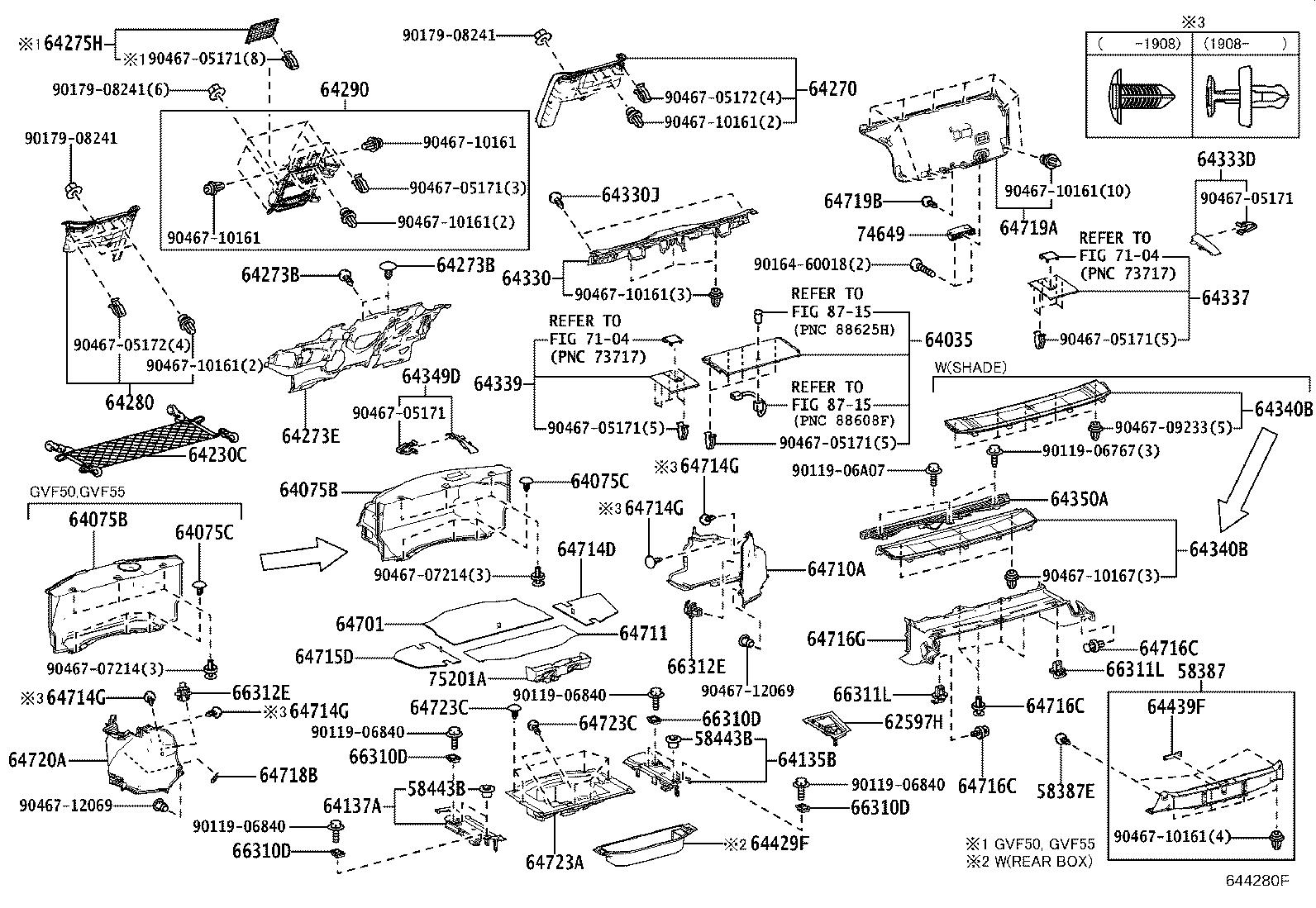

Package Tray Panel & Luggage Compartment Mat
45 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58387 | Plate, Rear Floor Finish |
| 58387E | Clip(FOR REAR FLOOR FINISH PLATE) |
| 58443B | Cushion, Deck Board, NO.1 |
| 62597H | Box, Side Trim |
| 64035 | Grille Sub-assy, Center Speaker, NO.1 |
| 64075B | Cover, Luggage Compartment Trim, Front |
| 64075C | Clip, Luggage Compartment Trim Cover |
| 64135B | Bracket, Luggage Compartment Tray, Rear RH |
| 64137A | Bracket, Luggage Compartment Tray, Rear LH |
| 64230C | Net Assy, Room Partition |
| 64270 | Board Assy, Room Partition, RH |
| 64273B | Clip |
| 64273E | Pad, Room Partition |
| 64275H | Cover, Room Partition, NO.1 |
| 64280 | Board Assy, Room Partition, LH |
| 64290 | Garnish Assy, Room Partition, Center |
| 64330 | Panel Assy, Package Tray Trim |
| 64330J | Clip(FOR PACKAGE TRAY TRIM PANEL) |
| 64333D | Cover, Package Tray Trim Side, RH |
| 64337 | Garnish, Package Tray Trim, RH |
| 64339 | Garnish, Package Tray Trim, LH |
| 64340B | Panel Assy, Package Tray Trim, NO.2 |
| 64349D | Cover, Package Tray Trim Side, LH |
| 64350A | Shade Assy, Rear Window |
| 64429F | Box, Luggage Compartment Trim |
| 64439F | Cover, Luggage Room, Rear |
| 64701 | Mat Sub-assy, Luggage Compartment |
| 64710A | Cover Assy, Luggage Compartment Trim, RH |
| 64711 | Mat, Luggage Compartment Floor |
| 64714D | Cover, Luggage Compartment Trim, Side, RH |
| 64714G | Clip(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER) |
| 64715D | Cover, Luggage Compartment Trim, Side, LH |
| 64716C | Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER) |
| 64716G | Cover, Luggage Compartment Trim, Rear |
| 64718B | Cover, Luggage Trim Service Hole |
| 64719A | Cover, Luggage Compartment Door |
| 64719B | Clip(FOR LUGGAGE COMPARTMENT DOOR) |
| 64720A | Cover Assy, Luggage Compartment Trim, LH |
| 64723A | Cover, Luggage Compartment Trim, Inner Lower |
| 64723C | Clip, Luggage Compartment Trim Cover |
| 66310D | Hook Assy, Rope |
| 66311L | Hook,Rope |
| 66312E | Hook, Rope, NO.2 |
| 74649 | Grip, Luggage Compartment Door Assist |
| 75201A | Box, Tool |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
