Toyota Lexus LS Series
2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe
Supported model
Data version 2020-11

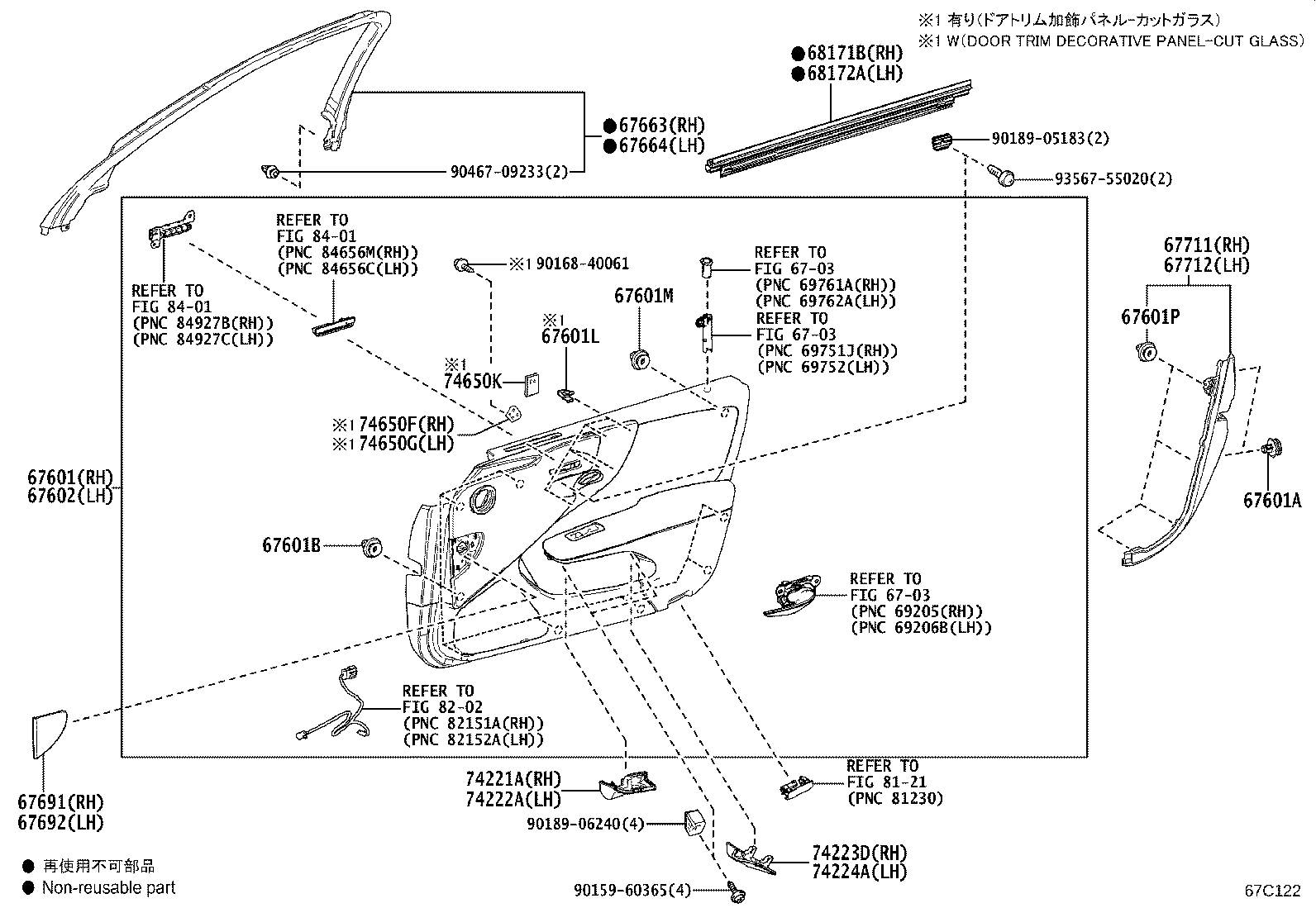

Front Door Panel & Glass
68 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67001 | Panel Sub-assy, Front Door, RH |
| 67001A | Cushion, Front Door Panel |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67403F | Frame Sub-assy, Front Door, Rear Lower RH |
| 67404F | Frame Sub-assy, Front Door, Rear Lower LH |
| 67415 | Frame, Front Door Window, Rear RH |
| 67416 | Frame, Front Door Window, Rear LH |
| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601A | Retainer(FOR FRONT DOOR TRIM BOARD) |
| 67601B | Clip(FOR FRONT DOOR TRIM BOARD) |
| 67601L | Clip(FOR FRONT DOOR TRIM BOARD) |
| 67601M | Retainer, Door Trim, NO.2 |
| 67601P | Clip(FOR FRONT DOOR TRIM BOARD) |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67645 | Bracket, Front Door Armrest Set, RH |
| 67646 | Bracket, Front Door Armrest Set, LH |
| 67663 | Garnish, Door Frame, Upper RH |
| 67664 | Garnish, Door Frame, Upper LH |
| 67691 | Cover, Front Door Inner Trim, RH |
| 67692 | Cover, Front Door Inner Trim, LH |
| 67711 | Cover, Front Door Trim, RH |
| 67712 | Cover, Front Door Trim, LH |
| 67811 | Pad, Front Door Silencer |
| 67831 | Cover, Front Door Service Hole, RH |
| 67831D | Clip(FOR FRONT DOOR SERVICE HOLE COVER) |
| 67832 | Cover, Front Door Service Hole, LH |
| 67837A | Seal, Front Door Vent, RH |
| 67838A | Seal, Front Door Vent, LH |
| 67855B | Protector, Front Door Panel, RH |
| 67856B | Protector, Front Door Panel, LH |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 67863H | Weatherstrip, Front Door, NO.2 RH |
| 67864H | Weatherstrip, Front Door, NO.2 LH |
| 67865G | Weatherstrip, Front Door, NO.3 RH |
| 67866F | Weatherstrip, Front Door, NO.3 LH |
| 67867 | Clip, Door Weatherstrip |
| 67867A | Clip, Door Weatherstrip(FOR FRONT DOOR) |
| 67867C | Retainer, Front Door Weatherstrip, RH |
| 67867G | Retainer, Door Weatherstrip, RH |
| 67867H | Retainer, Door Weatherstrip, RH |
| 67868C | Retainer, Front Door Weatherstrip, LH |
| 67868L | Retainer, Door Weatherstrip, LH |
| 67868P | Retainer, Door Weatherstrip, NO.1 LH |
| 67869B | Clip, Front Door Weatherstrip |
| 67869E | Clip, Front Door Weatherstrip |
| 67875B | Weatherstrip, Front Door, NO.4 RH |
| 67876B | Weatherstrip, Front Door, NO.4 LH |
| 67921Q | Pad, Front Door Scuff Plate |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68141C | Run, Front Door Glass, RH |
| 68143A | Run, Front Door Glass, NO.2 |
| 68144E | Run, Front Door Glass, NO.2 LH |
| 68151C | Run, Front Door Glass, LH |
| 68171B | Weatherstrip, Front Door Glass, Inner RH |
| 68172A | Weatherstrip, Front Door Glass, Inner LH |
| 68610B | Check Assy, Front Door, RH |
| 68620 | Check Assy, Front Door, LH |
| 74221A | Cover, Front Door Armrest, RH |
| 74222A | Cover, Front Door Armrest, LH |
| 74223D | Cover, Front Door Armrest, NO.2 RH |
| 74224A | Cover, Front Door Armrest, NO.2 LH |
| 74650F | Strap Assy, Front Door Assist, RH |
| 74650G | Strap Assy, Front Door Assist, LH |
| 74650K | Strap Assy, Front Door Assist |
| 87963 | Cover, Outer Mirror Install Hole, RH |
| 87964 | Cover, Outer Mirror Install Hole, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
