Toyota Lexus LS Series
2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe
Supported model
Data version 2020-11

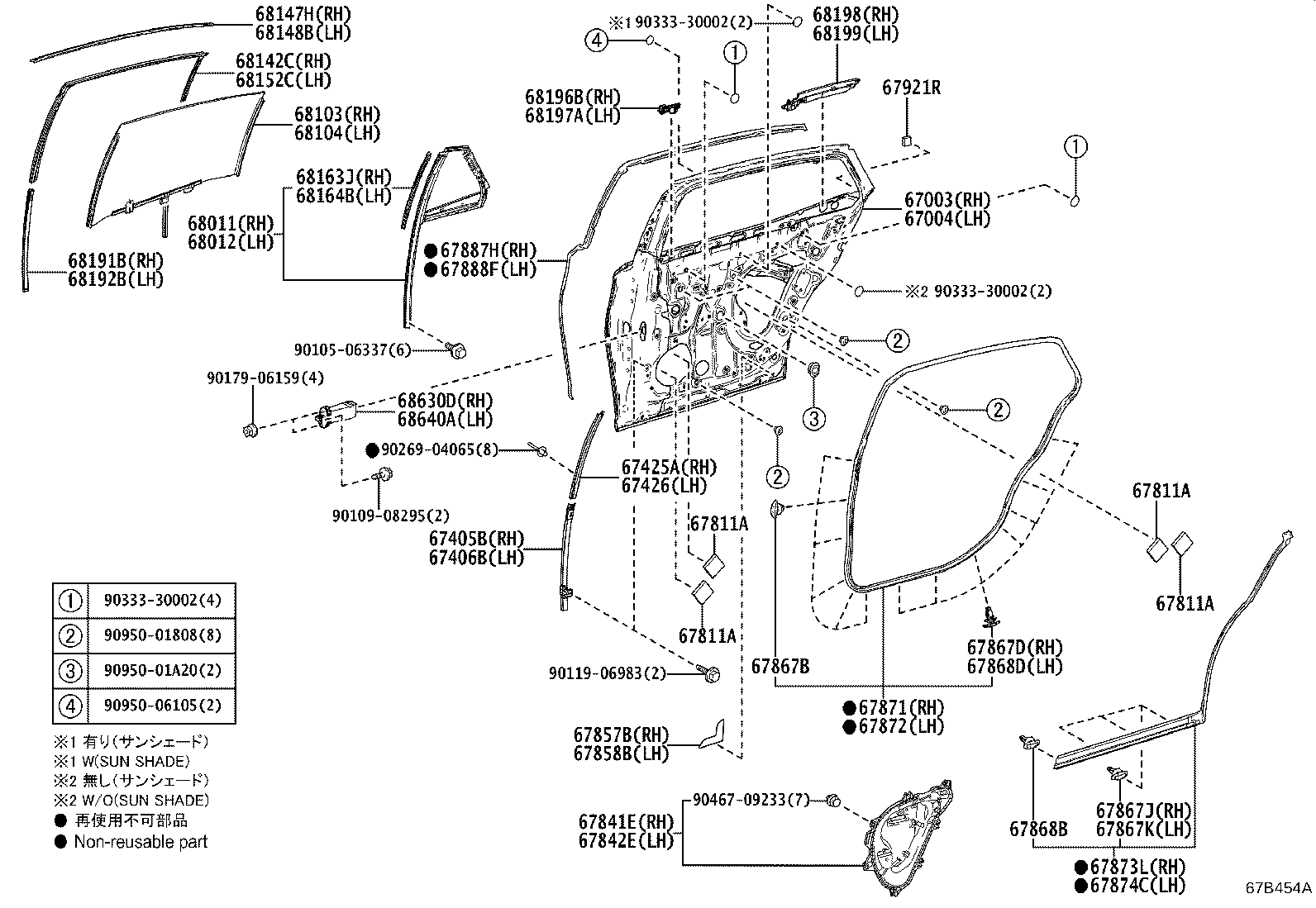

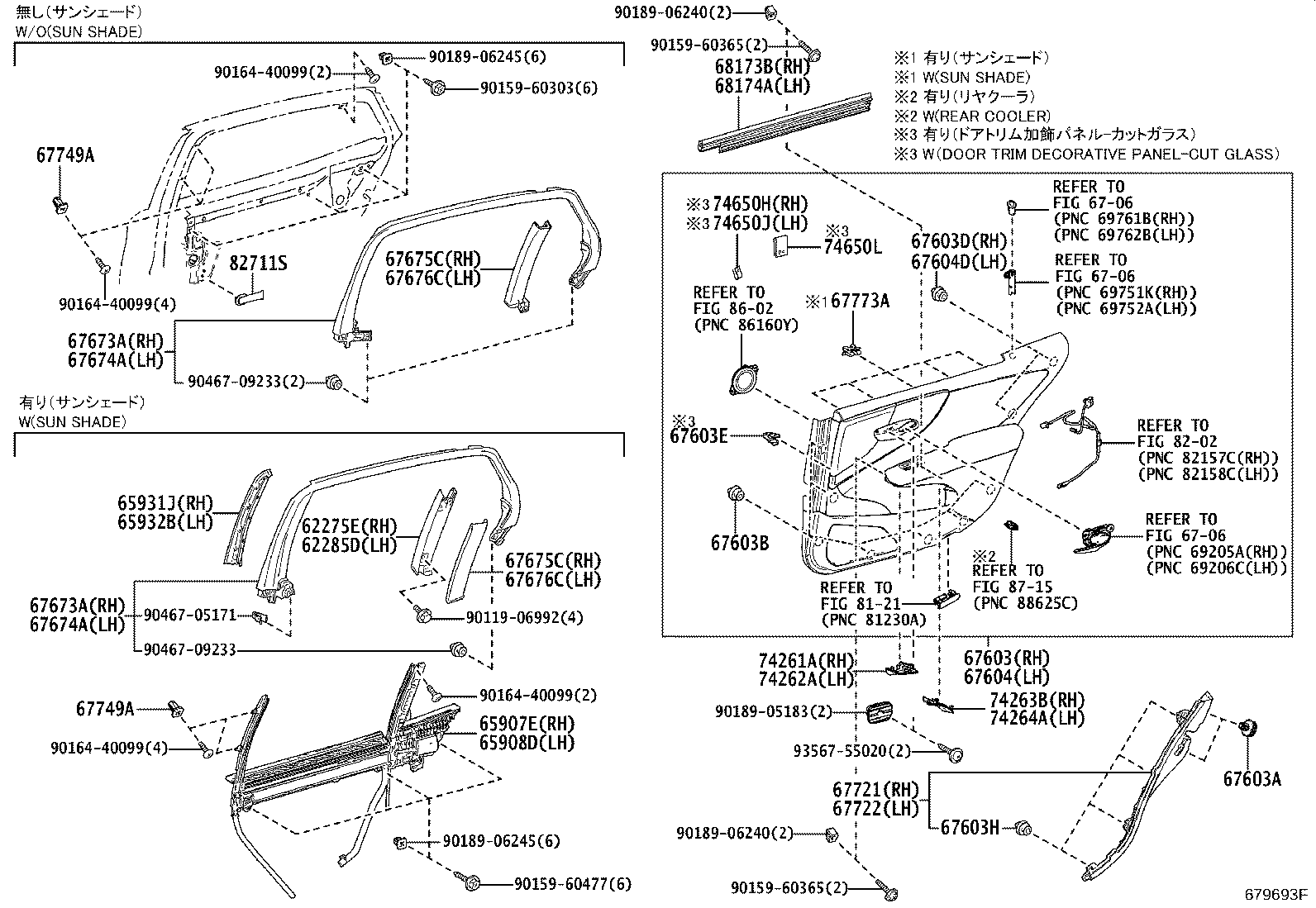

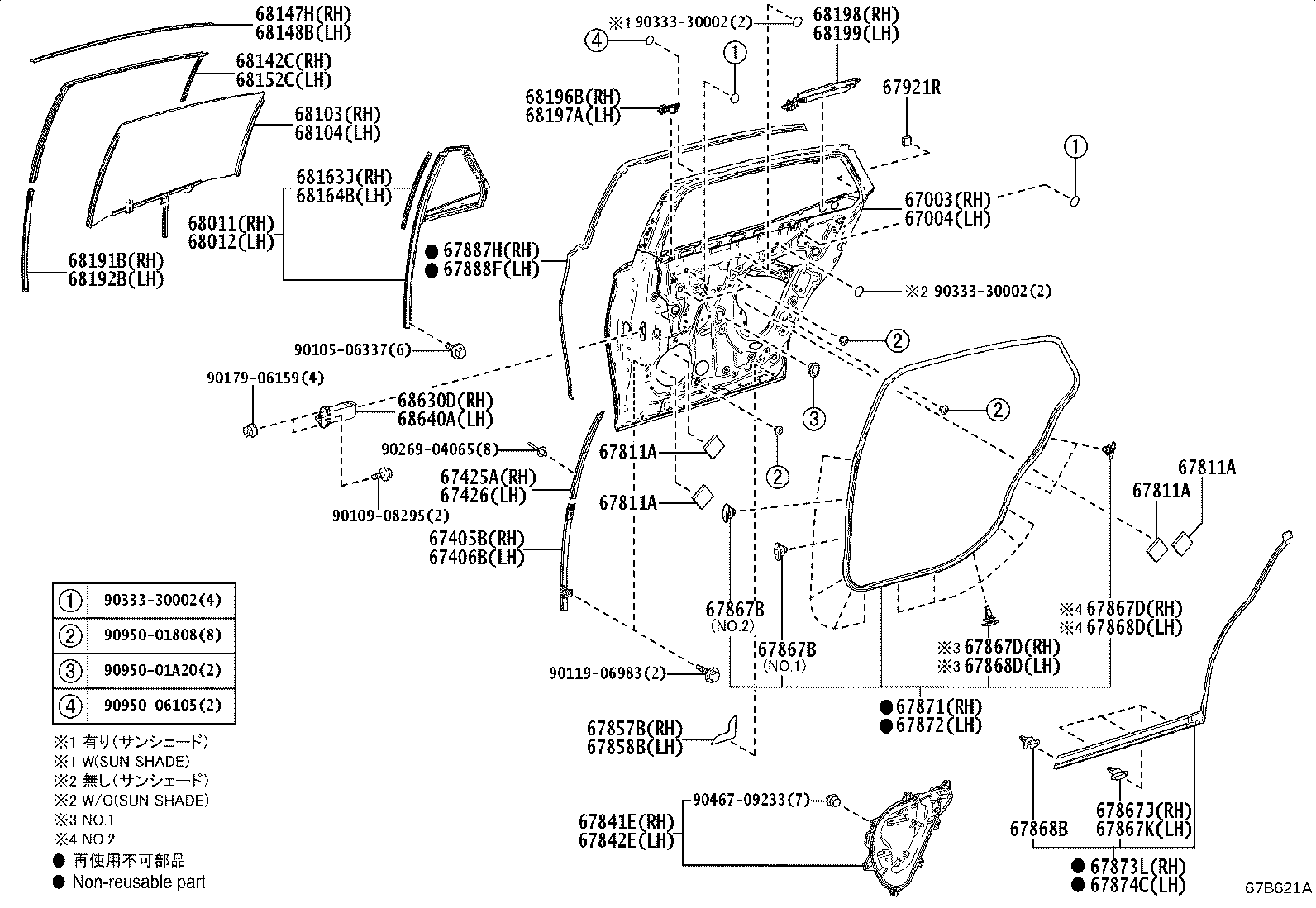

Rear Door Panel & Glass
74 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 62275E | Cover, Rear Side Window, RH |
| 62285D | Cover, Rear Side Window, LH |
| 65907E | Curtain Sub-assy, Rear RH |
| 65908D | Curtain Sub-assy, Rear LH |
| 65931J | Cover, Curtain Rail Side, RH |
| 65932B | Cover, Curtain Rail Side, LH |
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67405B | Guide Sub-assy, Rear Door Window, Front RH |
| 67406B | Guide Sub-assy, Rear Door Window, Front LH |
| 67425A | Frame, Rear Door Window, Rear RH |
| 67426 | Frame, Rear Door Window, Rear LH |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603A | Retainer(FOR REAR DOOR TRIM BOARD) |
| 67603B | Clip(FOR REAR DOOR TRIM BOARD) |
| 67603D | Retainer, Rear Door Trim, RH |
| 67603E | Clip(FOR REAR DOOR TRIM BOARD) |
| 67603H | Clip(FOR REAR DOOR TRIM BOARD) |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67604D | Retainer, Rear Door Trim, LH |
| 67673A | Garnish, Rear Door Frame, RH |
| 67674A | Garnish, Rear Door Frame, LH |
| 67675C | Garnish, Rear Door Frame, NO.2 RH |
| 67676C | Garnish, Rear Door Frame, NO.2 LH |
| 67721 | Cover, Rear Door Trim, RH |
| 67722 | Cover, Rear Door Trim, LH |
| 67749A | Clip, Door Trim Moulding |
| 67773A | Clip, Rear Door Trim Upper Retainer, NO.1 |
| 67811A | Pad, Rear Door Silencer |
| 67841E | Cover, Rear Door Service Hole, RH |
| 67842E | Cover, Rear Door Service Hole, LH |
| 67857B | Protector, Rear Door Panel, RH |
| 67858B | Protector, Rear Door Panel, LH |
| 67867B | Clip, Door Weatherstrip(FOR REAR DOOR) |
| 67867D | Retainer, Rear Door Weatherstrip, RH |
| 67867J | Clip, Door Weatherstrip, RH(FOR REAR DOOR) |
| 67867K | Clip, Door Weatherstrip, LH(FOR REAR DOOR) |
| 67868B | Clip, Door Glass Weatherstrip(FOR REAR DOOR) |
| 67868D | Retainer, Rear Door Weatherstrip, LH |
| 67871 | Weatherstrip, Rear Door, RH |
| 67872 | Weatherstrip, Rear Door, LH |
| 67873L | Weatherstrip, Rear Door, NO.5 RH |
| 67874C | Weatherstrip, Rear Door, NO.5 LH |
| 67887H | Weatherstrip, Rear Door, NO.2 RH |
| 67888F | Weatherstrip, Rear Door, NO.2 LH |
| 67921R | Pad, Rear Door Scuff Plate |
| 68011 | Glass Sub-assy, Rear Door Quarter Window, RH |
| 68012 | Glass Sub-assy, Rear Door Quarter Window, LH |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68142C | Run, Rear Door Glass, RH |
| 68147H | Run, Rear Door Glass, NO.3 RH |
| 68148B | Run, Rear Door Glass, NO.3 LH |
| 68152C | Run, Rear Door Glass, LH |
| 68163J | Run, Rear Door Glass, Rear RH |
| 68164B | Run, Rear Door Glass, Rear LH |
| 68173B | Weatherstrip, Rear Door Glass, Inner RH |
| 68174A | Weatherstrip, Rear Door Glass, Inner LH |
| 68191B | Run, Rear Door Glass, NO.2 RH |
| 68192B | Run, Rear Door Glass, NO.2 LH |
| 68196B | Seal, Rear Door Belt, Front RH |
| 68197A | Seal, Rear Door Belt, Front LH |
| 68198 | Seal, Rear Door Belt, Rear RH |
| 68199 | Seal, Rear Door Belt, Rear LH |
| 68630D | Check Assy, Rear Door, RH |
| 68640A | Check Assy, Rear Door, LH |
| 74261A | Cover, Rear Door Armrest, RH |
| 74262A | Cover, Rear Door Armrest, LH |
| 74263B | Cover, Rear Door Armrest,NO.2 RH |
| 74264A | Cover, Rear Door Armrest,NO.2 LH |
| 74650H | Strap Assy, Rear Door Assist, RH |
| 74650J | Strap Assy, Rear Door Assist, LH |
| 74650L | Strap Assy, Rear Door Assist |
| 82711S | Clamp, Wiring Harness |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
