Toyota Lexus LS Series

2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

102 part groups · 15 illustrations

Illustrations

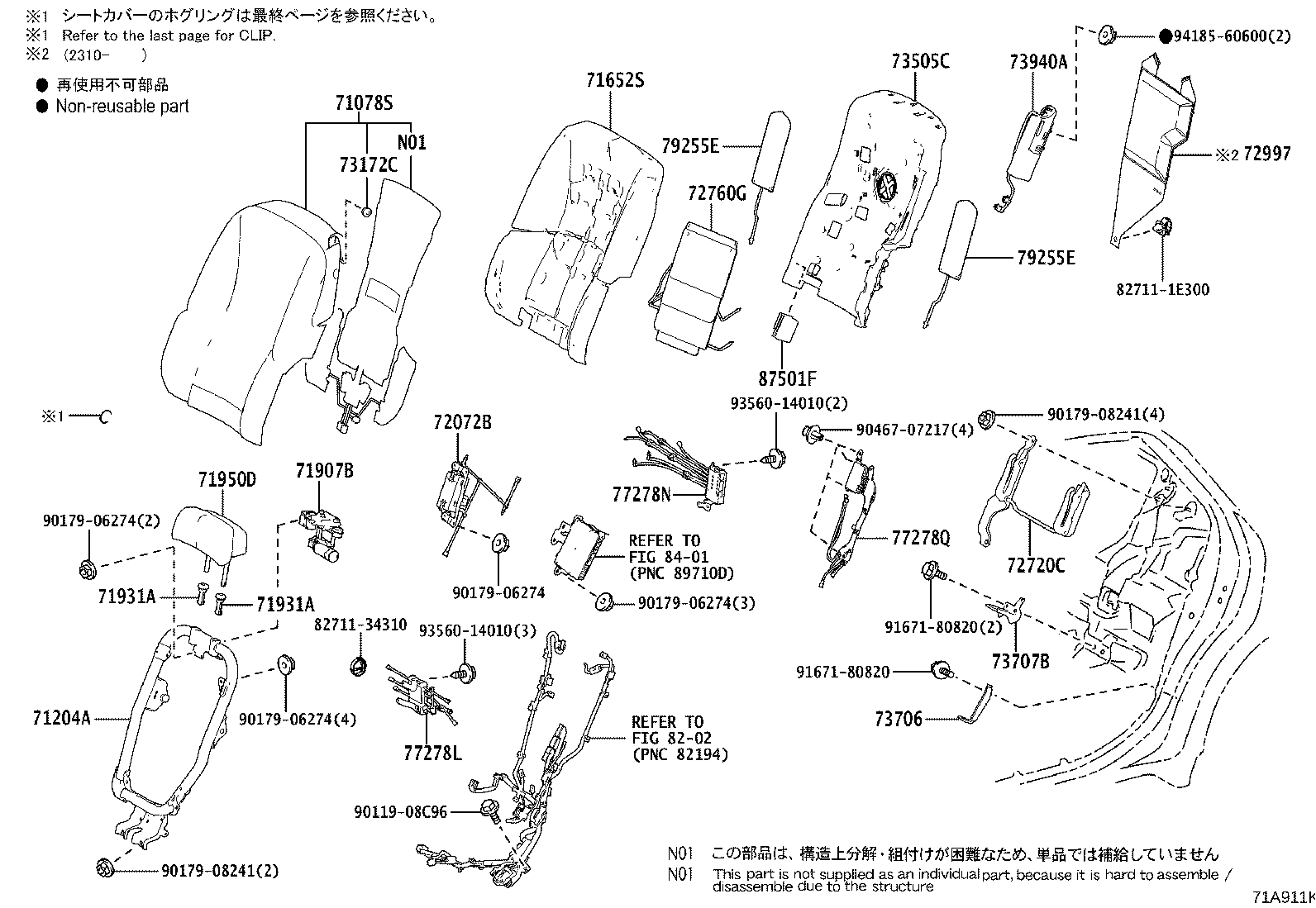

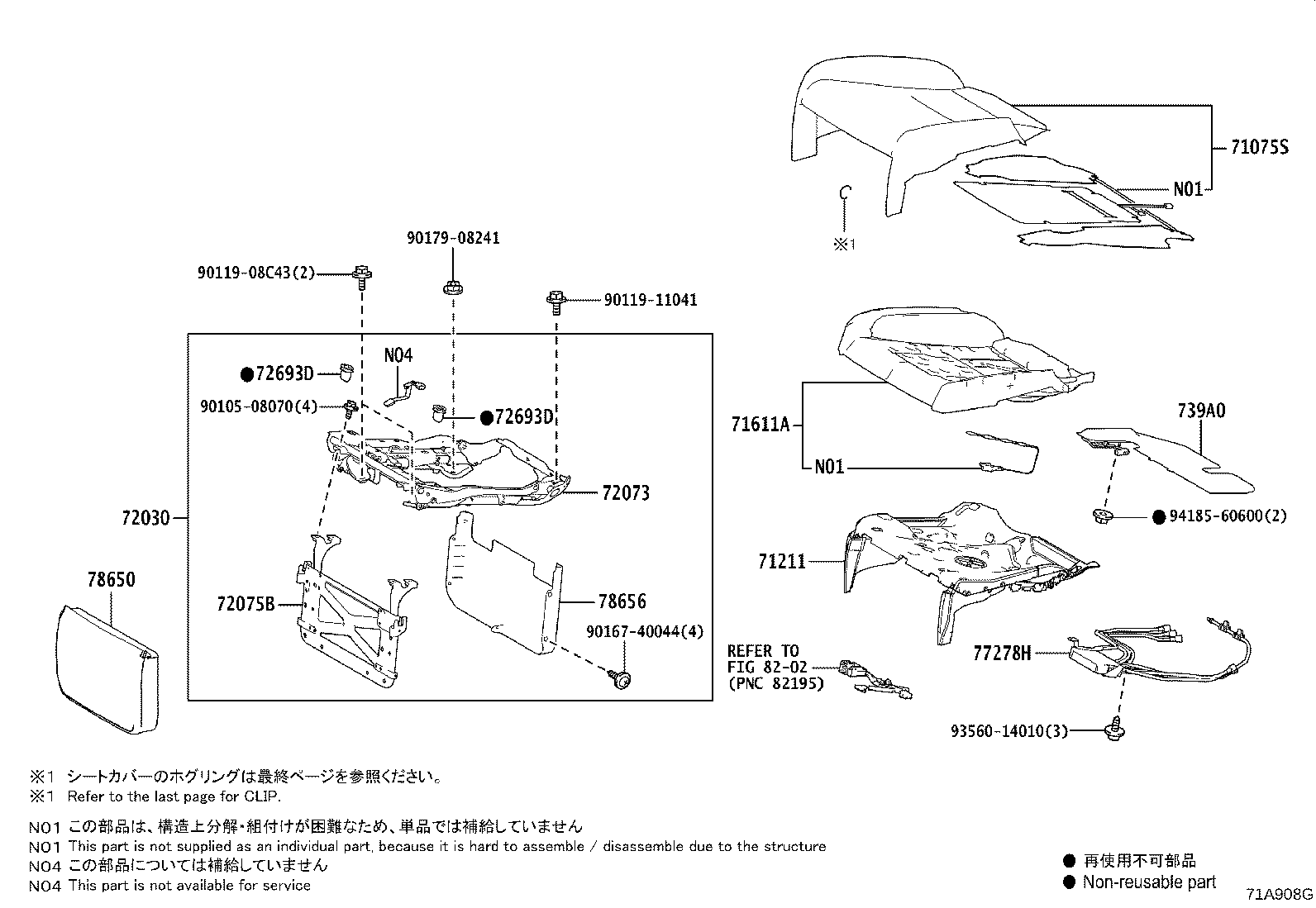

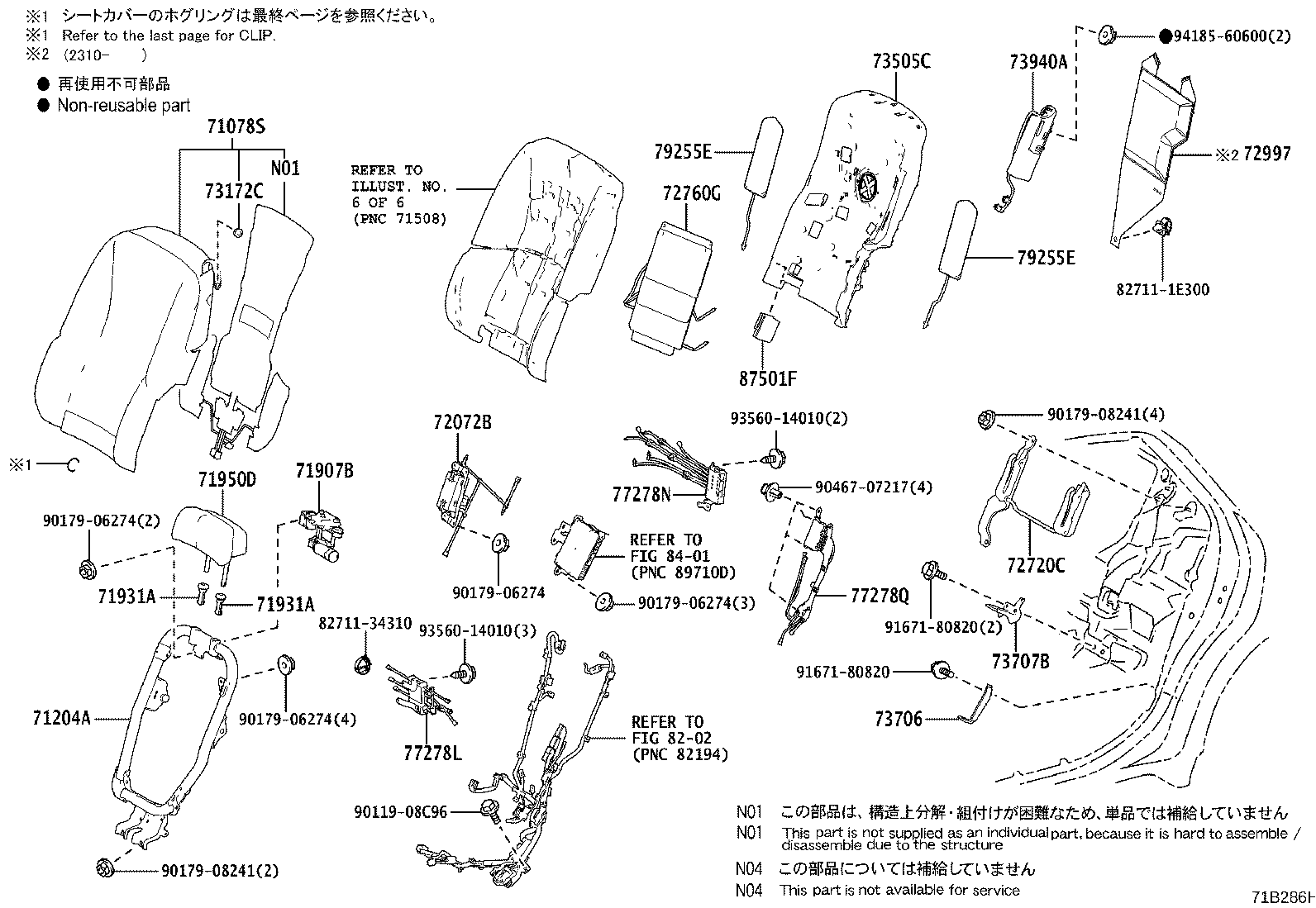

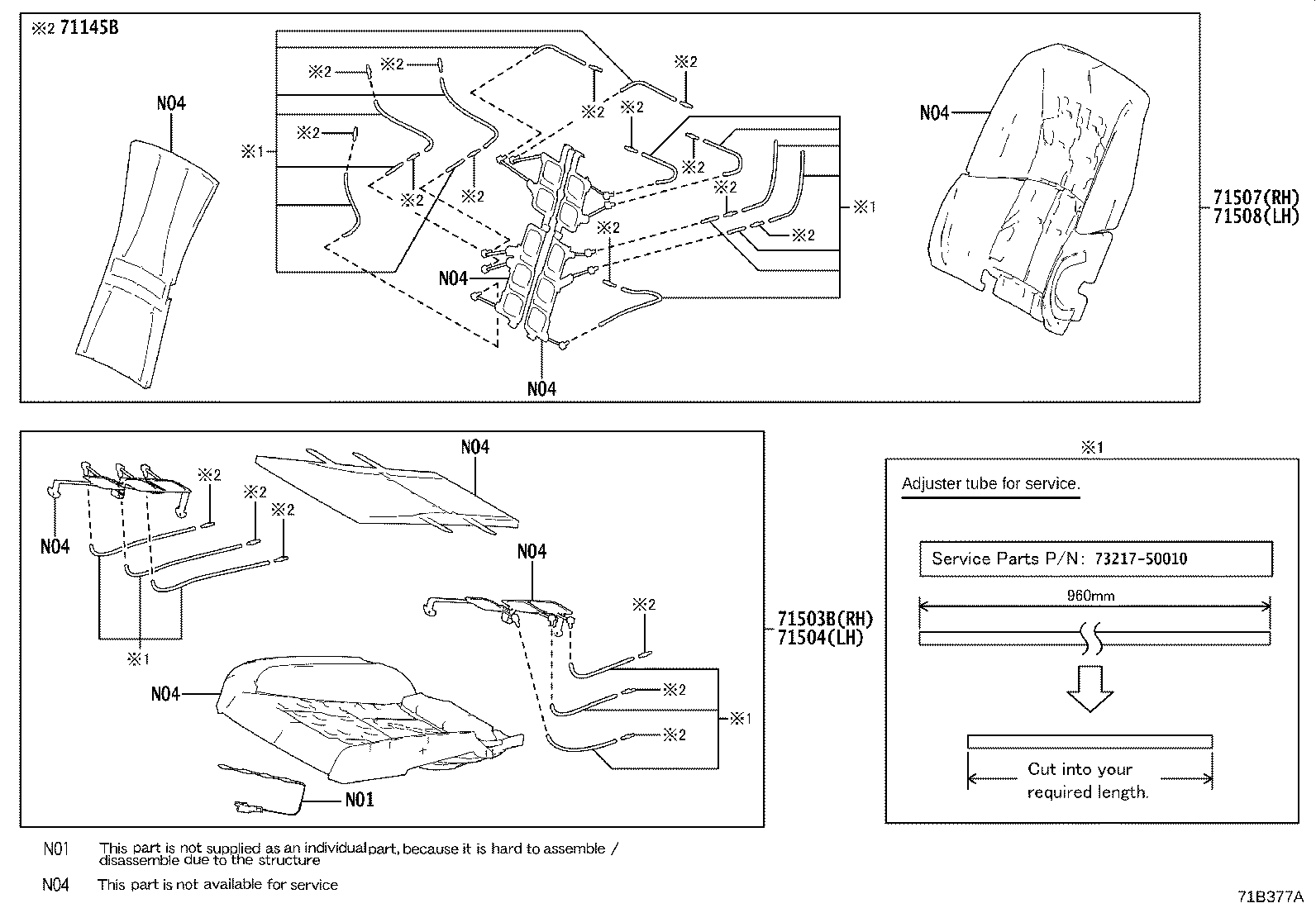

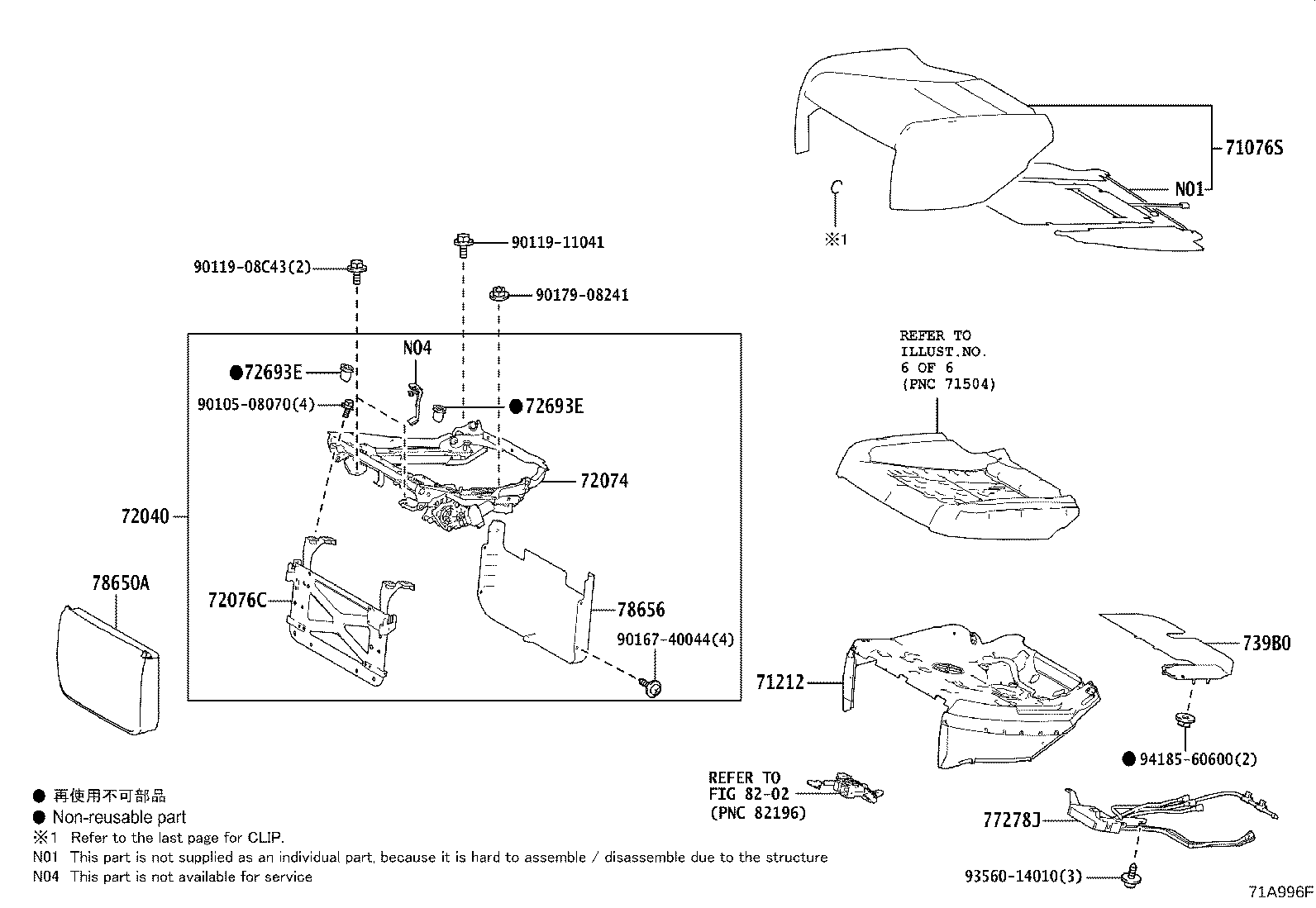

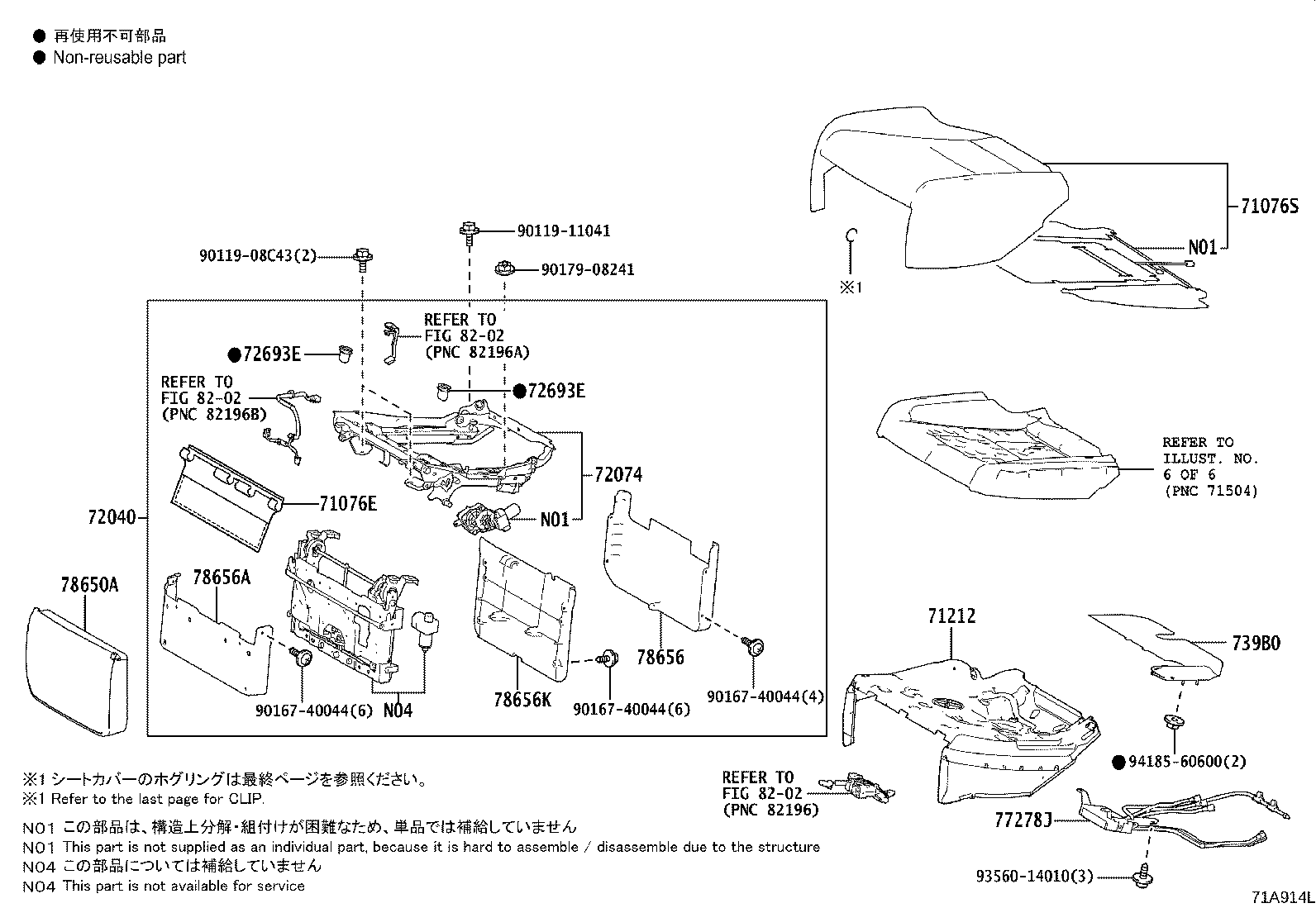

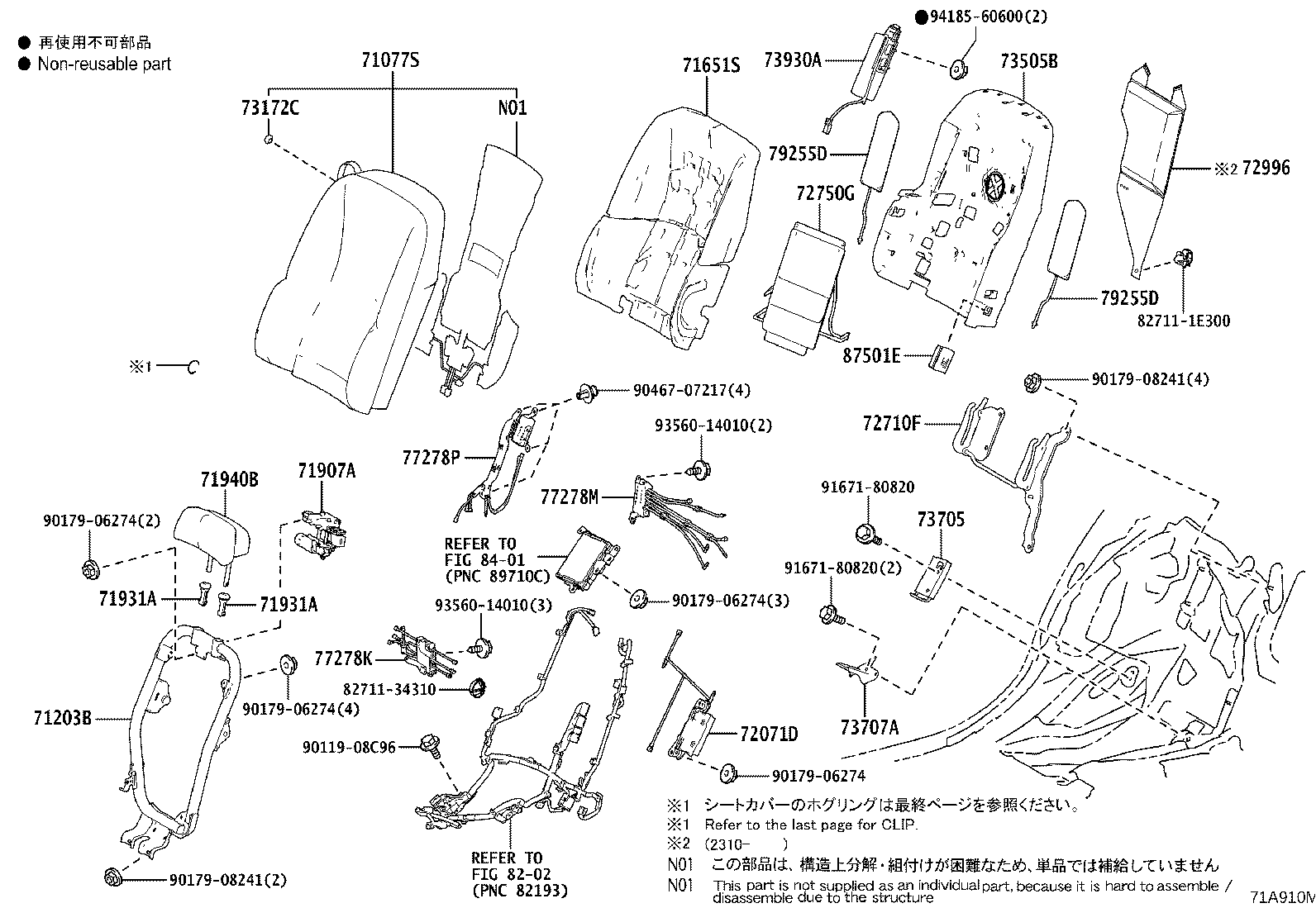

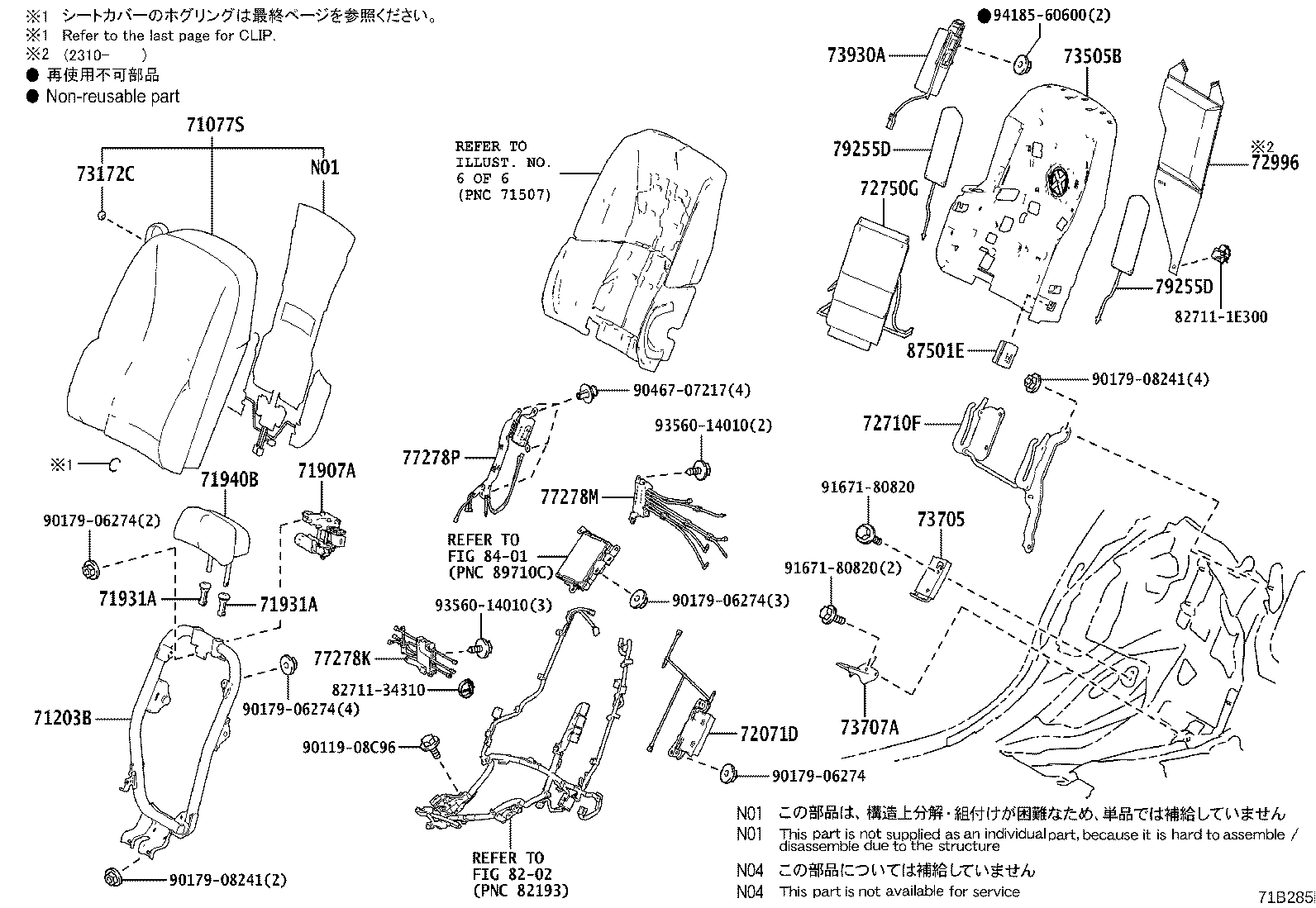

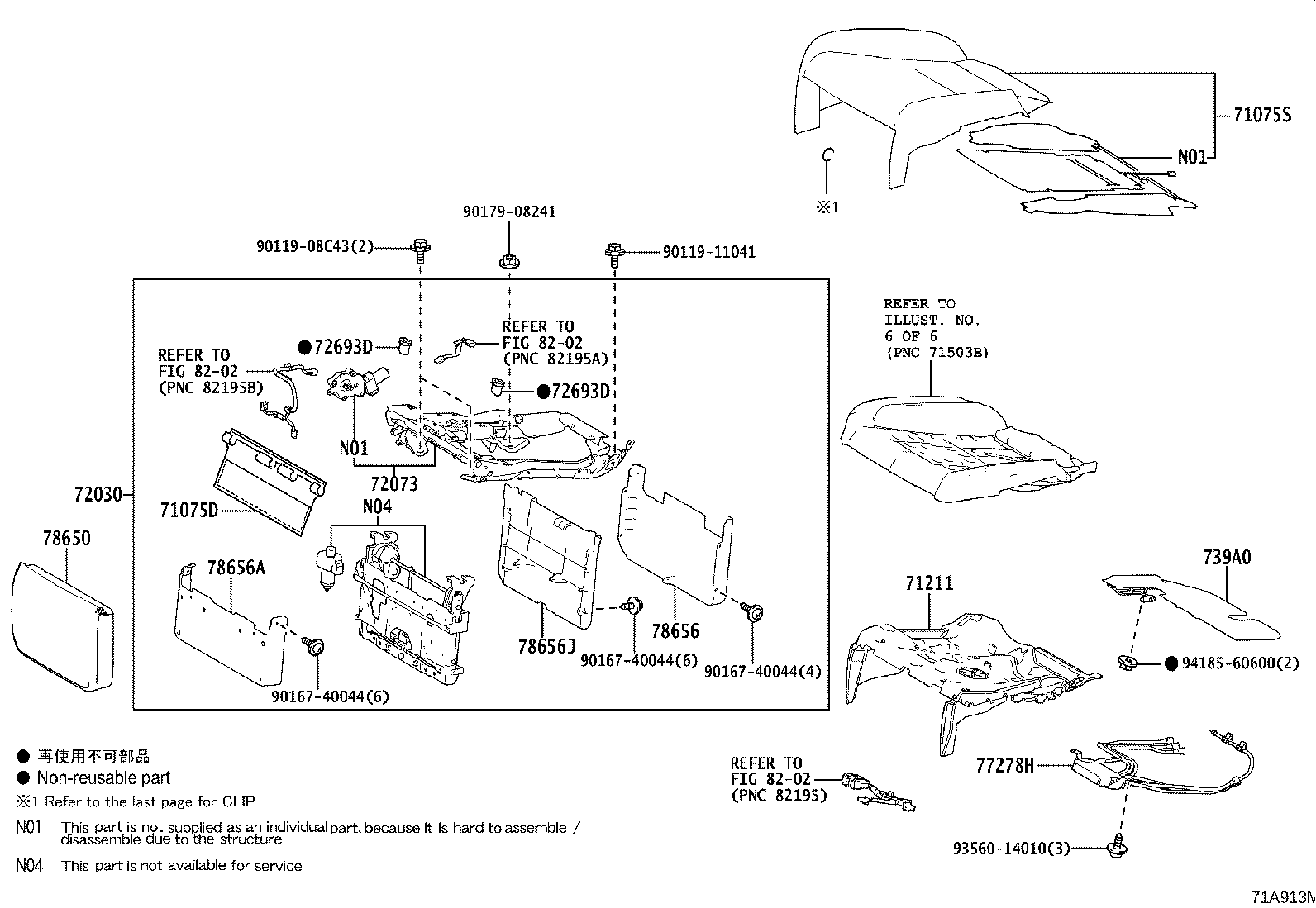

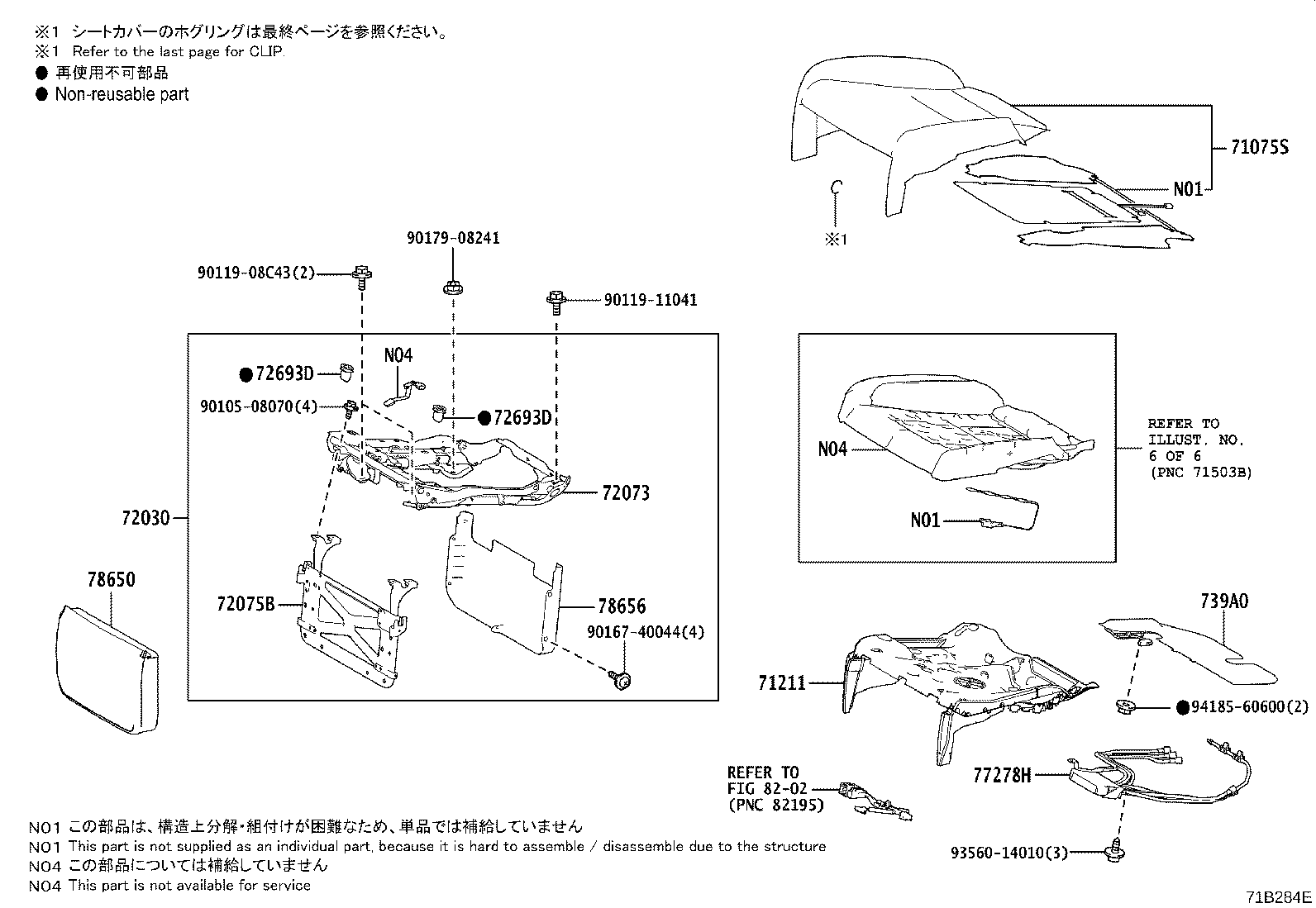

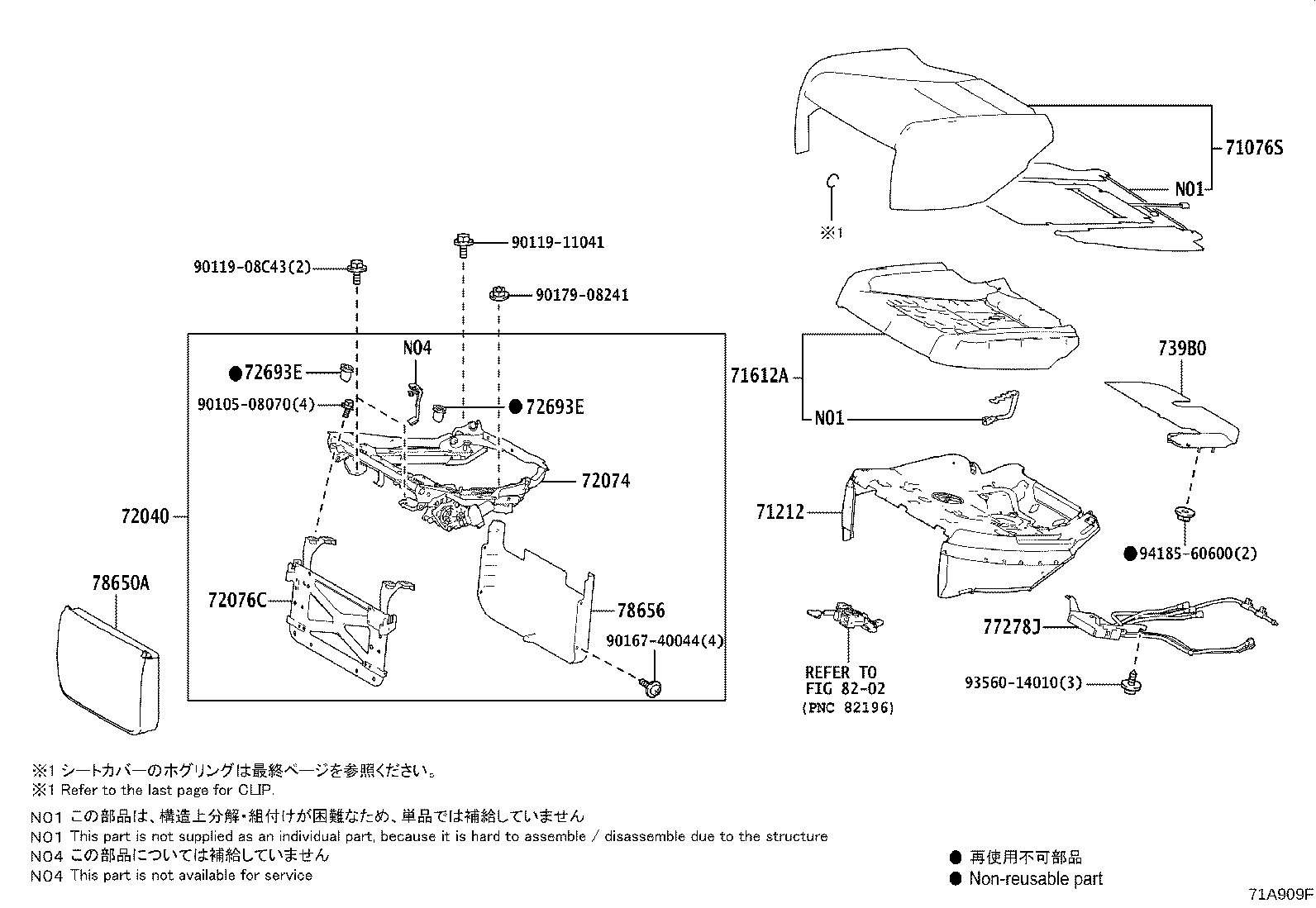

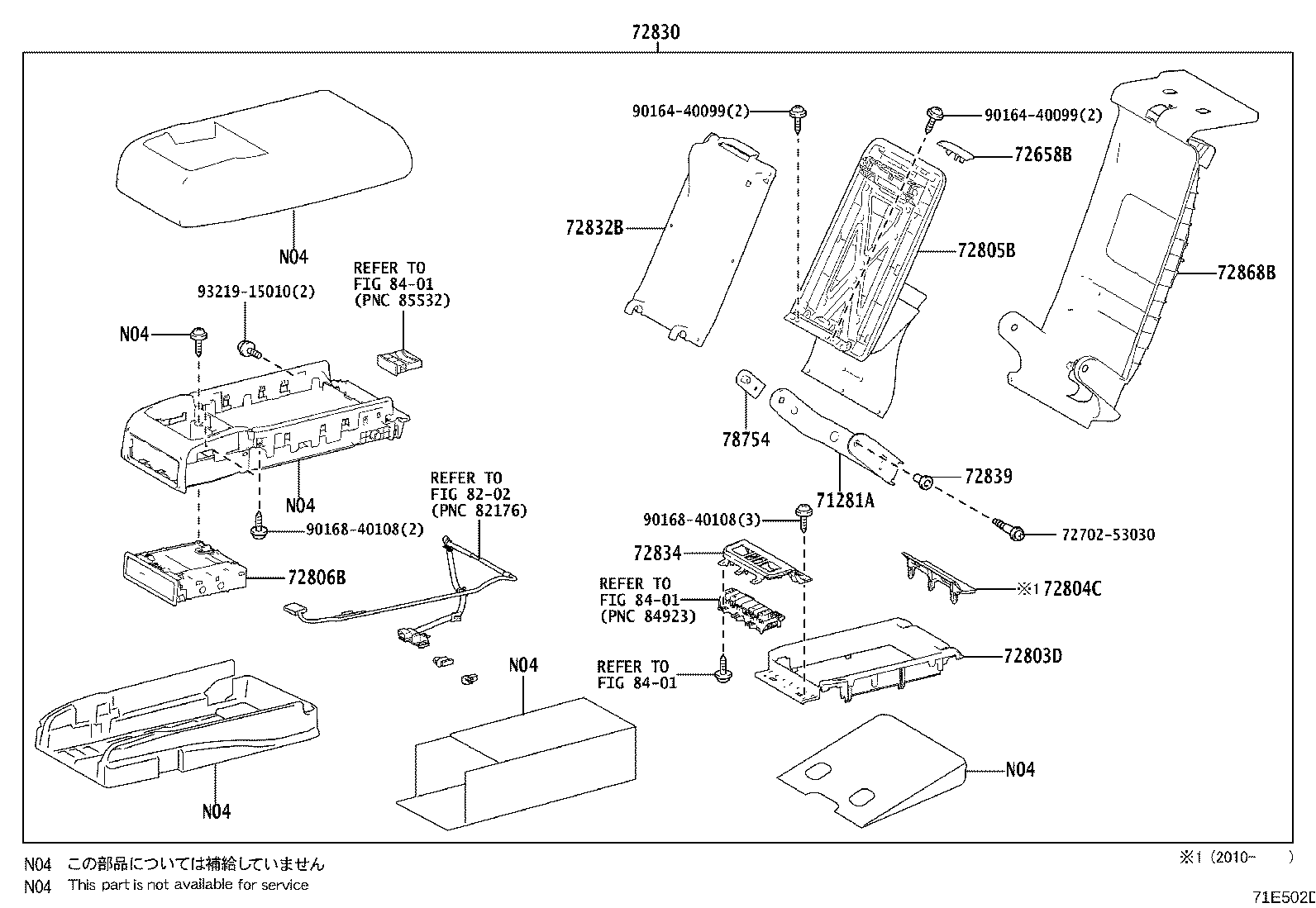

Figure 71A990E 71A990E 2017-10 → — Figure 71E502D 71E502D 2017-10 → — Figure 71A908G 71A908G 2017-10 → — Figure 71B284E 71B284E 2017-10 → — Figure 71A913M 71A913M 2017-10 → — Figure 71A909F 71A909F 2017-10 → — Figure 71A996F 71A996F 2017-10 → — Figure 71A914L 71A914L 2017-10 → — Figure 71A910M 71A910M 2017-10 → — Figure 71B285I 71B285I 2017-10 → — Figure 71A911K 71A911K 2017-10 → — Figure 71B286H 71B286H 2017-10 → — Figure 71A989G 71A989G 2017-10 → — Figure 71B377A 71B377A 2017-10 → — Figure 71A647A 71A647A 2017-10 → —

Part groups

PNCDescription
55539Y Cover, Spare Switch Hole
66993 Tray, Rear Center Seat Cup Holder
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71075D Cover Sub-assy, Rear Seat Cushion, RH
71075S Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076E Cover Sub-assy, Rear Seat Cushion, LH
71076S Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71097 Cover Sub-assy, Rear Center Seat Cushion
71145B Joint, Rear Seat Cushion Wire, NO.1
71203B Frame Sub-assy, Rear Seatback Main, RH
71204A Frame Sub-assy, Rear Seatback Main, LH
71211 Panel, Rear Seat Cushion, RH
71212 Panel, Rear Seat Cushion, LH

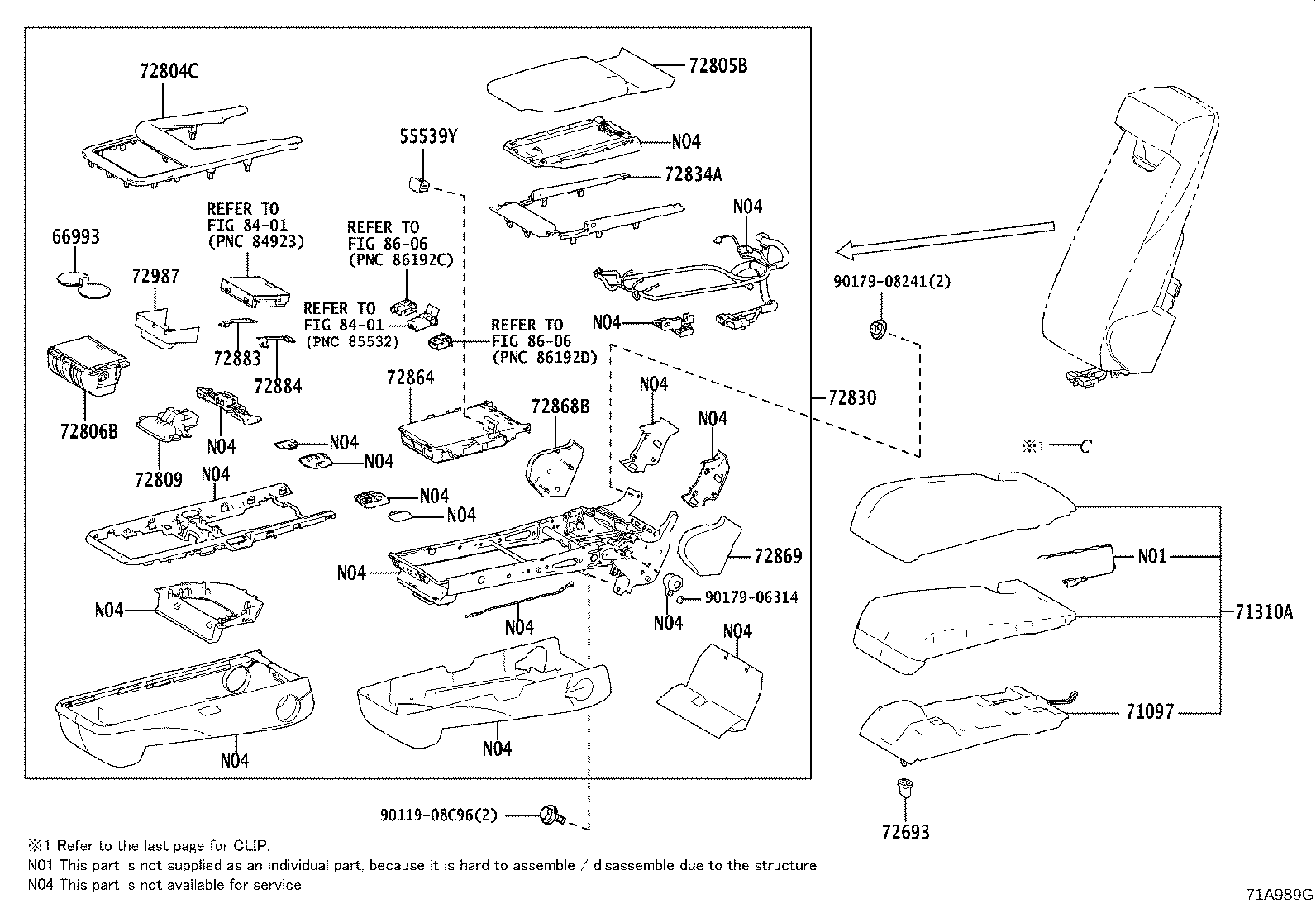

71281A Hinge, Rear Seat Center Armrest
71310A Cushion Assy, Center Seat
71398A Holder, Rear Seatback
71503B Pad Sub-assy, Rear Seat Cushion, RH
71504 Pad Sub-assy, Rear Seat Cushion, LH
71507 Pad Sub-assy, Rear Seatback, RH
71508 Pad Sub-assy, Rear Seatback, LH
71611 Pad, Rear Seat Cushion
71611A Pad, Rear Seat Cushion, RH
71612A Pad, Rear Seat Cushion, LH
71651B Pad, Rear Seatback(FOR BENCH TYPE)
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71891 Bracket, Rear Seatback Set, NO.1
71892 Bracket, Rear Seatback Set, NO.2
71907A Adjuster Sub-assy, Rear Seat Headrest, NO.1
71907B Adjuster Sub-assy, Rear Seat Headrest, NO.2
71931A Support, Rear Seat Headrest
71940B Headrest Assy, Rear Seat, RH
71950D Headrest Assy, Rear Seat, LH
71956B Support, Rear Seat Headrest
71960B Headrest Assy, Rear Seat, Center
72030 Adjuster Assy, Rear NO.1 Seat
72040 Adjuster Assy, Rear NO.2 Seat
72071D Pump Sub-assy, Lumber Support, RH
72072B Pump Sub-assy, Lumber Support, LH
72073 Adjuster Sub-assy, Rear Seat Reclining, RH
72074 Adjuster Sub-assy, Rear Seat Reclining, LH
72075B Arm Sub-assy, Rear Seat Legrest, RH
72076C Arm Sub-assy, Rear Seat Legrest, LH
72658B Knob, Rear Seat Lock Handle
72693 Hook, Rear Seat Cushion Lock
72693D Hook, Rear Seat Cushion Lock, RH
72693E Hook, Rear Seat Cushion Lock, LH
72710F Adjuster Assy, NO.1 Seat Reclining, RH
72720C Adjuster Assy, NO.1 Seat Reclining, LH
72750G Adjuster Assy, Lumbar Support, RH
72760G Adjuster Assy, Lumbar Support, LH
72803D Panel Sub-assy, Rear Seat Center Armrest
72804C Panel Sub-assy, Rear Seat Center Armrest, NO.2
72805B Door Sub-assy, Rear Seat Center Armrest
72806B Holder Sub-assy, Rear Seat Center Armrest Cup
72809 Lock Sub-assy, Center Armrest
72830 Armrest Assy, Rear Seat, Center
72832B Plate, Rear Seat Armrest
72834 Panel, Rear Seat Center Armrest, NO.2
72834A Panel, Rear Seat Center Armrest, NO.3
72839 Shim, Rear Seat Armrest Hinge
72848A Cap, Seat Armrest, NO.1
72864 Box, Rear Seat Center Armrest, NO.2
72868B Cover, Center Armrest Hinge
72869 Cover, Center Armrest Hinge, LH
72883 Bracket, Rear Seat Center Armrest, RH
72884 Bracket, Rear Seat Center Armrest, LH
72987 Cover, Rear Seat Center Armrest
72996 Cover, Rear Seatback, RH
72997 Cover, Rear Seatback, LH
73172C Cap, Rear Shoulder Belt Hanger
73505B Panel Sub-assy, Rear Seat Sub, RH
73505C Panel Sub-assy, Rear Seat Sub, LH
73705 Bracket Sub-assy, Child Restraint Seat Anchor, RH
73706 Bracket Sub-assy, Child Restraint Seat Anchor, LH
73707A Bracket Sub-assy, Child Restraint Seat Anchor, Inner RH
73707B Bracket Sub-assy, Child Restraint Seat Anchor, Inner LH
73930A Airbag Assy, Rear Seat, RH
73940A Airbag Assy, Rear Seat, LH
739A0 Airbag Assy, Rear Seat Cushion, RH
739B0 Airbag Assy, Rear Seat Cushion, LH
77278H Valve, Check W/Hose, RH(FOR SEAT CUSHION)
77278J Valve, Check W/Hose, LH(FOR SEAT CUSHION)
77278K Valve, Check W/Bracket, RH(FOR SEATBACK)
77278L Valve, Check W/Bracket, LH(FOR SEATBACK)
77278M Valve, Check W/Hose, RH NO.1(FOR SEATBACK)
77278N Valve, Check W/Hose, LH NO.1(FOR SEATBACK)
77278P Valve, Check W/Hose, RH NO.2(FOR SEATBACK)
77278Q Valve, Check W/Hose, LH NO.2(FOR SEATBACK)
78650 Legrest Assy, Rear Seat
78650A Legrest Assy, Rear Seat
78656 Cover, Rear Seat Legrest
78656A Cover, Rear Seat Legrest
78656J Cover, Rear Seat Legrest, RH
78656K Cover, Rear Seat Legrest, LH
78754 Bracket, Sub Seatback
79255D Support, Rear Seatback, RH
79255E Support, Rear Seatback, LH
87501E Control Sub-assy, Seat Heater, RH
87501F Control Sub-assy, Seat Heater, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
