Toyota Lexus LS Series

2017-10 → present · chassis GSF50,GVF5#,VXFA55 · catalogue 431560 · Europe

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

14 part groups · 3 illustrations

Illustrations

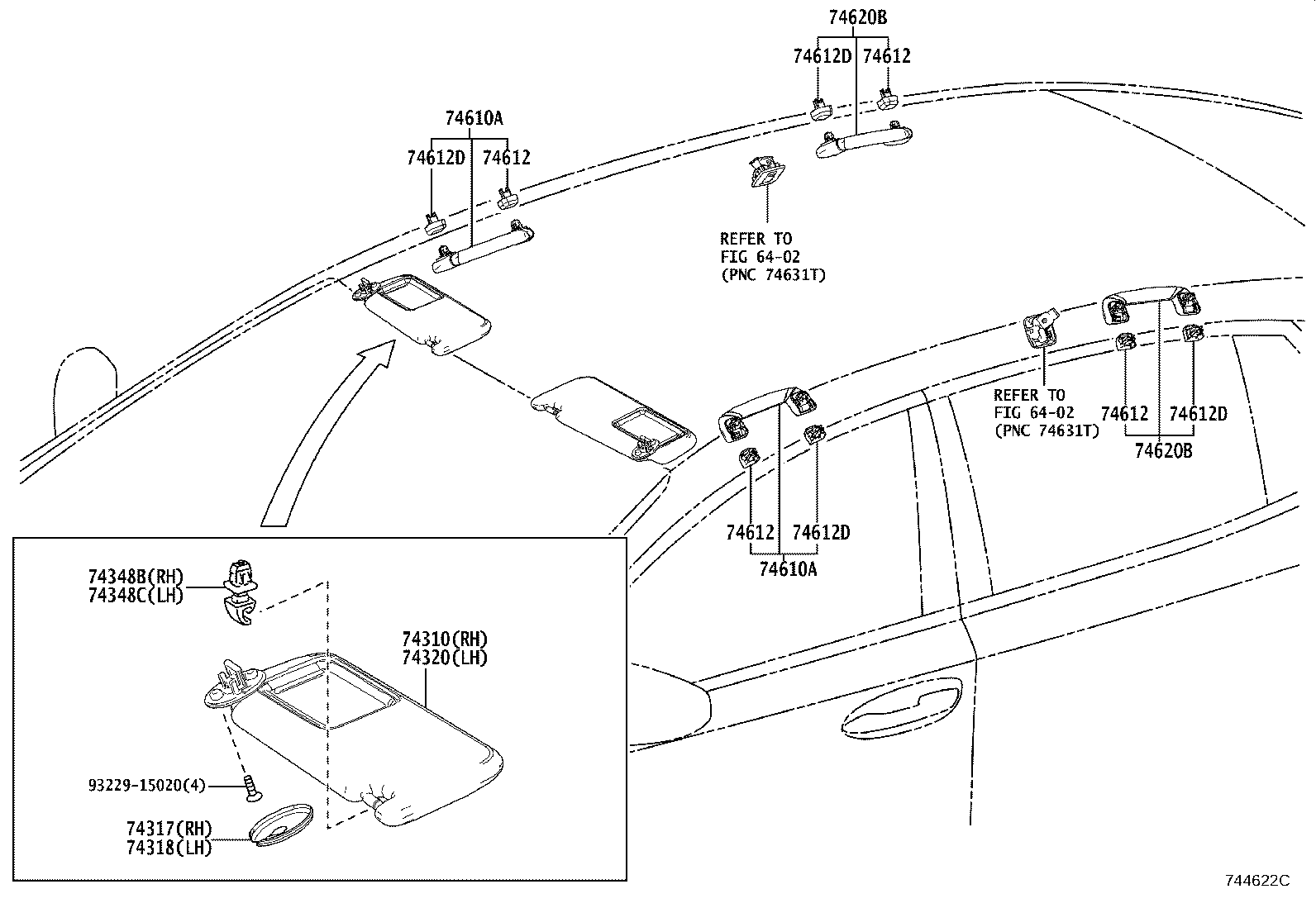

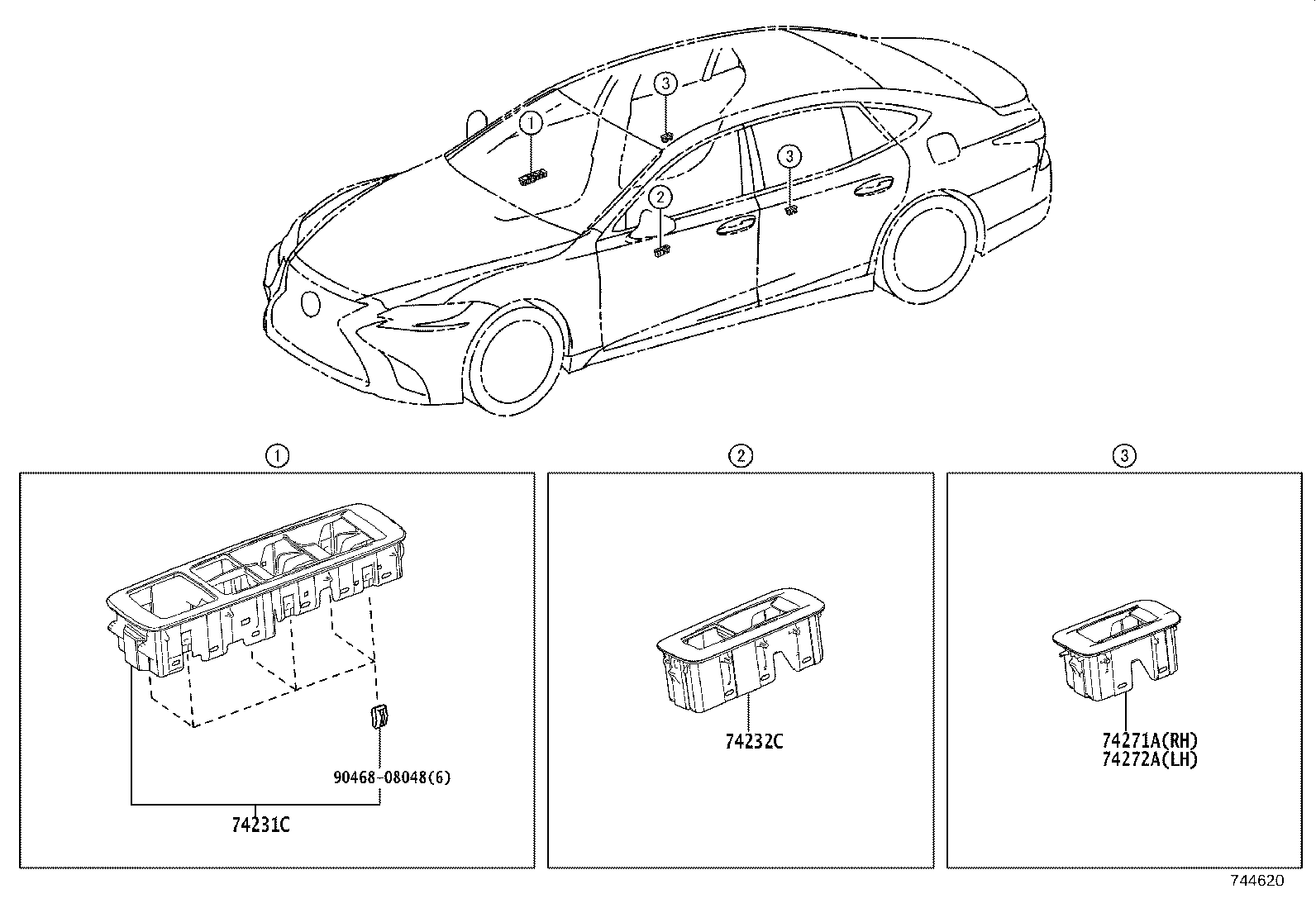

Figure 744621 744621 2017-10 → — Figure 744620 744620 2017-10 → — Figure 744622C 744622C 2017-10 → —

Part groups

PNCDescription
74231C Panel, Front Door Armrest Base, Upper Driver Side
74232C Panel, Front Door Armrest Base, Upper Passenger Side
74271A Panel, Rear Door Armrest Base, Upper RH
74272A Panel, Rear Door Armrest Base, Upper LH
74310 Visor Assy, RH
74317 Cover, Visor Bracket, RH
74318 Cover, Visor Bracket, LH
74320 Visor Assy, LH
74348B Holder, Visor, RH
74348C Holder, Visor, LH
74610A Grip Sub-assy, Assist
74612 Cover, Assist Grip
74612D Cover, Assist Grip
74620B Grip Assy, Assist, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
