Fuel Tank & Tube

98 part groups · 11 illustrations

Illustrations

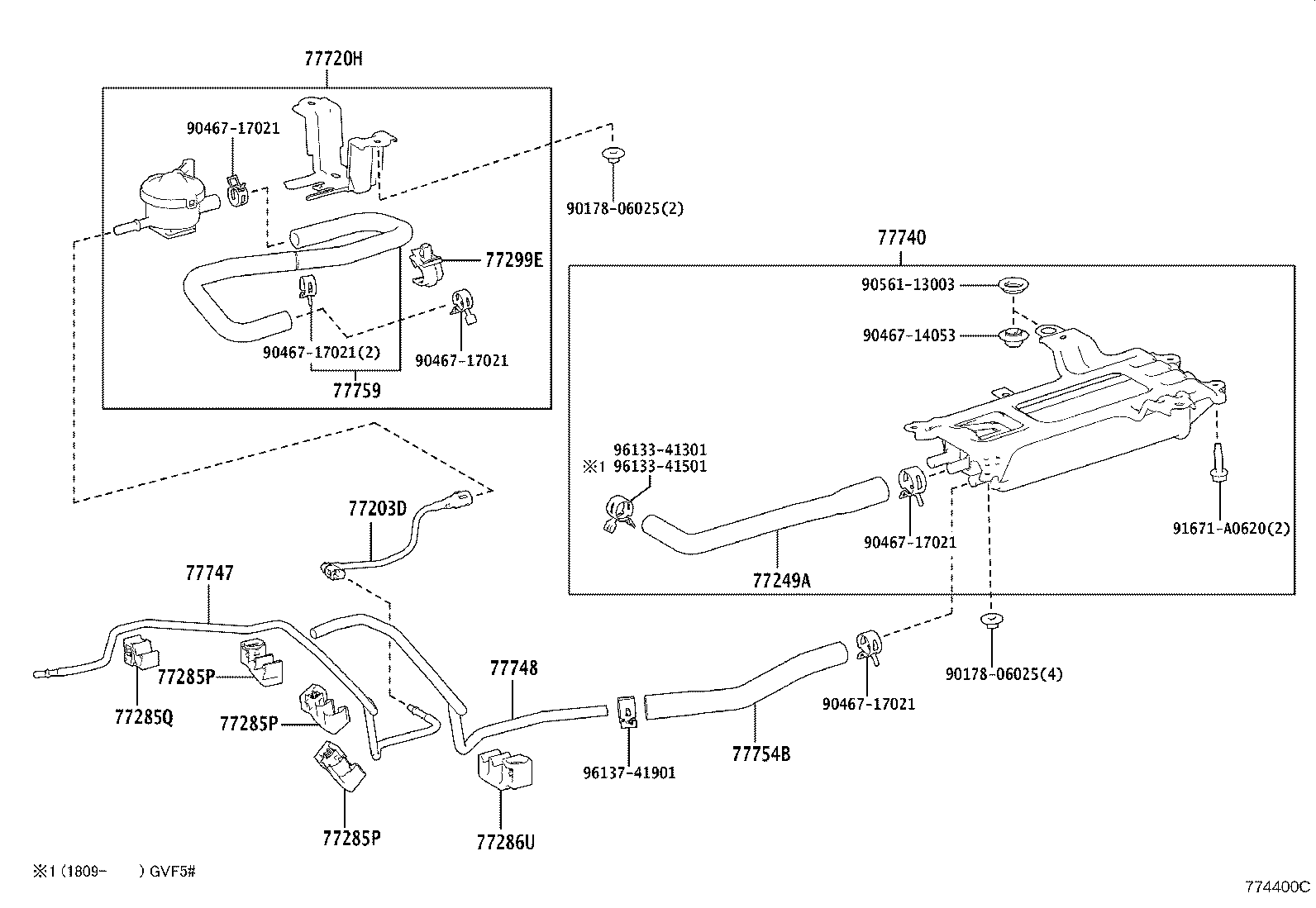

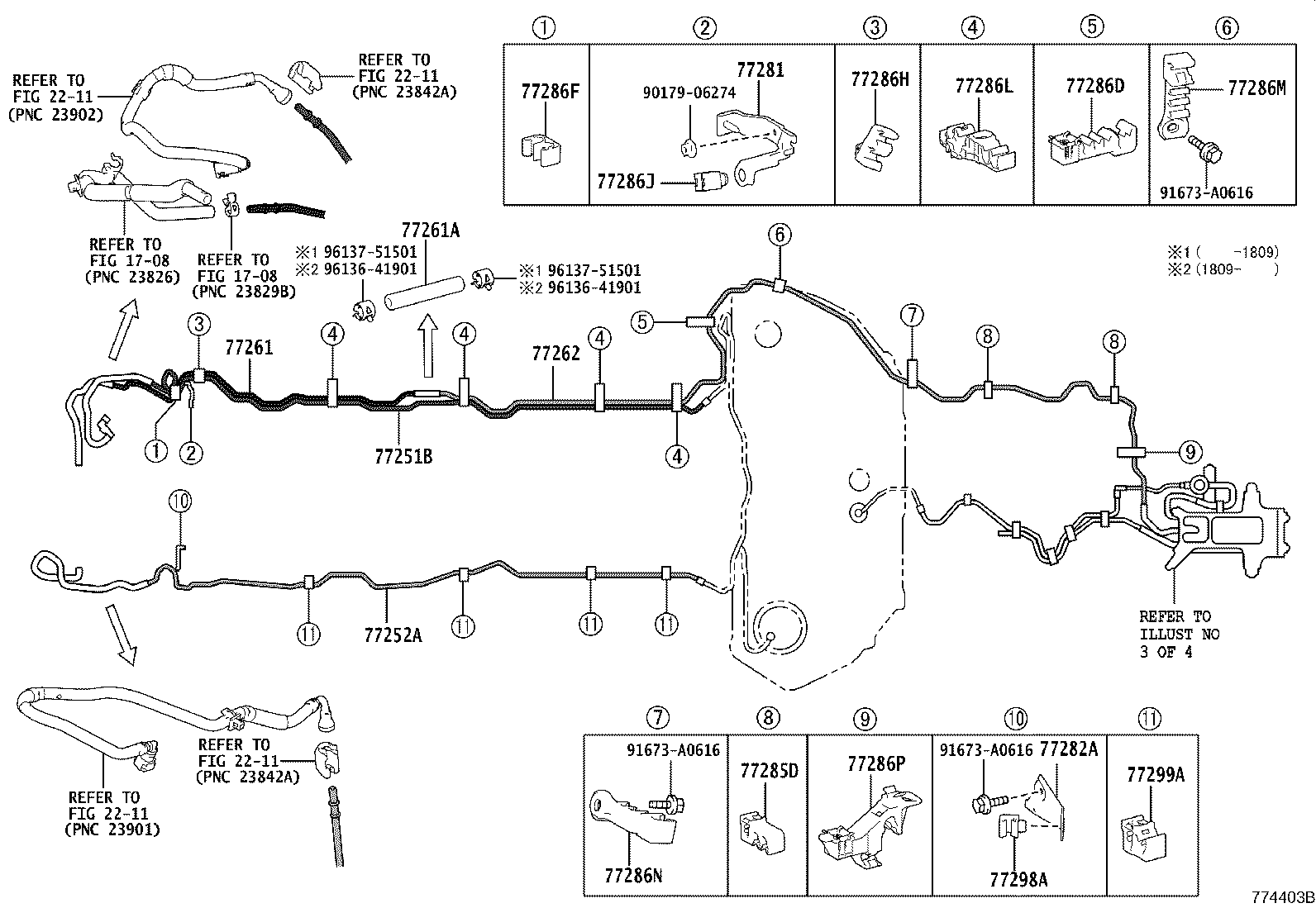

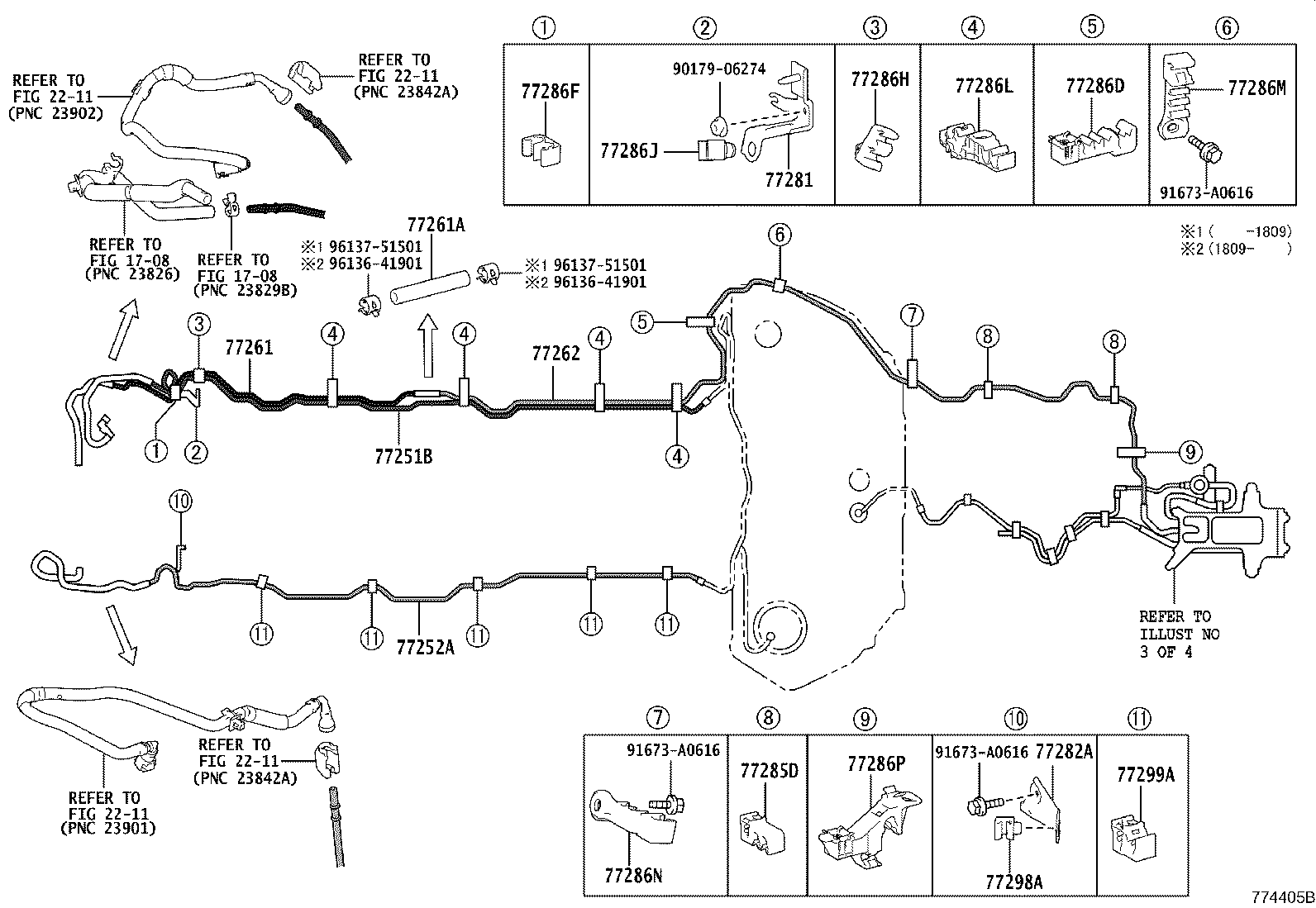

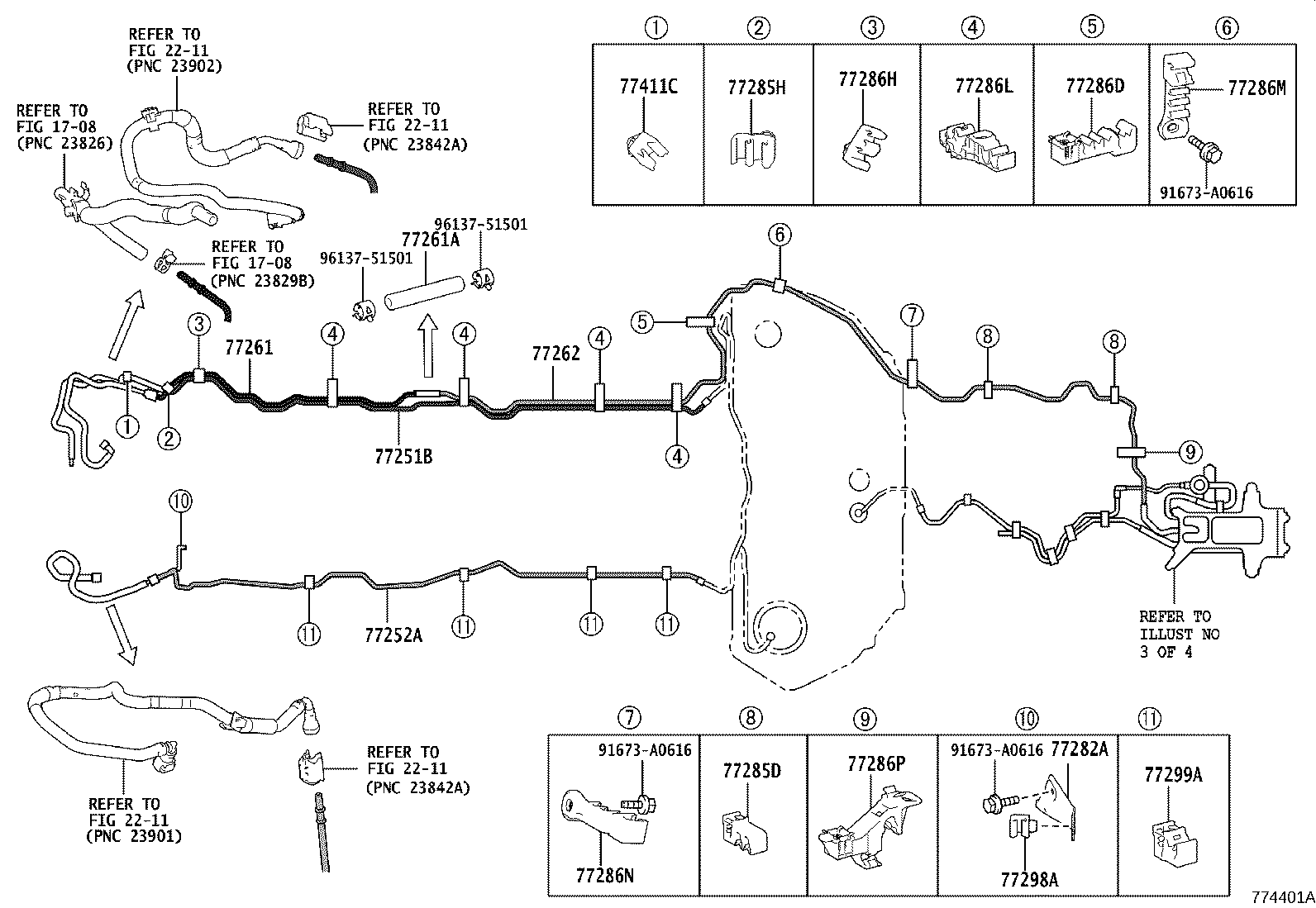

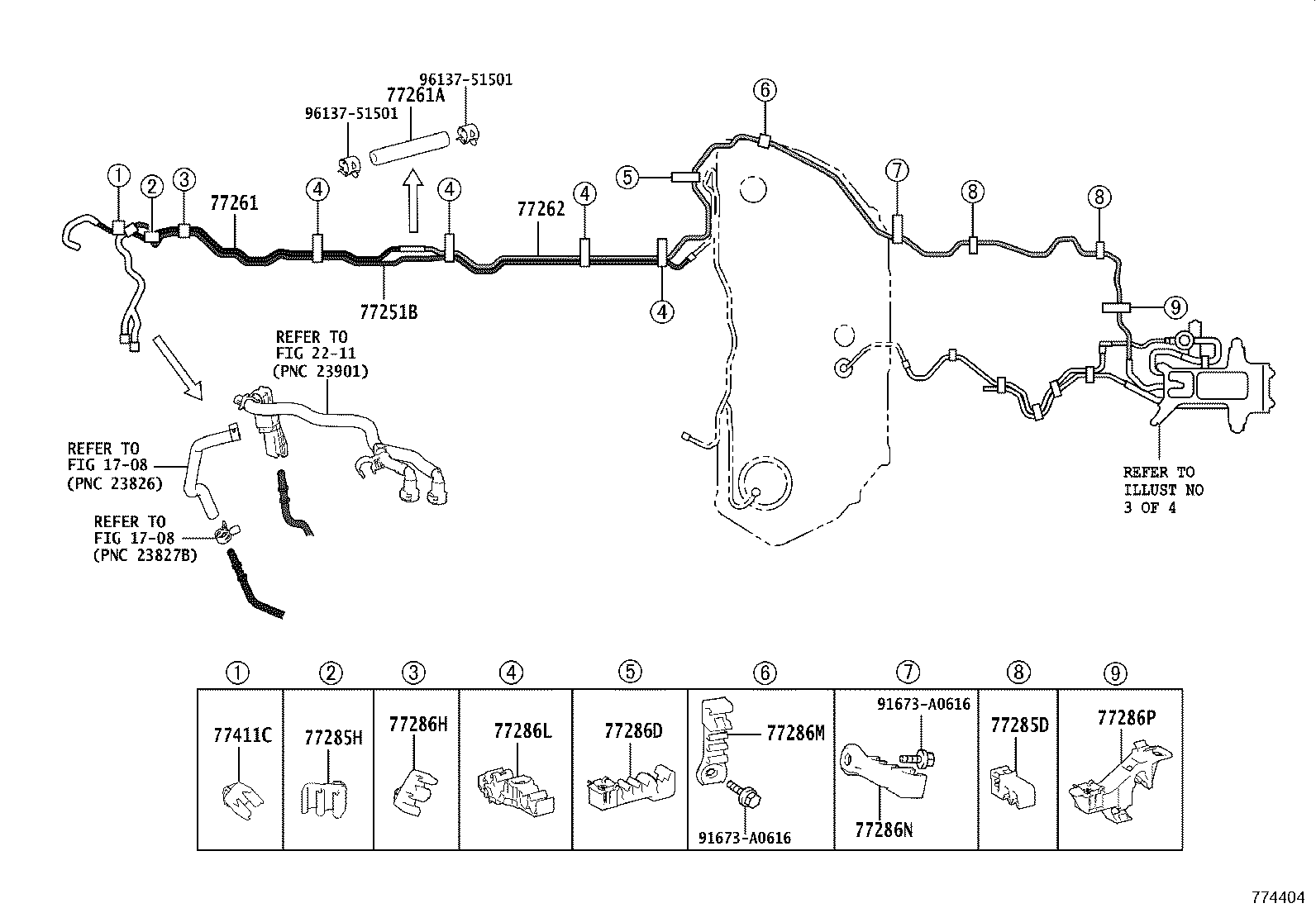

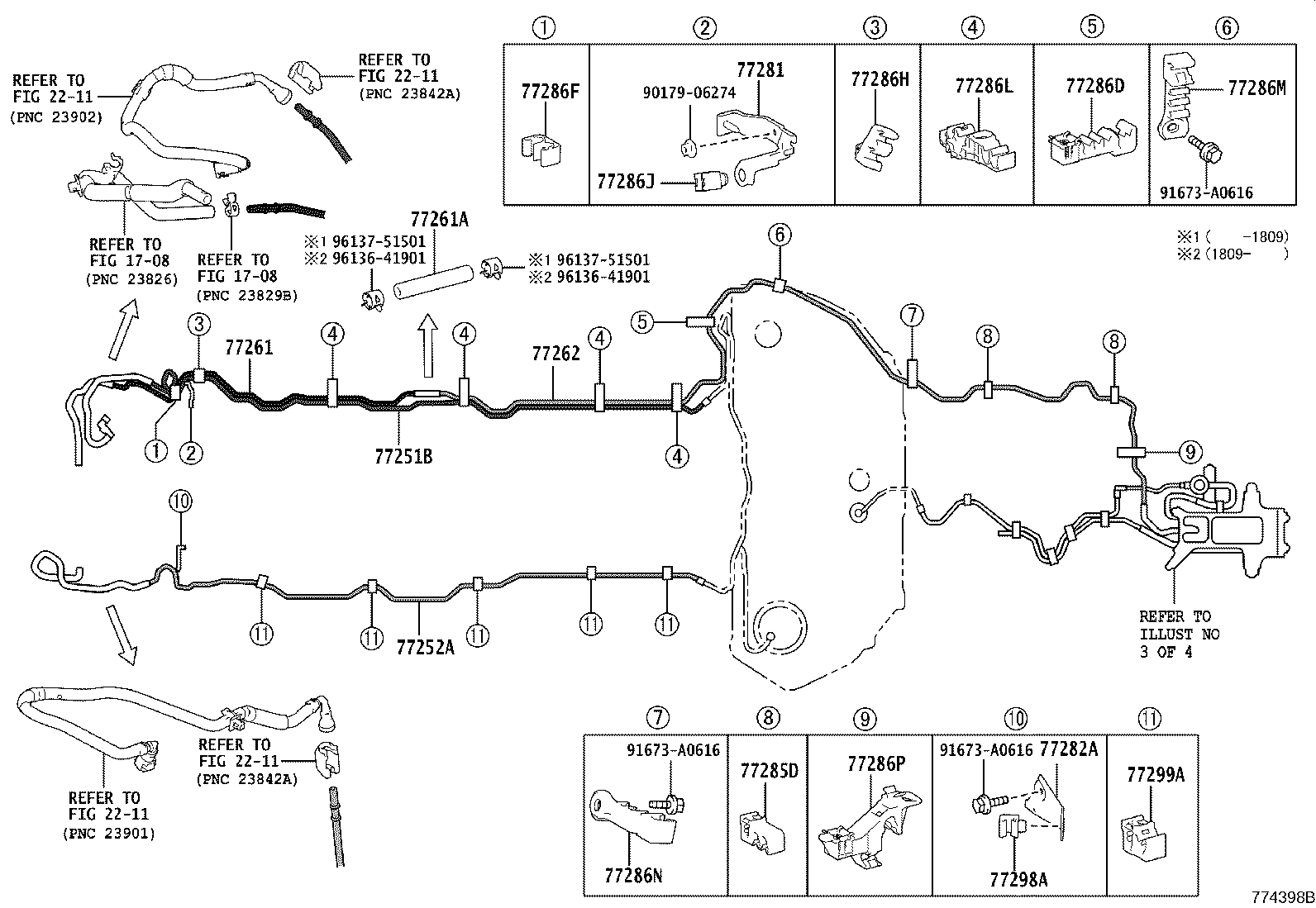

774400C 2017-10 → 2023-10

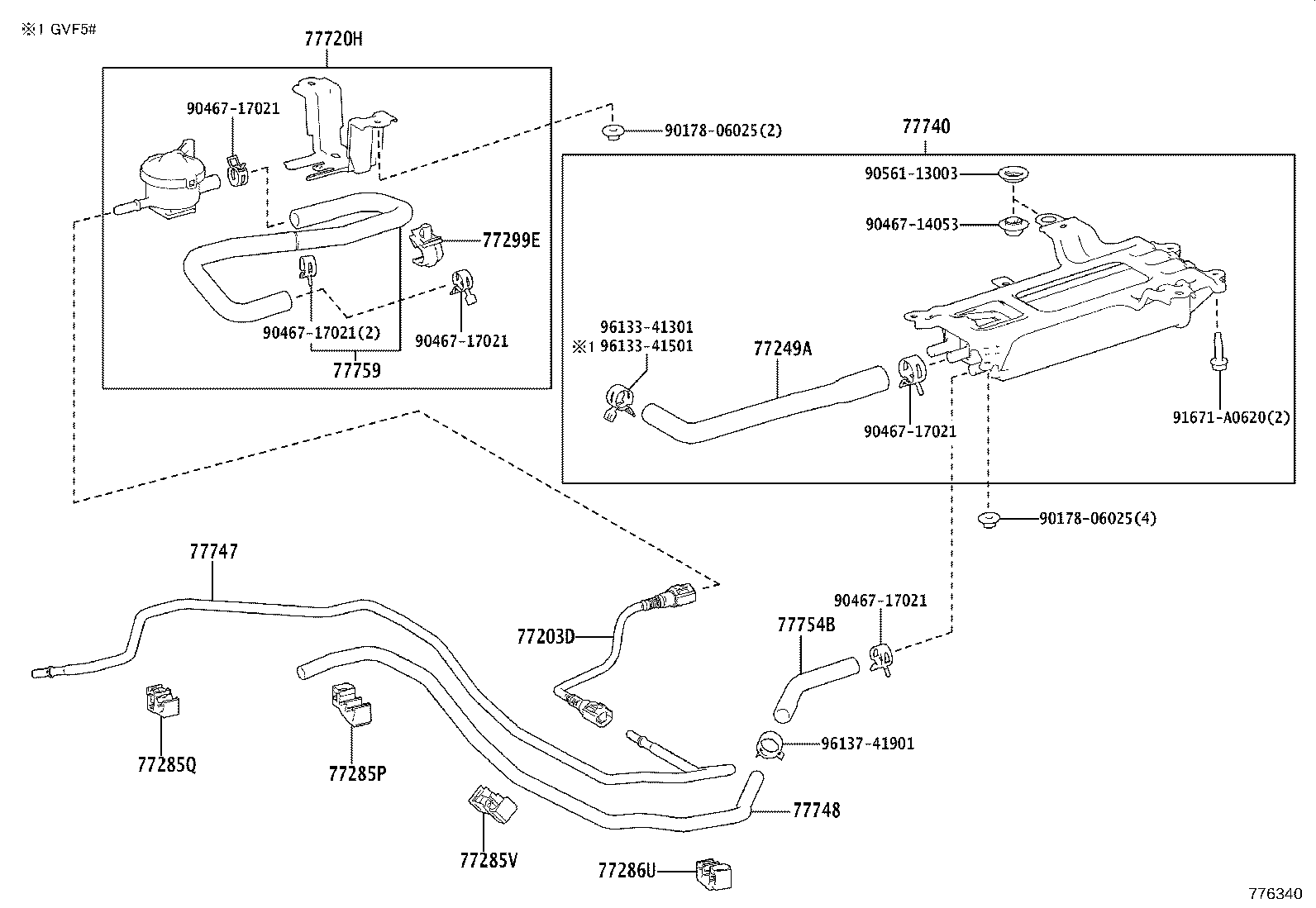

776340 2023-10 → —

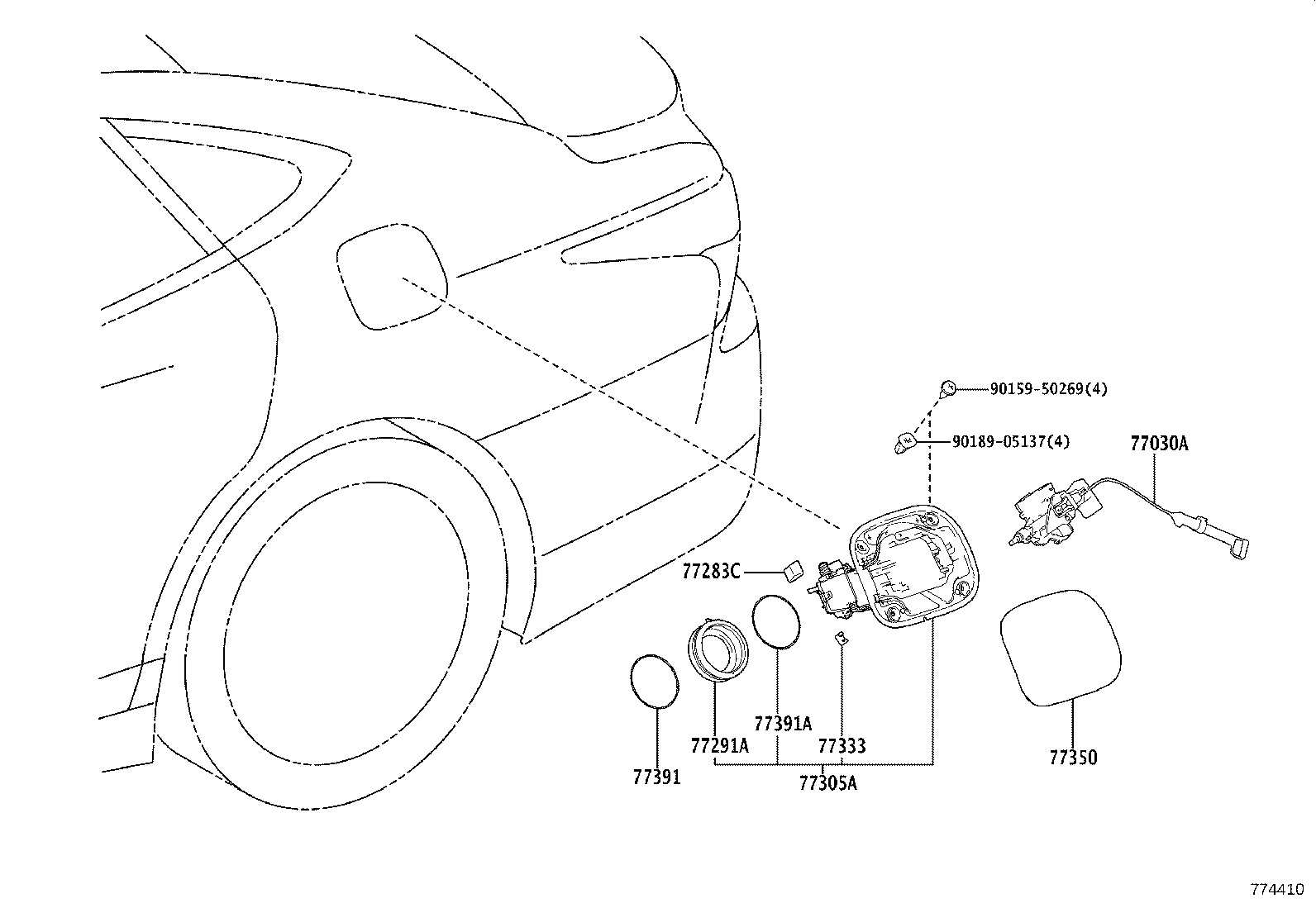

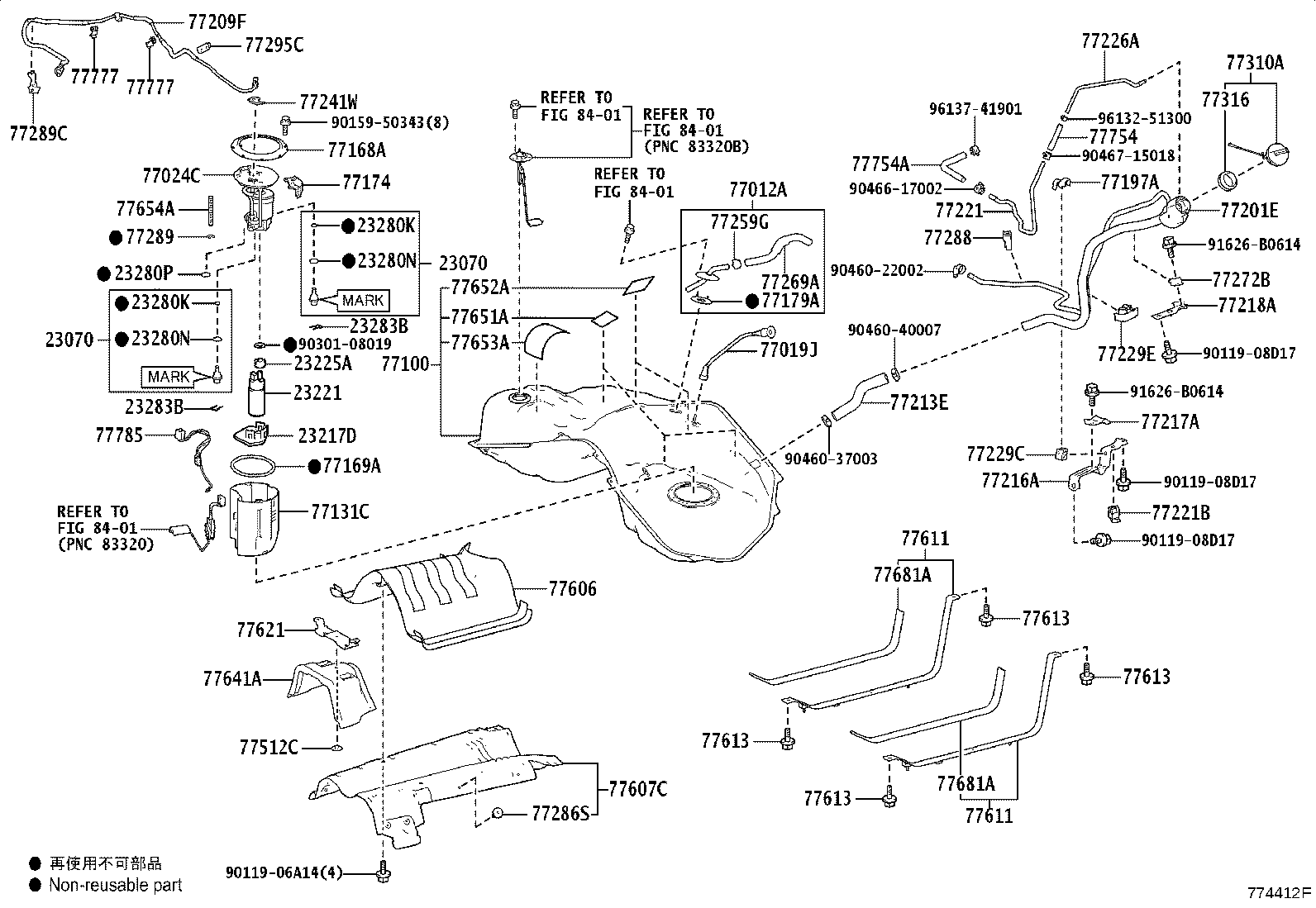

774410 2017-10 → —

Part groups

PNC	Description
23070	Valve Assy, Fuel Main
23217D	Filter, Fuel Pump
23221	Pump, Fuel
23225A	Spacer, Fuel Pump
23280K	Ring, O(FOR FUEL PRESSURE REGULATOR)
23280N	Ring, O(FOR FUEL PRESSURE REGULATOR), NO.2
23280P	Ring, O(FOR FUEL PRESSURE REGULATOR), NO.3
23283B	Holder, Fuel Pressure Regulator
77012A	Tube Sub-assy, Fuel Tank Breather, NO.1
77019J	Tube Sub-assy, Fuel Tank TO Canister
77024C	Plate Sub-assy, Fuel Suction W/Fuel Filter
77030A	Lock Assy, Fuel Lid W/Motor
77100	Tank Assy, Fuel
77131C	Sub-tank, Fuel, NO.1
77168A	Plate, Fuel Tank Vent Tube Set
77169A	Gasket, Fuel Suction Tube Set
77174	Support, Fuel Suction, NO.1
77179A	Gasket, Fuel Tank Breather Tube
77197A	Clamp, Evaporation Vent Tube, NO.2
77201E	Pipe Sub-assy, Fuel Tank Filler
77203D	Tube Sub-assy, Fuel Tank Breather
77209F	Tube Sub-assy, Fuel Tank Main
77213E	Hose, Fuel Tank TO Filler Pipe
77216A	Support, Fuel Tank Filler Pipe, NO.1
77217A	Support, Fuel Tank Filler Pipe, NO.2
77218A	Support, Fuel Tank Filler Pipe, NO.3
77221	Tube, Fuel Tank Breather, NO.1
77221B	Clamp, Breathr Tube
77226A	Tube, Fuel Tank Breather, NO.6
77229C	Clamp, Breather Tube
77229E	Clamp, Breather Tube
77241W	Clip, Tube Joint
77249A	Hose, Fuel Emission
77251B	Tube, Fuel Main
77252A	Tube, Fuel Main, NO.2
77259G	Clip, Fuel Hose
77261	Tube Sub-assy, Fuel Emission
77261A	Hose, Fuel, NO.1 (FOR FUEL EMISSION TUBE)
77262	Tube, Fuel Emission, NO.2
77269A	Hose, Fuel Tank Breather
77272B	Support, Breather Tube, NO.1
77281	Bracket, Fuel Main Tube, NO.1
77282A	Bracket, Fuel Main Tube, NO.2
77283C	Bracket, Fuel Tank Protector
77285D	Clamp, Fuel Tube, NO.1
77285H	Clamp, Fuel Tube, NO.1
77285P	Clamp, NO.1(FOR CHARCOAL CANISTER PIPE)
77285Q	Clamp, NO.2(FOR CHARCOAL CANISTER PIPE)
77285V	Clamp, NO.3 (FOR CHARCOAL CANISTER PIPE)
77286D	Clamp, Fuel Tube, NO.2
77286F	Clamp, Fuel Tube, NO.2
77286H	Clamp, Fuel Tube, NO.3
77286J	Clamp, Fuel Tube, NO.4
77286L	Clamp, Fuel Tube, NO.5
77286M	Clamp, Fuel Tube, NO.6
77286N	Clamp, Fuel Tube, NO.7
77286P	Clamp, Fuel Tube, NO.8
77286S	Cushion, Fuel Tank Protector
77286U	Clamp(FOR CHARCOAL CANISTER PIPE)
77288	Clamp, Breather Hose
77289	Holder, Fuel Tank Pipe Setting
77289B	Clamp, Fuel Tube, NO.3
77289C	Clamp, Fuel Tube, NO.4
77291A	Shield, Fuel Tank Filler Pipe
77295C	Grommet, Fuel Tube
77298A	Clamp, Fuel Tube, NO.4
77299A	Clamp, Fuel Tube, NO.5
77299E	Clamp (FOR CHARCOAL CANISTER PIPE)
77305A	Lid Sub-assy, Fuel Filler Opening
77310A	Cap Assy, Fuel Tank
77316	Gasket, Fuel Tank Cap
77333	Clip, Fuel Lid Switch
77350	Lid Assy, Fuel Filler Opening
77391	Ring, Fuel Inlet Box
77391A	Ring, Fuel Inlet Box
77411C	Support, Fuel Tube Grommet, NO.1
77512C	Bracket, Fuel Tank
77606	Protector Sub-assy, Fuel Tank, NO.1
77607C	Protector Sub-assy, Fuel Tank, NO.2
77611	Band, Fuel Tank
77613	Bolt, Fuel Tank Band Set
77621	Bracket, Fuel Tank Protector
77641A	Protector, Fuel Tank, NO.1
77651A	Cushion, Fuel Tank, NO.1
77652A	Cushion, Fuel Tank, NO.2
77653A	Cushion, Fuel Tank, NO.3
77654A	Cushion, Fuel Tank, NO.4
77681A	Seat, Fuel Tank Band
77720H	Valve Assy, Fuel Outlet
77740	Canister Assy, Charcoal
77747	Pipe, Charcoal Canister, NO.1
77748	Pipe, Charcoal Canister, NO.2
77754	Hose, Charcoal Canister Outlet, NO.1
77754A	Hose, Charcoal Canister Outlet, NO.2
77754B	Hose, Charcoal Canister Outlet
77759	Hose, Charcoal Canister
77777	Bracket, Fuel Tube Clamp
77785	Harness, Fuel Pump

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
